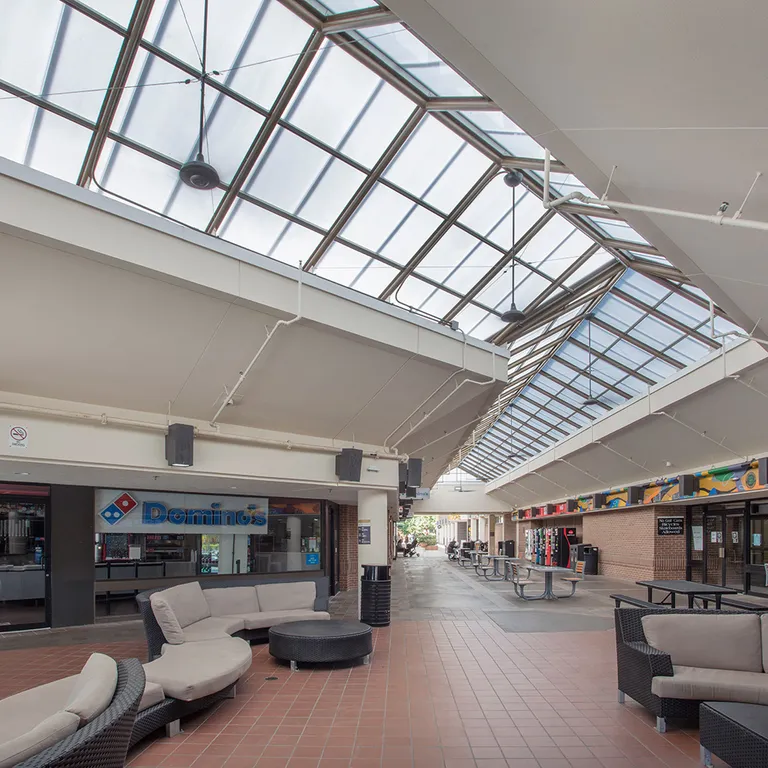

QuadSpan™ Polycarbonate SkylightsQuadSpan™ two panel translucent skylights.
)
)
)
)
)
)
Product Information
QuadSpan™ translucent polycarbonate skylights feature an innovative two panel design that enhances thermal performance and provides soft, diffuse sunlight to building interiors. Glazing panels are pre-assembled for easy installation and can span long distances, allowing for a clean look with less visible exterior framing, all while being significantly lighter than traditional glass skylights.
QuadSpan™ is available in a variety of configurations, is custom designed to fit your project’s needs, and is a great choice for new construction and renovation.
Product Highlights

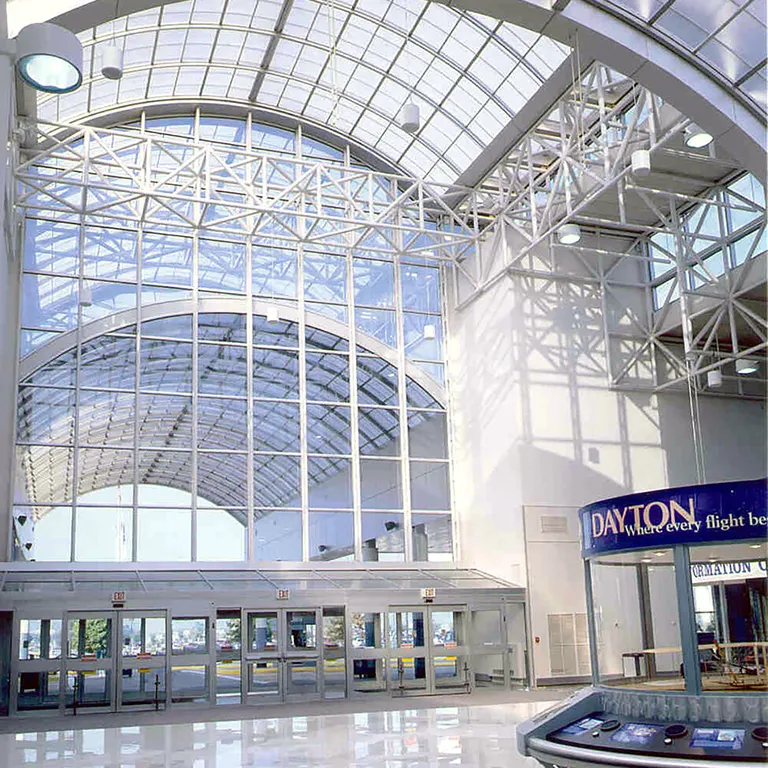

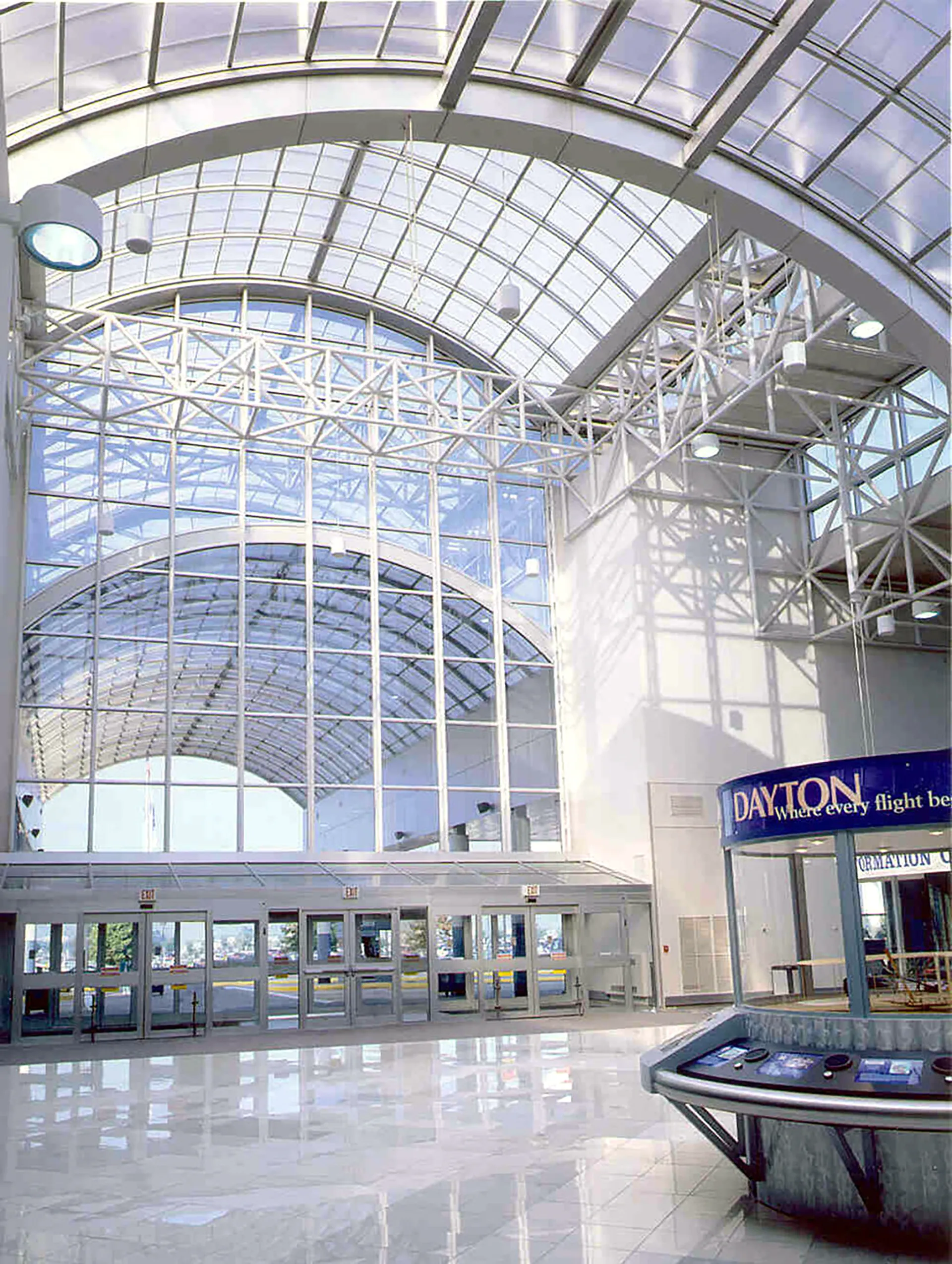

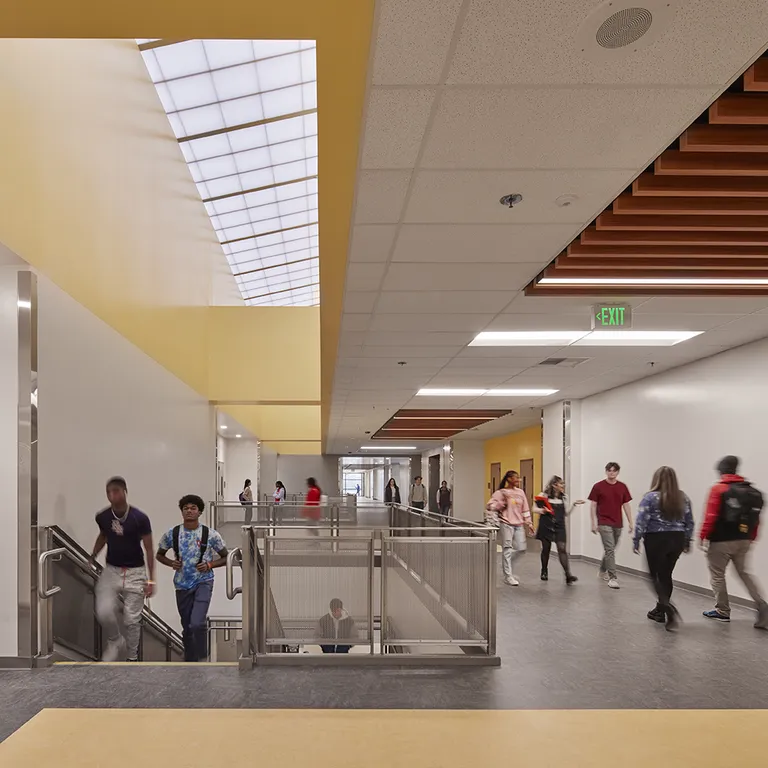

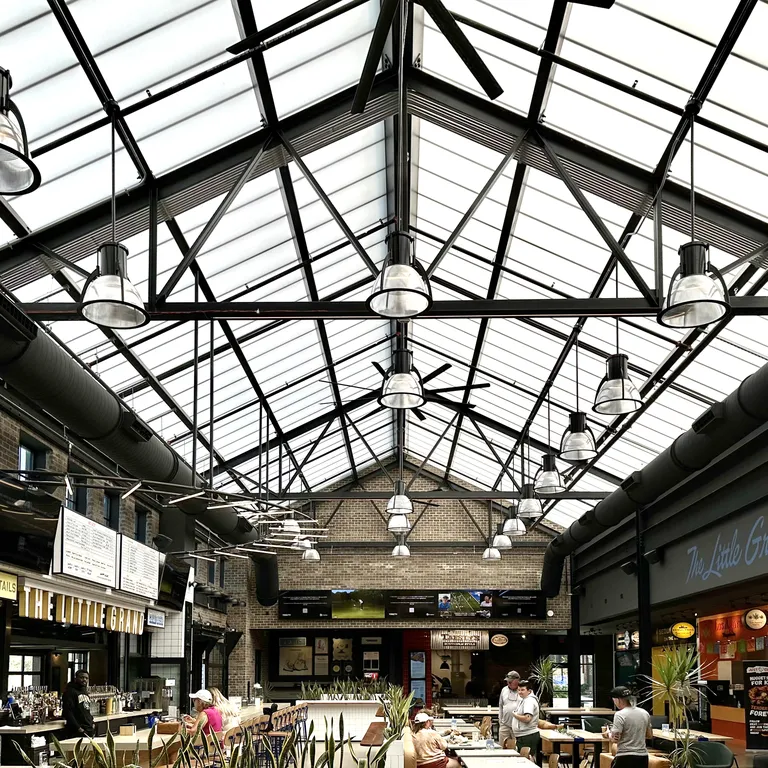

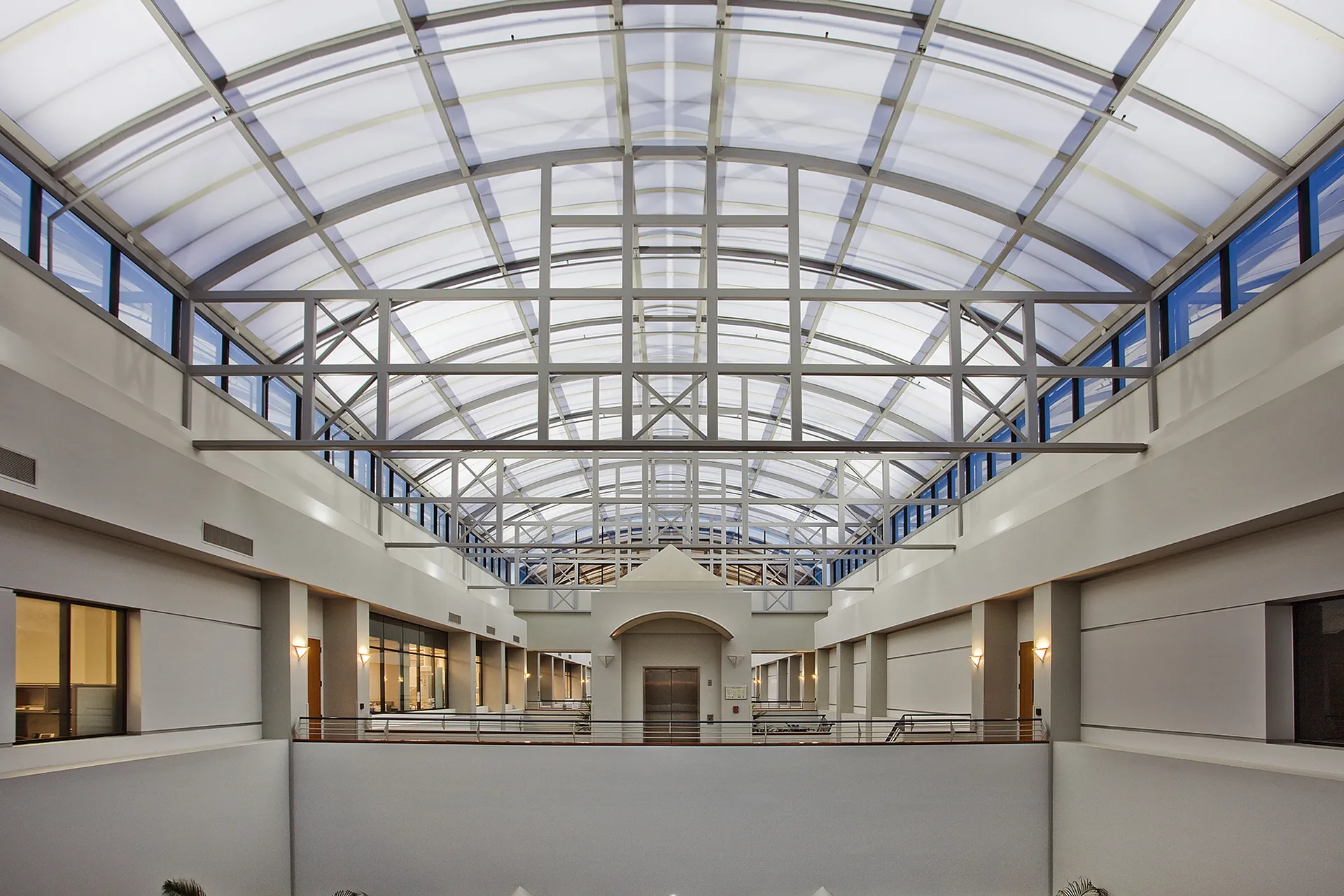

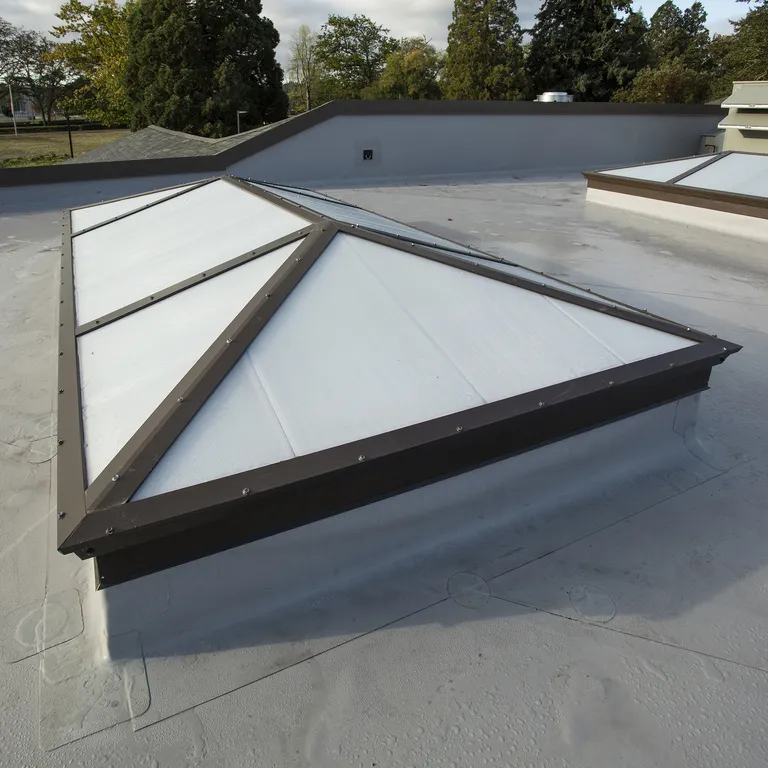

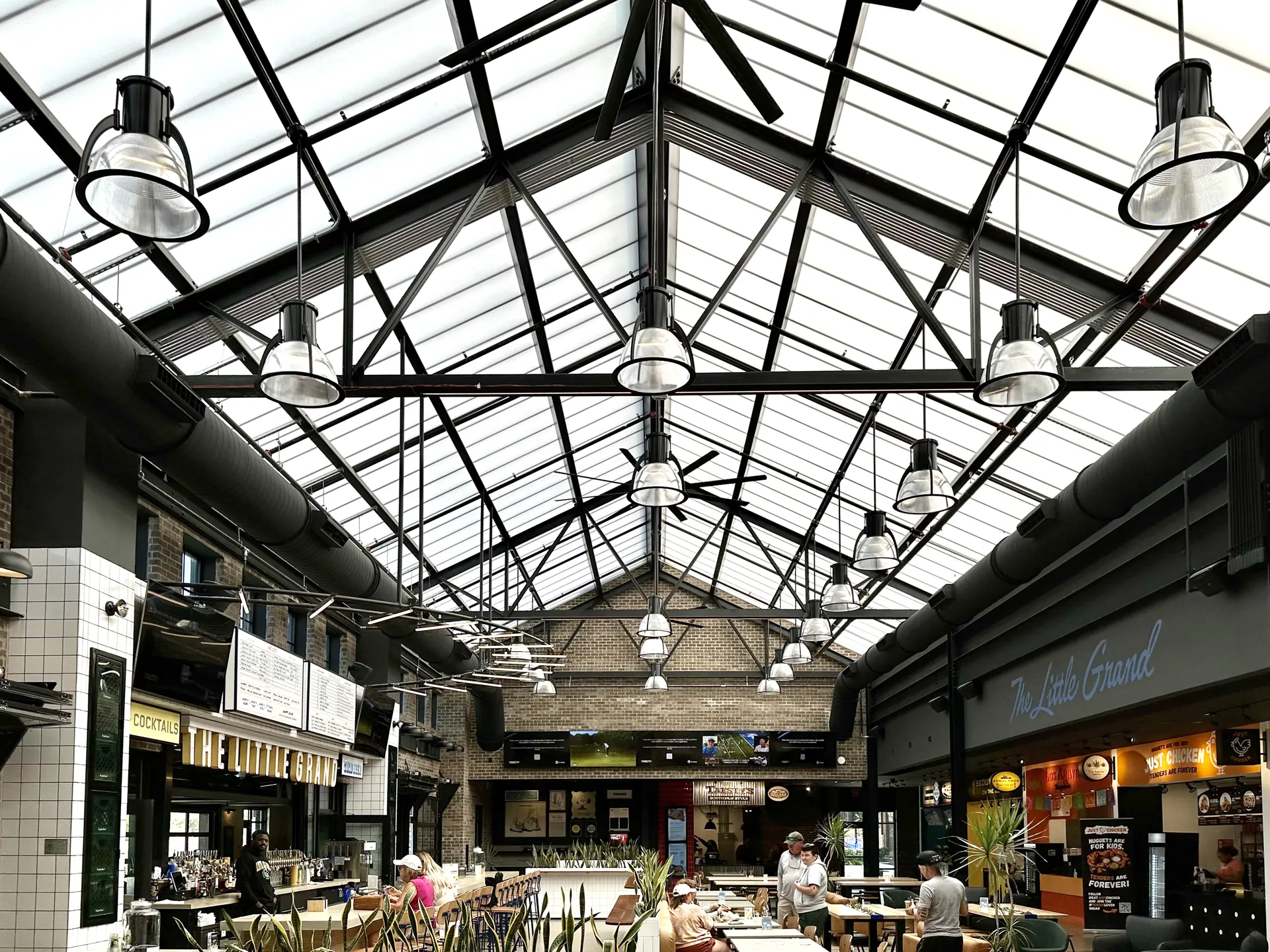

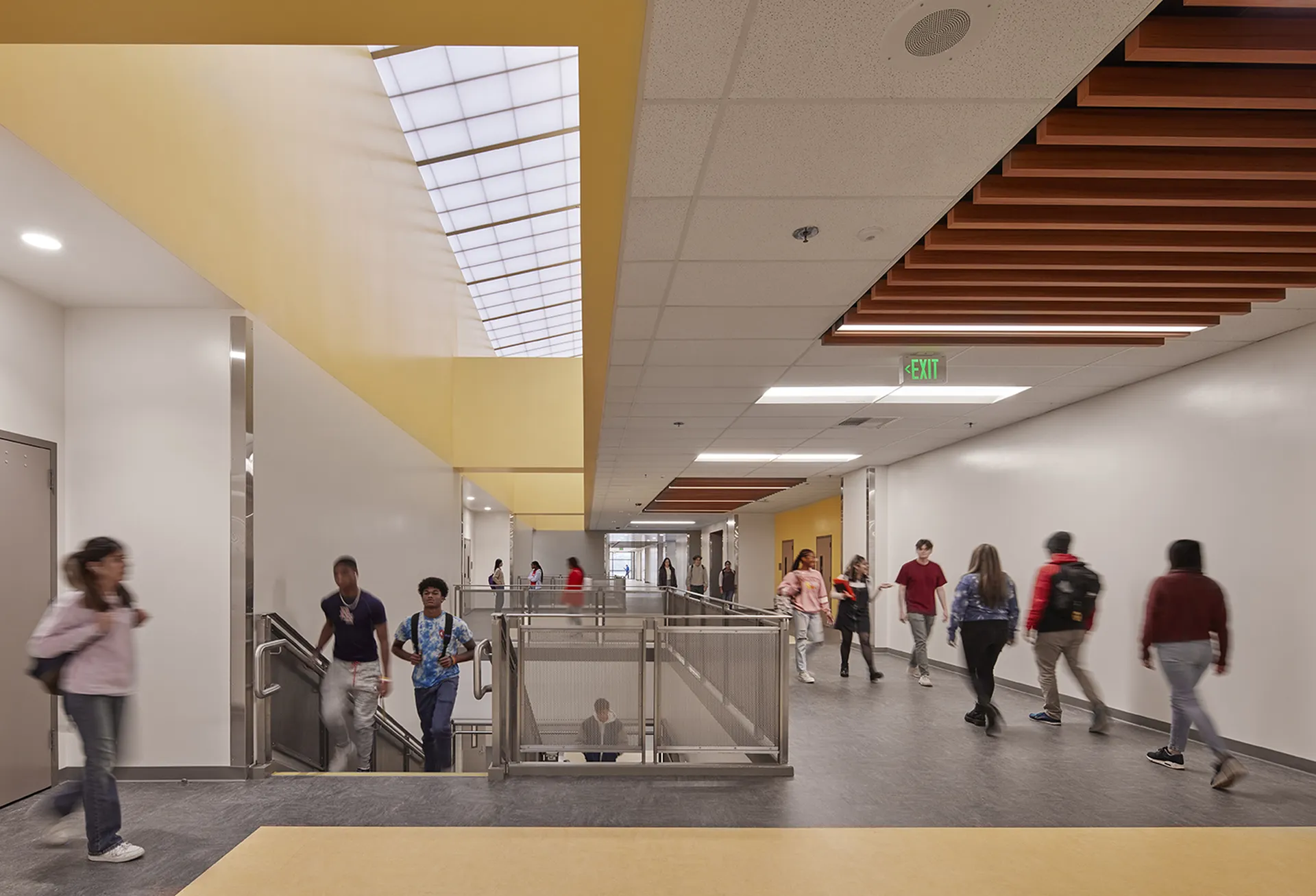

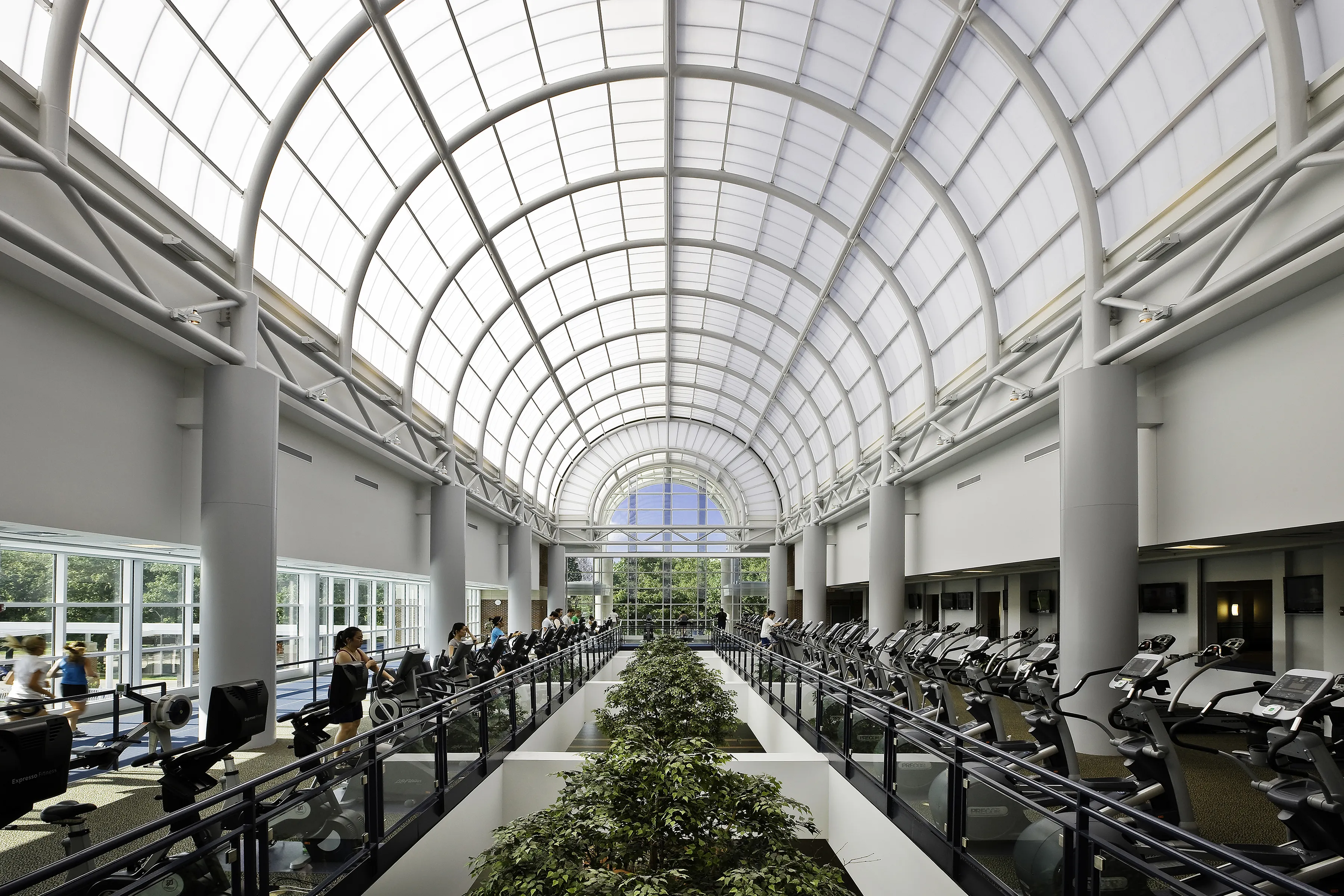

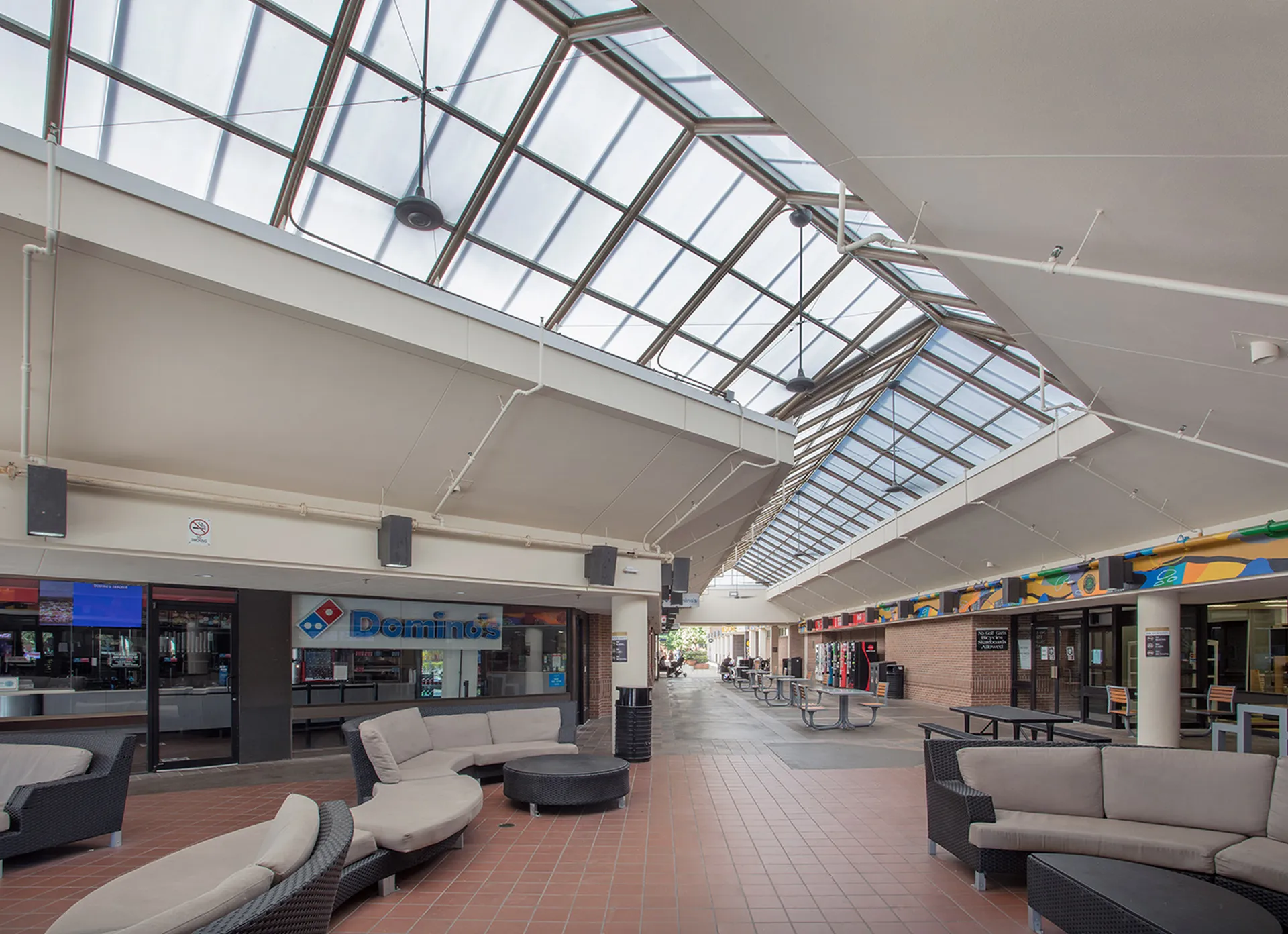

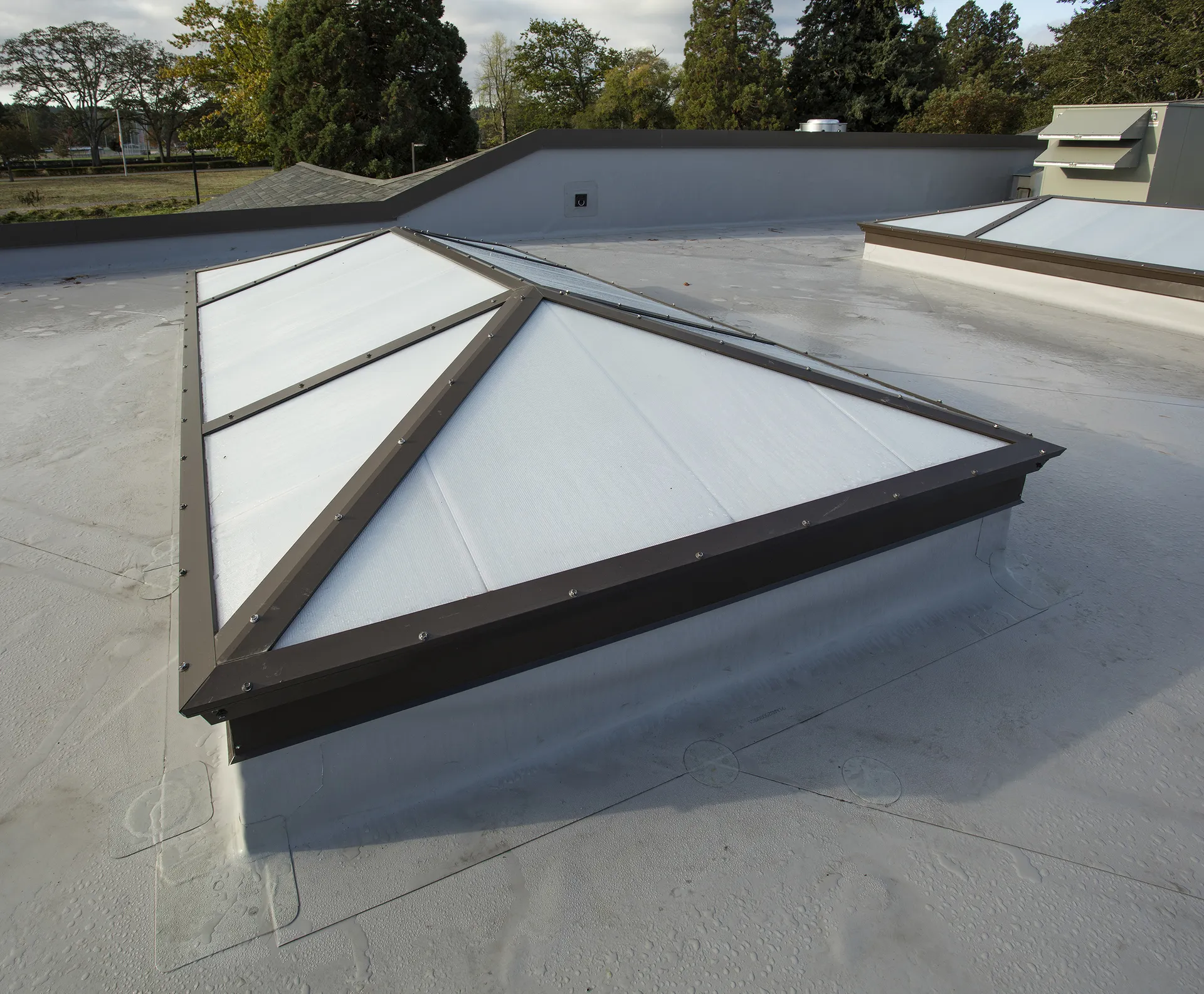

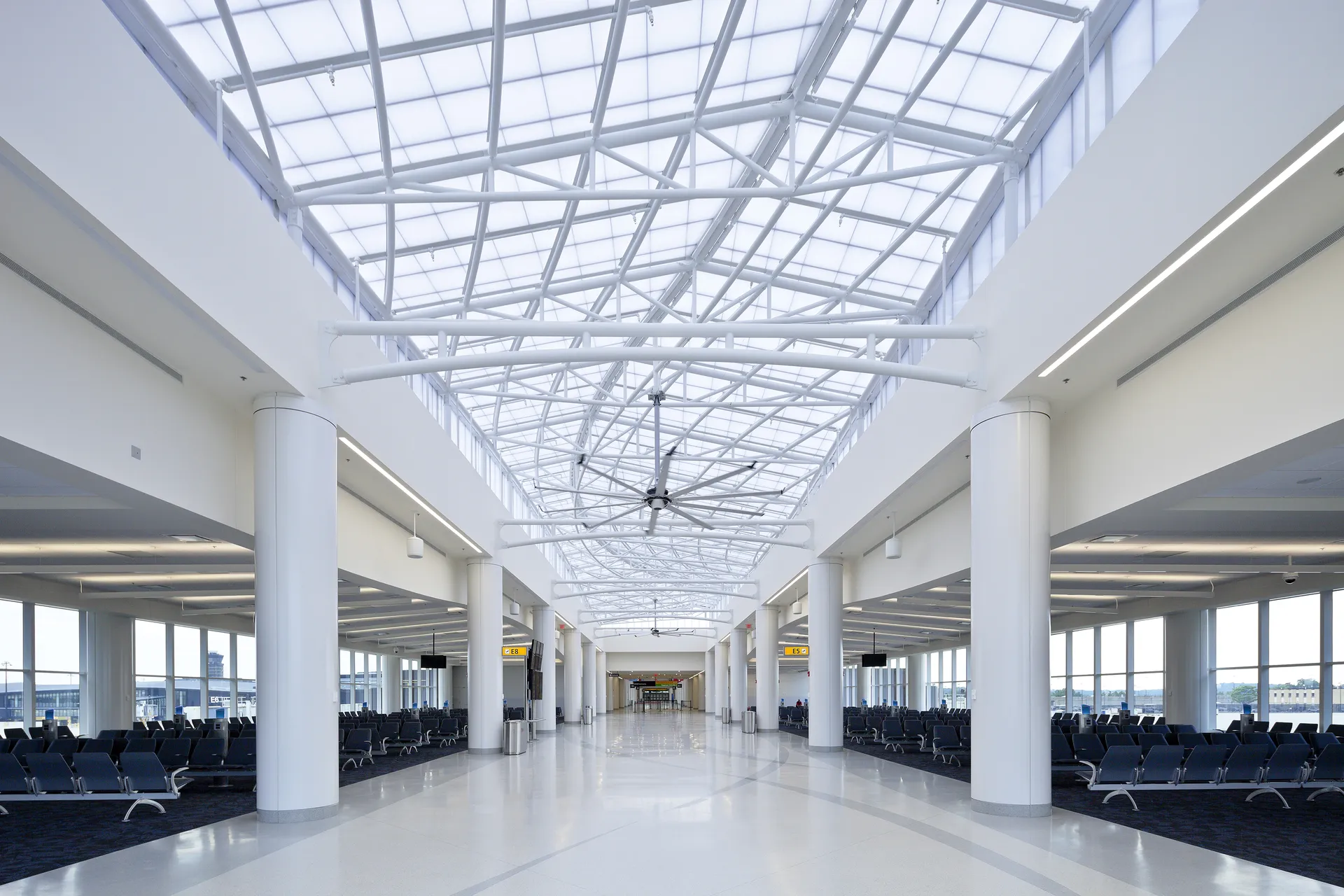

- Vaults, ridges, single slopes, pyramids, polygons, and curved domes available – plus fully custom shapes
- Removeable skin technology (RST) allows interior or exterior glazing to be replaced independently
- Long panel assemblies permit fast, easy installation
- Panels are pre-assembled for quality control and can be insulated for enhanced thermal protection
- Minimal exterior aluminum support members create a clean aesthetic
- Triple tooth glazing connection is able to withstand extreme loading
- Wide variety of standard colors with bi-color, custom colors and color matching available
- Class A Roof Assembly and sound reduction configurations are available
- Additional specialty options include High-velocity Hurricane Zone (HVHZ) and more
Technical Information
Dimensions
- Thickness: 2.75 in (70 mm) & 4 in (102 mm)
- Width: 23.75 in (600 mm)
- Panel Length: Up to 38 ft long - Contact us to check feasibility for longer applications.
- Panel Weight: 1.5-2 lbs/ft²
Base Options
- Technology: Removable Skin Technology (RST) - Allows for the removal of the exterior panel while the interior panel remains in place
- Panel Joint: Structural member, mechanically interlocking, sealed joint
- Exterior Skin: Nano-Cell® 10 mm translucent polycarbonate panel with Nano-Cell® extrusion
- Interior Skin: Nano-Cell® 8 mm translucent polycarbonate panel with Nano-Cell® extrusion
- Color Options:
- Standard (Matte) - Clear, White, Ice White,
- Non-standard (Non-matte or Matte) - Blue, Green, Reflective Gray (non-matte only), Gray, Bronze
(Note: Contact us for other available color options)
Performance data
- System U-Factor - NFRC Certified - 0.16 to 0.27 (4" panel)
- System SHGC - NFRC Certified - 0.20 to 0.38 (4" panel)
- VT - 0.10 to 0.37 (4" panel)
*Contact KLA for more detailed thermal performance information. Values subject to color selections and configuration.
Certifications & Test Results
- ASTM D635, D1929, D2843, E84 per ESR-4745 - CC1
- Uniform Load Structural / Spans - ASTM E330 - Span - 2ft to 10ft - Contact us for job specific span capabilities
- High Velocity Hurricane Zone (HVHZ) - TAS 201, 202, 203 - Missile impact level D, Up to +/-110 psf. (2.75" system)
- Concentrated Load 1sqf Area - No Damage - 800 lbs
- Water Penetration - ASTM E331 - Pass
- Air Infiltration - ASTM E283 - Pass at 6.24 psf
- Roof Assembly Classification - ASTM E108 - Class A / C
- Sound Transmission Loss (STC) - ASTM E90 / E1332 - 25-32, OITC: 17-25 (4" System)
Downloads
Brochure
Specification Text
Sustainability (EPD, FDS..)
Technical Drawings
Case Studies
See Our Solutions at Work
Get inspired and learn more about how our systems can make an impact.
)
)
)
)

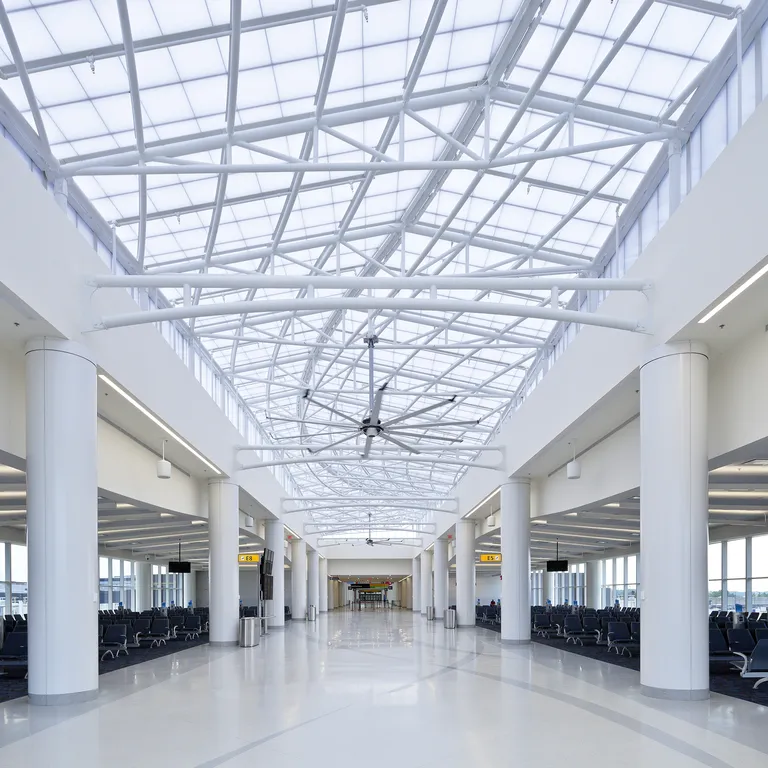

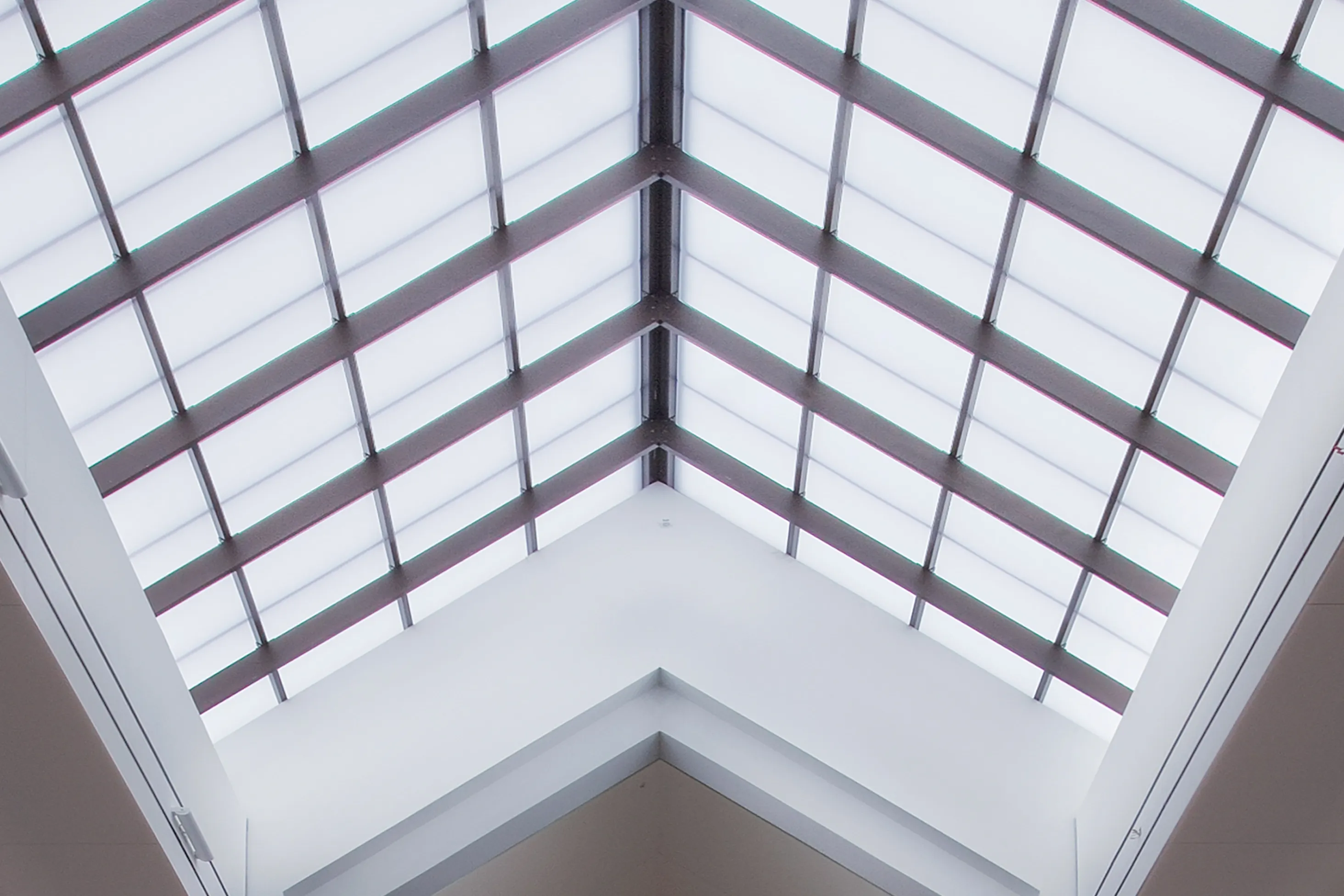

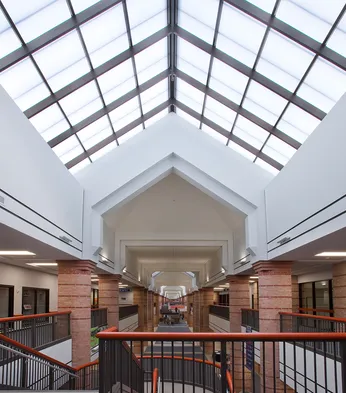

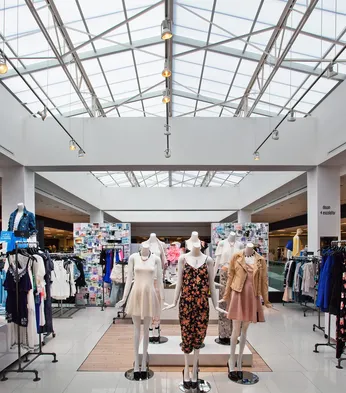

QuadSpan™ Project Highlights
)
)
)
)
)
Frequently Asked Questions
What is the maximum length of a glazing panel in a QuadSpan™ system?
Each individual panel can reach up to 38 feet long, though the amount of structural support needed will vary depending on where the project is located (wind loads, snow loads, etc.). Contact us for details related to your specific project.
Are there standard sizes for QuadSpan™ skylights?
No - QuadSpan skylights are custom built to your job’s specific requirements. From simple designs to one-of-a-kind creations, we'll work with you from concept to completion.
What color options are available for QuadSpan™?
Standard polycarbonate colors are clear, white, ice white, blue, green, bronze, and reflective gray, but custom colors are also available from muted to vibrant hues. Interior and exterior panels can also be different colors for a unique effect. Contact us to find out more.
How much does a typical QuadSpan™ glazing panel weigh?
The general panel weight is 1.5 to 2 lbs/ft2 – considerably less than traditional glass glazing.
