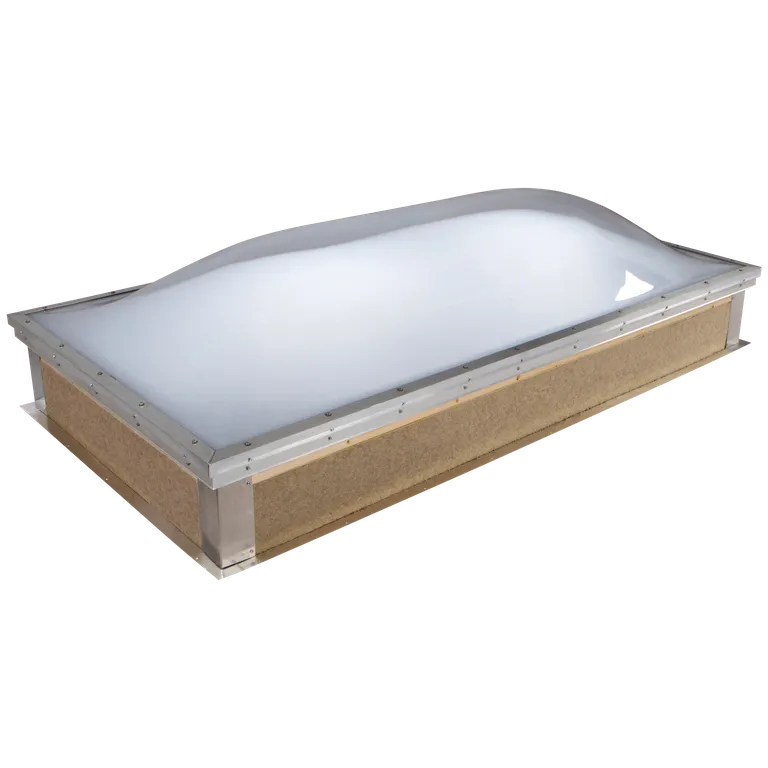

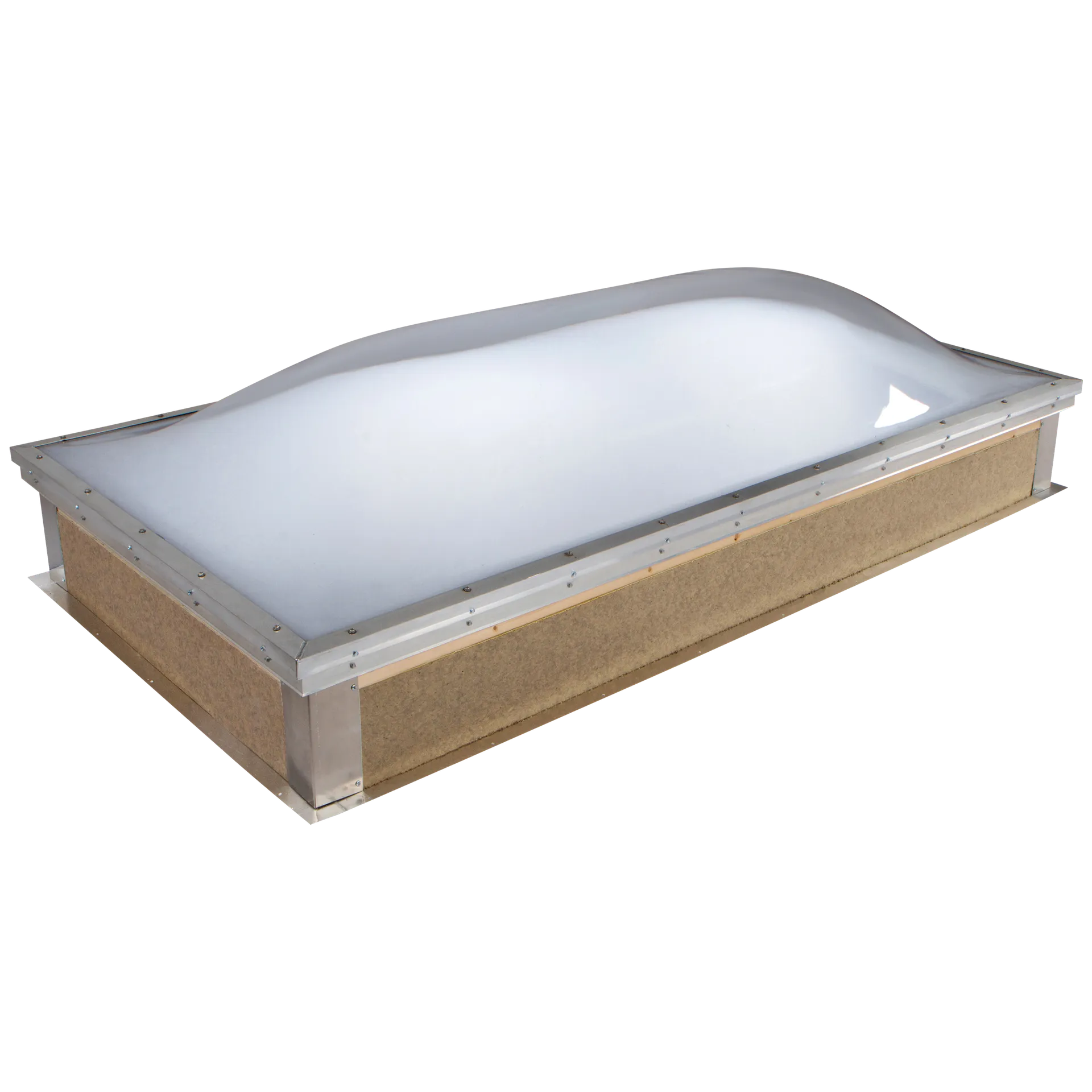

Series 1400 HWHS / HVHZ Unit SkylightsSeries 1400 Specialty Skylights
)
Product Information
Severe environments demand a skylight system that’s dependable and impact resistant. Our polycarbonate Heavy Weather / High Security (HVHZ) skylights are an excellent choice. Backed by testing and certification, these systems are designed to be installed in the most demanding areas.
Product Highlights
- Polycarbonate glazing and bubble shaped dome provide excellent impact resistance
- Designed to perform in adverse weather
- Extruded aluminum frame and corrosion resistant fasteners
- Top-down fasteners for additional attachment
- Santoprene thermoplastic gaskets for exceptional protection from the elements
- Backed by a 10-year material-workmanship warranty
Technical Information
Dimensions
| Model Size | Rough Opening Dimensions | Outside Curb Dimensions | Model Size | Rough Opening Dimensions | Outside Curb Dimensions | Model Size | Rough Opening Dimensions | Outside Curb Dimensions |
| 4646 | 46" x 46" | 49" x 49" | 4884 | 48” x 84” | 51” x 87” | 6072 | 60” x 72” | 63” x 75” |
| 4848 | 48” x 48” | 51” x 51” | 4896 | 48” x 96” | 51” x 99” | 6096 | 60” x 96” | 63” x 99” |
| 5555 | 55” x 55” | 48” x 58” |
General Information
| Skylight Options |
| 1. Curb mounted (CM), curb mounted with EPDM tape (CT) or self-flashing (SF) |
| 2. Single (1) or double (2) glazed |
| 3. Standard glazing options: |
| a. Clear Monolithic Polycarbonate(CPC) |
| b. White Monolithic Polycarbonate (WPC) |
| 4. Extruded 6063-T5 Mill finish frame (MF) |
| Self Flashing Curb Options |
| 1. Curb heights*: |
| a. 6” |
| b. 9” |
| c. 12" |
| *Custom heights available upon request |
| 2. Insulated curb (INS) |
| 3. Wood nailer (WN) |
| 4. Non-welded double wall (DW) |
| 5. Welded double wall (WDW) |
| 6. Aluminum termination bar (TB) |
| Accessories |
| 1. Roof Safety |
| a. External safety cages (SCAGE) |
| b. Safety screens (SSCRN) |
| c. Security grills (SG) |
Certifications & Test Results
| Hurricane Conformance | Metro Dade County (NOA#25-0728.06) Florida Building Code (FL34558) |
| Combustion Classification | CC1 Rated |
Downloads
Specification Text
Frequently Asked Questions
What size are available for Series 1400 HWHS skylights?
They’re available in a variety of sizes, with square sizes from 14-1/4" x 14-1/4" up to 92-1/2" x 92-1/2" and rectangular sizes from 14-1/4" x 22-1/4" up to 60" x 96". See the Product Data Sheet for all available options.
Do Series 1400 systems come with a warranty?
These systems come with a standard 10 year material workmanship warranty. Contact Kingspan for more information regarding our terms and conditions and optional warranty programs.
What glazing options are available for these systems?
Single domes are available with clear, white, grey or bronze glazing, and double domes with clear, white, grey or bronze exterior options and a clear interior dome.
