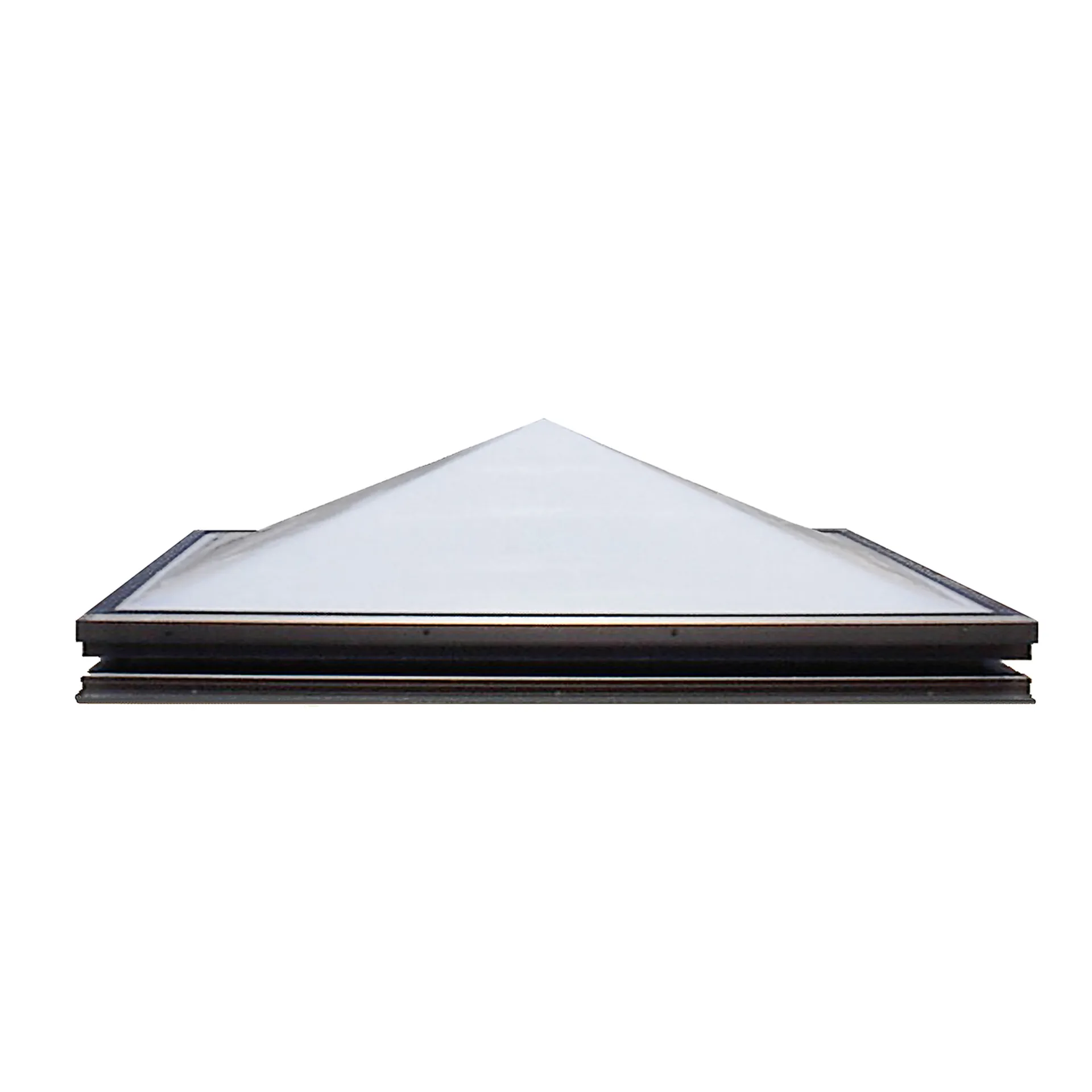

Series 1500 Unit SkylightsMonolithic acrylic pyramid unit skylights.
)
)
)
Product Information
Designed for excellent performance in a wide range of climates, Series 1500 skylights are available in thermally broken and non-thermally broken configurations, and are backed by a 10 year warranty, making them a versatile and durable daylighting solution for your next project.
Product Highlights
- Monolithic acrylic pyramid design provides excellent durability
- Clear or translucent glazing options allow for views of the sky, or diffused daylighting
- Frame is ideal for all roof types and is available in thermally broken and non-thermally broken configurations
- Advanced weather seal system is designed to prevent water from entering the system
- Backed by a 10 year warranty against leaks and glazing discoloration, ensuring dependable performance
Technical Information
Dimensions
Square Options:
Model Sizes: 2424, 3030, 3737, 4242, 4646, 5555, 6060, 7070
Rectangular Options:
Model Sizes: 3046, 3069, 3746, 3775, 3859, 4669, 4689, 4884, 4896, 6096
Données techniques
IBC Section 2606.4 - ASTM 1929/ASTM 635:
- Self-ignition Temperature: ≥ 650°F
- Smoke-developed Index: ≤ 450
- Smoke Density Rating: ≤ 75
- Combustion Classification: CC1 for Polycarbonate / CC2 for Acrylic
Downloads
Frequently Asked Questions
What are the sizes available for Series 1500 skylights?
Series 1500 skylights are available in square sizes from 2424 to 7070m, and in rectangular options from 3046 to 6096.
Is there a warranty available for Series 1500 skylights?
Yes, they are backed by a 10-year material workmanship warranty.
Are Series 1500 skylights made in the USA?
Yes. All of our unit skylights are manufactured in the United States.
