Series 3500Acrylic dome dropout smoke vents
)
)
Product Information

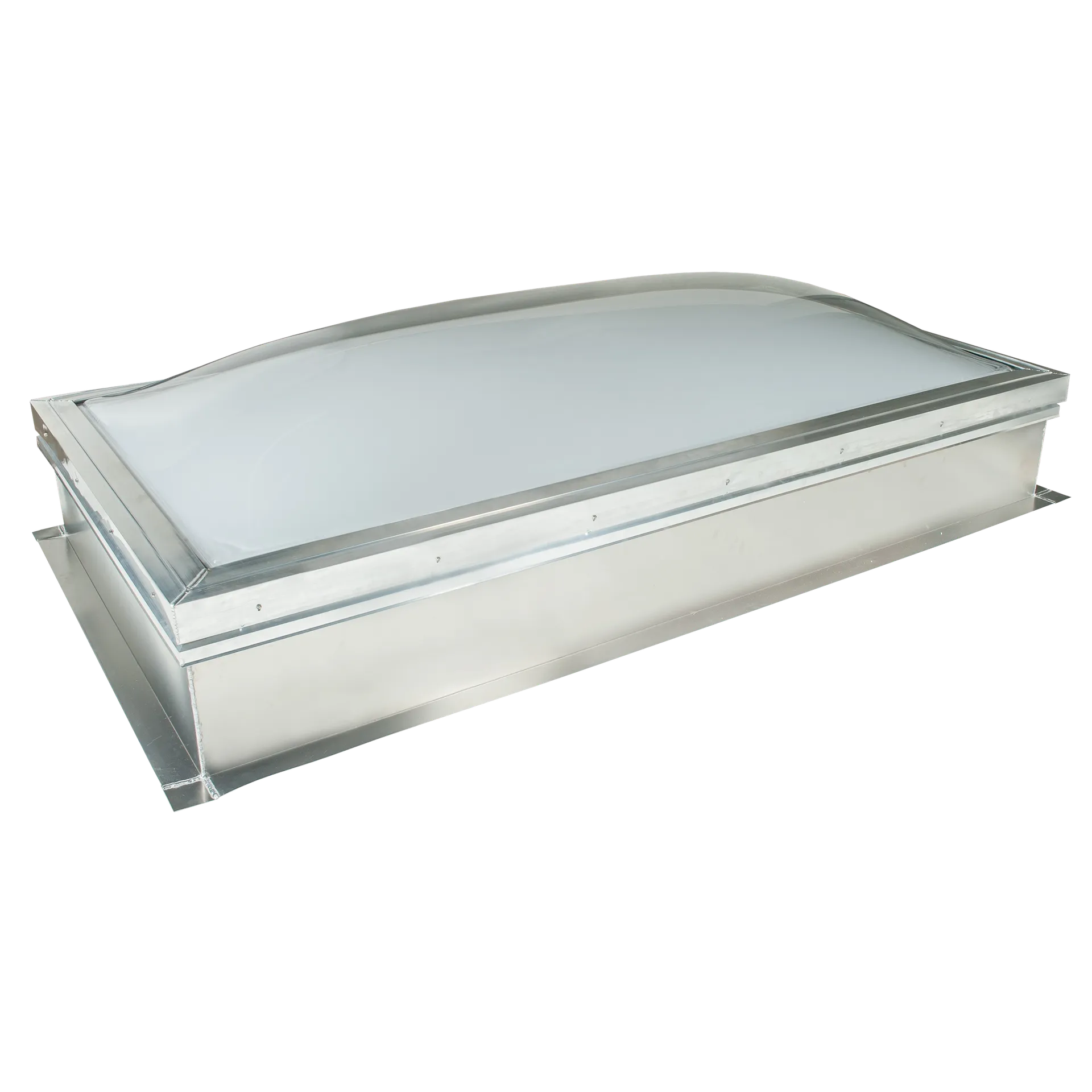

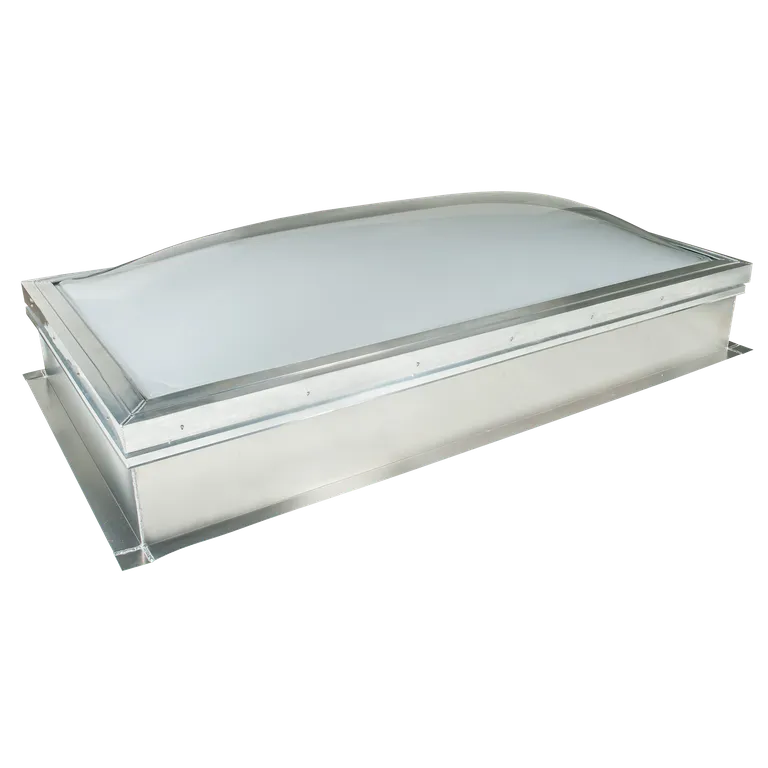

Series 3500 dropout systems are gravity operated acrylic double dome, single leaf smoke vents. When a fire reaches in excess of 500 degrees F, the domes are designed to automatically drop out, allowing for hot gases and smoke to exit the building. In some cases, units can also be equipped with a fusible link that causes the domes to drop out when a certain temperature is achieved. Systems can also be used in conjunction with a facility’s fire suppression system.
Product Highlights
- Units are factory assembled and ready to install
- Feature an extruded aluminum frame with an integral condensation gutter
- Curb is constructed of double wall aluminum with 3/4” polyisocyanurate insulation and a 3” wide roof mounting flange
- UL Listed
- Systems utilize corrosion-resistant framing and hardware for long-term durability
- Glazing options include clear and white inner domes

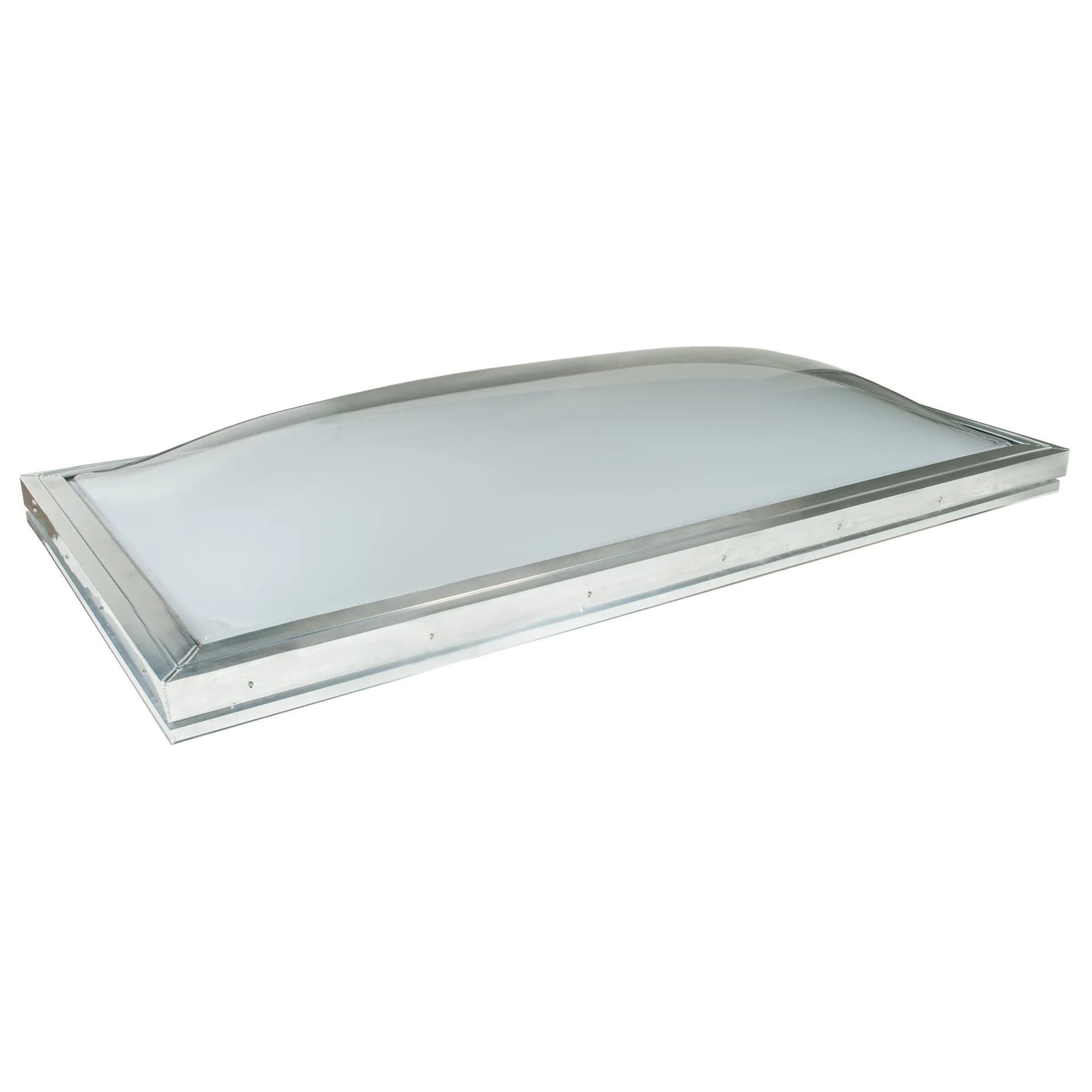

- Replacement drop out tops are also available
Technical Information
Dimensions
| Model Size | Rough Opening Dimensions |
| 5555 | 48" x 48" |
| 5566 | 48" x 60" |
| 5578 | 48" x 72" |
| 5596 | 48" x 90" |
| 55102 | 48" x 96" |
Caractéristiques du produit
- Extruded aluminum frame
- Self flashing (SF)
- Monolithic acrylic double glazing
- 3” Mounting flange
- Santoprene thermoplastic gaskets
- Fusible Link
- 9-5/16” Tall insulated curb (INS)
- Non-welded double wall (DW)
- Mill finish frame (MF), as standard
Options
Dropout Options
- Standard glazing options: Clear monolithic acrylic (CDO) or White monolithic acrylic (WDO)
- Fusible link options: 360 degrees F (standard), 500 degrees F
Accessories
- External safety cages (SCAGE)
Certifications & Test Results
- Combustion Classification: CC2
- Listed to UL 793 Standard / Wind Uplift: Class 30
Downloads
Specification Text
Technical Drawings
Frequently Asked Questions
What sizes are available for Series 3500 systems?
They’re available in 48” x 48”, 48” x 60”, 48” x 72”, 48” x 90” and 48” x 96” configurations.
If there's a fire and the glazing drops out, does the system need to be replaced?
No – Series 3500 replacement domes are available which keeps some of the framing intact. Contact us for details.
What finish options are available?
Series 3500 systems feature a mill finish as standard, with clear or bronze anodize and custom paint finishes available.
How do dropout systems release smoke and gas during a fire?
The glazing is designed to “drop out” when a certain temperature is reached, allowing gases and smoke to escape.
