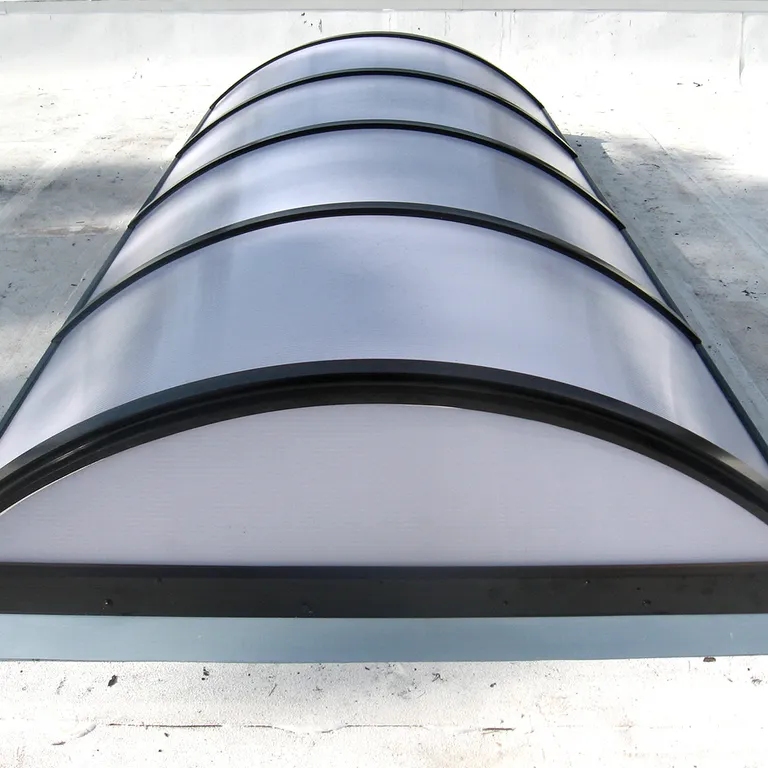

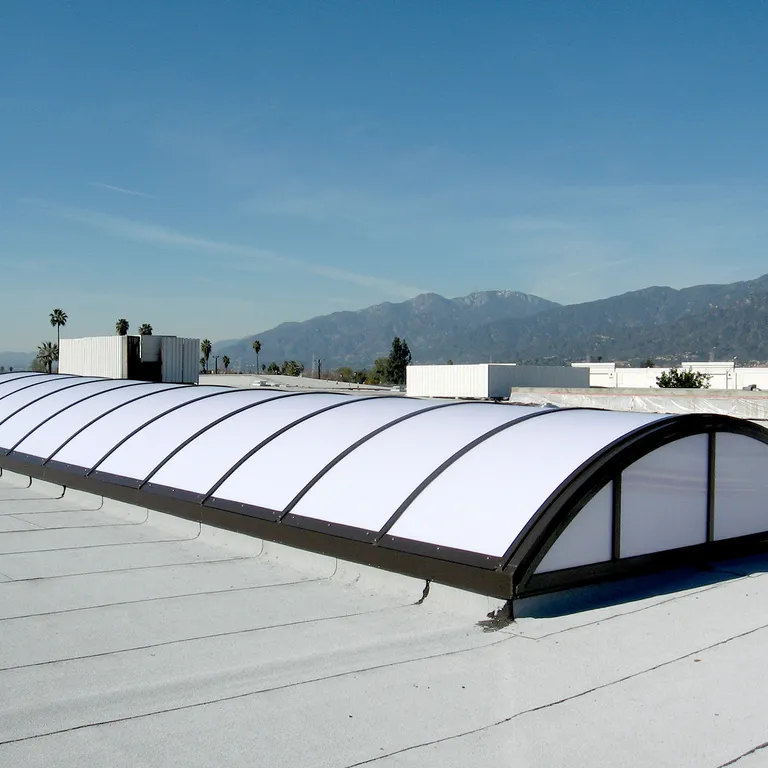

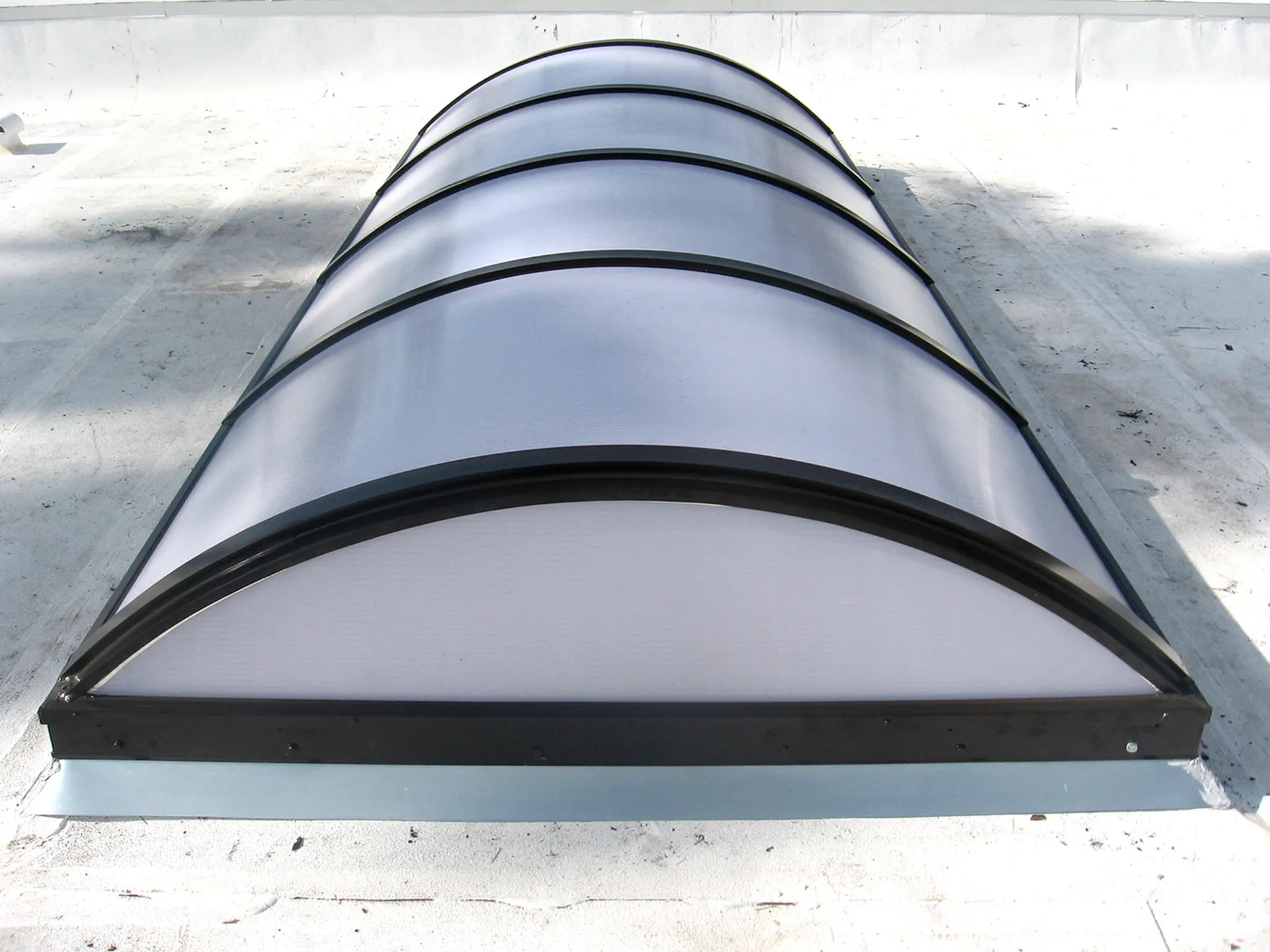

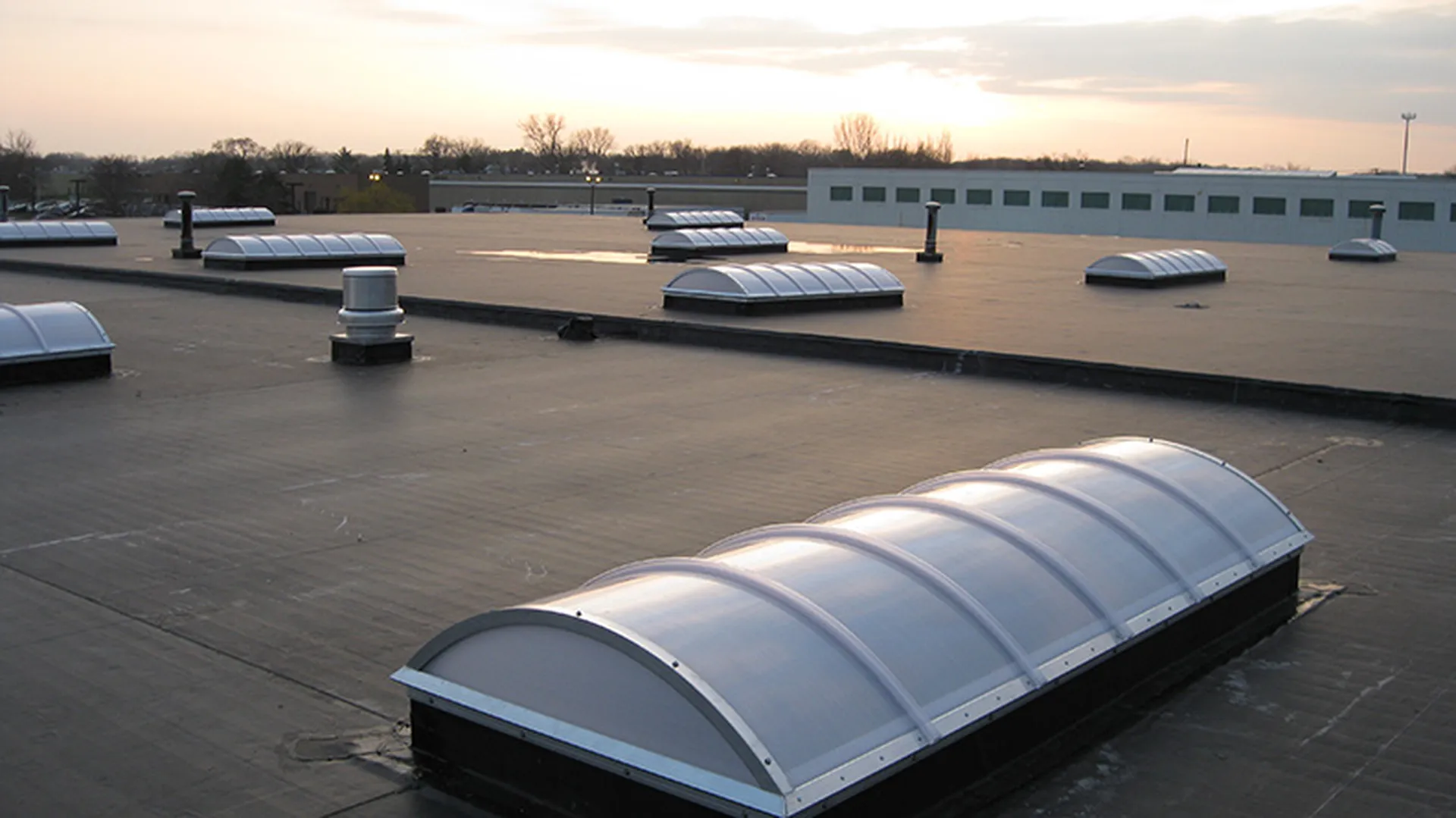

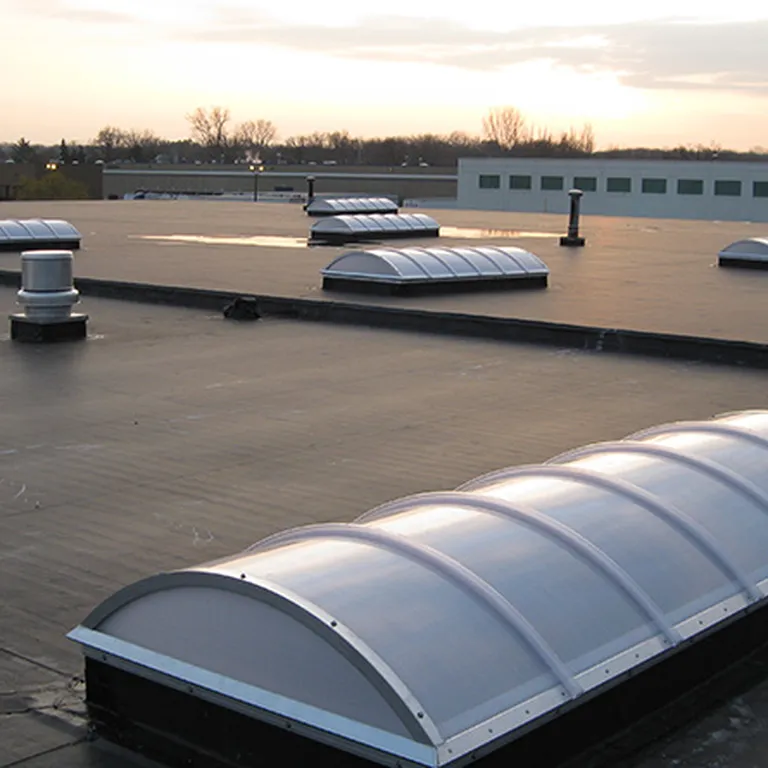

Continuous Vault SkylightAcrylic glazed skylights for long, continuous lengths to cover large spaces.
)
)
)
)
)
Product Information
As a type of structural skylight, Continuous Vault skylights can be configured for long, continuous lengths to cover large spaces and feature aluminum framing and durable acrylic glazing for long-term performance. System can be customized to meet your project’s unique needs.
Product Highlights
- Fully tested for air infiltration, water penetration, and structural integrity
- Backed by a 10-year material workmanship warranty (limitations apply)
- Wide selection of glazing color options available for enhanced aesthetic appeal
- Aluminum framing finish options include paint and anodize
- Integral guttering for exceptional water management
- Vault shape is excellent at bringing in natural light throughout the day

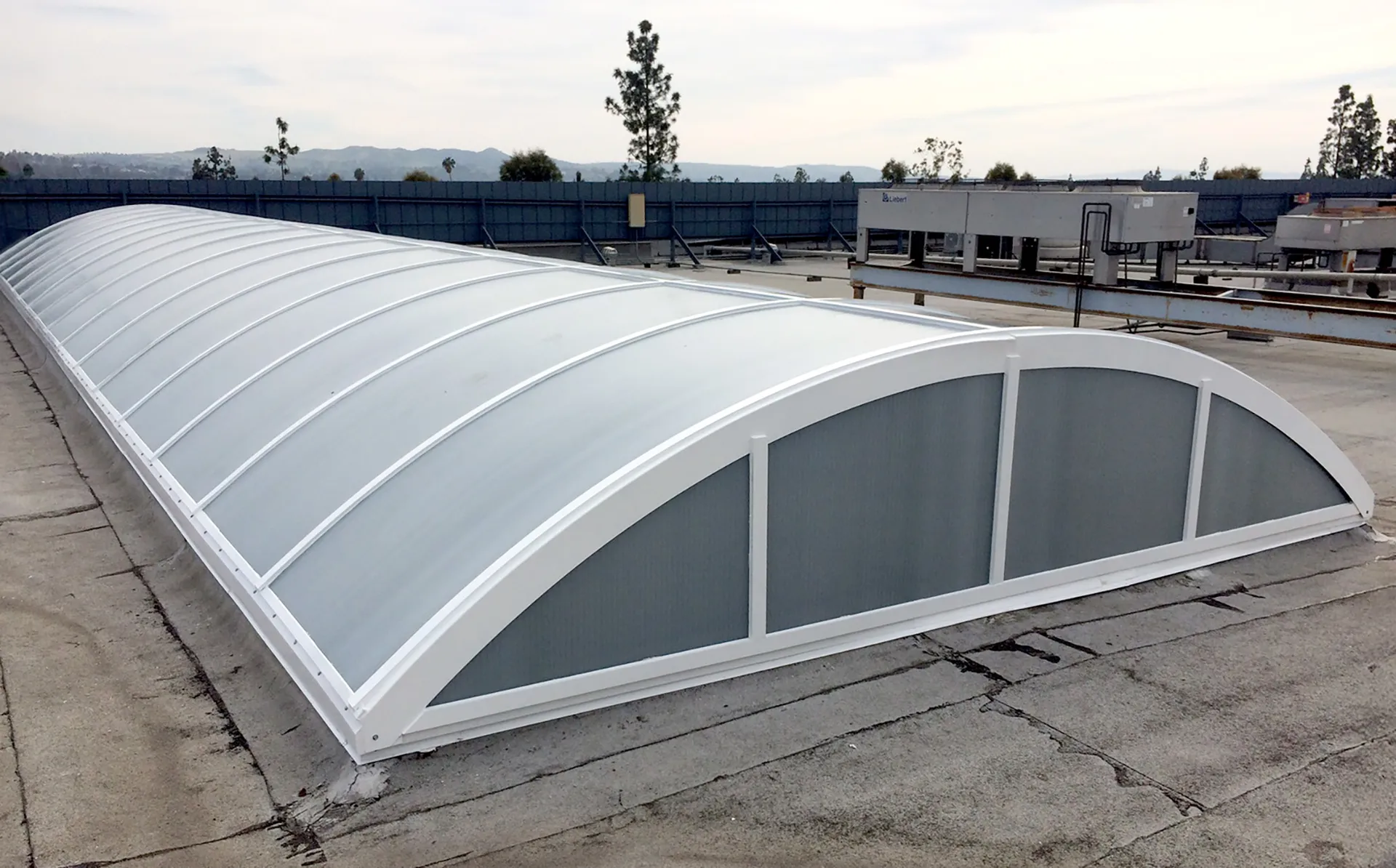

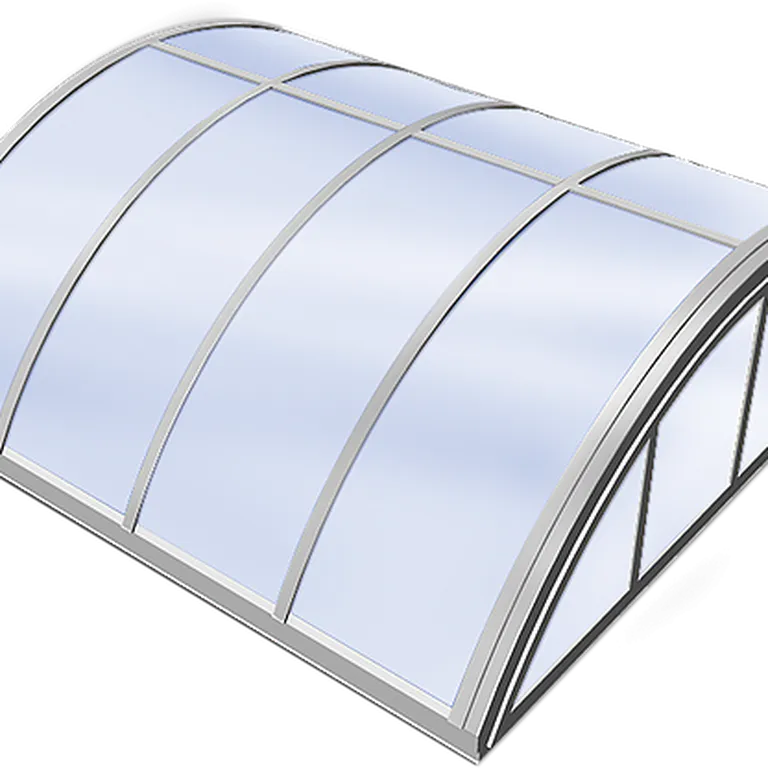

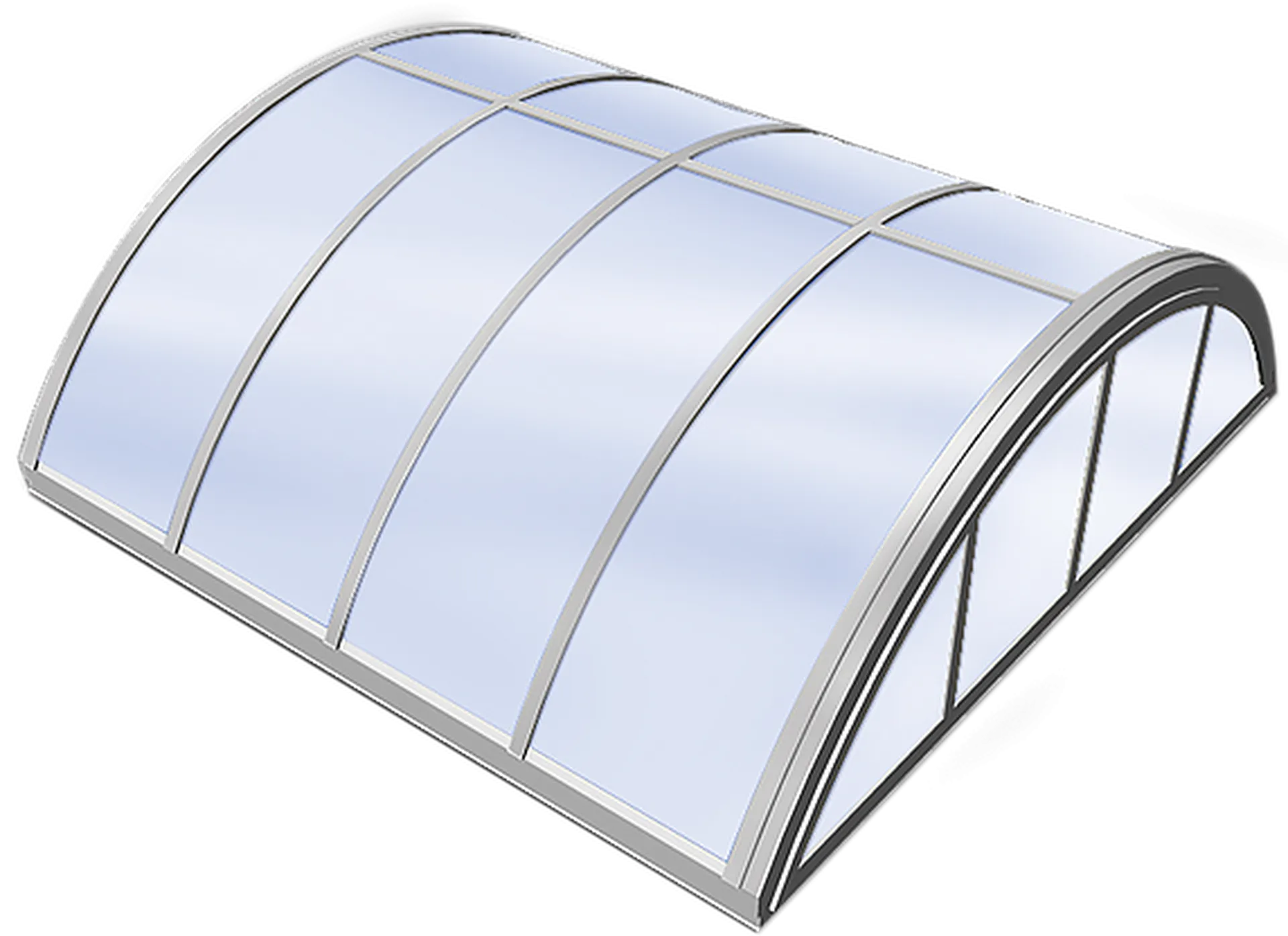

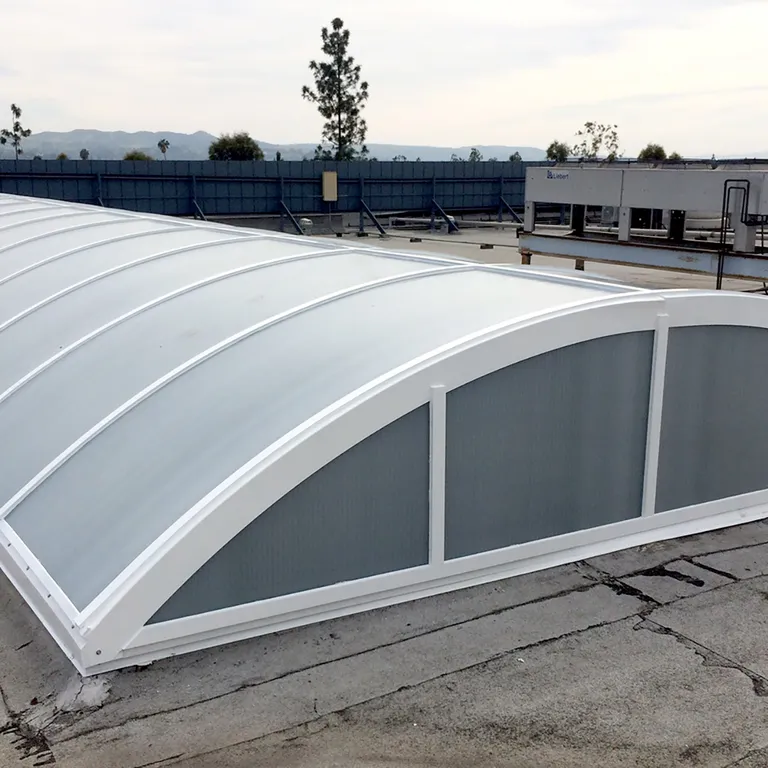

- Available with or without glazed vertical end walls
Technical Information
General Information
Glazing Thicknesses - Outer: 0.177” Monolithic Acrylic / Inner: 0.118” Monolithic Acrylic
Glazing Options - Single- or double-glazed options available: Outer: Clear or White / Inner: Clear, White or Prismatic (Contact us for additional details)
Frame - Extruded 6005-T5 aluminum frame with standard or thermally improved options
Material Content - Aluminum: No less than 50% Recycled Content
Aluminum Finishes - Painted: AAMA 2605 - standard and custom colors (mica available)
Anodized - AAMA 611 Class 1 - clear and color options
Size Information - Units with widths from 27” to 87” are shipped preassembled in sections not to exceed 20ft. Maximum 112” width available.
Warranty - 10-year material and workmanship
Material Source - Kingspan Light + Air N.A. products are manufactured in the USA and most are designed with consideration for Buy America (BAA) and Build America - Buy America (BABA) requirements. BABA Compliance is project specific. Please contact us to verify the compliance of your configuration.
Données techniques
Air Permeability - ASTM E 283 / <0.20 cfm/ft² @ 1.57 psf <0.24 cfm/ft² @ 6.24 psf
Design Loads - ASTM E 330 / ±40psf @ 3’ bay spacing up to 112” span
Water Penetration - ASTM E 331 / No water penetration at 6.24 psf
Static Load Test - ASTM E 661 / 206 lbs @ 60 seconds - no breakage or disengagement from the frame
Impact Load Test - ASTM E 661 / 206 lbs dropped from 31” - no breakage or disengagement from the frame

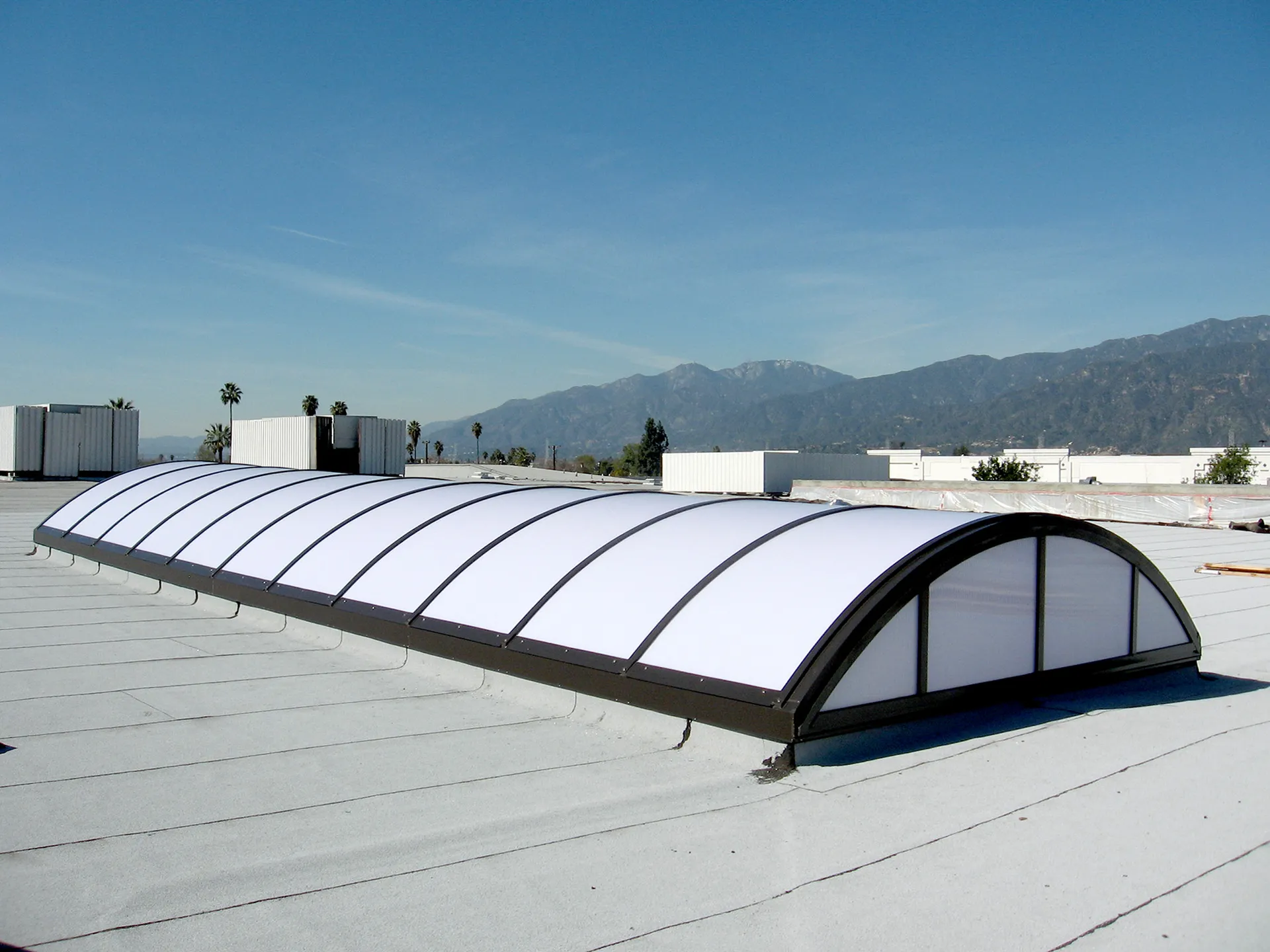

Continuous Vault Systems
Bridging the gap between unit skylights and complex custom designs.
Continuous Vault skylight systems are unique, providing the versatility of a pre-assembled system with the daylighting impact of a large custom design.
They're also a great choice for corridors, hallways, entryways, manufacturing aisles and more.
From short sections that can replace aging glass or unit skylights to long lengths that run the entire length of a space, we'll work with you to find the best solution for your project.
)
Media caption
Frequently Asked Questions
Can Continuous Vault Skylights be shipped assembled?
Continuous Vault skylights can be shipped either fully or partially assembled, depending on sizing and related requirements. Contact us for details.
What type of glazing is used for Continuous Vault Skylights?
Continuous Vault systems use durable and lightweight acrylic glazing.
How much do Continuous Vault Systems cost?
Because Continuous Vault systems are custom designed to your project's needs, per square foot pricing varies depending on options and sizes. Contact us to get a quote and for additional details.
