Series 2200 Unit SkylightsGlass glazed unit skylights for residential applications.
)
)
Product Information

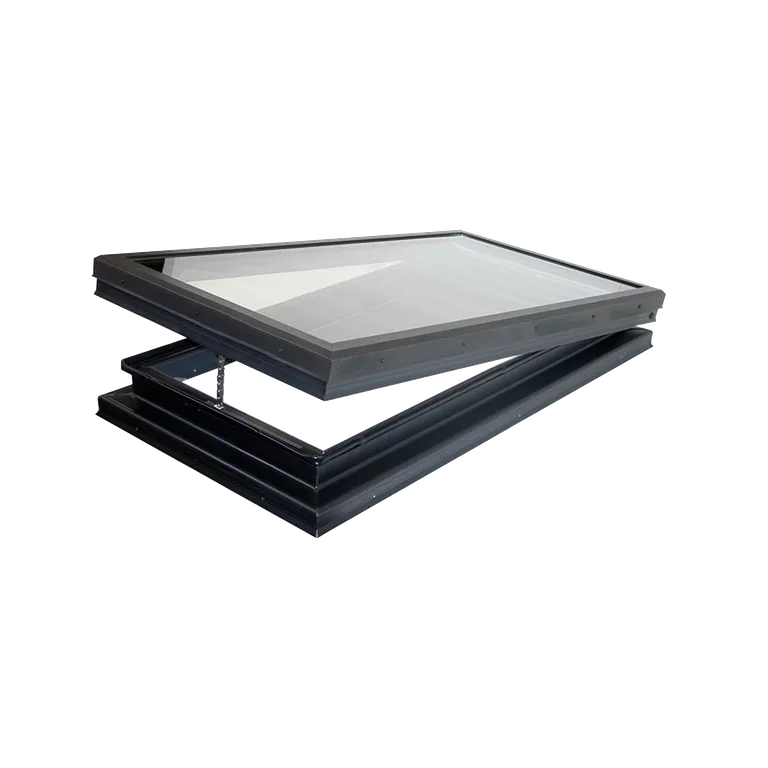

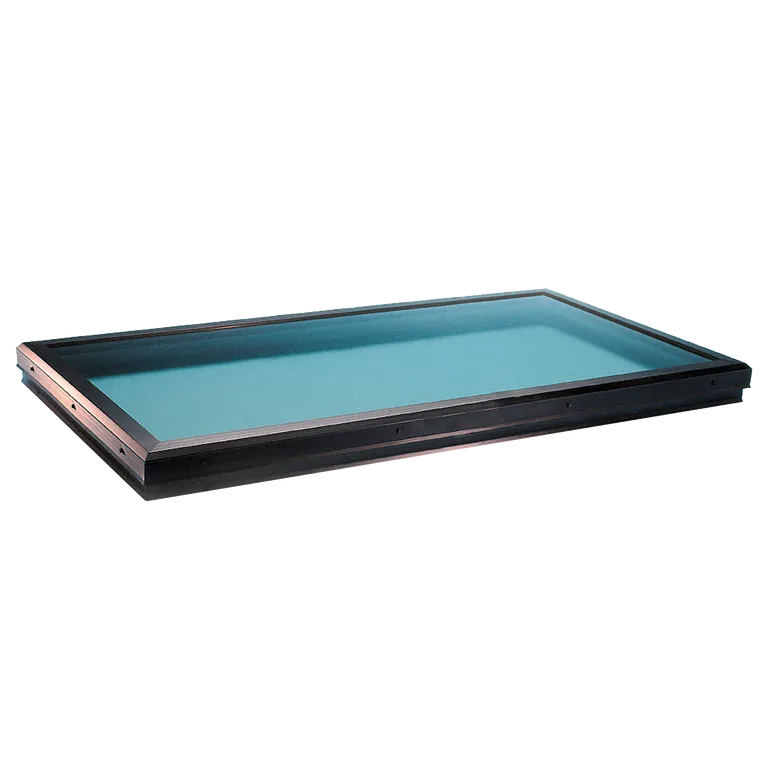

Our Series 2200 unit skylights feature aluminum framing and glass glazing that's designed to illuminate residential spaces with natural light. Systems are available in a variety of sizes and can also be fitted with either an electric or manual opening mechanism. The openable frame, fabricated from heliarc welded aluminum, features an integral condensate channel to carry moisture to the exterior, and all skylight variations have insect screens and full perimeter gasketing around the base for long-term performance.
Product Highlights
- Thermally broken extruded aluminum frame for enhanced thermal performance
- Systems available in fixed configuration, or with manual or electric opening mechanisms
- Available with curb mounted (CM) or self-flashing (SF) framing (self-flashing features a 2-3/4” nailing flange)
- Santoprene thermoplastic gaskets and corrosion resistant fasteners for long-term performance
- Wall mounted power unit for electric openable model
- Frame fabricated from 6063-T5 heliarc welded aluminum
- Backed by 10-year material-workmanship warranty
Technical Information
Glazing Options
- A - 5/8” thick overall
(1/8” tempered, 1/4” air space, 1/4” annealed lami.) - B-AN - 15/16” thick overall
(1/8” tempered, 3/8” air space, 7/16” annealed lami.) - B-1 - 1” thick overall
(3/16” tempered, 3/8” air space, 7/16” annealed lami.) - B-HS - 1” thick overall
(3/16” tempered, 3/8” air space, 7/16” h.s. lami.) - C - 1-3/16” thick overall
(1/4” tempered, 1/2” air space, 7/16” h.s. lami.)
Dimensions
| Model Size | Inside Curb Dimensions | Outside Curb Dimensions | Glass Type | Model Size | Inside Curb Dimensions | Outside Curb Dimensions | Glass Type |
| 1414 | 14 1/4” x 14 1/4” | 17 1/4” x 17 1/4” | A | 1422 | 14 1/4” x 22 1/4” | 17 1/4” x 25 1/4” | A |
| 1919 | 19” x 19” | 22” x 22” | A | 1446 | 14 1/4” x 46 1/4” | 17 1/4” x 49 1/4” | A |
| 2222 | 22 1/4” x 22 1/4” | 25 1/4” x 25 1/4” | A | 2230 | 22 1/4” x 30 1/4” | 25 1/4” x 33 1/4” | A |
| 3030 | 30 1/4” x 30 1/4” | 33 1/4” x 33 1/4” | A | 2237 | 22 1/4” x 37” | 25 1/4” x 40” | A |
| 3636 | 36” x 36” | 39” x 39” | A | 2246 | 22 1/4” x 46 1/4” | 25 1/4” x 49 1/4” | A |
| 3737 | 37” x 37” | 40” x 40” | A | 2272 | 22 1/4” x 72” | 25 1/4” x 75” | A |
| 4242 | 42” x 42” | 45” x 45” | C | 2296 | 22 1/4” x 96” | 25 1/4” x 99” | B-1 |
| 4646 | 46 1/4” x 46 1/4” | 49 1/4” x 49 1/4” | C | 2448 | 24” x 48” | 27” x 51” | A |
| 4848 | 48” x 48” | 51” x 51” | C | 2496 | 24” x 96” | 27” x 99” | B-1 |
| 3037 | 30 1/4” x 37” | 33 1/4” x 40” | A | ||||
| 3046 | 30 1/4” x 46 1/4” | 33 1/4” x 49 1/4” | A | ||||
| 3069 | 30 1/4” x 69 1/2” | 33 1/4” x 72 1/2” | B-1 | ||||
| 3096 | 30 1/4” x 96” | 33 1/4” x 96” | B-HS | ||||
| 3746 | 37” x 46 1/4” | 40” x 49 1/4” | B-AN | ||||
| 3775 | 37” x 75” | 40” x 78” | B-HS | ||||
| 3859 | 38” x 59” | 41” x 62” | B-1 |
General Information
- Extruded 6063-T5 aluminum frame
- Curb mounted (CM) or Self-flashing (SF) (GALT Model only)
- Insulated base frame (self-flashing models only)
- Double-wall base frame construction (self-flashing models only)
- Glass glazing
- Santoprene thermoplastic gaskets
- Black butyl retainer cap sealant
- Polyurethane glazing sealants
Options
- EPDM curb seal tape (T)
- Standard glazing options: Bronze (TB), Clear (TC), Grey (TG), White (TW)
- Bronze anodized (BA), Clear anodized (CA) or Mill finish (MF), as standard (Custom, or specialized paint available upon request)
- Low-E glass (LE)
- White laminated glass (LW)
- Units hinged on short side as standard. Long side by request
- Self-flashing curb: Curb height - 4" (Please contact KLA for additional options)
Technical Information
| Visible Light Transmittance* | |
| Clear (Clear) | 80% |
| Clear Low-E (Reflective) | 76% |
| White (Milky) | 68% |
| White Low-E (Milky) | 65% |
| Bronze (Tinted) | 46% |
| Bronze Low-E (Tinted) | 45% |
| Grey (Tinted) | 43% |
| Grey Low-E (Tinted) | 37% |
| Solar Heat Gain Coefficient* | |
| Clear (Clear) | 0.82 |
| Clear Low-E (Reflective) | 0.67 |
| White (Milky) | 0.53 |
| White Low-E (Milky) | 0.48 |
| Bronze (Tinted) | 0.44 |
| Bronze Low-E (Tinted) | 0.38 |
| Grey (Tinted) | 0.44 |
| Grey Low-E (Tinted) | 0.28 |
| U-Factor* | |
| Clear (Clear) | 0.49 |
| Clear Low-E (Reflective) | 0.27 |
| White (Milky) | 0.47 |
| White Low-E (Milky) | 0.30 |
| Bronze (Tinted) | 0.47 |
| Bronze Low-E (Tinted) | 0.29 |
| Grey (Tinted) | 0.47 |
| Grey Low-E (Tinted) | 0.27 |
| Size restrictions apply to manual and electric openable units. Refer to Product Data Sheet for additional information. *Values may vary slightly depending on unit size and specifications. | |
Downloads
Datasheet
Technical Drawings
Frequently Asked Questions
What type of glass thickness is available for Series 2200 systems?
5/8” to 1-3/16” thick glass is available for Series 2200 skylights. Contact us for additional details.
Is there a minimum pitch requirement for Series 2200 skylights?
There is a minimum pitch requirement of 3:12 for all flat glass models like the Series 2200.
How are the electrically operated skylights opened and closed?
The Series 2200 electric openable skylights are operated via an included wall mounted power switch, making it easy to adjust for your ventilation needs.
How are the manually openable Series 2200 skylights operated?
The manually openable frame is lifted by a lifting mechanism with a removable 5’ handle.
