KlearSky™ Glass SkylightsCustom metal framed glass skylights
)
)
)
)
)
)
Product Information
KlearSky™ custom glass skylights are designed to combine performance and aesthetic impact, with numerous available configurations and glass options to ensure we can create a system that fits your project's unique needs. Systems can also be configured with insulated framing for enhanced thermal performance in the toughest climates.
Designed and engineered for long-term durability, KlearSky™ systems are backed by a 10 year material-workmanship warranty.
Product Highlights
- Configurations available to meet stringent performance requirements
- Pre-assembled and partially-assembled systems also available.
- Wide selection of glass types, tints and performance coatings offer design flexibility and tailored performance whether you need enhanced energy efficiency, noise reduction, privacy, or aesthetic appeal
- Integral guttering for exceptional water management
- 10-year material warranty / 2-year labor warranty (limitations apply)
Technical Information
General Information
Glazing Thicknesses
1/4” to 2-1/16” (Contact us for specific information on glazing options and availability - glazing thickness and weight will reduce unsupported span capabilities)
Glazing Options
Multiple glazing options available, including high performance insulating glass, laminated glass and specialty glazing (Contact us for details)
Frame
Extruded 6005-T5 aluminum frame with standard or thermally improved options
Material Content
Aluminum: No less than 50% Recycled Content
Aluminum Finishes
Painted: AAMA 2605 - standard and custom colors (mica available) Anodized: AAMA 611 Class 1 - clear and color options
Long Span Capabilities
Unsupported spans up to 40’ (Based on 1-5/16” IGU, longer spans available with additional support) - contact us for additional information about your specific project needs.
Warranty
10 year material and workmanship 2 year labor (limitations apply)
Material Source
Kingspan Light + Air N.A. products are manufactured in the USA and most are designed with consideration for Buy America (BAA) and Build America - Buy America (BABA) requirements. BABA Compliance is project-specific. Please contact us to verify the compliance of your configuration.
Certifications & Test Results
- Air Permeability - ASTM E 283, <0.03 cfm/ft² @ 1.57 psf <0.05 cfm/ft² @ 6.27 psf
- Design Loads - ASTM E 330, Engineered to project specific design loads at the required deflection criteria. Please contact us for additional details.
- Water Penetration Standard Result - ASTM E 331, No water penetration at 15psf
- Fall Protection - AAMA 501.8, 1-5/16” IGU w/0.60” PVB 40ft² - tested to 1,200 ft*lbs / 1-1/16” IGU w/0.60” PVB 20ft² - tested to 600 ft*lb
Downloads
Specification Text
Technical Drawings
Case Studies + Knowledge Articles
See Our Solutions at Work
Get inspired and learn more about how our systems can make an impact.
)
)
)
KlearSky™ Project Highlights
)
)
)
)
)
Frequently Asked Questions
What are the typical configurations for KlearSky™ glass skylight?

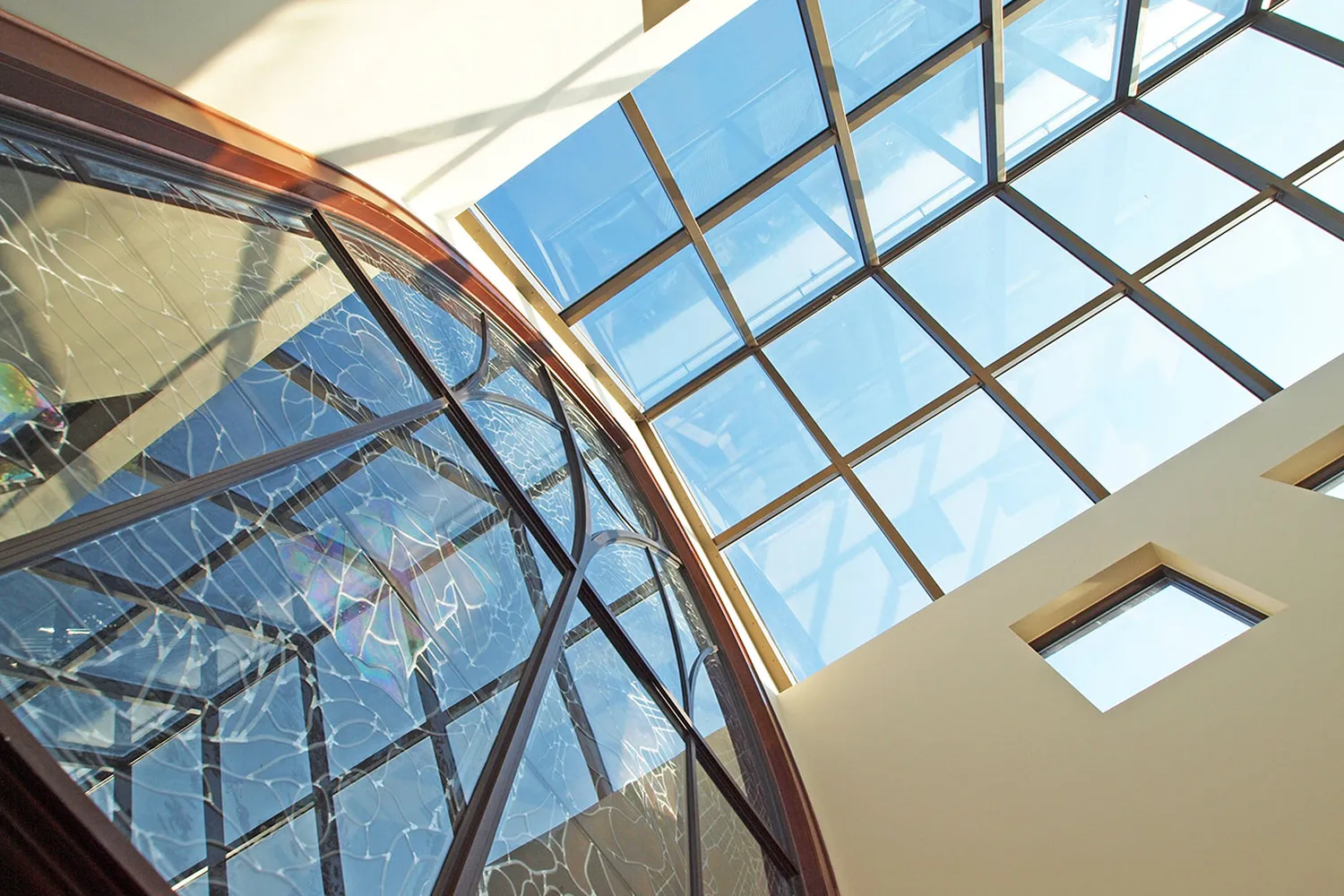

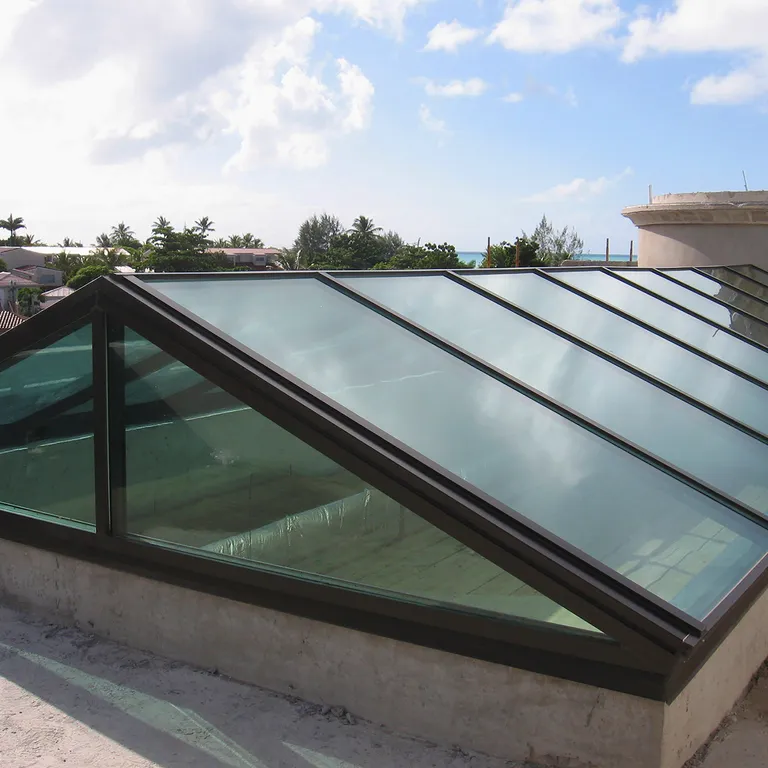

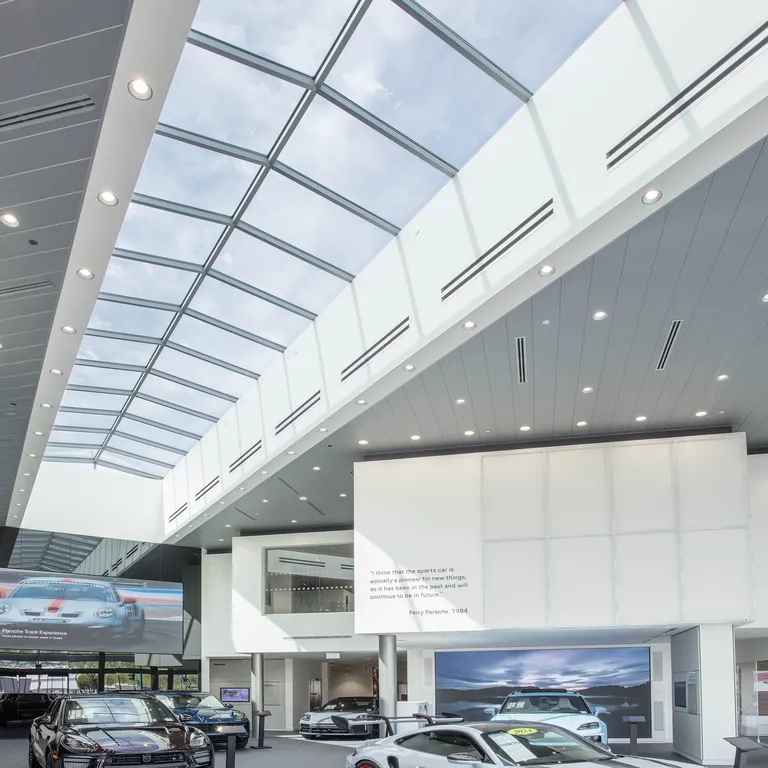

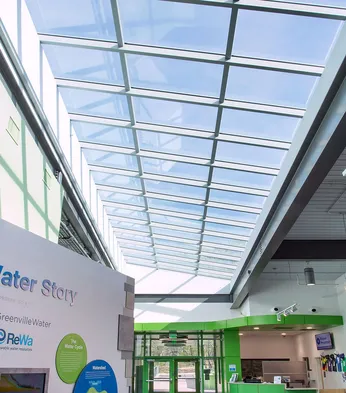

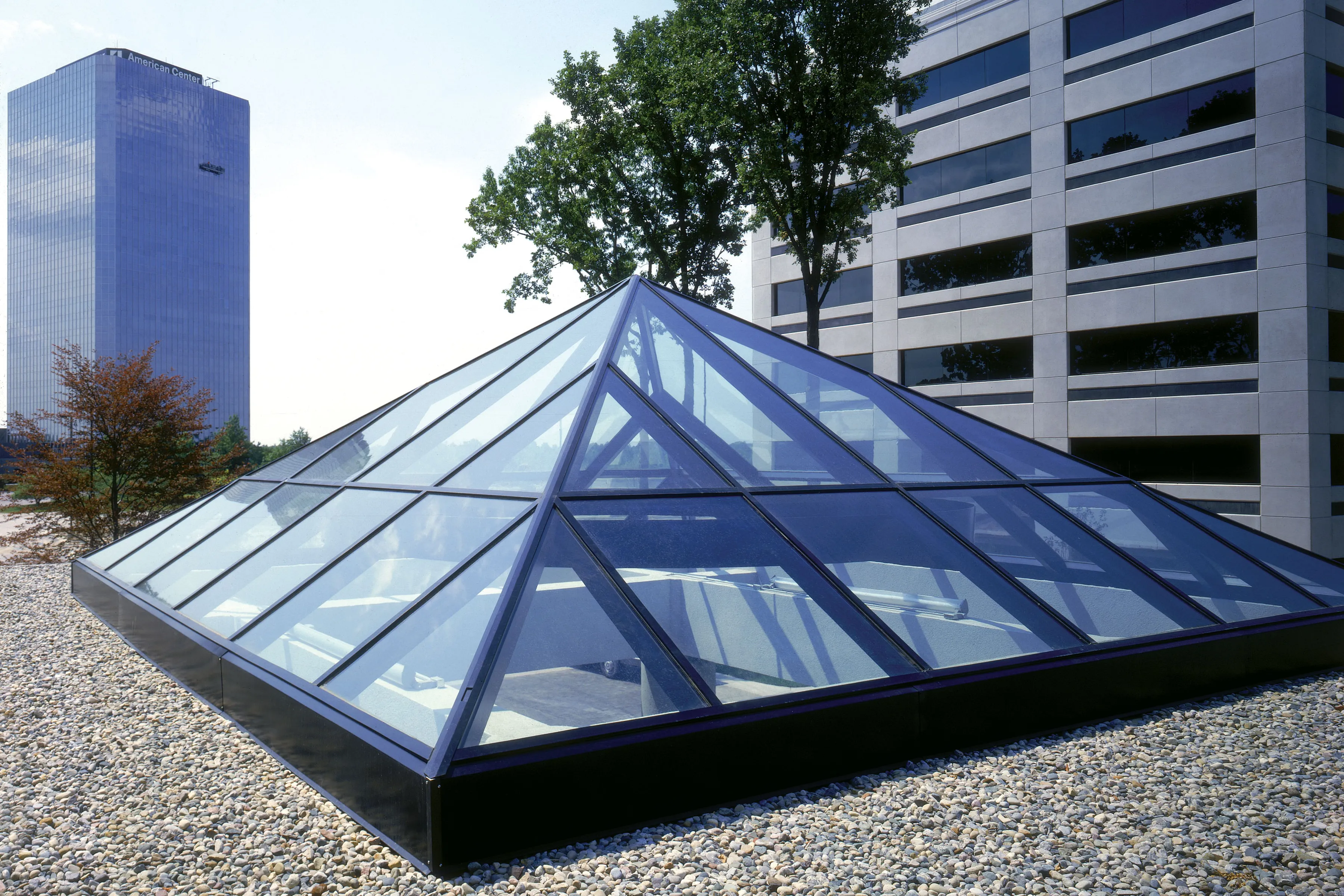

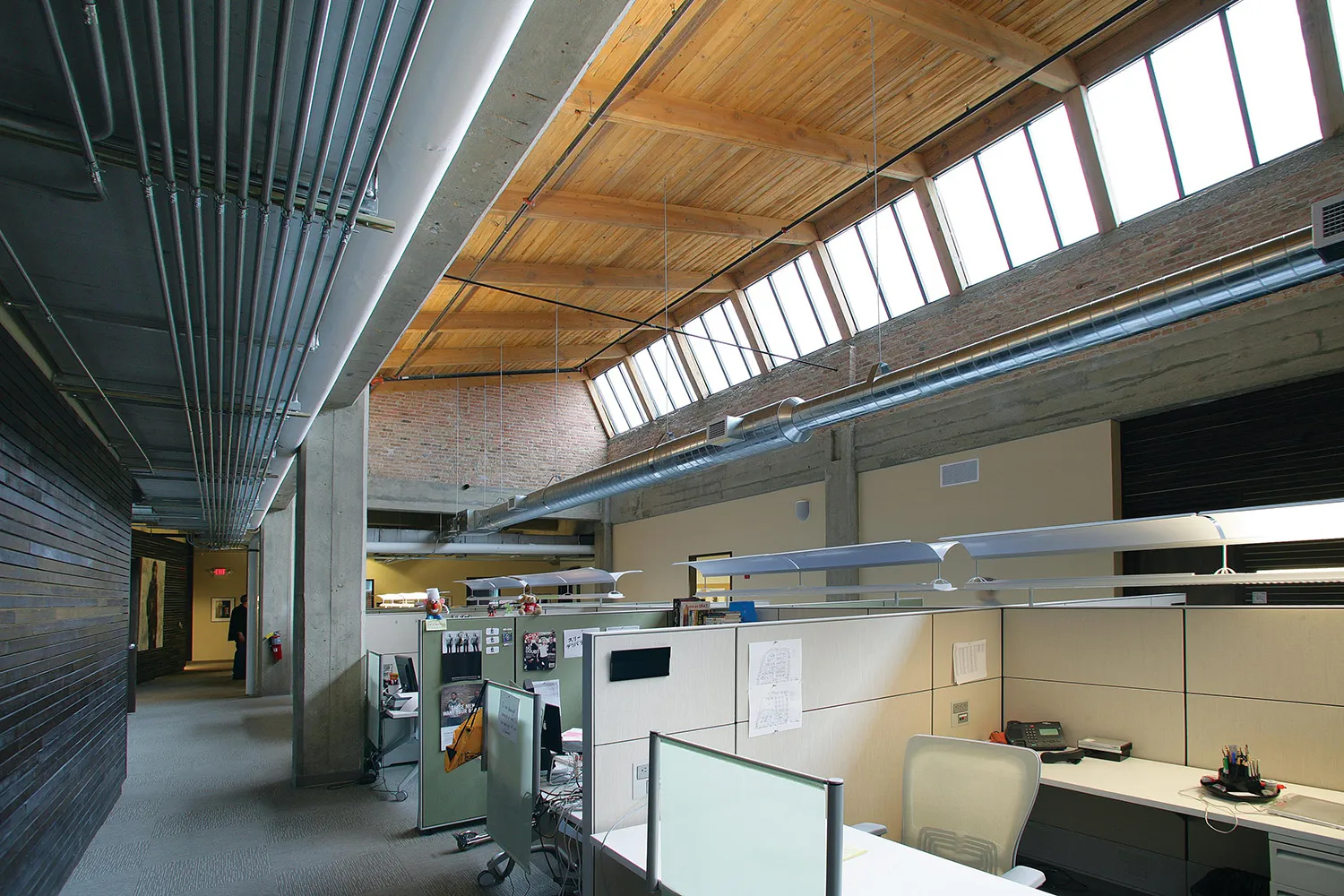

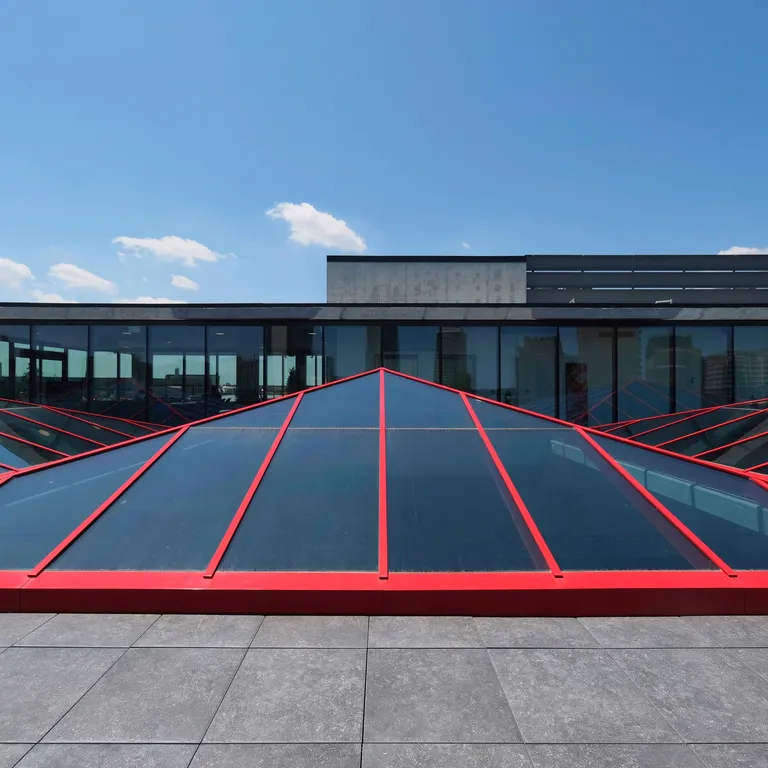

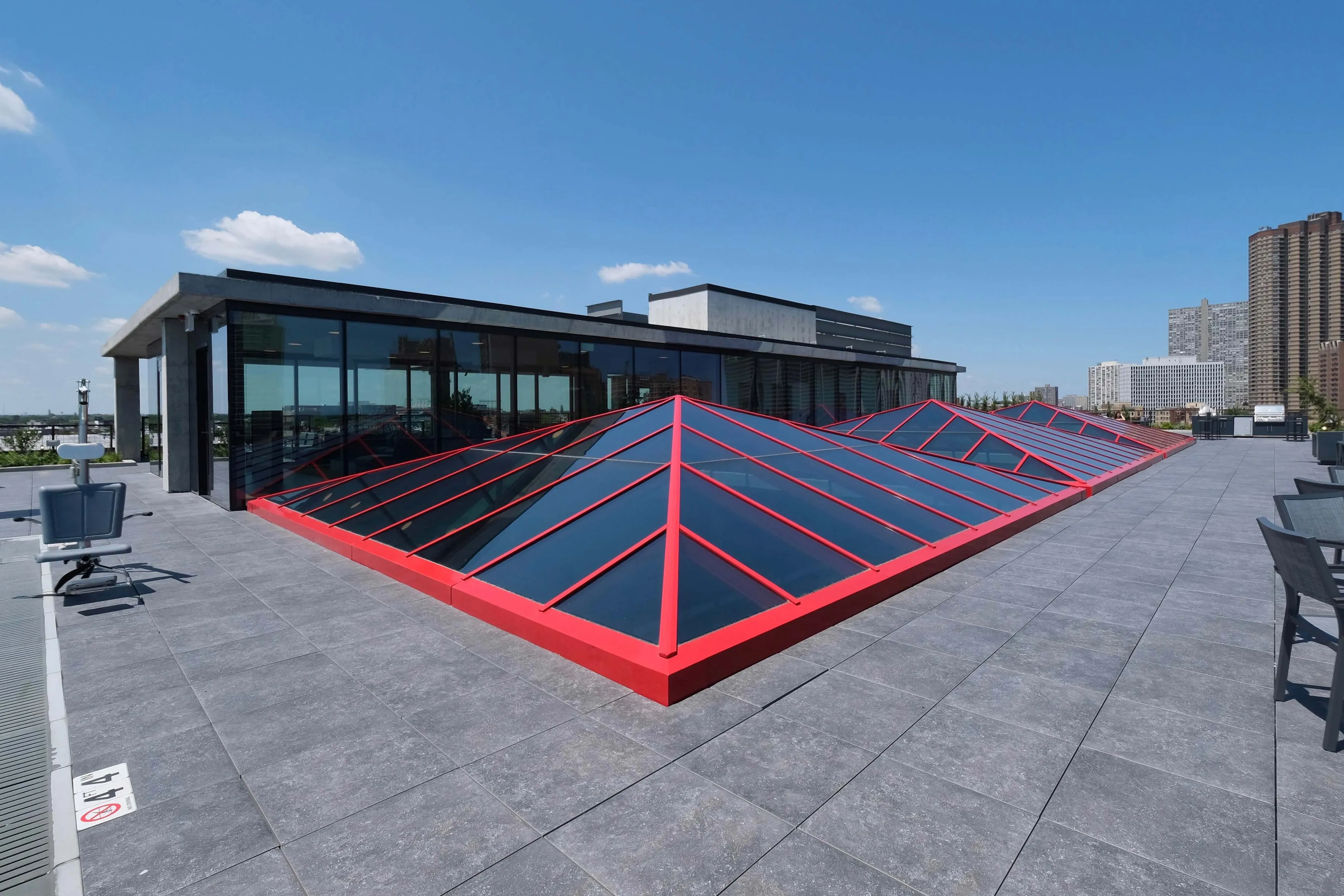

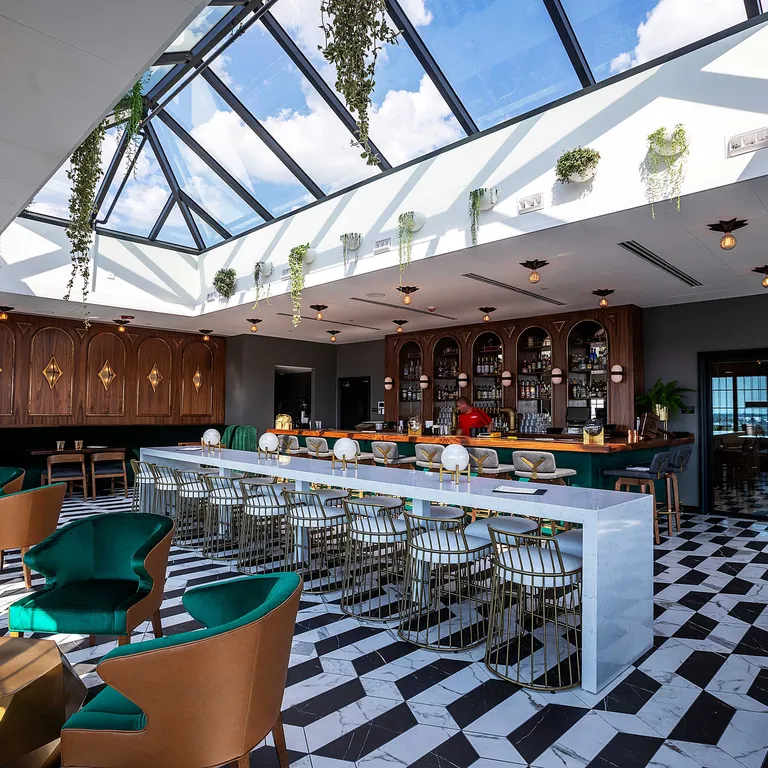

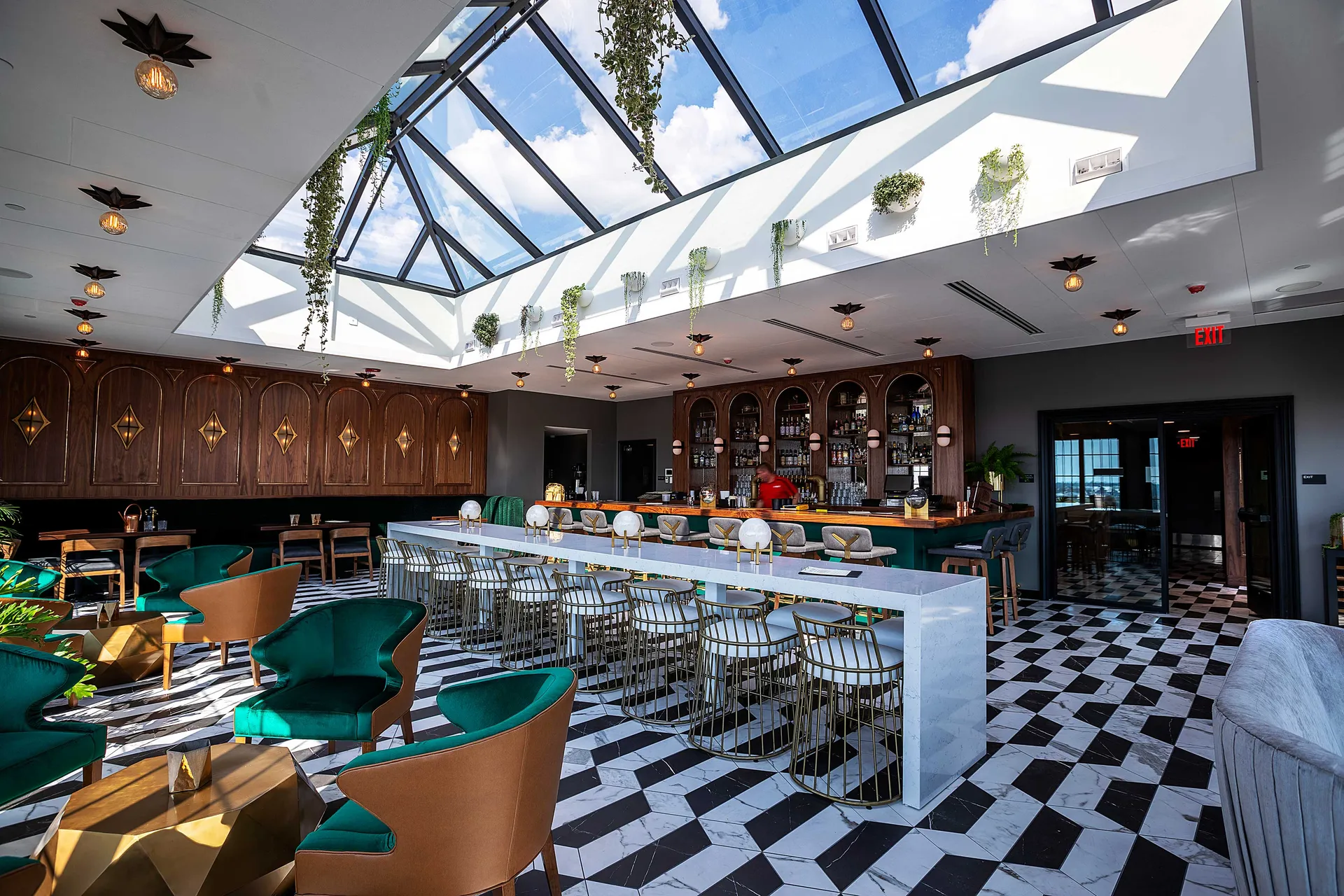

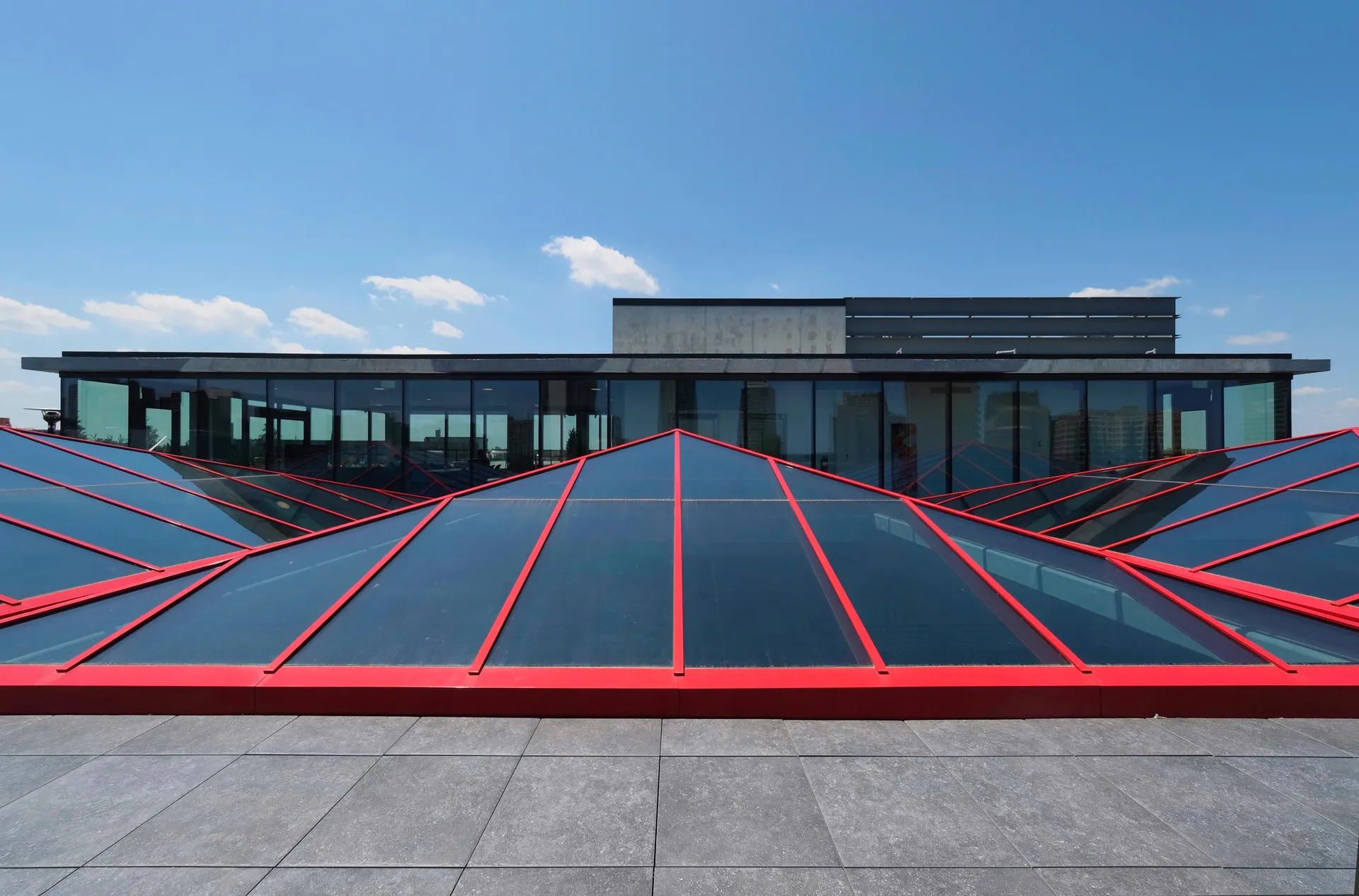

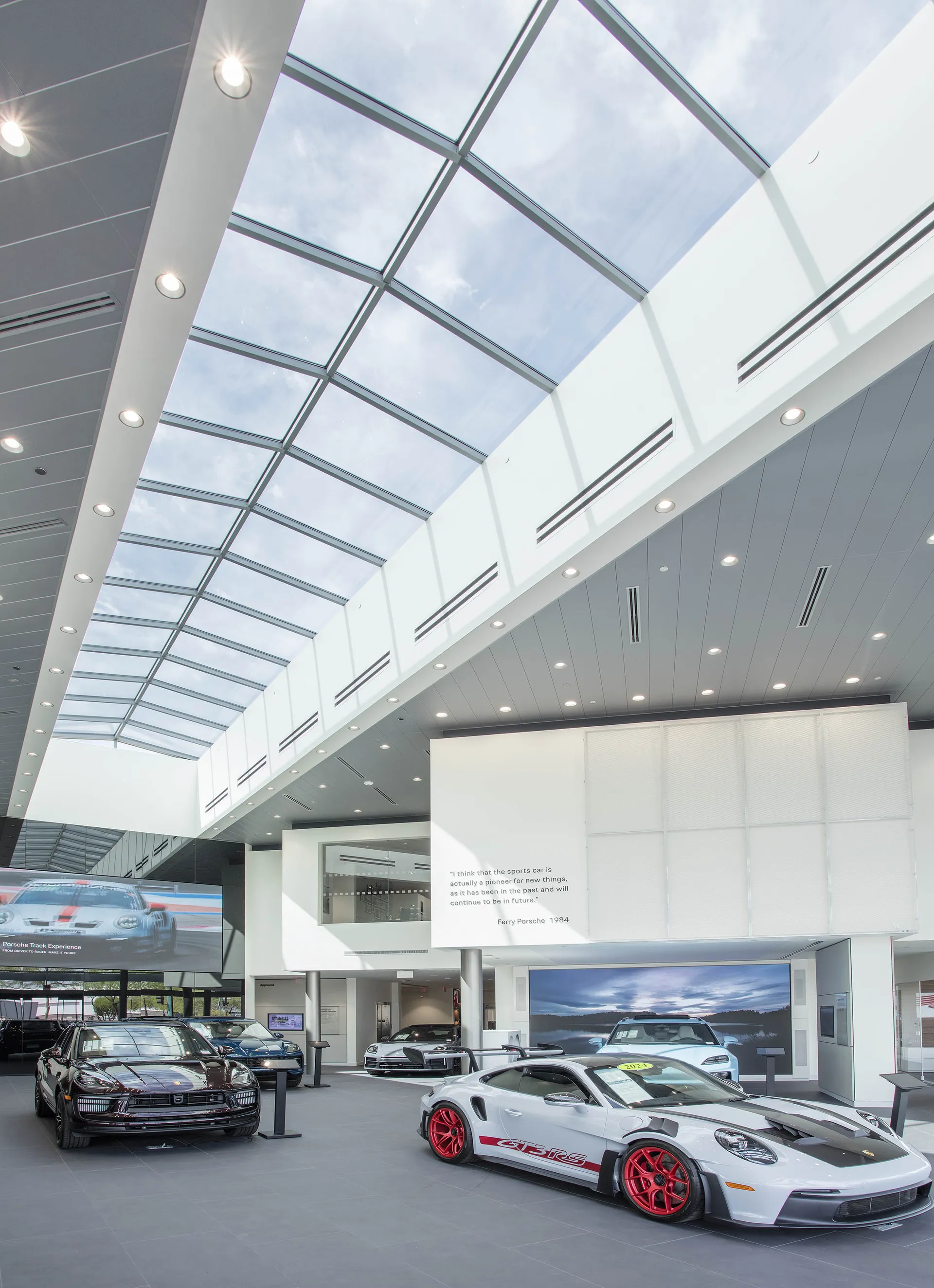

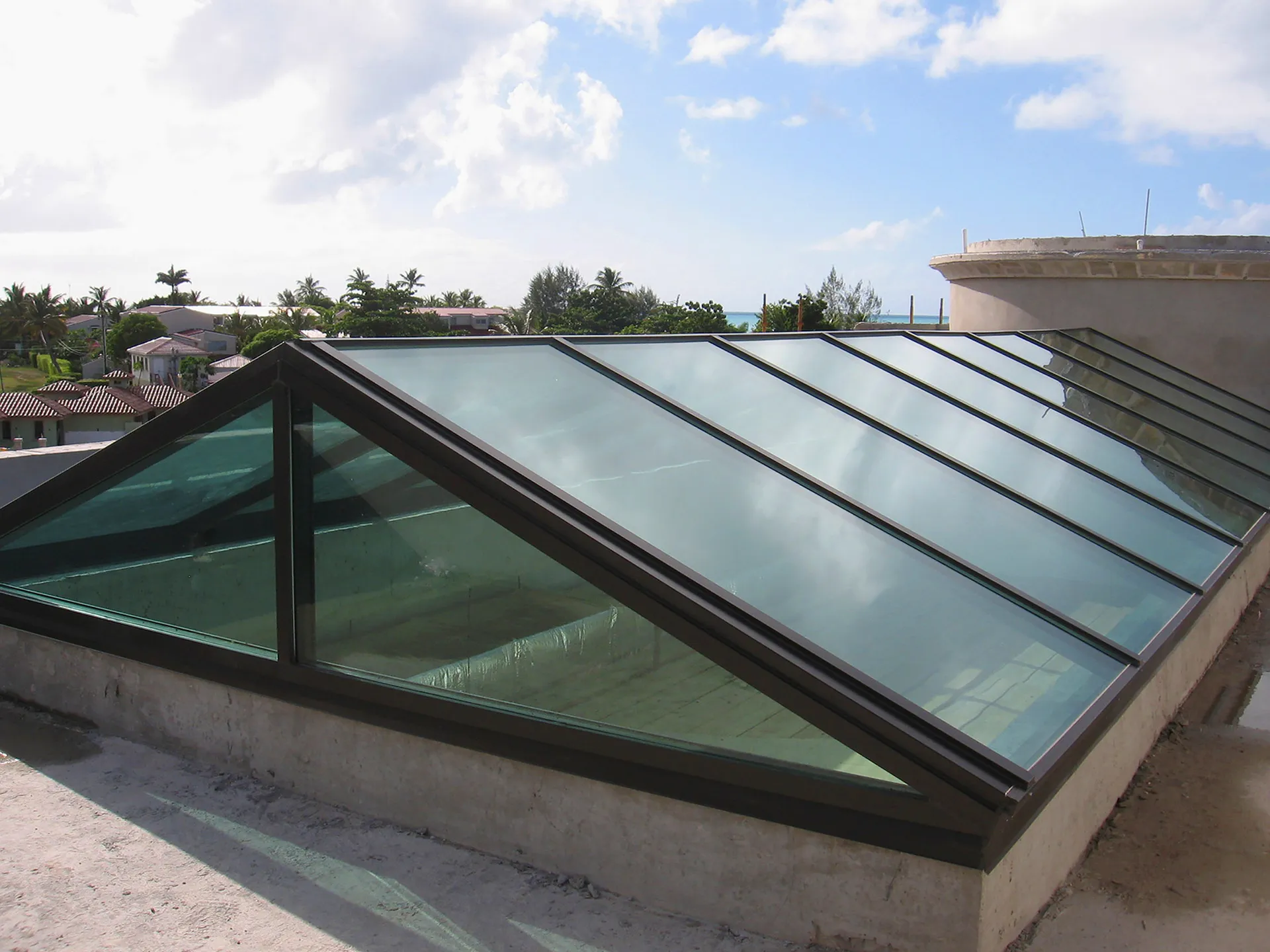

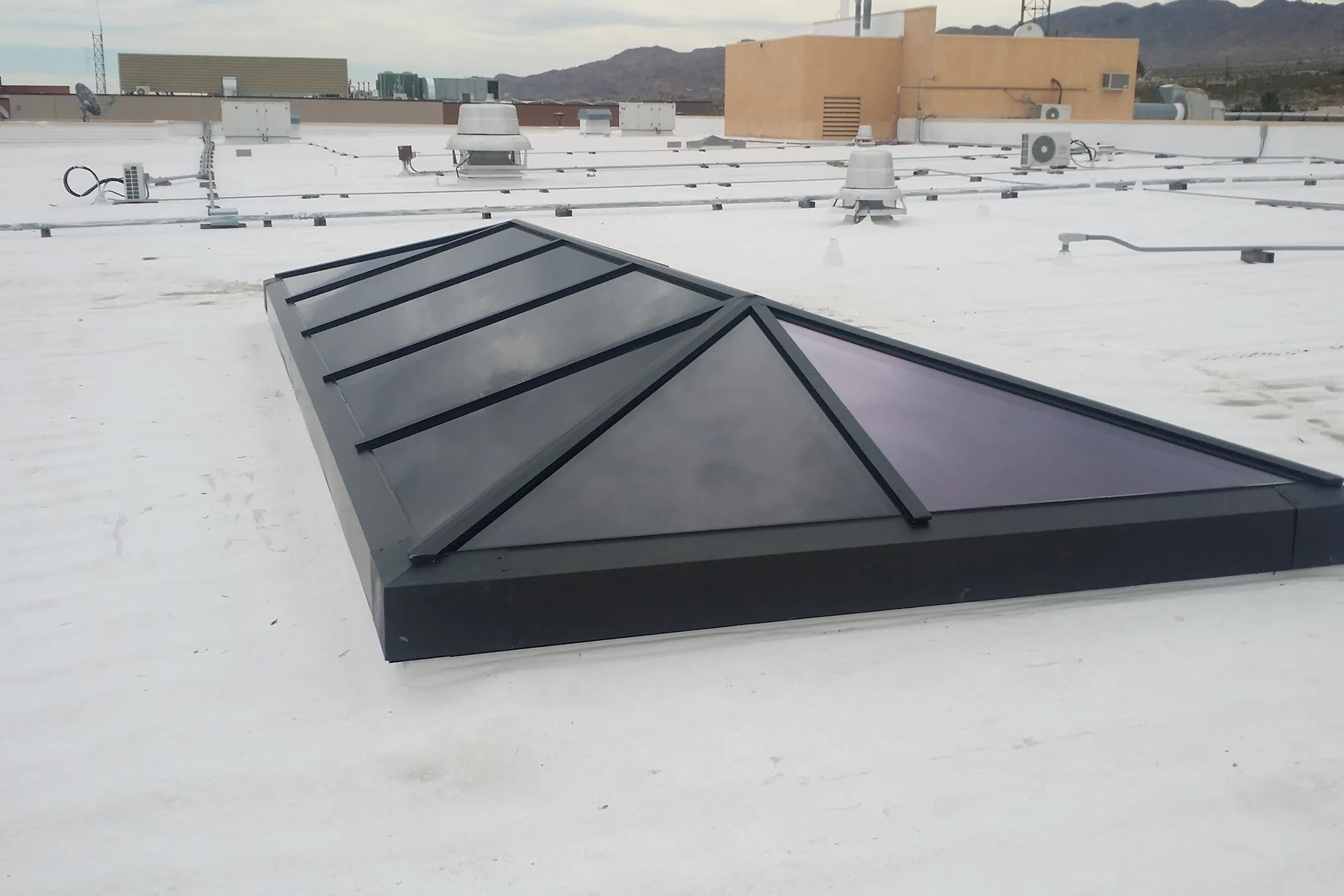

While our systems can be fully custom, standard configurations include single slopes, pyramids, ridges, hip ridges, and polygons.
What types of glass are available for KlearSky™ skylights?
KlearSky is available with a wide range of glass options - from low-e to tinted and more. Contact us for a full range of options.
Are all KlearSky™ systems assembled on-site?
Most KlearSky™ systems are assembled on-site, but certain configurations are available pre-assembled and ready to install. We can also provide partially assembled systems that reduce install times.
