Series 3400 Smoke Vents
Series 3400 smoke vents are designed to perform under tortuous conditions, and can be configured with either a polycarbonate dome for access to natural light, or galvanized steel doors.
Series 3100 Smoke VentsVersatile smoke vent solution that provides beneficial natural light.
)
)
Product Information

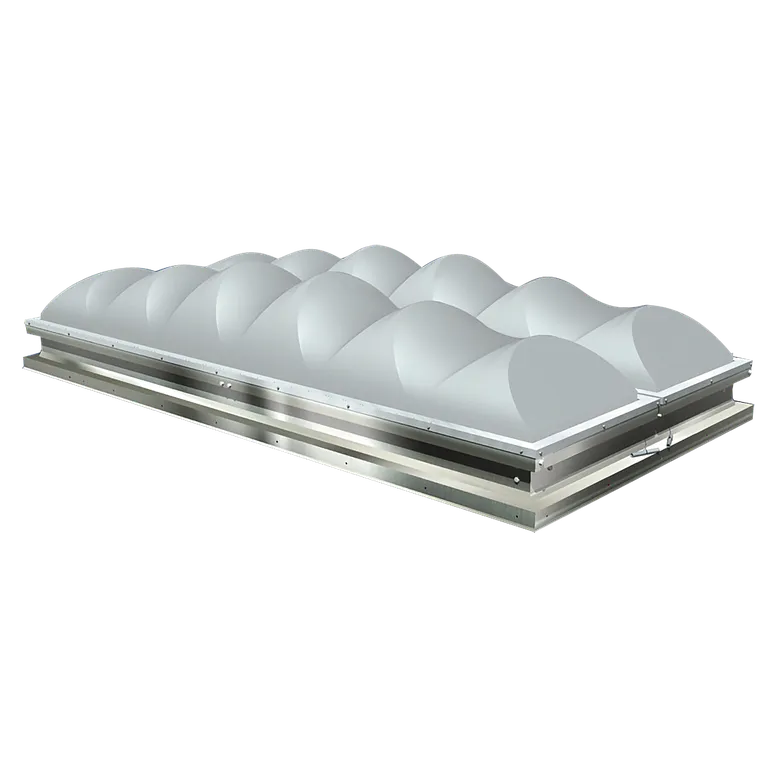

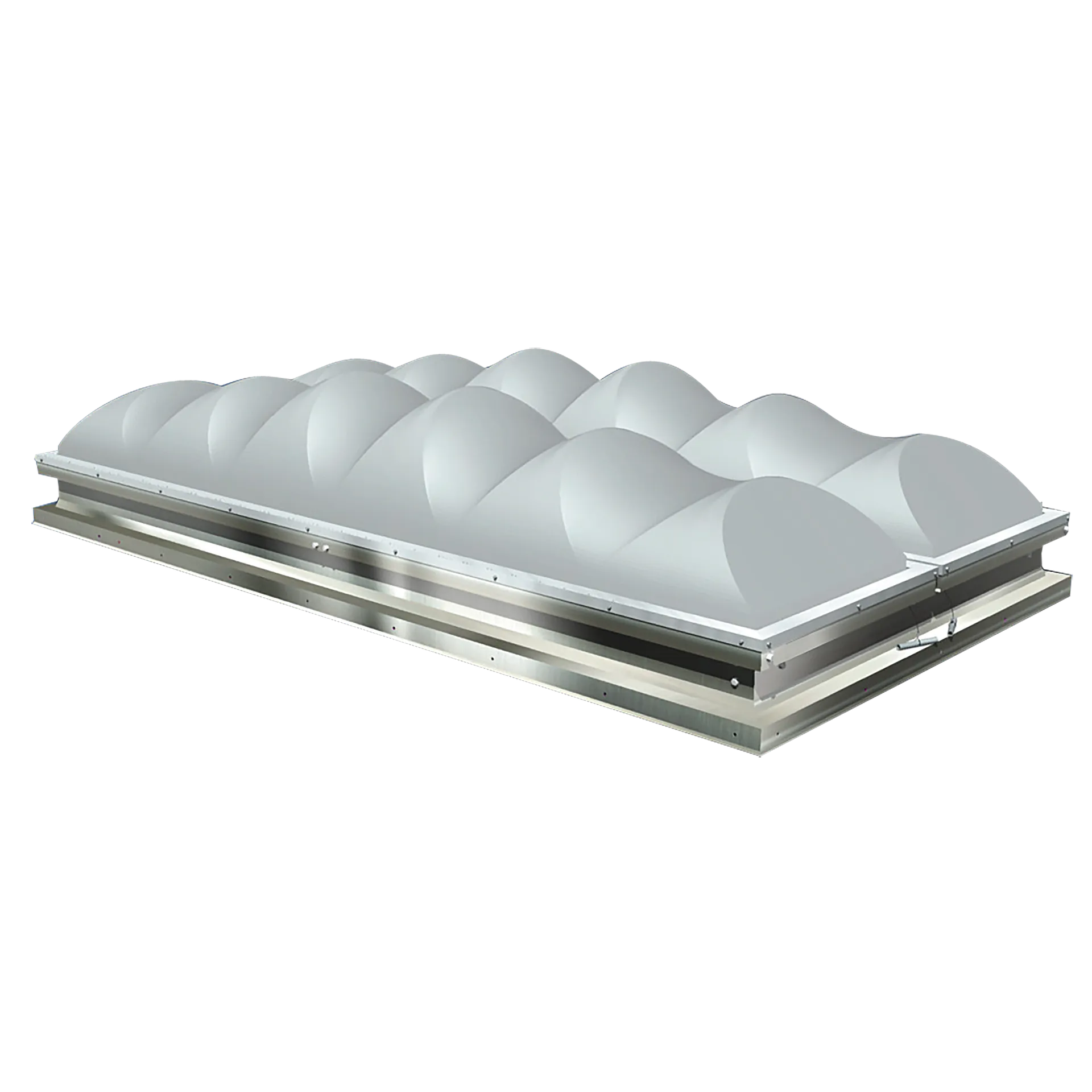

Series 3100 aluminum framed polycarbonate smoke and heat vents bring beneficial natural light into interior spaces but also provide a path for hot gases and smoke to exit a building during a fire. Designed to perform under tortuous conditions, they can help minimize structural damage, reduce lateral fire spread, allow fire-fighters to determine the location of a fire by observing smoke plumes from open vents, and can reduce dangerous heat and vision-obscuring and potentially toxic smoke.
Series 3100 systems are available in a variety of standard sizes and configurations, with UL listed and FM Approved configurations, and are backed by a 10-year material-workmanship warranty.
Product Highlights
- Polycarbonate glazing and radial tri-arch shaped dome offers excellent lighting and strength capabilities
- Constructed with corrosion resistant hardware, aluminum or galvanized steel framing and thermoplastic santoprene gaskets for long-term durability
- UL Listed and FM Approved Options - See Data Sheets for Details

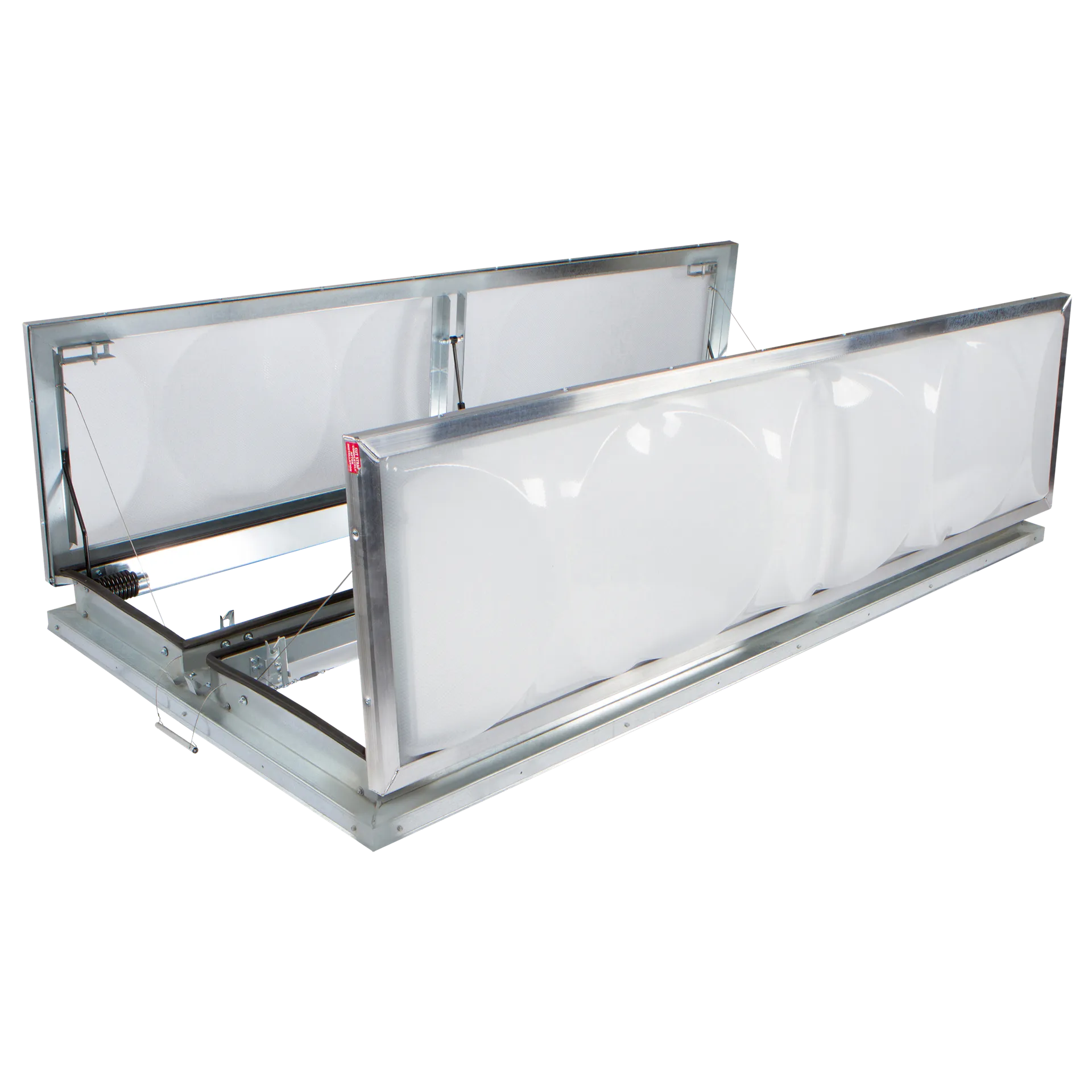

- Doors are compression loaded and secured with latches operated either manually or by a single UL-listed fusible link.
- Hydraulic dampers control the speed of operation and doors can open against a 10psf uniform load
- Backed by 10-year material-workmanship warranty
Technical Information
Dimensions
| Model Size | Rough Opening Dimensions | Outside Curb Dimensions |
| 4848 | 48" x 48" | 51" x 51" |
| 6060 | 60" x 60" | 63" x 63" |
| 4896 | 48" x 96" | 51" x 99" |
| 6072 | 60" x 72" | 63" x 75" |
Options
Base Options
- Frame options: Curb mounted (CM) or self-flashing (SF) with 2-3/4” nailing flange
- Aluminum or galvanized steel
Door Options
- Polycarbonate glazing: Single (1) or double (2) glazed / Clear or white monolithic polycarbonate outer dome and Clear or White Prismatic inner dome
- Skywave or KAT Dome glazing configurations
Smoke Vent Options
- EPDM curb seal tape (T)
- Fusible link temperature options: 165° / 212° / 286° / 360° / 520°
- Mill finish frame (MF), as standard (Custom, or specialized paint available upon request)
Self Flashing Curb Options
- Curb heights*: 9” or 12” (*Custom heights available upon request)
- Insulated curb (INS)
- Wood nailer (WN)
- Non-welded double wall (DW)
- Welded double wall (WDW)
- Aluminum termination bar (TB)
Optional Vortex Venting Base (4848 and 4896 sizes)
- 20-gauge galvanized steel
- Galvanized steel G90 finish (MF) as standard
- Built-in rain shield
Certifications & Test Results
| Test | Results |
| Combustion Classification | CC1 |
| Underwriters Laboratories (UL) | Listed to UL 793 Standard Wind Uplift Class = 90 Snow Load = 10lbs |
Downloads
Datasheet
Frequently Asked Questions
What glazing color options are offered with Series 3100 systems?
Series 3100 smoke vents are available with a Skywave or KAT dome glazing configuration, in clear or white monolithic polycarbonate. They're also available in single or double glazed configurations.
How do Series 3100 smoke vents open and close?
Options include manual operation or a fusible link that release the doors when a specific temperature is reached.
What sizes are available?
Series 3100 smoke vents are available in 48” x 48”, 60” x 60”, 48” x 72”, 48” x 96” and 60” x 72” sizes (rough opening dimensions).
Need More Information or Want to Start a Quote Request?
Click on the buttons below to get in touch with our team about general product questions and design concerns, or to access our quote request form.
)
