Series 3100 Smoke Vent
Series 3100 aluminum framed polycarbonate smoke and heat vents bring beneficial natural light into interior spaces, but also provide a path for hot gases and smoke to exit a building during a fire.

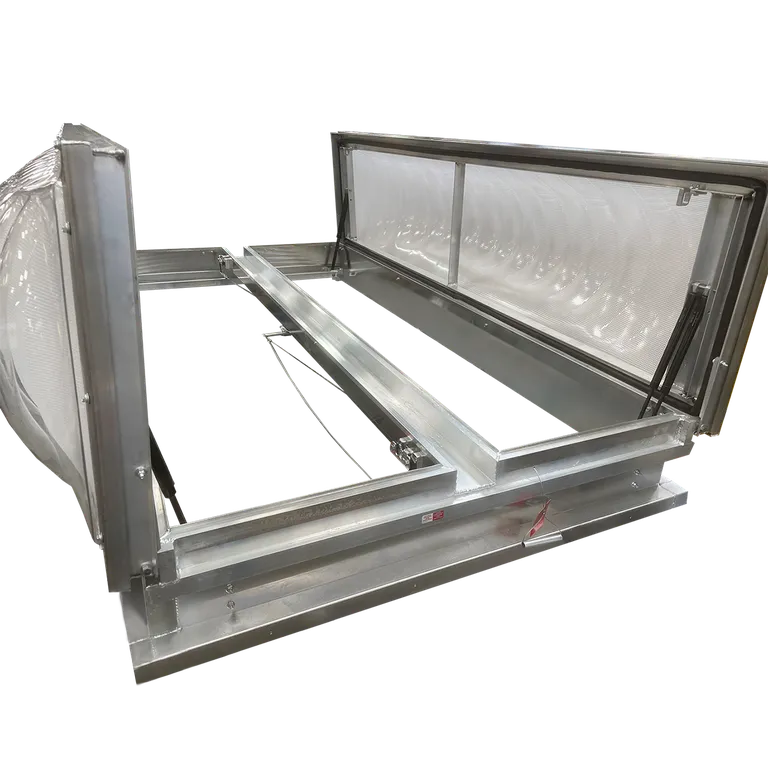

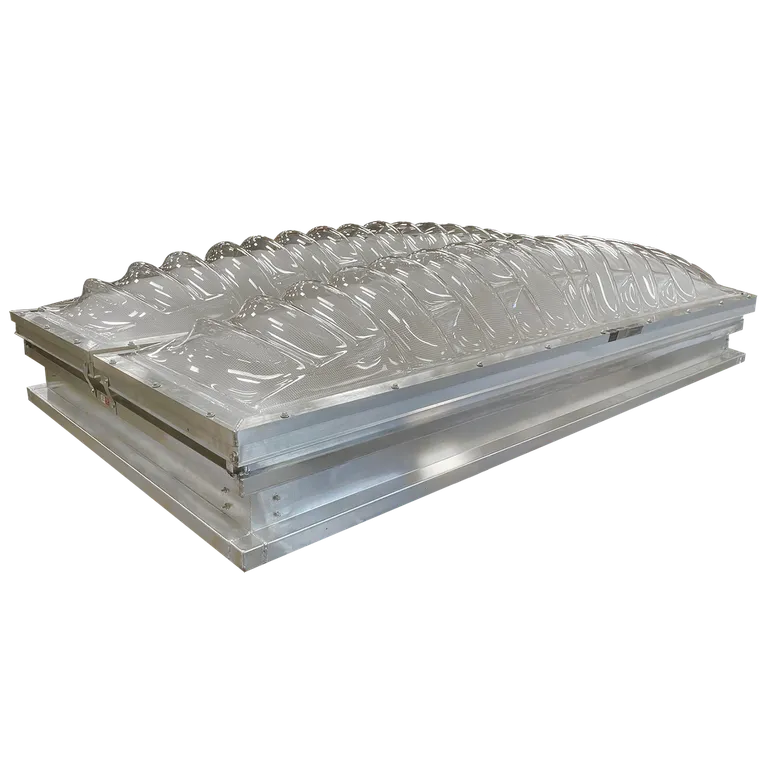

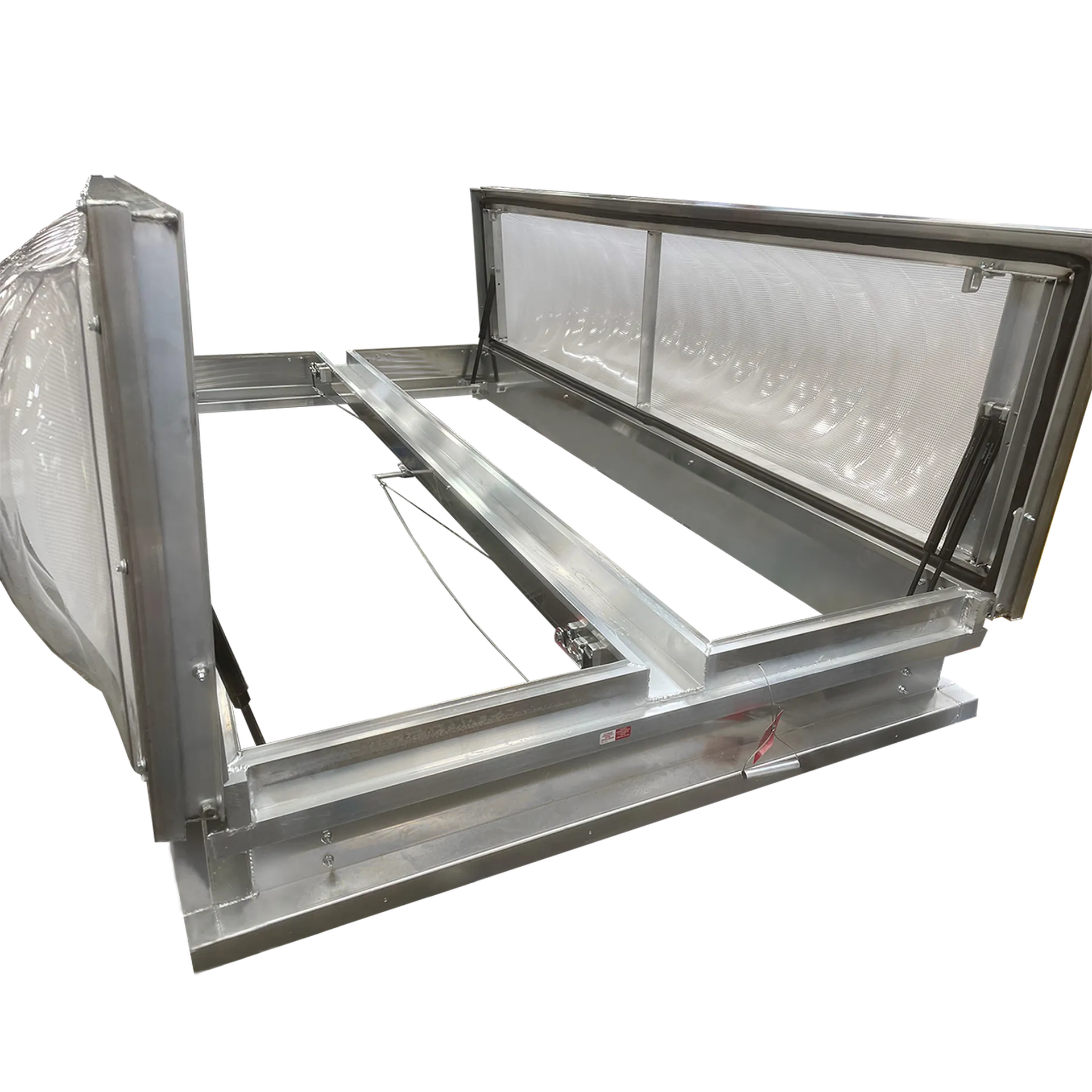

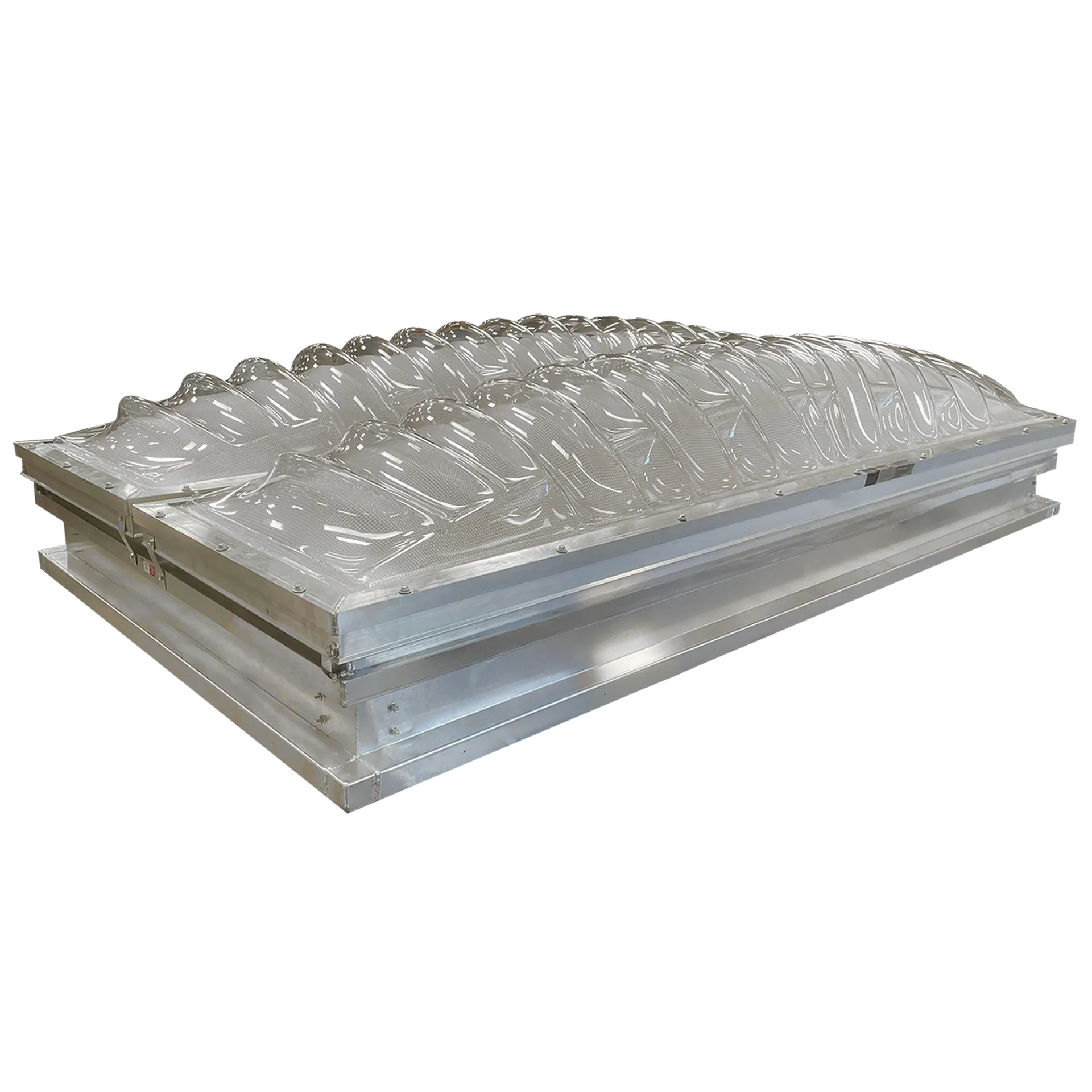

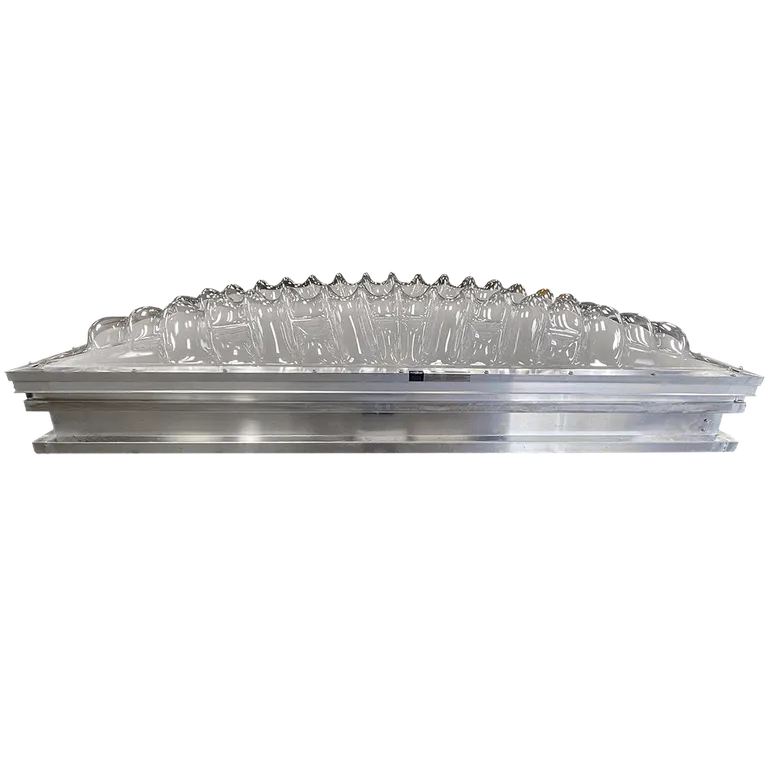

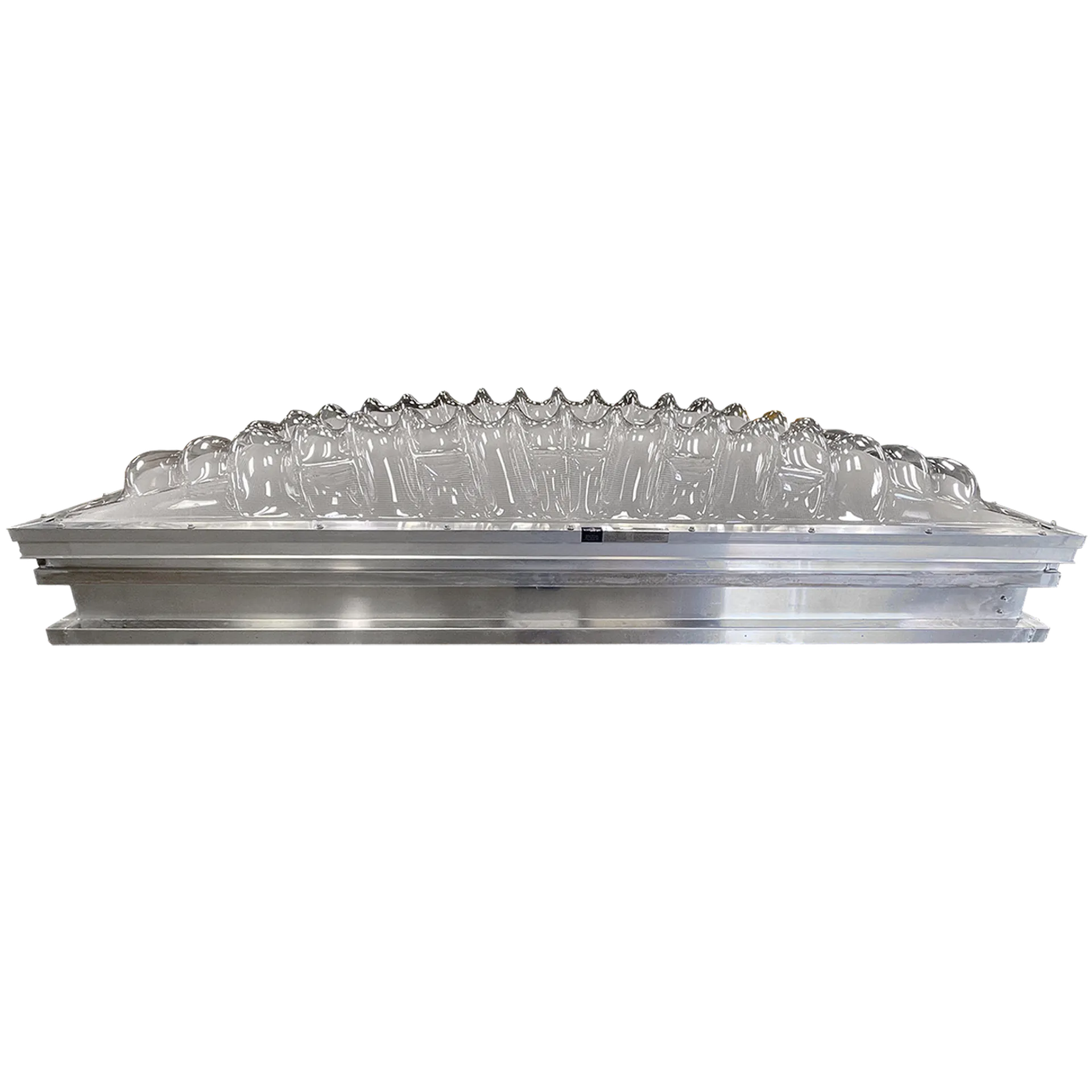

Series 3400 Smoke VentsSmoke vents featuring either polycarbonate domes or galvanized steel doors.
)
)
)
Product Information
Designed to perform under tortuous conditions, Series 3400 smoke vents can help fire-fighters to determine the location of a fire by observing smoke plumes from open vents, and can reduce dangerous heat and vision-obscuring and potentially toxic smoke. They can be configured with either polycarbonate glazed domes for access to natural light, or galvanized steel doors. Manufactured with corrosion-resistant hardware and aluminum framing, Series 3400 smoke vents are designed for durability and long-term performance, are UL listed, and are backed by a 10-year material-workmanship warranty.
Product Highlights
- Can be configured with polycarbonate glazing to provide natural light along with smoke management - in Skywave or KAT (Kingspan Advanced Technology) dome configurations
- Built with corrosion resistant aluminum construction and hardware
- Available galvanized steel door with 1” polyiso insulation for improved thermal performance
- Silicone seals and EPDM gaskets help to protect against air and water infiltration
- Doors are compression loaded and secured with latches operated either manually or by UL-listed fusible links
- Can be mounted from horizontal (flat roof) to 5:12 pitch
- UL Listed
- Systems feature a 10-year Material and Workmanship warranty
Technical Information
Dimensions
| Model SIze | Inside Curb DImensions | Outside Curb Dimensions | Inside Frame DImensions |
|---|---|---|---|
| 4848 | 48” x 48” | 51" x 51" | 52-1/4” x 52-1/4” |
| 4872 | 48” x 72” | 52-1/4” x 52-1/4” | 52-1/4” x 76-1/4” |
| 4896 | 48” x 96” | 51” x 99” | 52-1/4” x 100-1/4” |
| 6060 | 60” x 60” | 63” x 63” | 64-1/4” x 64-1/4” |
| 6072 | 60” x 72” | 63” x 75” | 64-1/4” x 76-1/4” |
| 6096 | 60” x 96” | 63” x 99” | 64-1/4” x 100-1/4” |
Options
Polycarbonate Dome Options:
Skywave or KAT glazing configurations available
Glazing / Door Options:
- CPC - Clear Monolithic Polycarbonate
- WPC - White Monolithic Polycarbonate
- CPC/WPP - Clear Monolithic Polycarbonate over White Prismatic Polycarbonate
- WPC/WPP - White Monolithic Polycarbonate over White Prismatic Polycarbonate
- MTL - Galvanized Steel Lid
Fusible Links:
- UL-listed / Standard temperatures: 165°F, 212°F, 289°F, 370°F, 520°F
Model:
- KSV10 - 10# Live Load
- KSV30 - 30# Live Load
- KSVi10 - Insulated 10# Snow Load
- KSVi30 - Insulated 30# Snow Load
Base:
- CM -Curb Mount / CT - Curb-mount with Tape / SF -Self-Flashing Base / Si - Self-Flashing with Insulation / LV - Vortex Base / LS - Vortex Self-flashing Base
Base options:
- Curb heights: 9” / 12” / 18”
- WN Wood Nailer / DW Non-welded Double Wall / WDW Welded Double Wall / TB Aluminum Termination Bar
- Optional Vortex Venting Base Features - 20 guage galvanized steel frame / Galvanized steel G90 finish (MF), as standard / Built in rain shield
- Vortex Venting Base Options - Insect screen / Dust filters
Certifications & Test Results
| Listed and Labeled per IBC Section 910.3 | UL 793 | Wind Uplift Class: 90 Snow Load: 10 lbs or 30 lbs |
| Reaction to fire per IBC Section 2606.4 | ASTM D1929 / ASTM E84 / ASTM D2843 / ASTM D635 | Self-ignition Temperature: ≥ 650°F Smoke-developed Index: ≤ 450 Smoke Density Rating: ≤ 75 Combustion Classification: CC1 |
Downloads
Other
Specification Text
Technical Drawings
Frequently Asked Questions
What glazing options are available for Series 3400 systems?
Clear or white monolithic polycarbonate glazing is available in single or double-glazed configurations
What aluminum finish options are available for Series 3400?
Mill finish is standard, with custom or specialized paint options available upon request.
How do Series 3400 systems open and close?
Options include manual operation or a fusible link that release the doors when a specific temperature is reached.
What sizes are offered for Series 3400 smoke vents?
They’re available in 48” x 48”, 60” x 60”, 48” x 72”, 48” x 96” and 60” x 72” sizes (rough opening dimensions).
Need More Information or Want to Start a Quote Request?
Click on the buttons below to get in touch with our team about general product questions and design concerns, or to access our quote request form.
)
