Series 5200Internal safety screens
)
Product Information

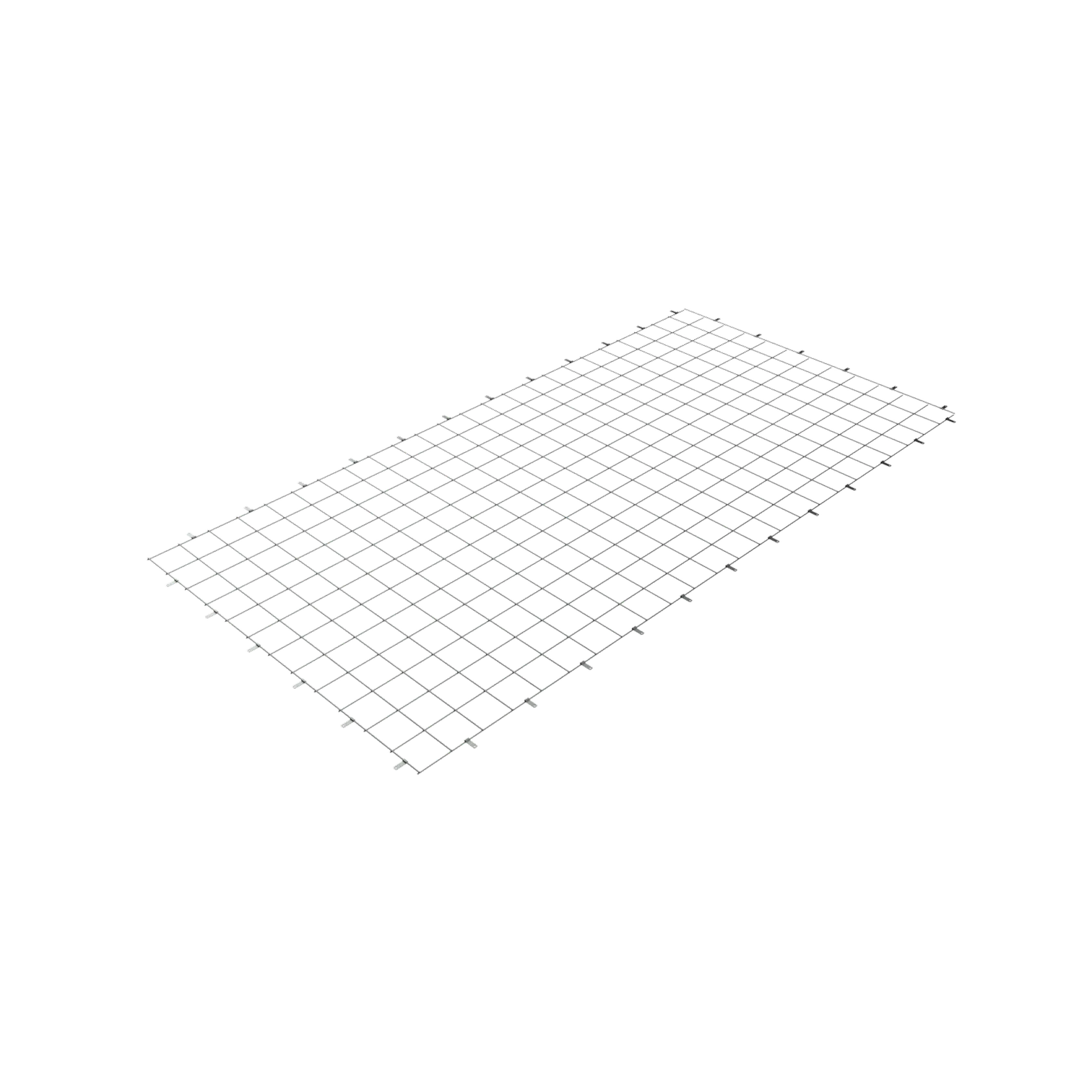

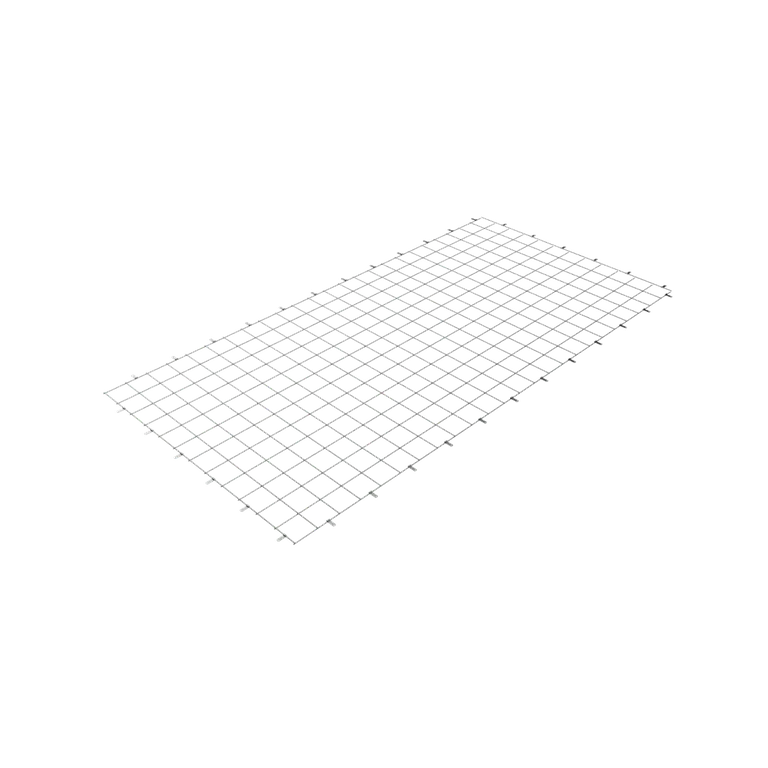

Series 5200 galvanized steel internal safety screens attach to multiple types of skylight curbs and provide a level of protection for those with access to roof spaces. Safety screens can be installed to wood or metal curbs, are a good choice for both new and retrofit applications, and are available in a wide range of sizes from 22” x 22” to 60” x 96” (see data sheet for full range of available sizes).
Product Highlights
- Enhanced safety for anyone with roof access
- Dependable galvanized steel construction
- 0.162” galvanized steel wire mesh in a 4” grid pattern
- Attaches to wood or metal curbs
- 10-year warranty (see warranty document for additional details)
Technical Information
Dimensions
| Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions |
| 2222 | 22" x 22” | 2246 | 22" x 46" | 4669 | 46" x 69" |
| 3030 | 30” x 30” | 2448 | 24” x 48” | 4783 | 47" x 83" |
| 3636 | 36” x 36” | 2496 | 24” x 96” | 4860 | 48” x 60” |
| 3737 | 37” x 37” | 24120 | 24” x 120” | 4872 | 48” x 72” |
| 4848 | 48” x 48” | 3046 | 30" x 46" | 4884 | 48” x 84” |
| 5555 | 55" x 55" | 3660 | 36” x 60” | 4896 | 48” x 96” |
| 7070 | 70" x 70" | 3672 | 36” x 72” | 48120 | 48” x 120” |
| 7272 | 72" x 72" | 3696 | 36” x 96” | 6072 | 60" x 72" |
| 36120 | 36” x 120” | 6096 | 60" x 96" |
Frequently Asked Questions
What sizes do Series 5200 screens come in?
Standard sizes are available from 22” x 22” to 72" x 72" for square configurations and 22" x 46" to 60" x 96" for rectangular configurations. See product data sheet for available sizes.
Can Series 5200 internal screens only be attached to wood curbs?
No – options for wood and metal curbs are available.
How are the Series 5200 screens attached to the curb?
Screens are attached to the curb using screws, and included in the kit is ¼” thick EPDM curb seal tape to create a seal between the skylight and curb.
Need More Information or Want to Start a Quote Request?
Click on the buttons below to get in touch with our team about general product questions and design concerns, or to access our quote request form.
)
Series 5100 Security Grills

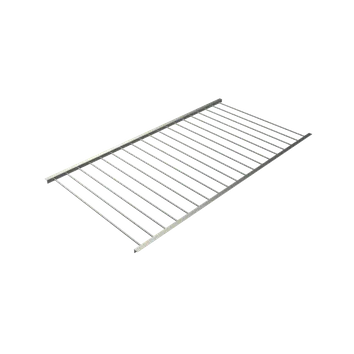

Series 5100 steel security grills come in a wide range of styles and patterns including a variety of grid patterns and sizes, and attach to both wood and metal roof decks and curbs.
)
Series 5600 Hatch Guard

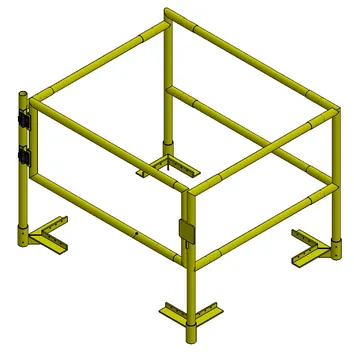

Series 5600 roof hatch guards are your first line of defense against a fall through an open or unguarded roof hatch.
)
Series 3100 Smoke Vent

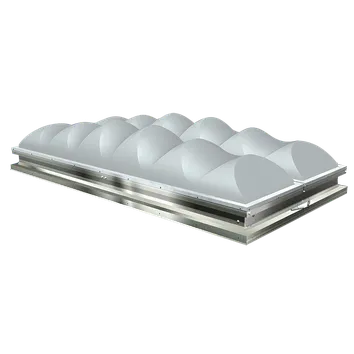

Series 3100 aluminum framed polycarbonate smoke and heat vents bring beneficial natural light into interior spaces, but also provide a path for hot gases and smoke to exit a building during a fire.
