UniQuad®Polycarbonate Translucent Wall System
)
)
)
)
)
)
)
Product Information
UniQuad® translucent wall systems feature polycarbonate glazing in a unitized panel design that provides light control and high thermal performance along with the versatility to meet the functional and creative needs of any building design. Systems may be customized for a wide range of performance and aesthetic needs, including sound control, custom colors and graphics, specialty systems for hurricane and blast protection, and more. Best of all, UniQuad® is also easy to install and maintain.
Product Highlights
- Internal aluminum support members create an efficient unitized system and a clean aesthetic

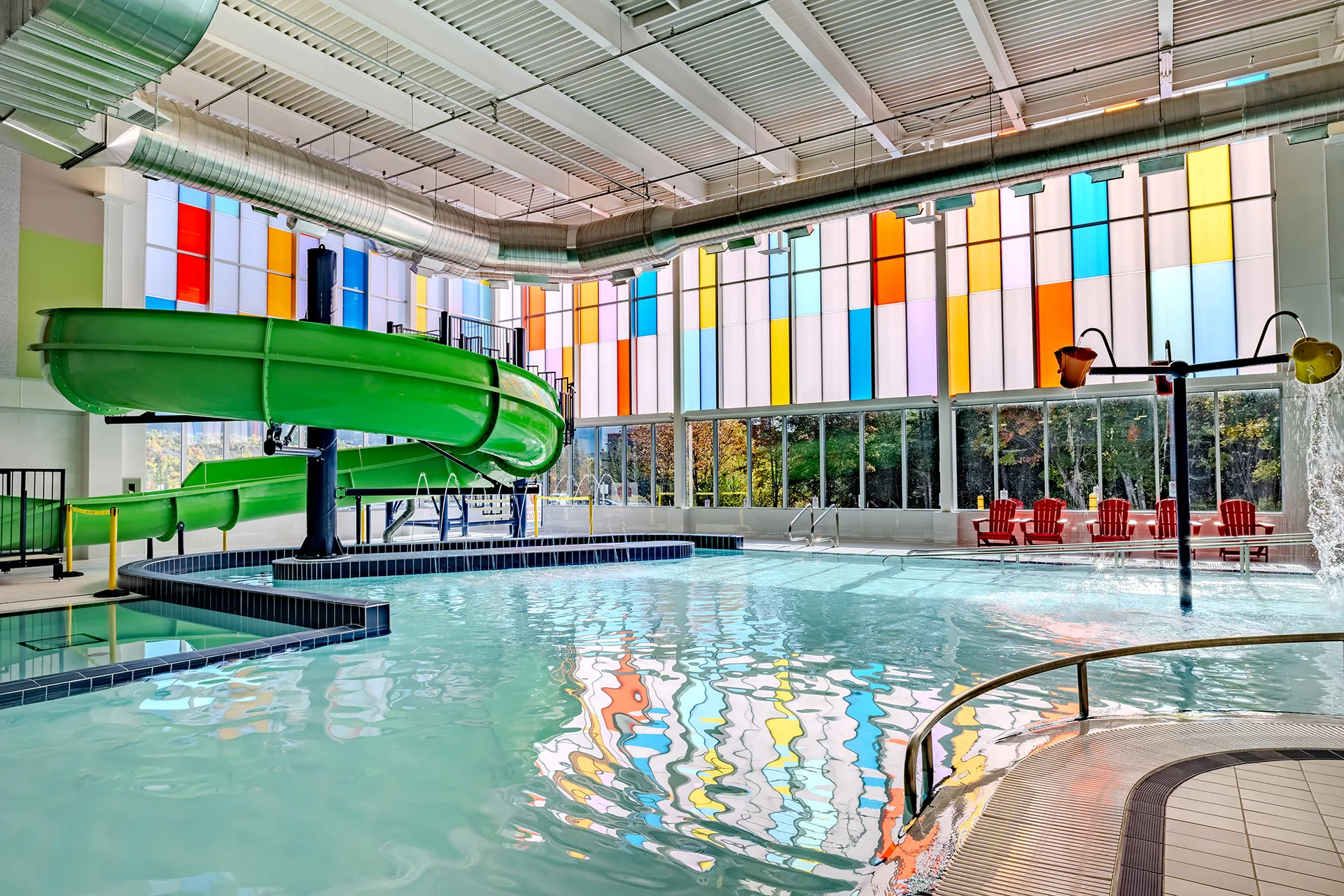

- Wide range of standard and custom glazing colors, as well as graphic options (contact us for details)
- Unitized panel assemblies allow for easy installation – with panels up to 38 feet tall
- Easy to maintain – simple cleaning only
- Removable Skin Technology (RST) allows removal of interior or exterior glazing while maintaining envelope integrity
- Specialty systems available – from blast and hurricane protection to sound control and forced entry

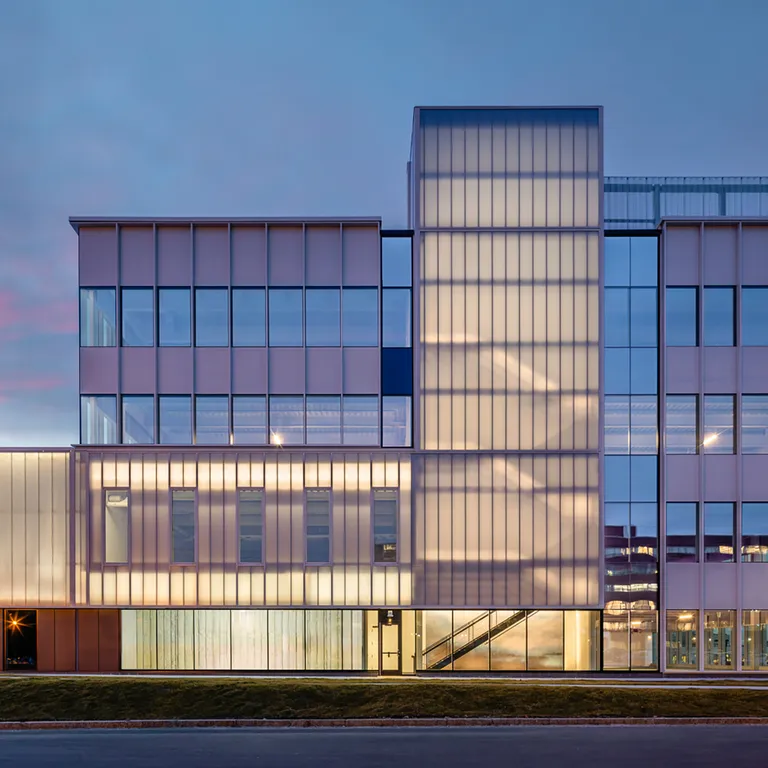

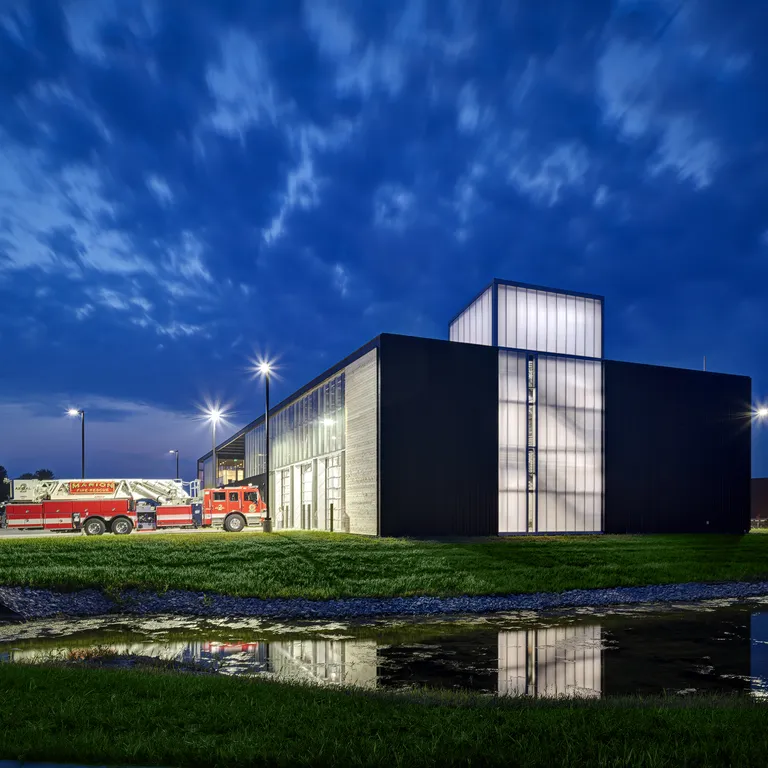

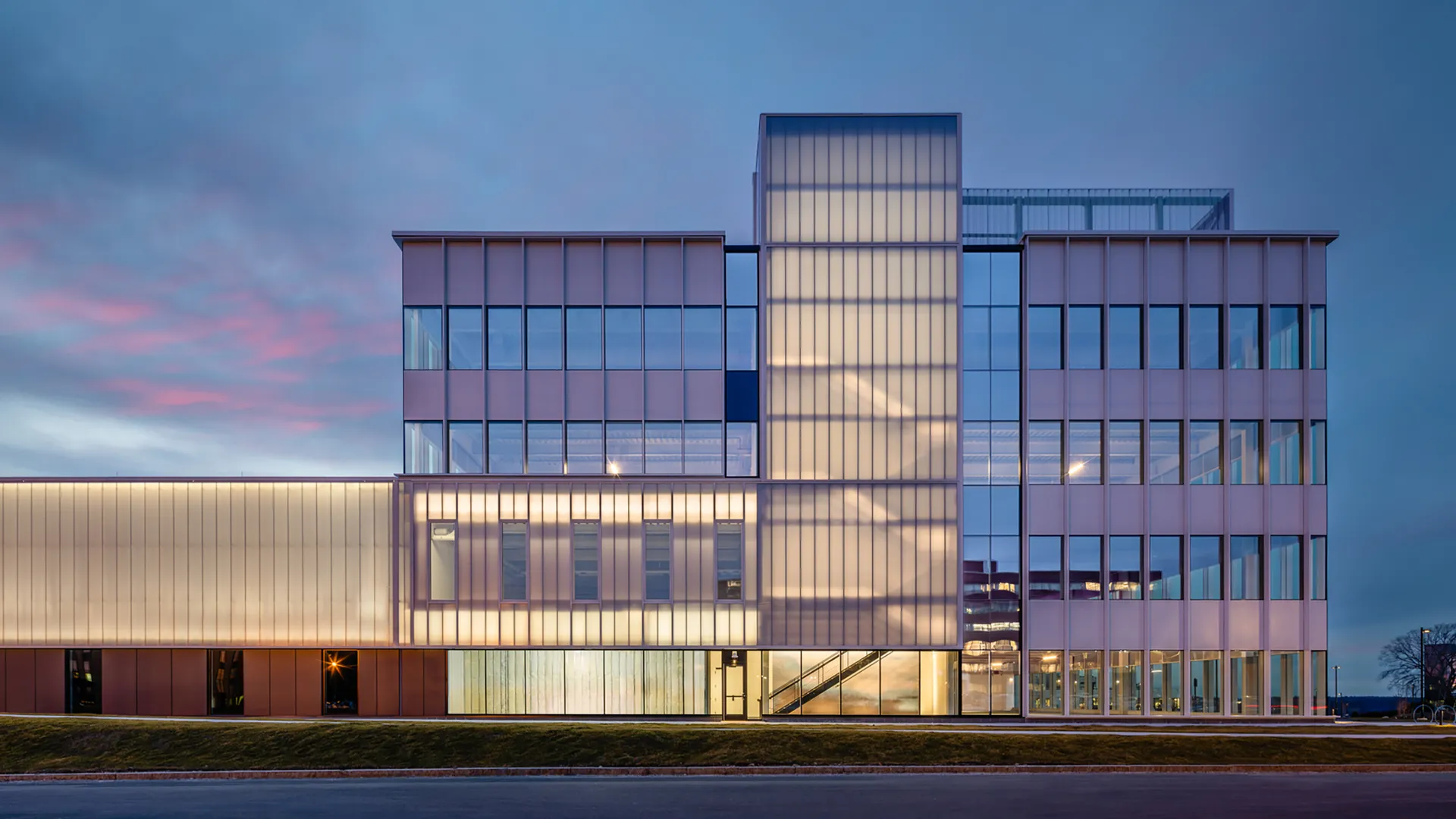

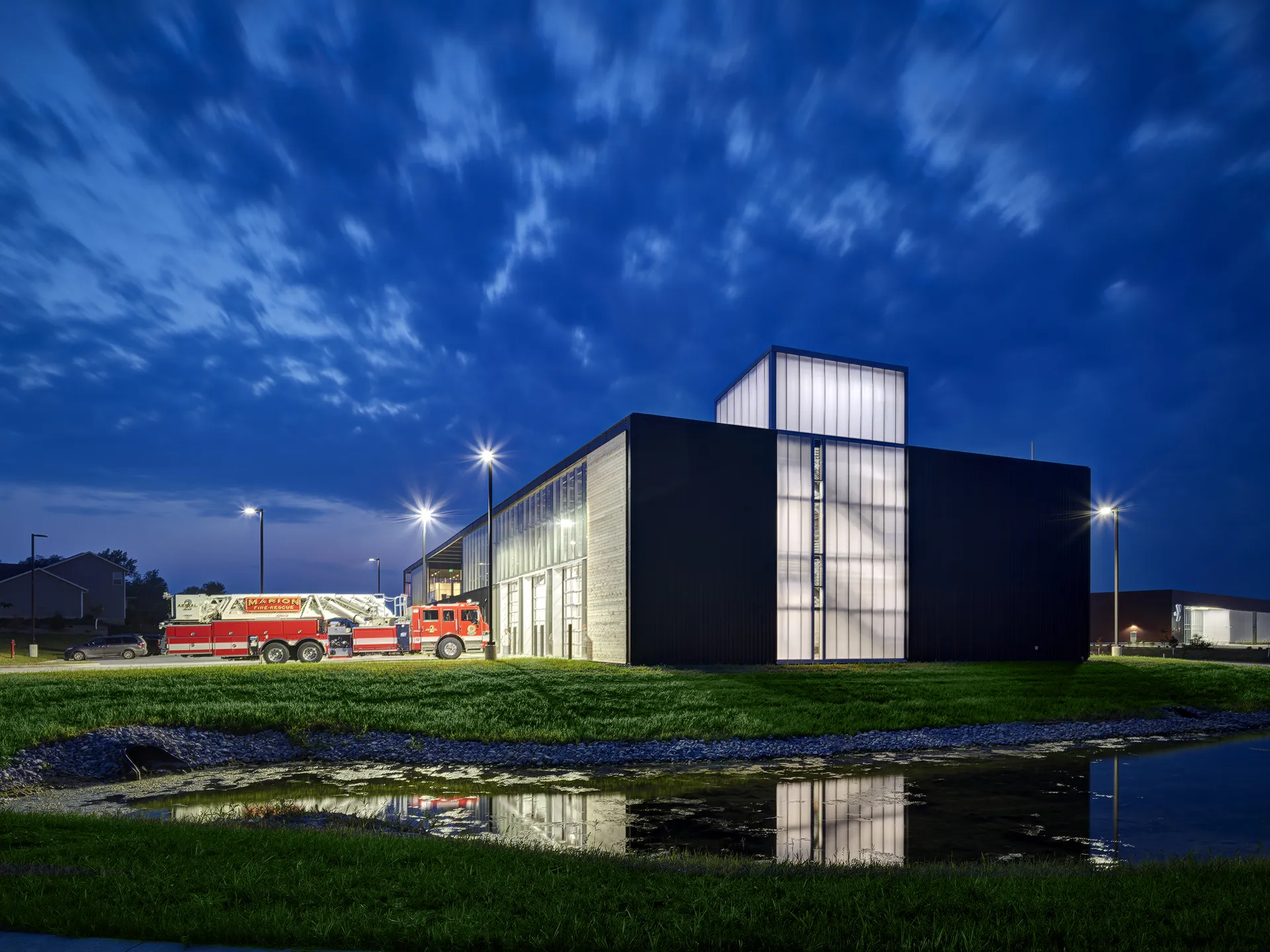

- Can incorporate LED backlighting (provided by third party) for an eye-catching look
- Pre-engineered options available for faster lead times
- Most materials can be recycled (aluminum and polycarbonate)
- Backed by a 10-year material-workmanship warranty
Technical Information
Dimensions
- Thickness: 4.25 in (108 mm) & 2.75 in (70 mm)
- Panel Width: 23.75 in (603 mm)
- Panel Length: Up to 38 ft long - Contact us for feasibility for taller applications
- Panel Weight: 1.5-2 lbs/ft²
Base Options
- Technology: Removable Skin Technology (RST) - Allows for the removal of the exterior panel while the interior panel remains in place
- Panel Joint: Structural member, mechanically interlocking, sealed joint

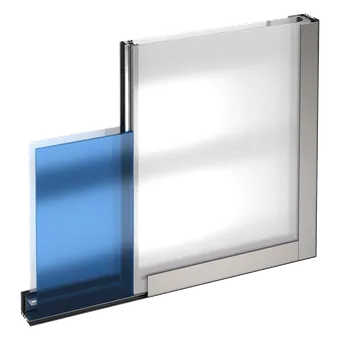

- Glazing: 3” and 4” UniQuad®: Nano-Cell 10mm (Interior & Exterior) UniQuad® Window: Nano-Cell 8mm (Interior & Exterior)
- Glazing Color Options:

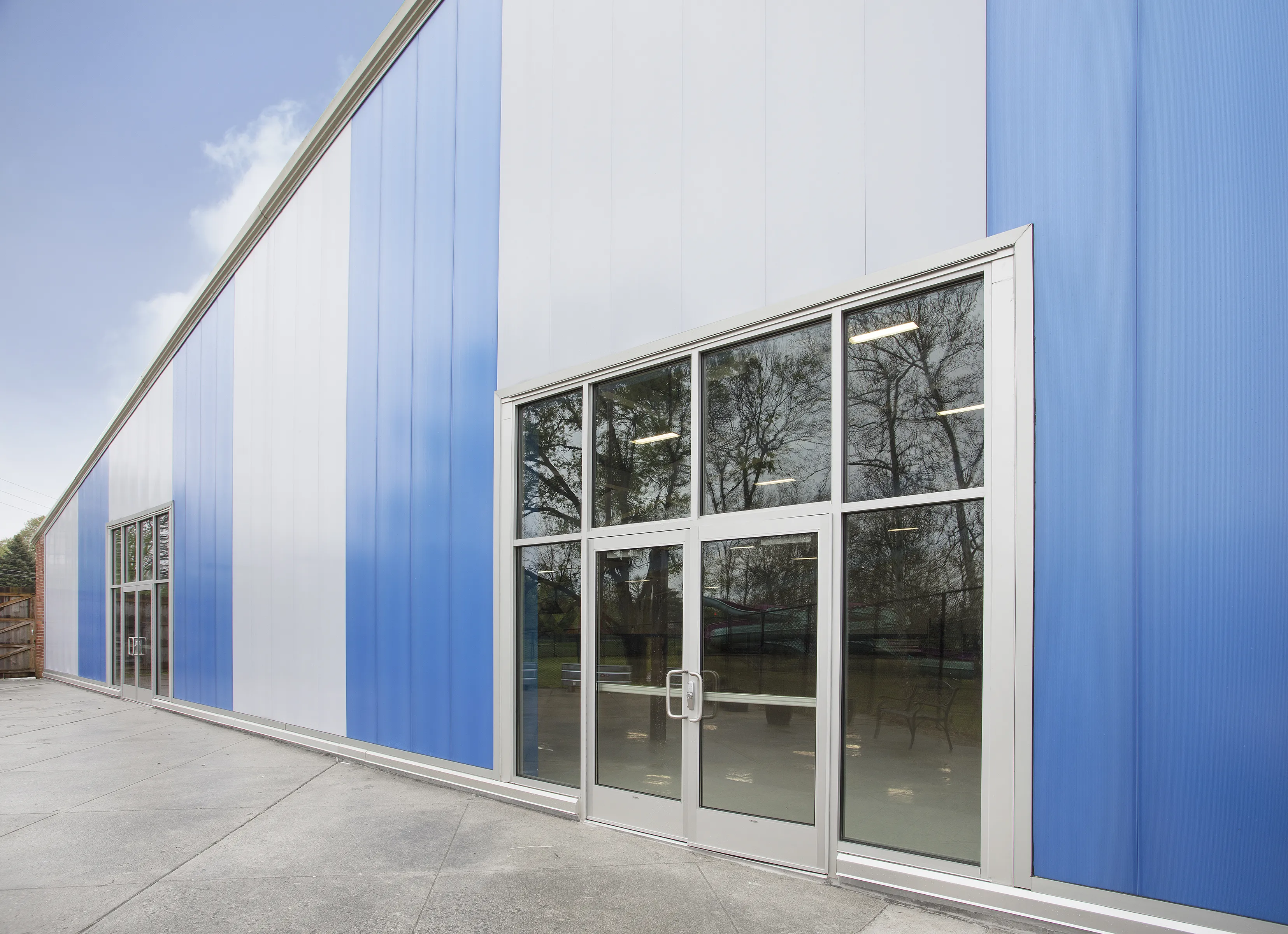

- Standard (Matte Finish) - Clear, White , Ice White
- Non-standard - (Matte or Non-matte Finish) - Blue, Green, Reflective Gray (Non-matte only), Gray, Bronze
(Note: Consult KLA for other available custom color options) - Bi-Color System: Option to select one color for the exterior glazing panel, and a different color for the interior glazing panel
Certifications & Test Results
- Code Compliance, IBC - ASTM D635, D1929, D2843, E84 per ESR-4745 - CC1 Rating
- Uniform Load Structural / Spans - ASTM E330 - Consult KLA for job specific span capabilities.
- Water Penetration - ASTM E331/TAS 202 - Pass
- Air Infiltration - ASTM E283 - Pass
- Sound Transmission Loss - ASTM E90, E1332 - STC: 24; OITC 17 (3 in system) / STC: 27-35; OITC 19-27 (4 in system)
- TAS 201/202/203 - Missile Impact Level D, Up to 95psf dependent upon span
Performance data
- NFRC 100 - U-factor: 0.15-0.30*
- NFRC 201 - Solar Heat Gain Coefficient (SHGC) 0.21 to 0.37*
- NFRC 202 - Visible Transmittance - 0.10 to 0.35*
*Values subject to color selection and other options. See data sheet for full details and performance.
Downloads
Brochure
Specification Text
Sustainability (EPD, FDS..)
Technical Drawings
UniQuad® Polycarbonate Wall Systems
More About UniQuad®
Combine Light + Thermal Performance
UniQuad® systems diffuse natural light while providing excellent thermal performance.
Design Options
Glazing options include a wide variety of colors to fit just about any project need.
Strong + Secure
UniQuad® features a unique clip system that helps create a durable, dependable daylighting solution.
)

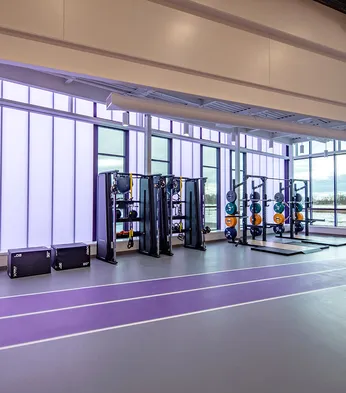

Case Studies
See Our Solutions at Work
Get inspired and learn more about how our systems can make an impact.
)
)
)
)
)
)
)
)
)
Frequently Asked Questions
What is the difference between UniQuad® and glass wall systems?
UniQuad® polycarbonate systems are lighter in weight than comparable glass systems, allowing for greater design flexibility and making them easy to install. They also provide built-in light control, eliminating the need for costly exterior or interior shading devices.
Can I incorporate other materials with the UniQuad® glazing like glass or metal panels?
Smaller sized glass glazing can be incorporated with a UniQuad® system, and Kingspan insulated panels can also integrated into the system for a unique look. Contact us for more details and design considerations.
How long can each UniQuad® panel span?
UniQuad® can be configured with continuous panel lengths up to 38 feet for a clean exterior look. Internal supports allow spans up to 12 feet depending on loading conditions. Contact us for information related to your specific project needs.
Do UniQuad® glazing panels come pre-assembled?
UniQuad® glazing panels arrive pre-assembled for quality control and ease of installation.
Can I design a UniQuad® system with custom colors?
Yes – custom colors are available. Interior and exterior colors can be different as well, creating a unique look. Contact us for information on color matching and available options.
