UniGrid™Translucent FRP wall system
)
)
)
)
)
)
Product Information

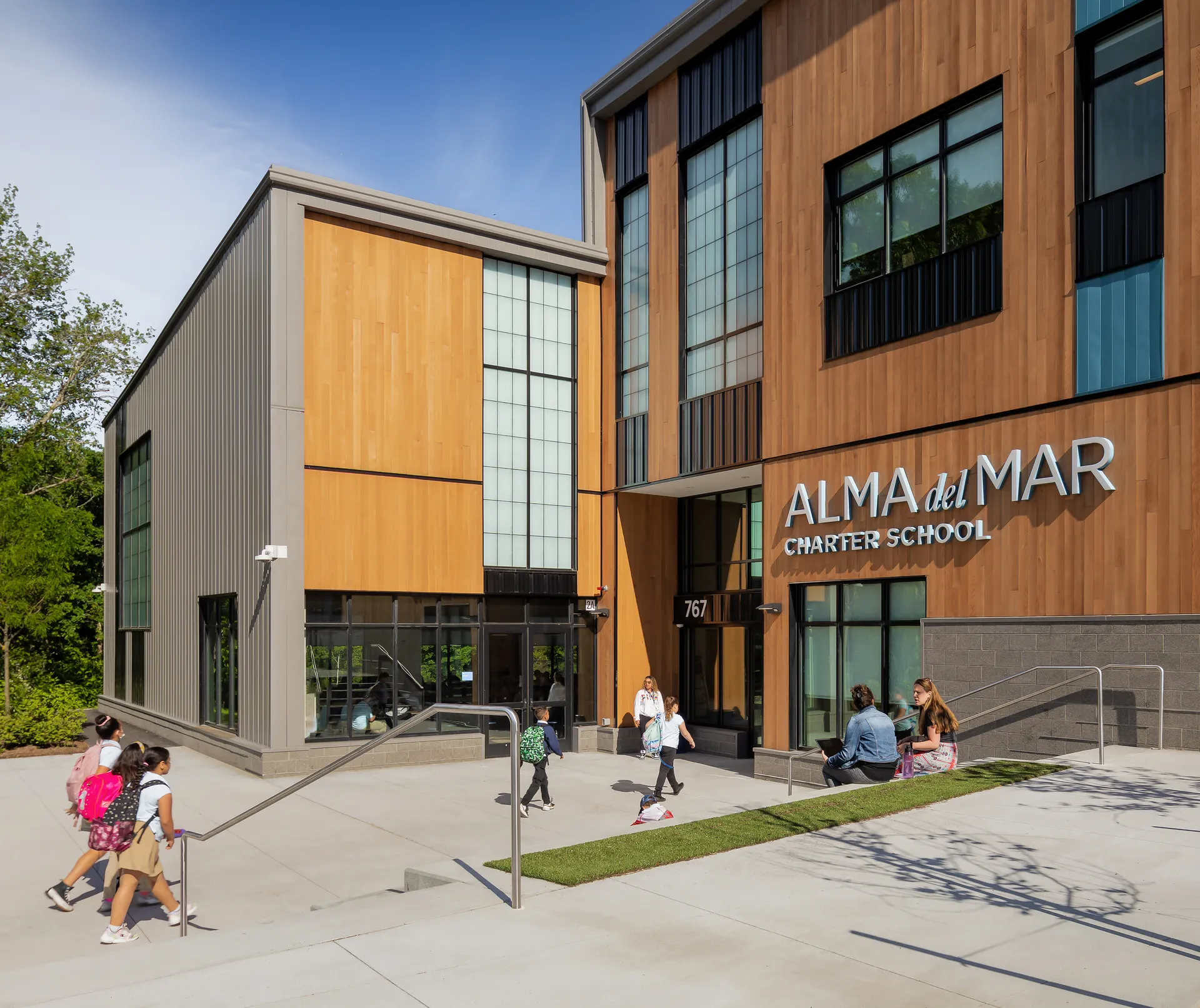

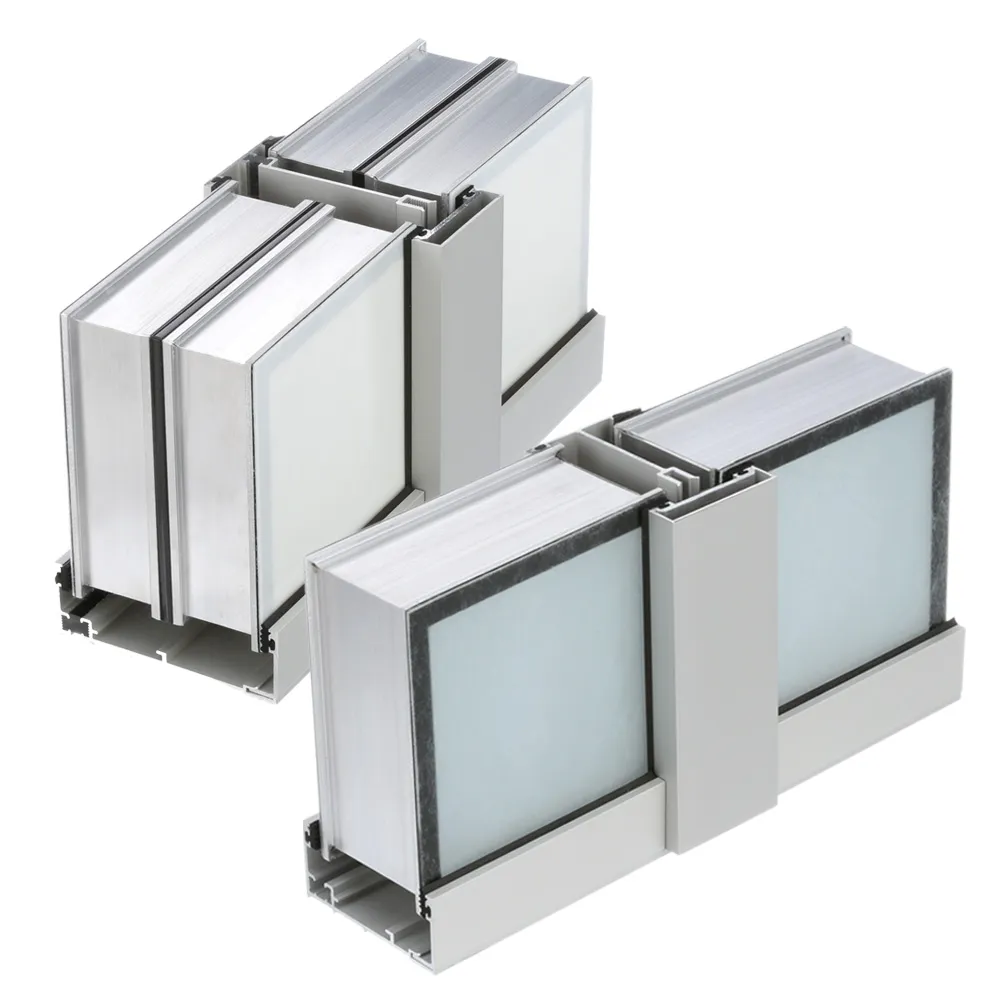

UniGrid™ translucent panel wall systems feature a lightweight sandwich panel design with fiberglass reinforced polymer (FRP) face sheets that provide light control and privacy. Their high thermal performance and unique aesthetic make them a versatile design tool that can be customized for a range of applications, and they're available in standard 2.75" or larger 4" configurations for enhanced thermal perfocmance. Custom configurations for hurricane and blast protection, mixed glazed systems and unitized assemblies that integrate windows, louvers and more are available.
Product Highlights
- Standard 2.75" and optional 4" panel sizes with insulation and thermal break options to enhance thermal performance
- Concealed fasteners for a cleaner, more modern aesthetic and snap-and-capture caps to help speed up installation times
- Standard or custom grid patterns allow for design flexibility
- FRP face sheet is available in a range of colors
- EPDM gaskets and high-performance sealants protect against air and water infiltration
- Individual panels up to 5 feet wide and 20 feet long (depending on load requirements)
- Numerous finish options available – from clear anodize to custom color matching
- Translucent Adapter Panel system for integration into existing curtainwall systems

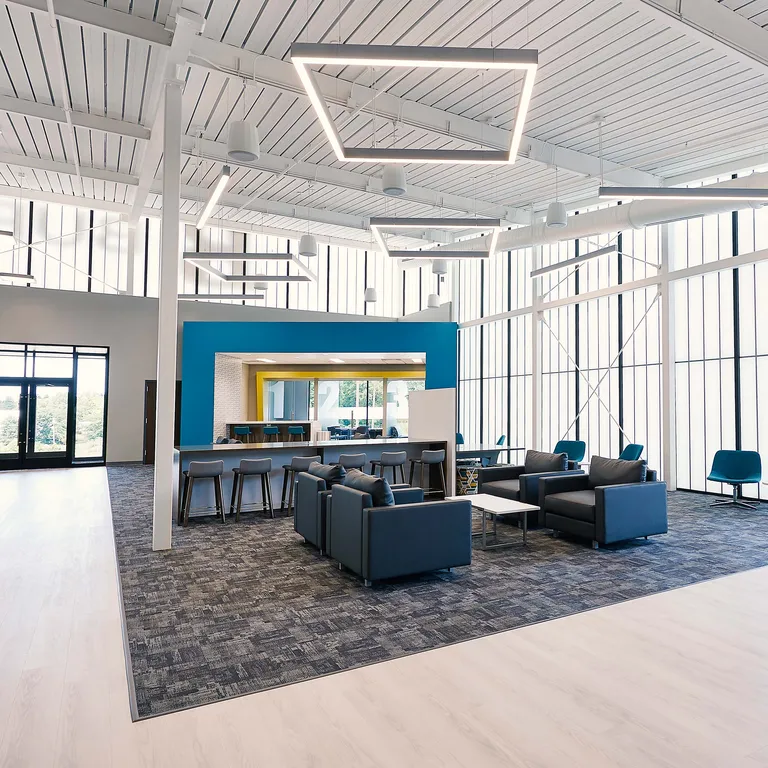

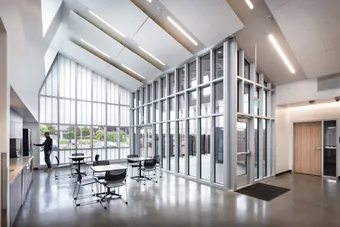

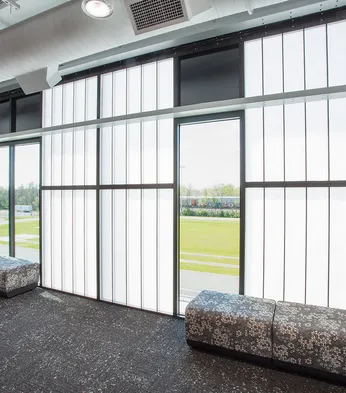

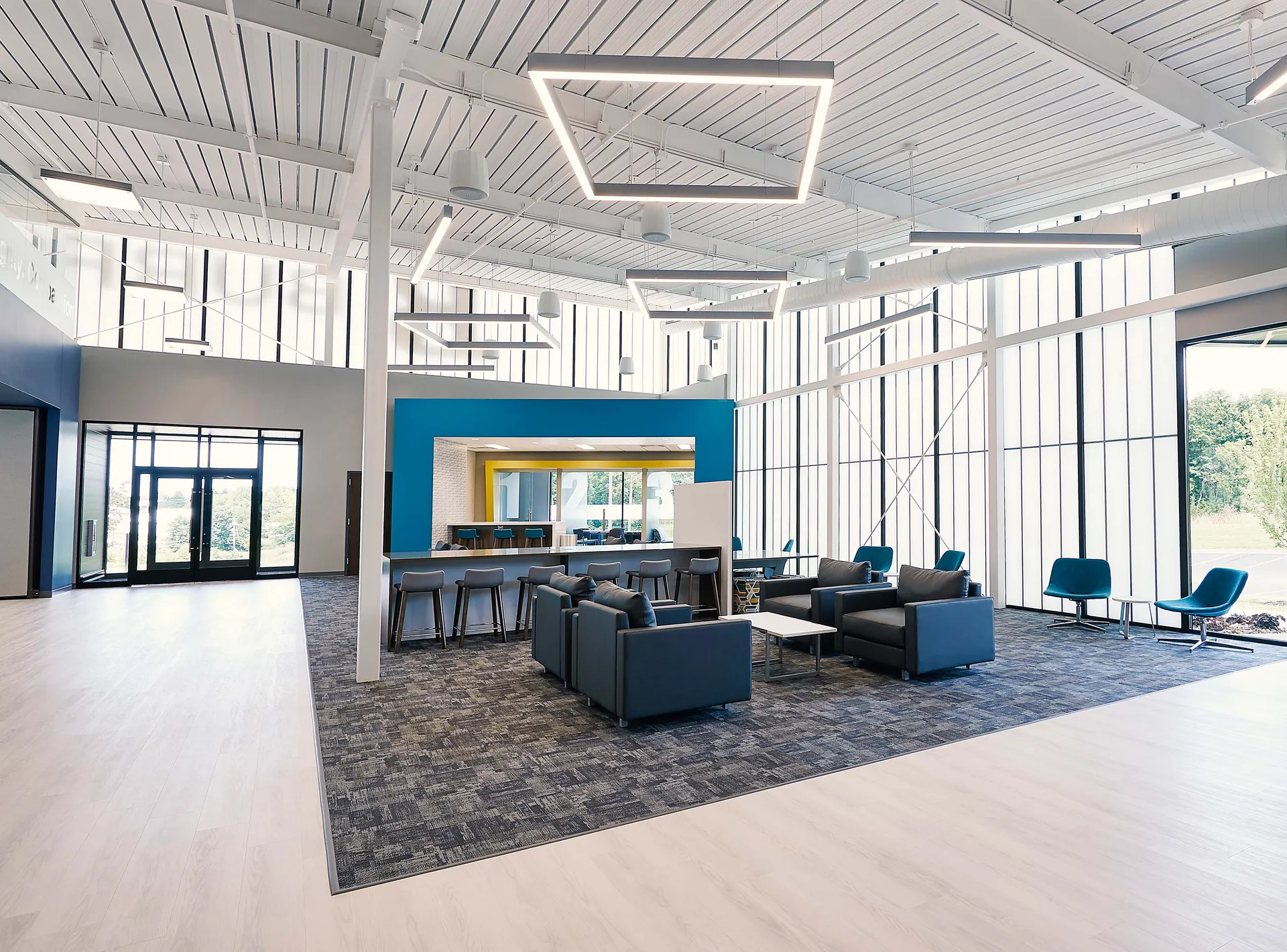

- System allows for integration of glass glazing or operable windows – unitized systems also available

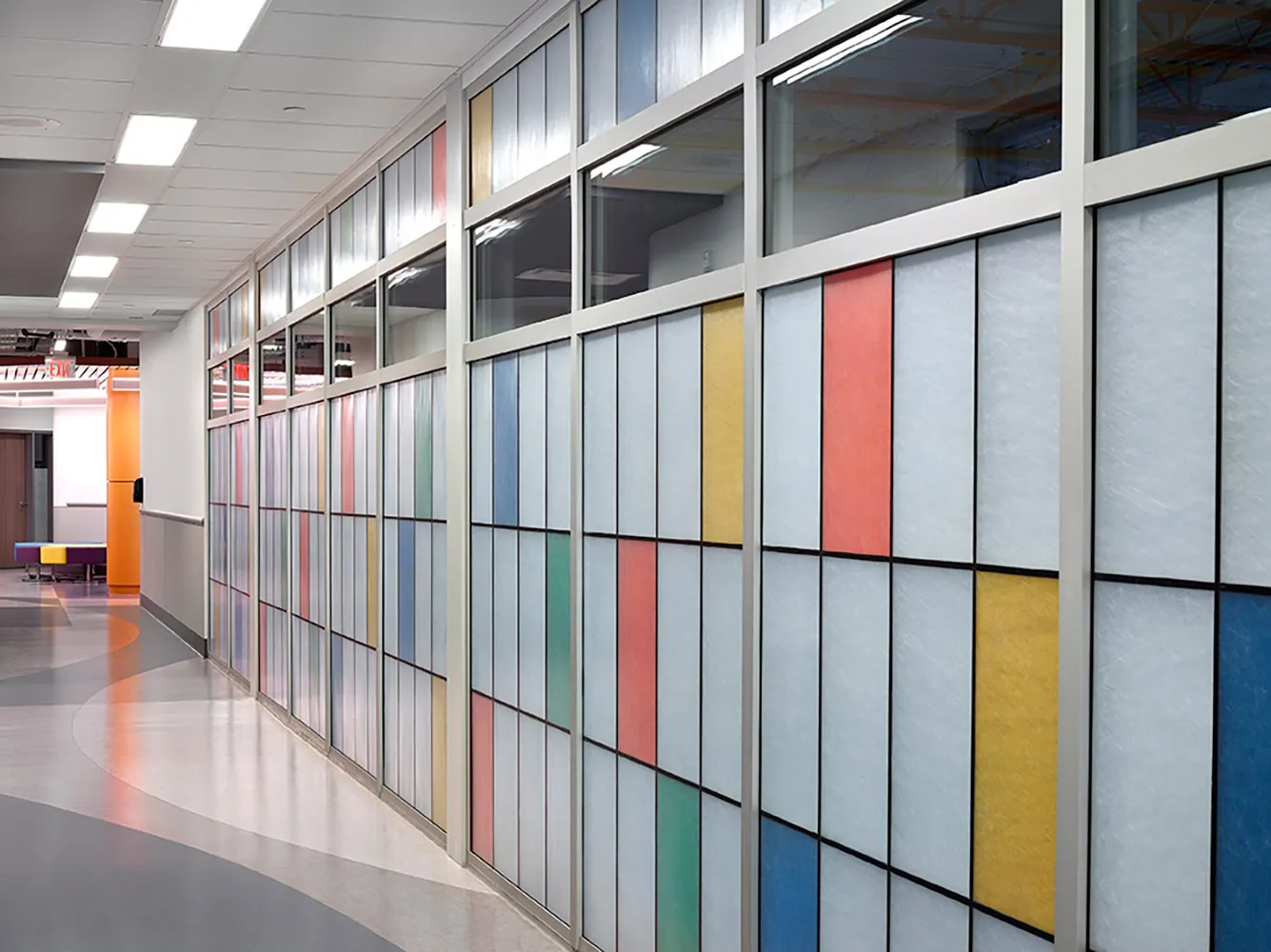

- Spectra-Grid™ color option provides a stained-glass-like look
- 10-year material-workmanship warranty and up to 20-year color change warranty on face sheet.
Technical Information
General Information
- Glazing Panel Thickness: 2.75 in (70 mm) & 4 in (102 mm) - (1 in (25.4) panels and Translucent Adapter Panels also available)
- Panel Width: Up to a Maximum of 5 ft nominal (60 in) (1524 mm)
- Panel Length: Standard 8-10ft long - Up to 20 ft long (may vary with load requirements)
- Panel Weight: 1.5-2 lbs/ft²
Base Options
- Technology: Ultimate Series™ face sheet technology for long-term performance
- Glazing Color Options: Interior: Crystal or White, Exterior: Crystal, White, Ice Blue, Aqua, Desert Rose, Tan (Consult KLA for other custom options)
Performance data
- 2.75-inch system U-Factor - NFRC certified - 0.52 to 0.17 (subject to color selection and other options - see data sheet for full details and performance)
- 4-inch system U-Factor - NFRC certified - 0.20 to 0.15 (subject to color selection and other options - see data sheet for full details and performance)
- 2.75-inch system SHGC - NFRC certified – 0.45 to 0.08 (subject to color selection and other options - see data sheet for full details and performance)
- 4-inch system SHGC - NFRC certified - 0.16 to 0.06 (subject to color selection and other options - see data sheet for full details and performance)
- 2.75-inch system Visible Transmittance - NFRC certified - 0.45 to 0.04 (subject to color selection and other options - see data sheet for full details and performance)
- 4-inch system Visible Transmittance - NFRC certified - 0.16 to 0.02 (subject to color selection and other options - see data sheet for full details and performance)
Certifications & Test Results
- Code Compliance, IBC - ASTM E1929, D635, E84, UL 723 - CC1 Rating (Interior Sheet) / CC2 (Exterior Sheet) (Complies as specifically detailed in the ESR-2855 report)
- Uniform Load Structural / Spans - ASTM E330 - Consult KLA for job specific span capabilities
- High Velocity Hurricane Zone - ASTM E1886 / E1996 - Missile Impact Level D, up to 65psf
- Water Penetration ASTM E331 - Up to 720 Pa (15.04 psf)
- Air Infiltration ASTM E283 - <0.01 CFM/ft² @ 1.57 psf and 6.24 psf
- Impact Strength - Standard Exterior Sheet - five impacts at 64 ft-lbs / High-Impact Exterior Sheet - 360 ft-lbs - no penetration / High Impact Interior Sheet - 245 ft-lbs - no penetration / Class “A” Sheet - 245 ft-lbs - no penetration / Section 6.3 (Outdoor Impact): Material shall withstand five 40ft-lb impacts / Section 6.4 (Indoor Impact): Material shall withstand five 50ft-lb impacts / Section 6.5 (High Energy Impact): Material shall withstand one 200ft-lb impact
- Structural Performance - AAMA/WDMA/CSA 101/I.S.2/ and A440-05 REQ. Sect - No permanent deformation > 0.2%
- Adhesive Bond Strength ASTM D1002 (shear) - Un-aged - lbf=Min 310, Avg 563, Max 837 / ASTM D1037 - Aged - lbf=Min 836, Avg 1212, Max 1669 / ASTM C297 (tensile) - Un-aged - Load=557.3 lbf / ASTM D1037 - Aged - Load=913.6 lbf
- Taber Abrasion Test - ASTM D4060 - Ultimate Series™ Exterior Sheet (White + Crystal) - 1000 cycles @ 500 grams = 32.5mg wt. loss
- Color Difference* - ASTM D2244 - ΔE = 2.86 after 12 years (* ΔE readings on uncoated white samples exposed to 12 years full spectrum solar radiation. Accelerated per ASTM G90-05, Standard Practice for Performing Accelerated Outdoor Weathering of Nonmetallic Materials Using Concentrated Natural Sunlight.)
Downloads
Brochure
Specification Text
Technical Drawings
UniGrid™ FRP Wall Systems
Design Versatility
From unique grid patterns to color options, mixed glazing and more, we can offer a truly custom solution.
From a channel-glass type aesthetic to a more eye-catching custom grid pattern, we'll work with you to find the right solution for your design needs. Colored insulation, FRP sheet color and framing finish options can also add to a unique look.
)
Case Studies
Our Solutions at Work
Get inspired and learn more about how our systems can make an impact.
)
)
)

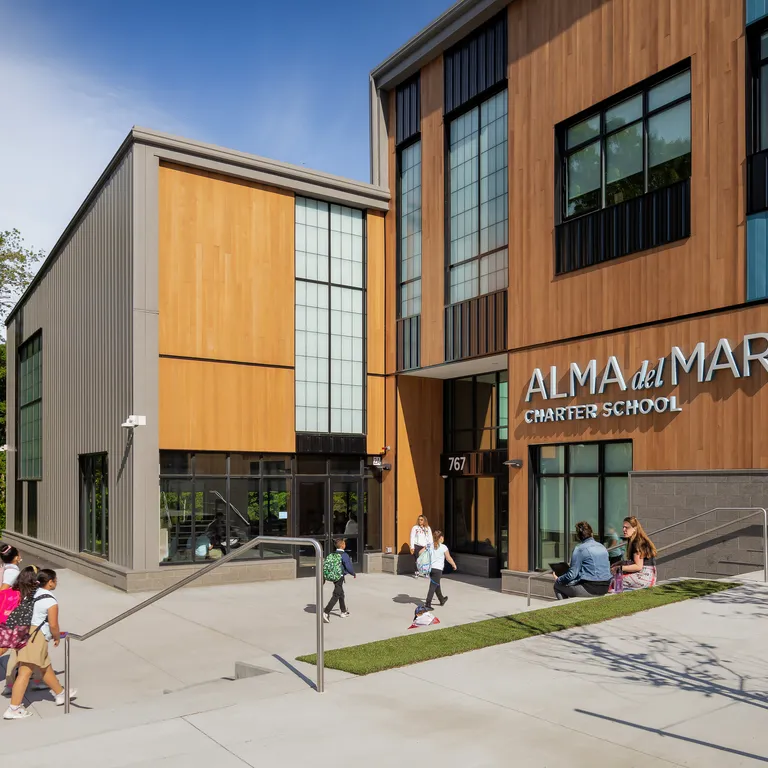

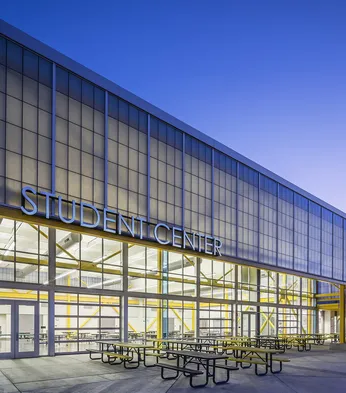

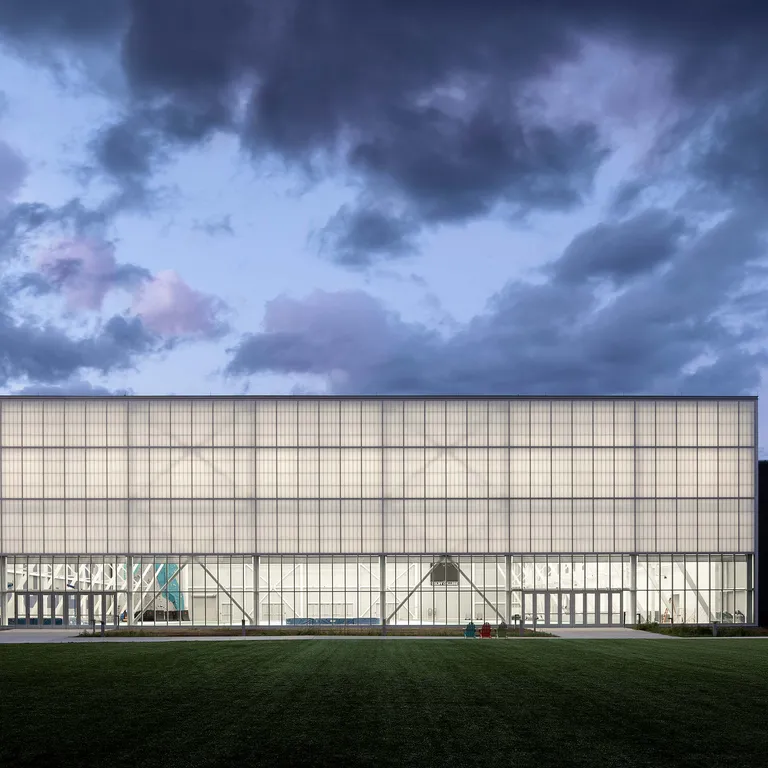

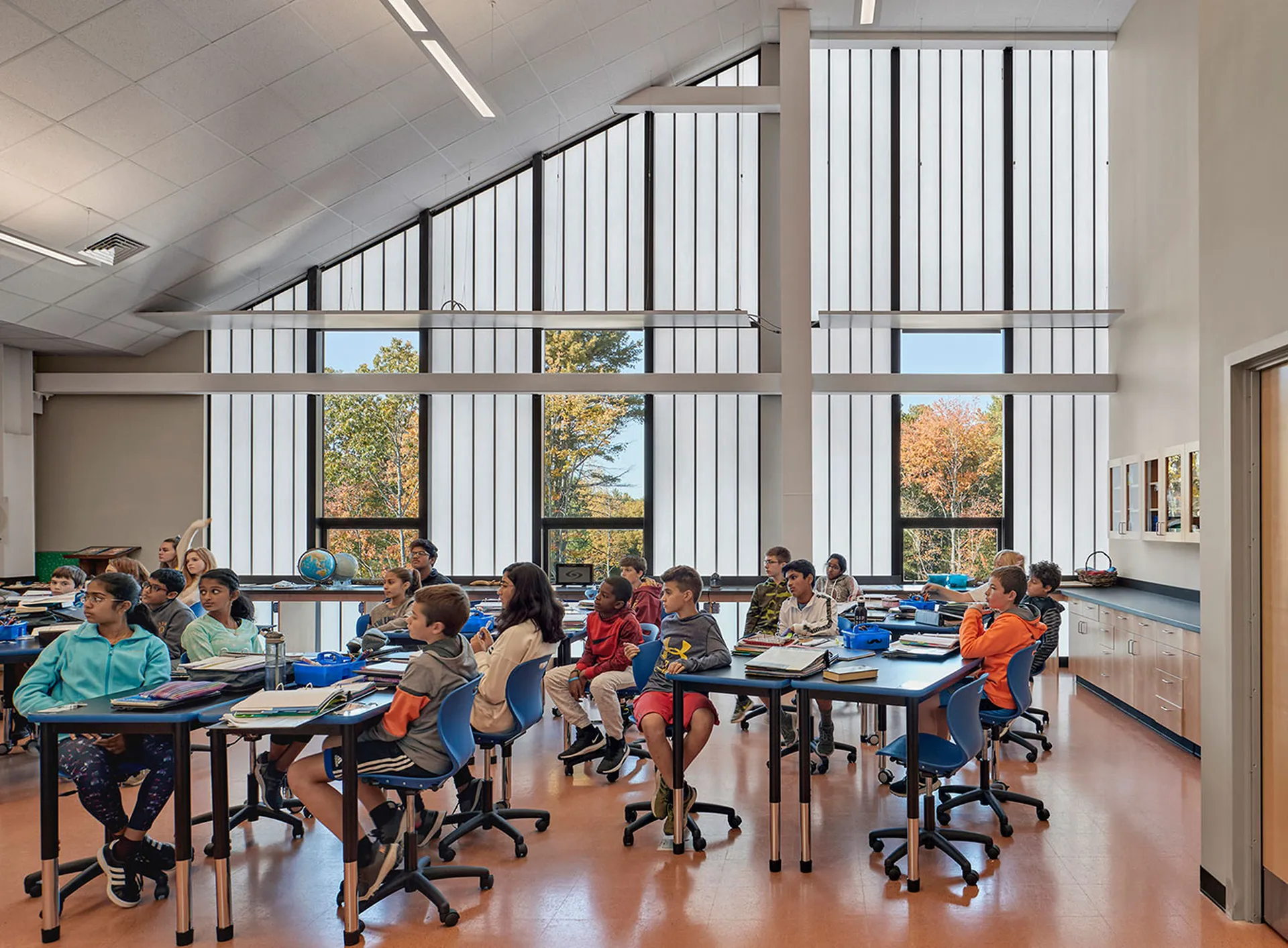

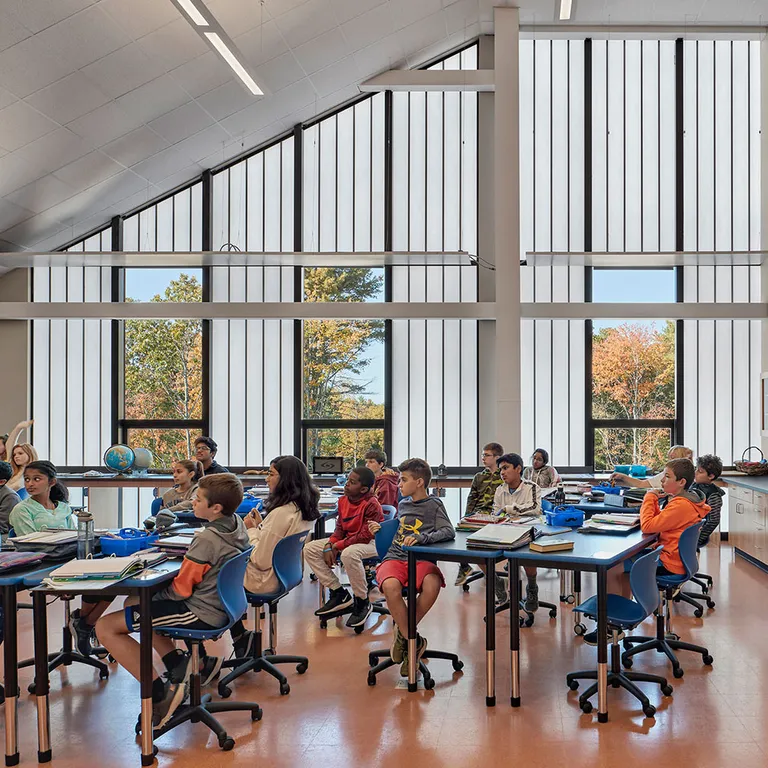

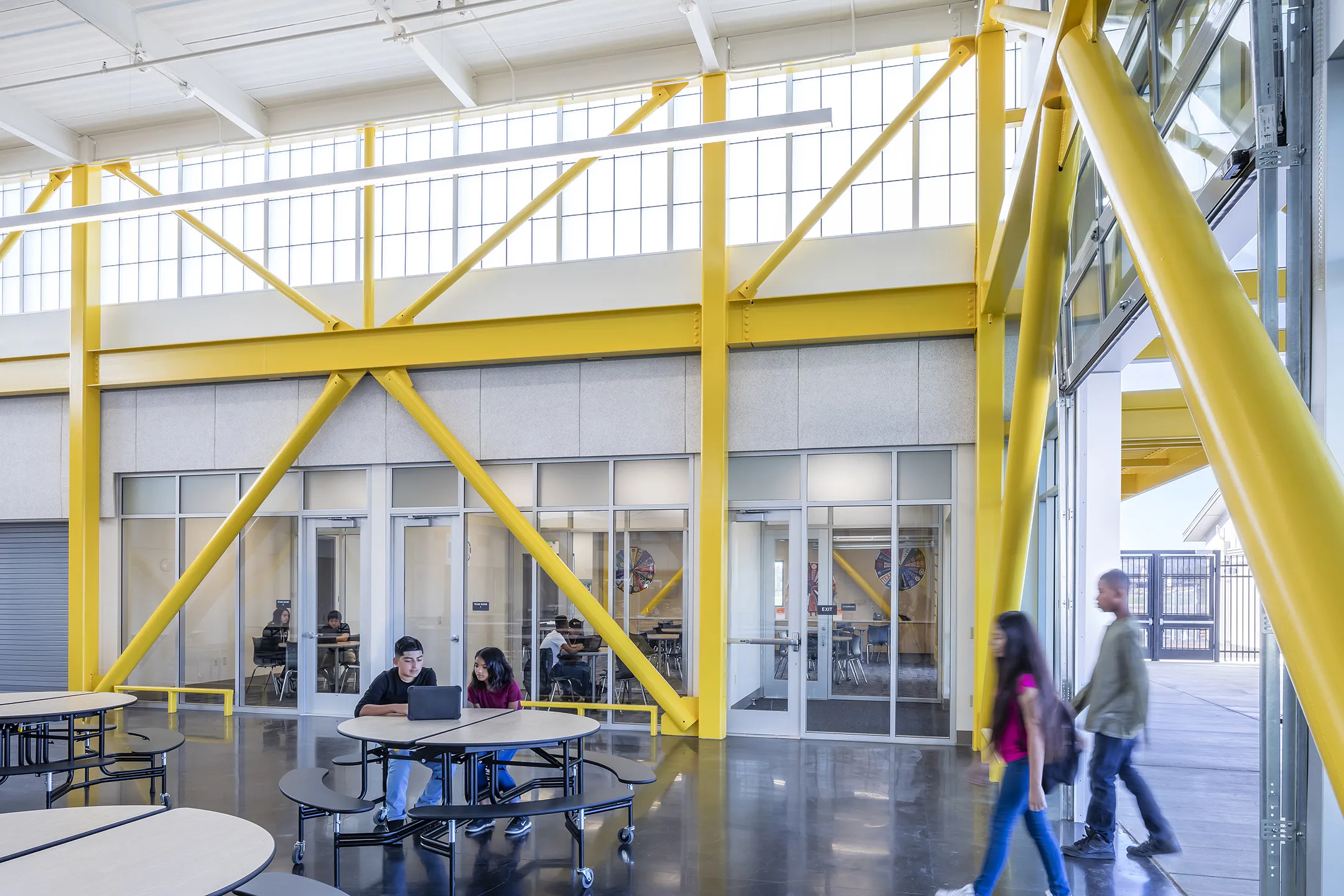

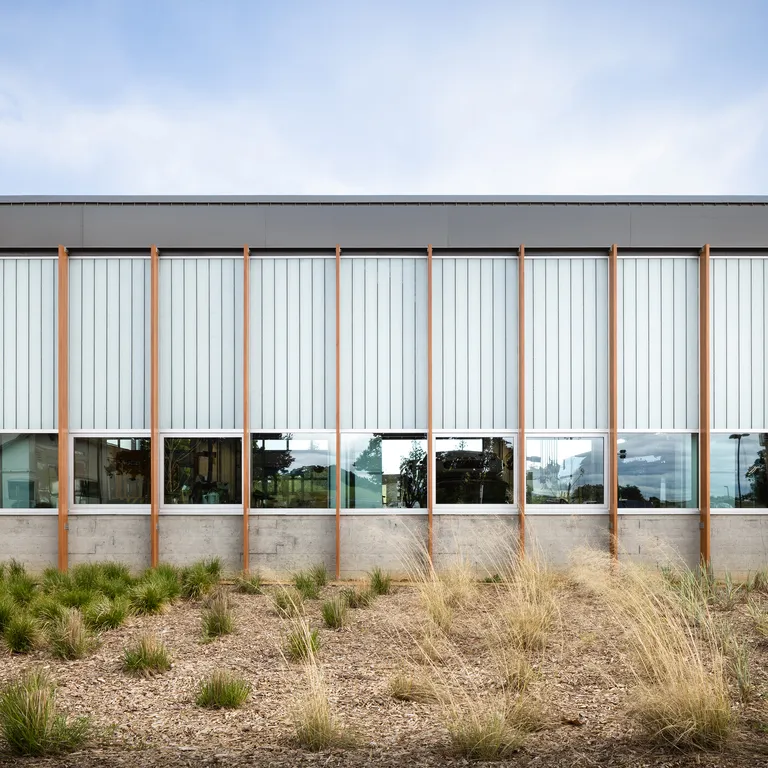

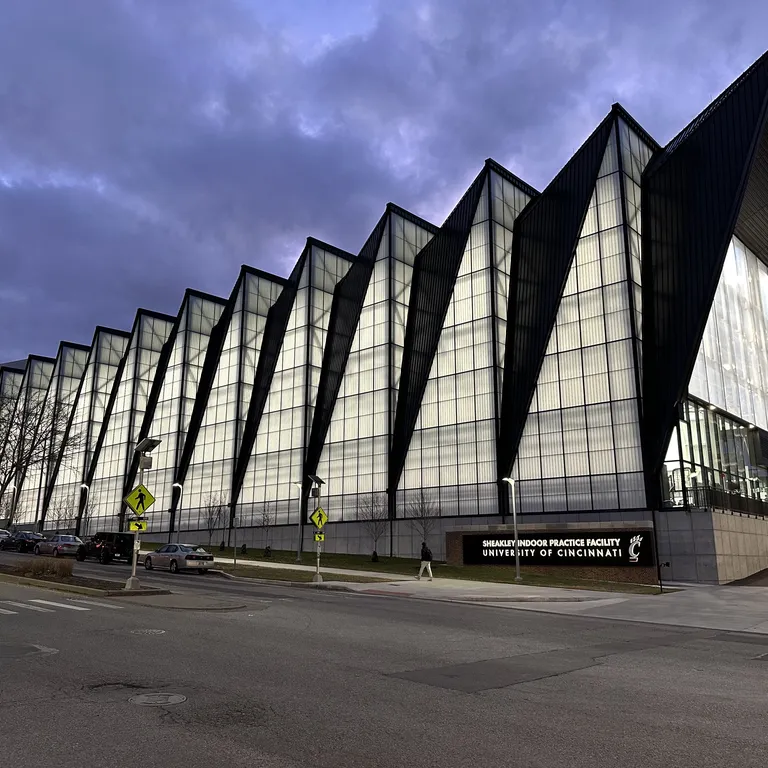

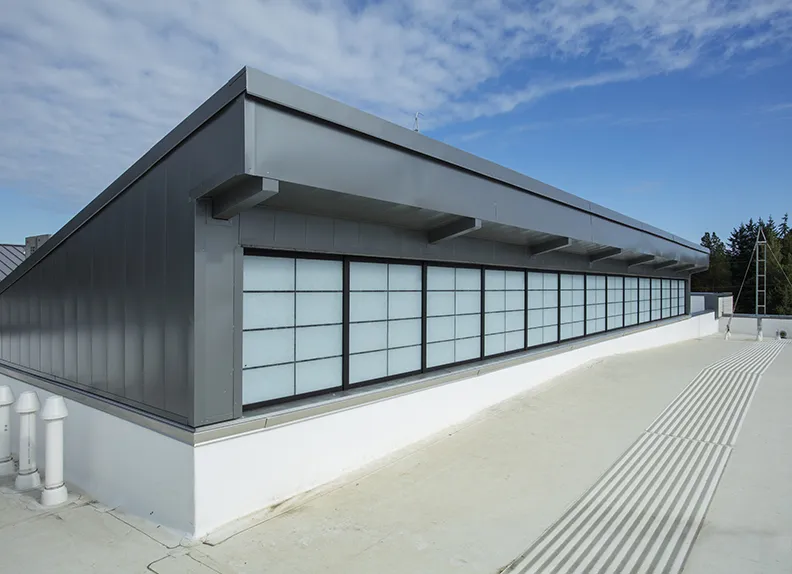

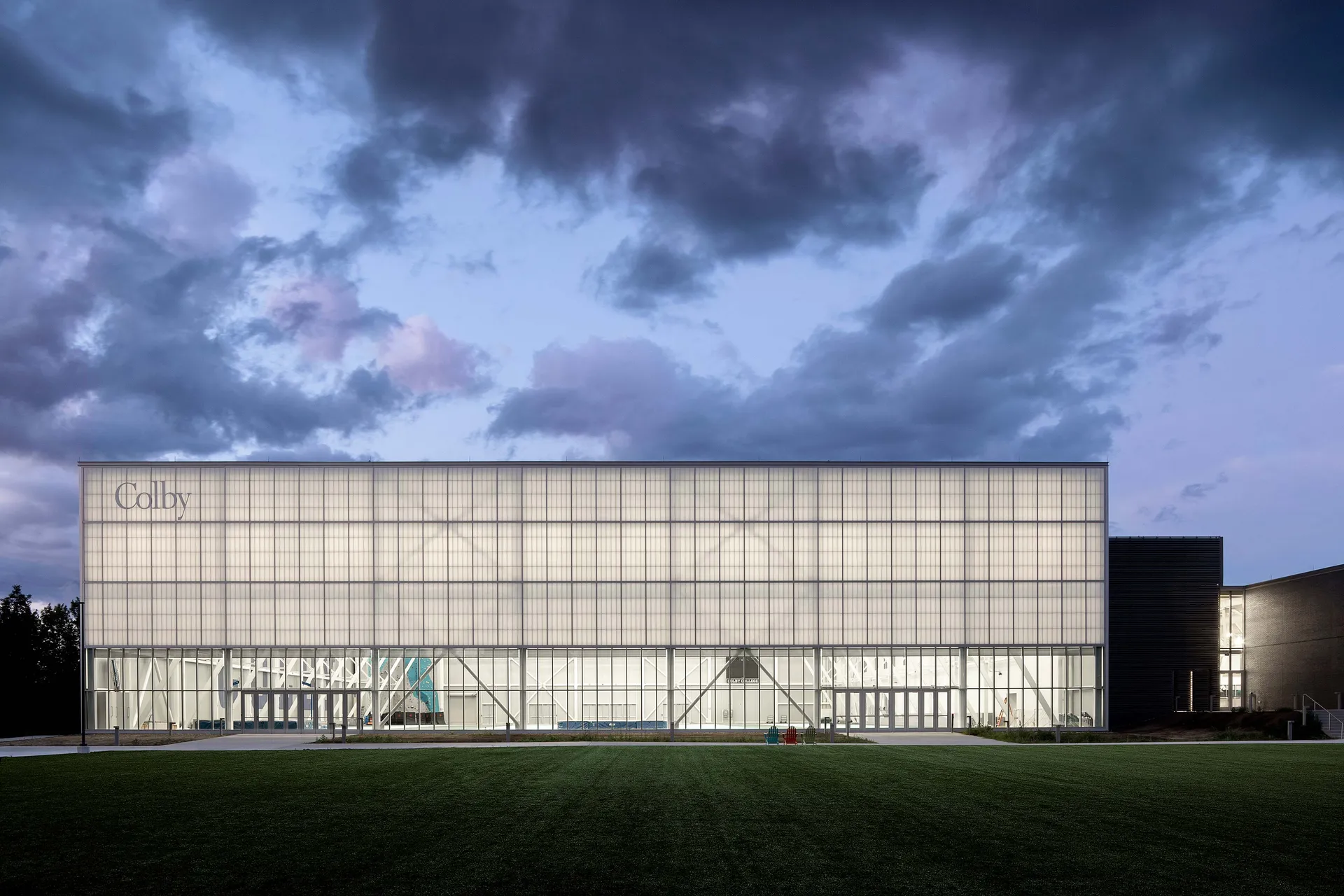

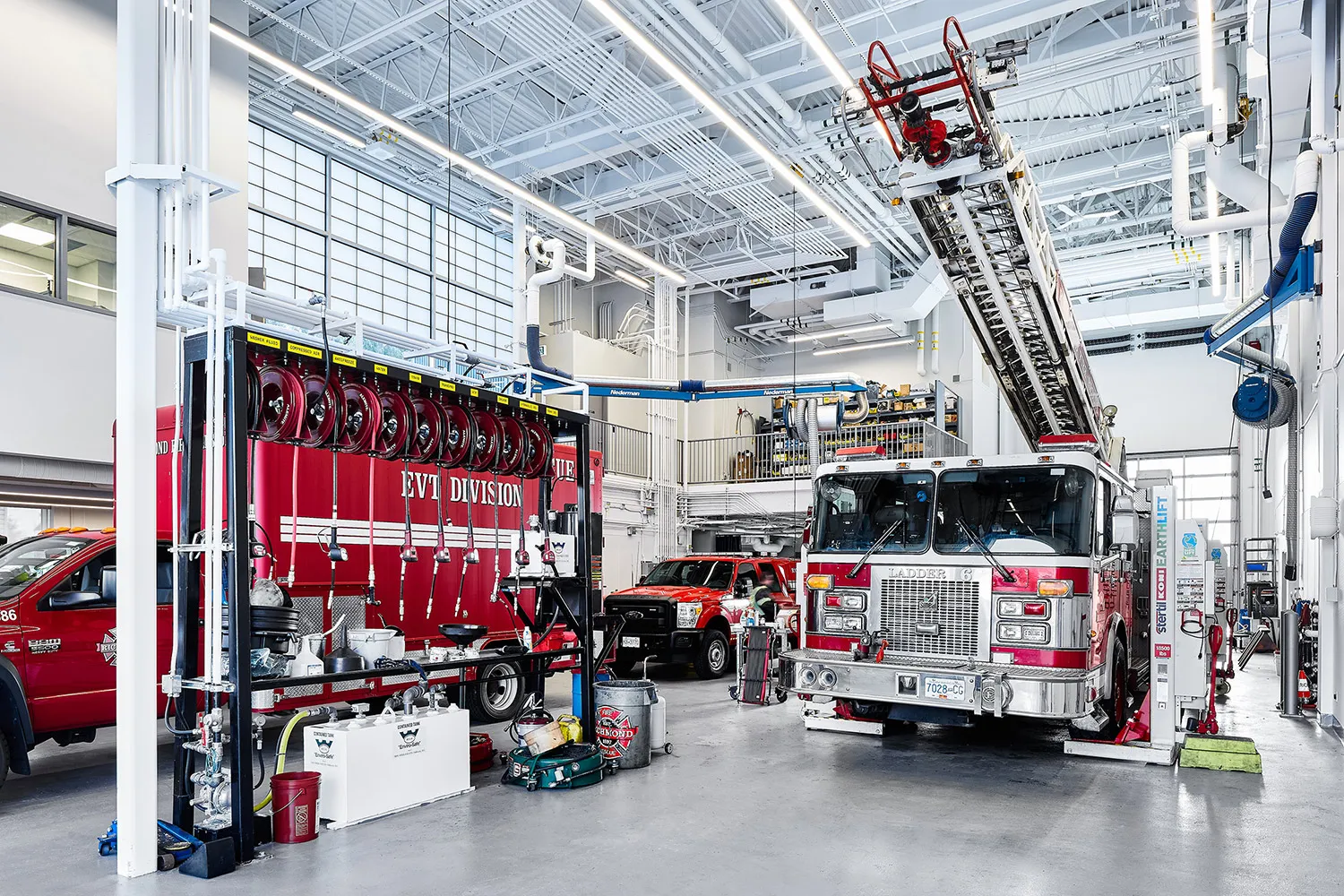

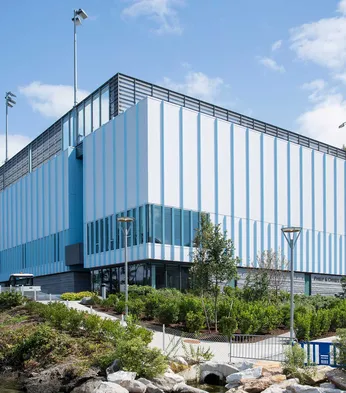

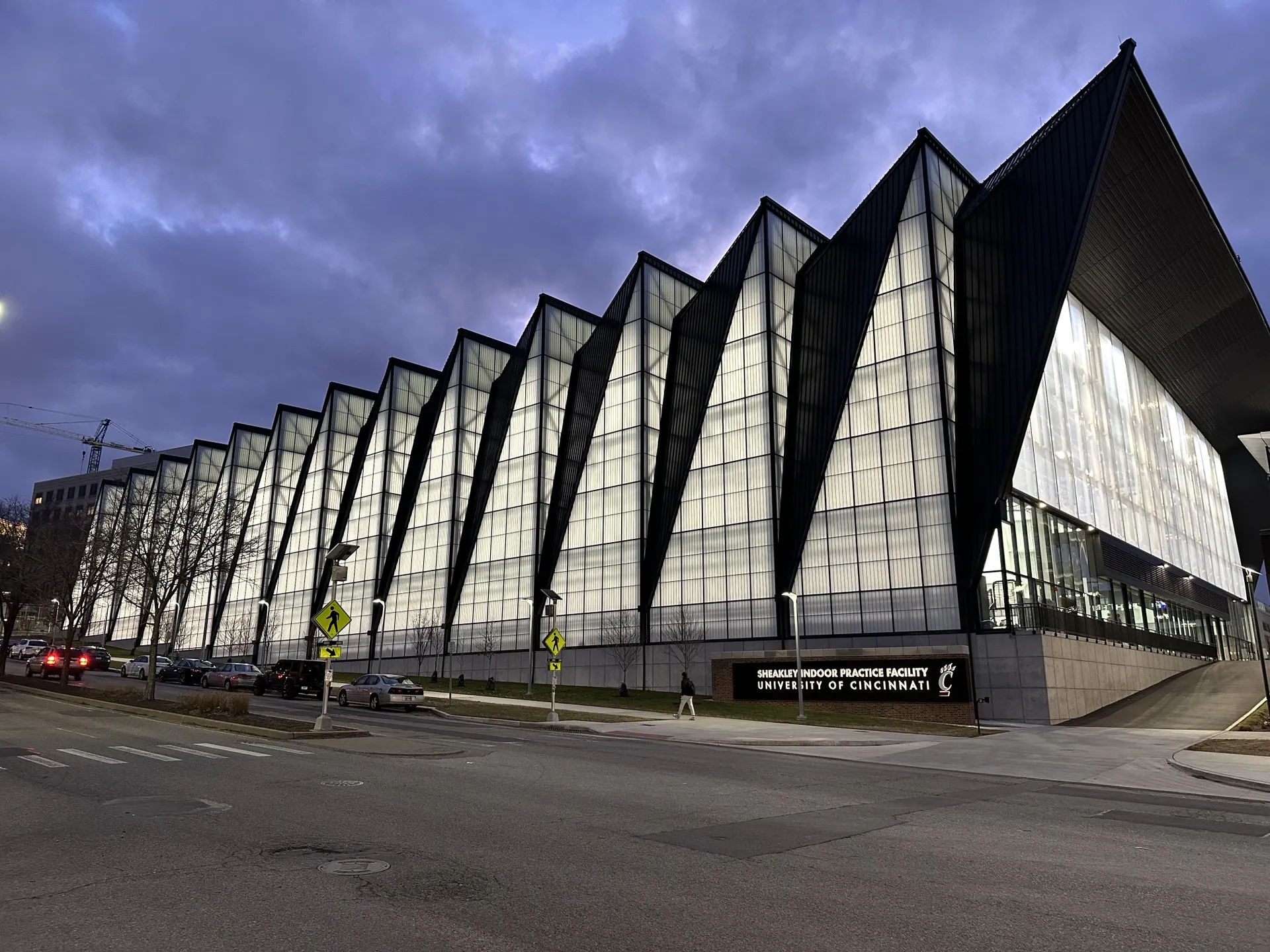

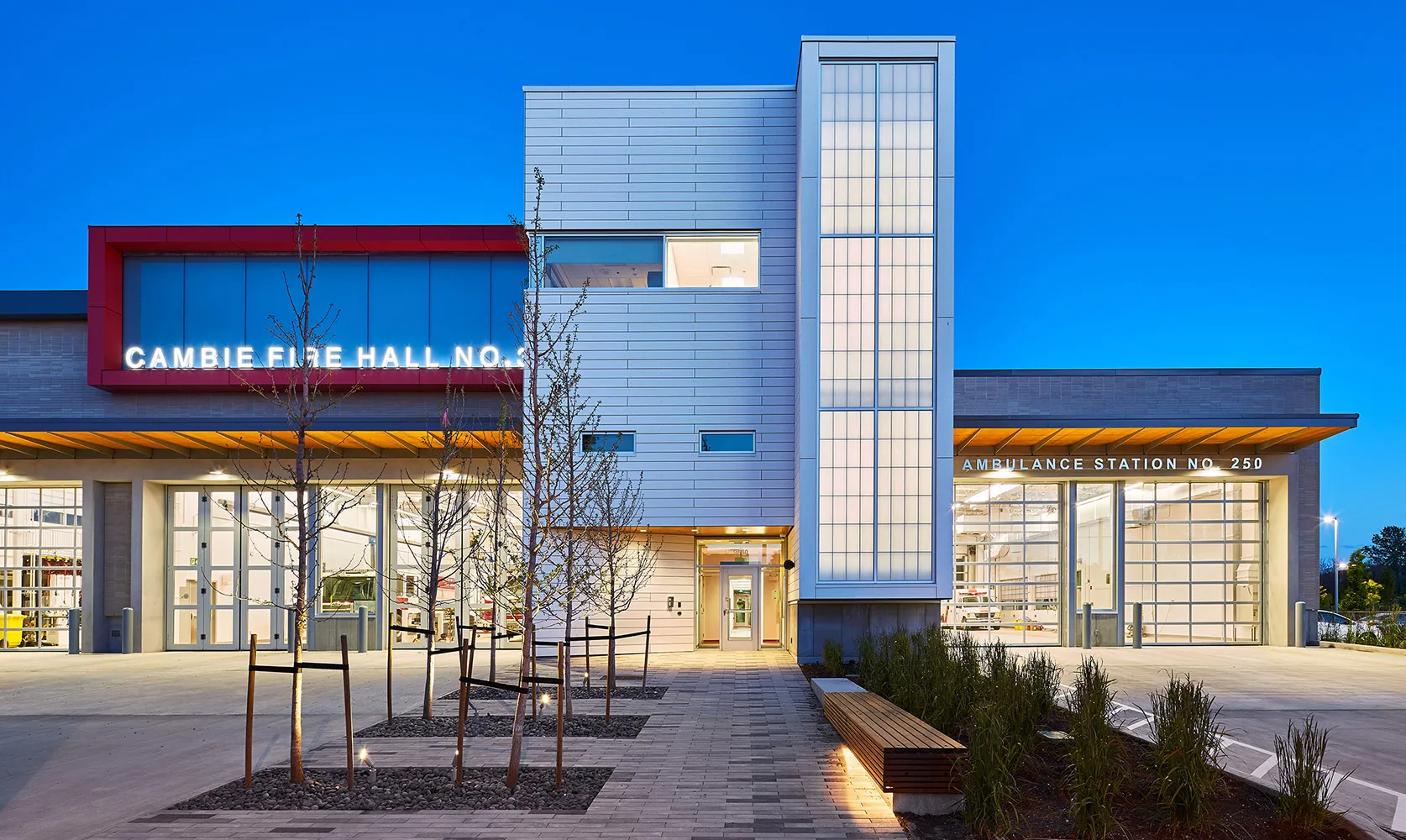

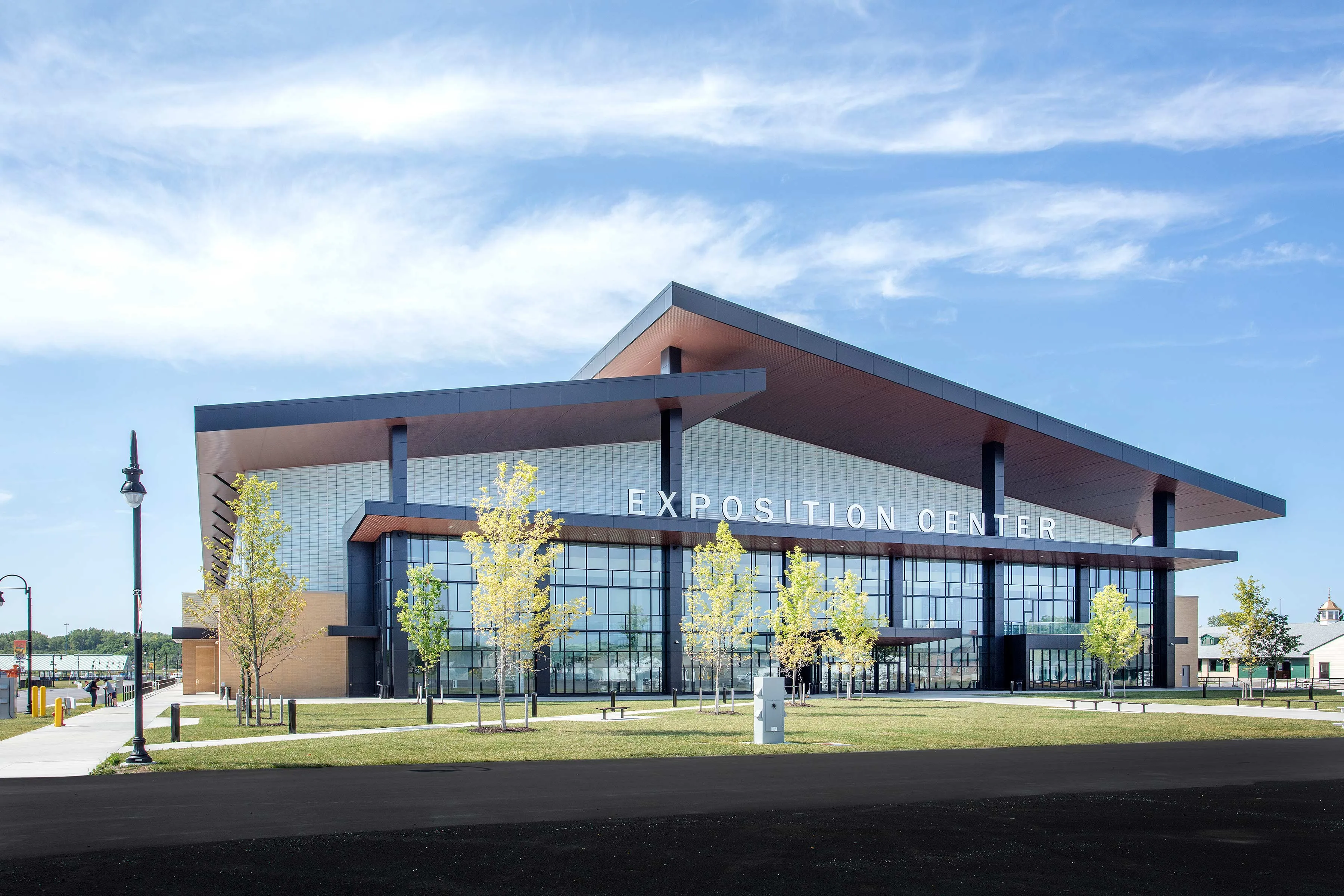

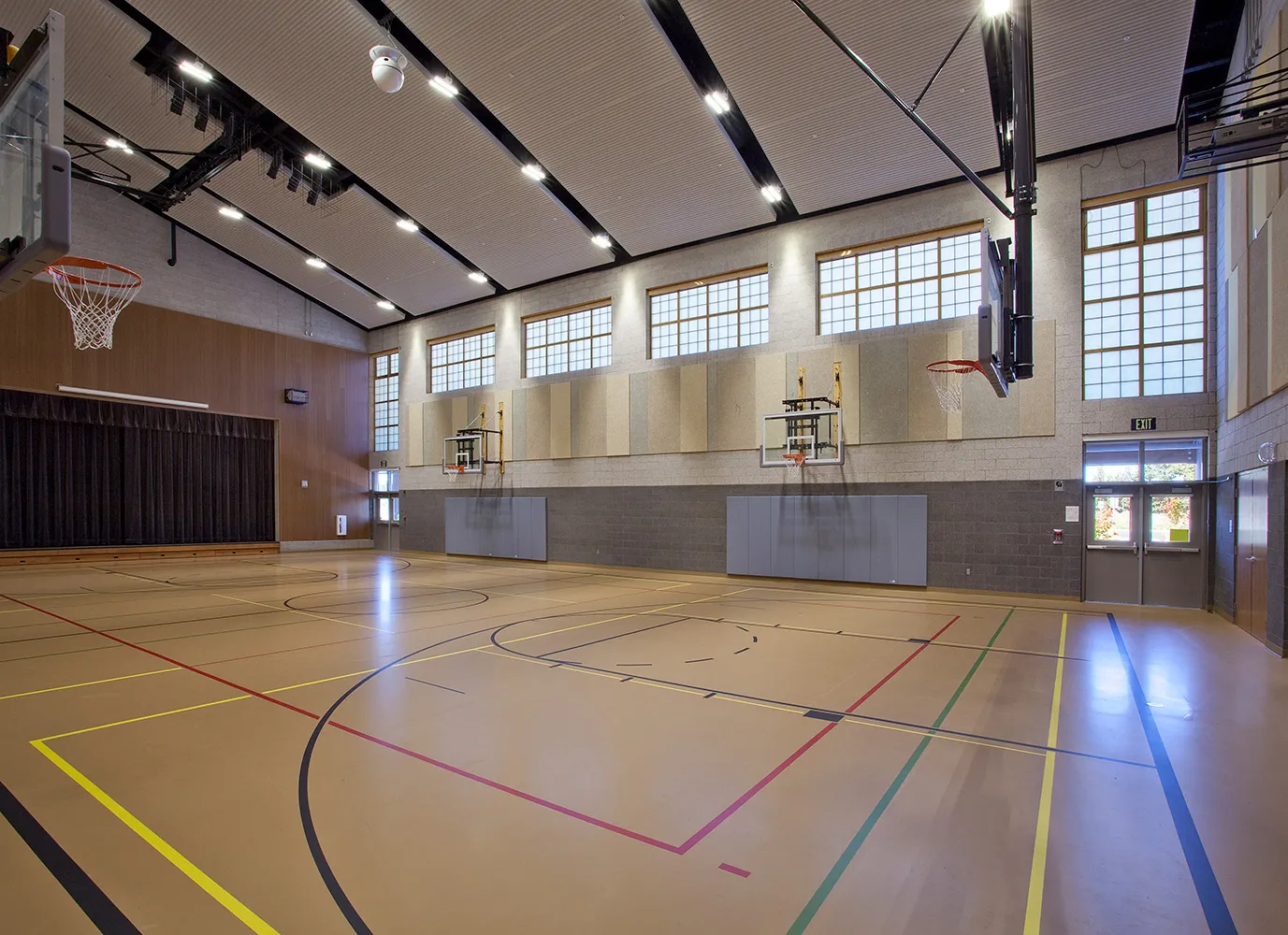

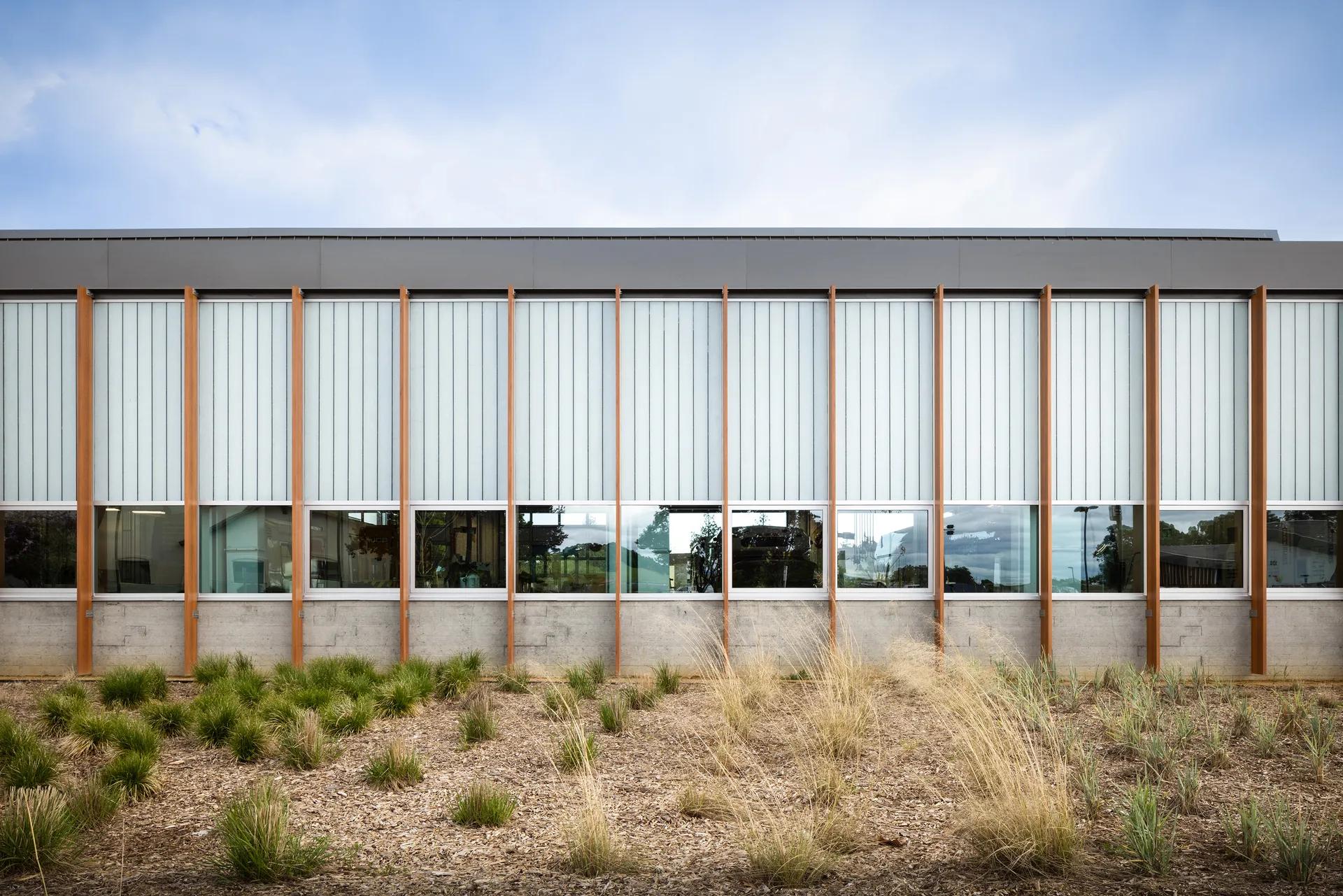

UniGrid™ Project Highlights
)
)
)
)
)
)
)
)
Frequently Asked Questions
Does UniGrid™ come in standard sizes?
UniGrid wall systems are custom built to your job’s specific requirements - contact us with details about your project and we'll work with you to provide the right solution for your specific needs.
What's the maximum length of a UniGrid™ glazing panel?
Each individual panel can reach up to 20 feet long and up to 5 feet wide, though the amount of structural support needed will vary depending on where the project is located (wind loads, snow loads, etc.). Contact us for details related to your specific project.
What are the U-factors and are they third party certified?
NFRC certified system values range from .55 to .13 depending on system size and insulation options. See our product data sheet for additional information and details.
How much do UniGrid™ wall systems weigh?
A typical UniGrid system weighs around 3lbs/ft2 – considerably less than traditional glass glazing, which allows for more design flexibility as they require less structural support.
What glazing color options are available for UniGrid™?
Standard colors are crystal, white, ice blue, aqua, tan and desert rose (custom colors may be available, and colored insulation options are also available for added color options). Contact us to find out more.
