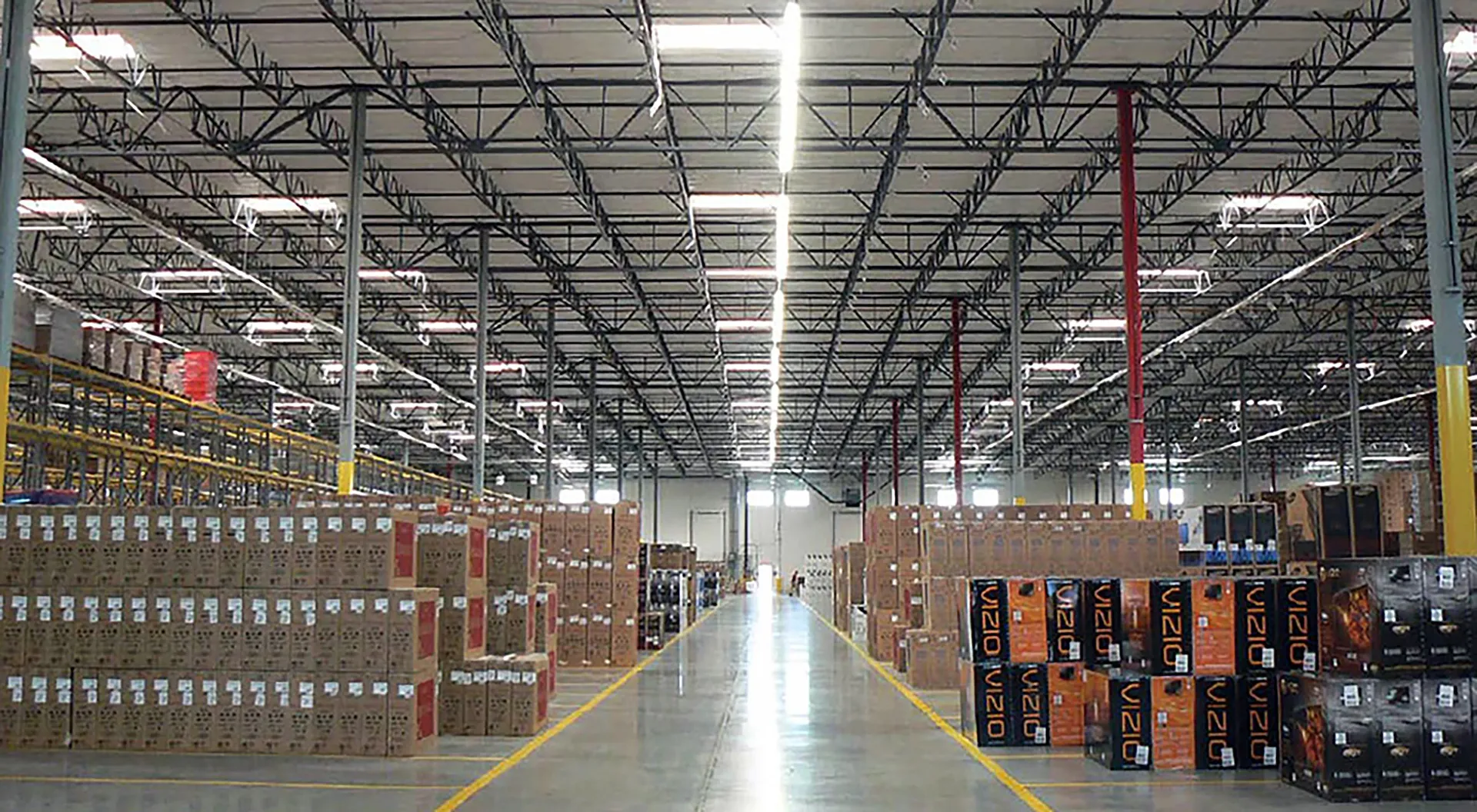

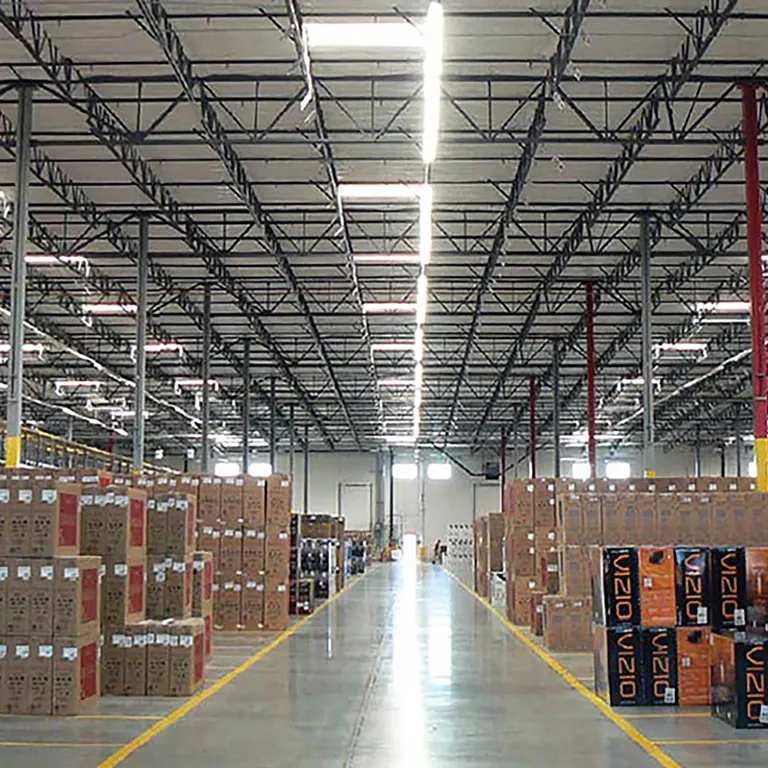

Series 1200 Unit SkylightVersatile unit skylight solution for warehouses, manufacturing centers and more.
)
)
)
Product Information

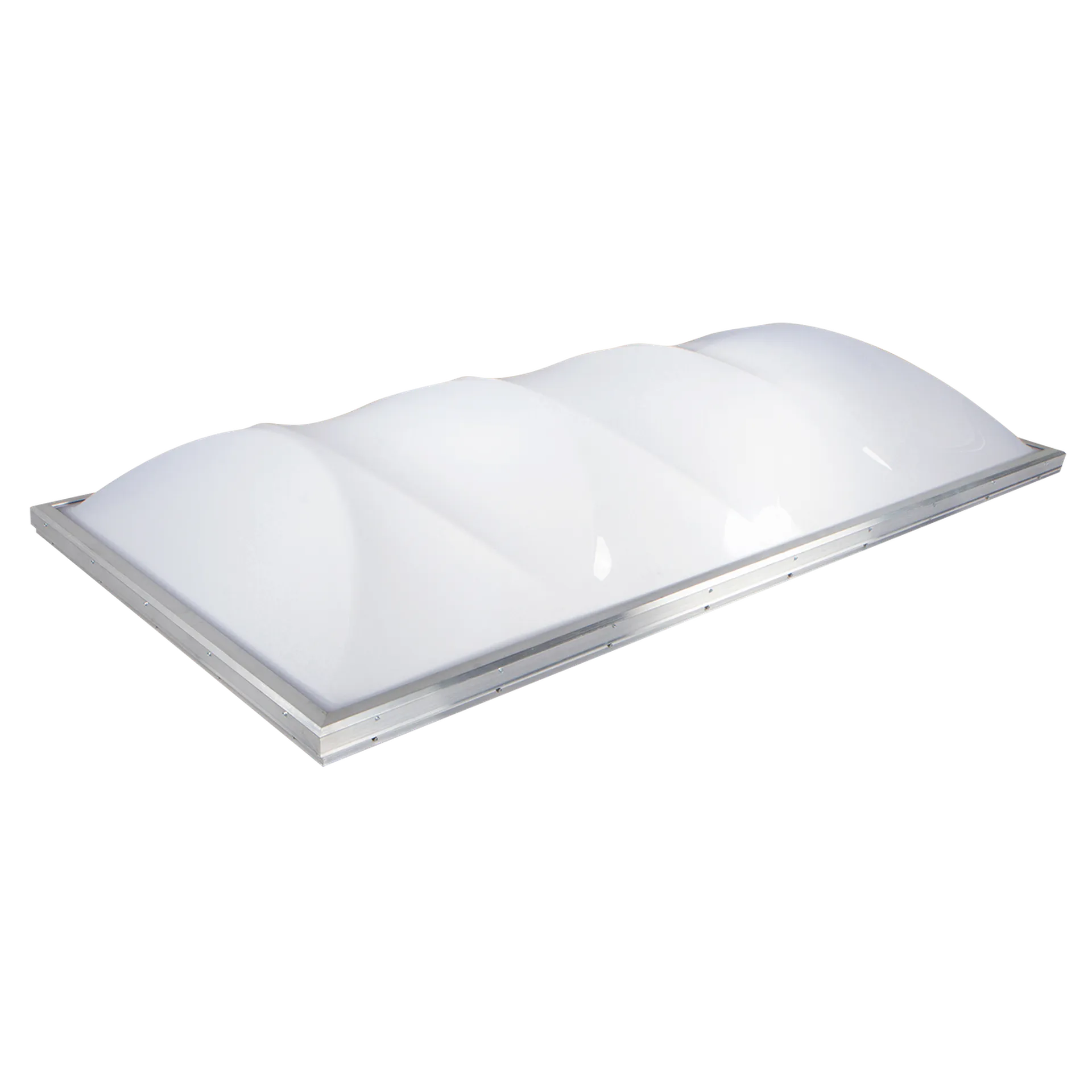

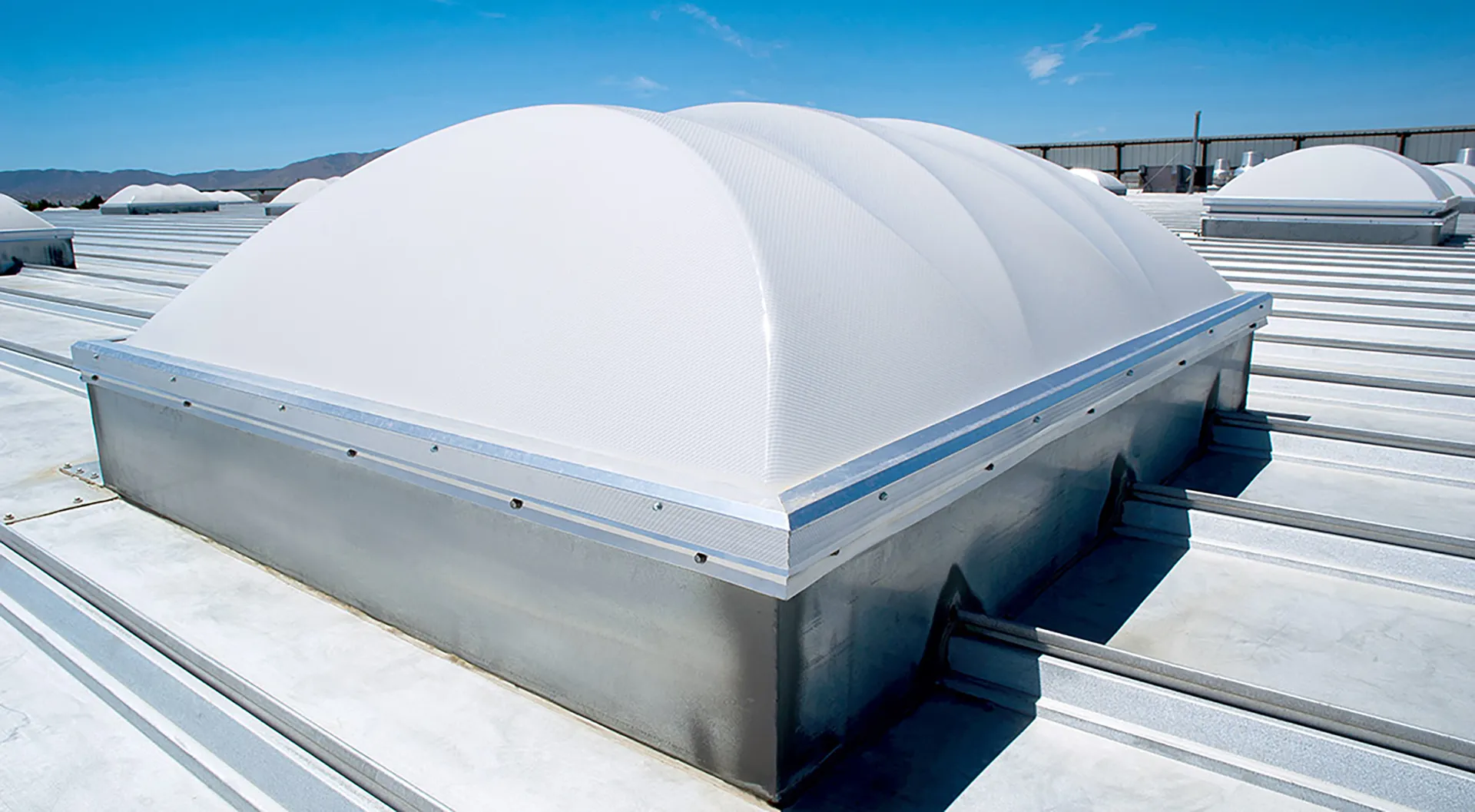

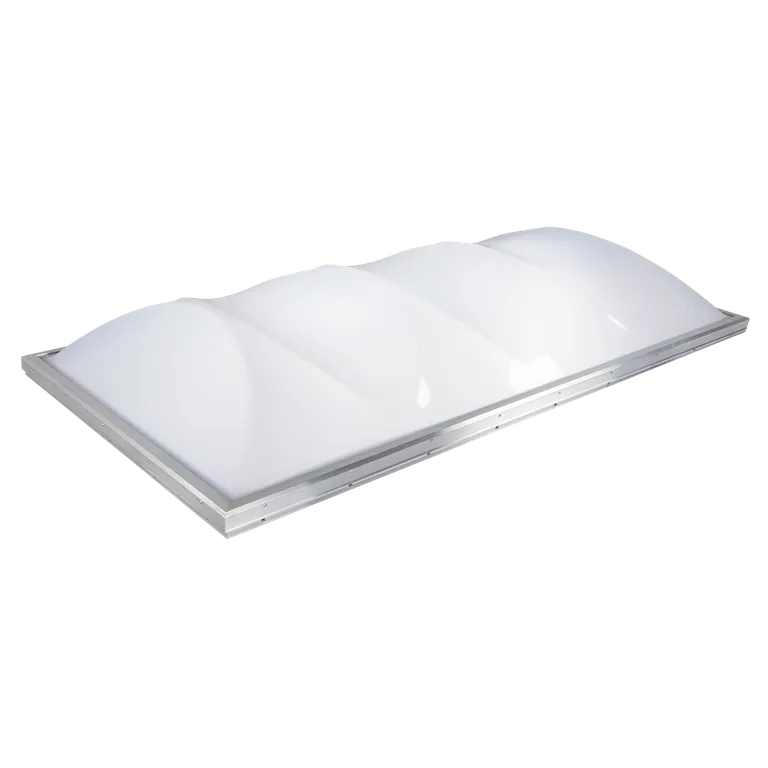

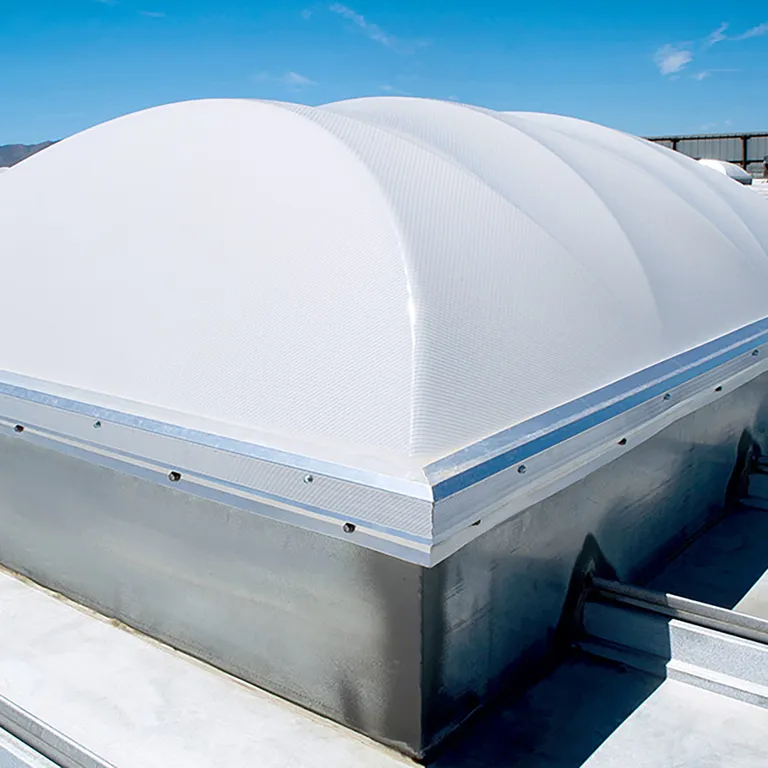

Polycarbonate unit skylights are available with monolithic or multiwall glazing and are ideal for commercial and industrial spaces. Manufactured with an aluminum frame to ensure easy installation, polycarbonate skylights are available thermally broken or with a thermal barrier for projects with a higher thermal requirement and are an excellent option for both new builds and refurbishment projects. These thermal performance features, combined with its unique radial tri-arch dome shape, make it a durable and versatile daylighting tool.
Product Highlights
- Unique design with multiple ridges provides enhanced performance by allowing light to penetrate at lower angles
- Polycarbonate glazing and Prismatic glazing options allow for even, diffused daylight
- White multiwall polycarbonate (O16) inner glazing option available (See data sheet for restrictions)
- Frame is ideal for all roof types and is available in thermally broken and non-thermally broken configurations.
- 10-year warranty against leaking and yellowing of glazing
- All of our commercial unit skylights are manufactured in the United States
Technical Information
Dimensions
Standard Configuration Sizes:
| Model Size | Rough Opening Dimensions | Outside Curb Dimensions |
| 2448 | 24” x 48” | 27” x 51” |
| 2496 | 24” x 96” | 27” x 99” |
| 24120 | 24” x 120” | 27” x 123” |
| 3636 | 36” x 36” | 39” x 39” |
| 3660 | 36” x 60” | 39” x 63” |
| 3672 | 36” x 72” | 39” x 75” |
| 3696 | 36” x 96” | 39” x 99” |
| 361201 | 36” x 120” | 39” x 123” |
| 4783 | 47" x 83" | 50" x 86" |
| 4860 | 48” x 60” | 51” x 63” |
| 4872 | 48” x 72” | 51” x 75” |
| 4848 | 48” x 48” | 51” x 51” |
| 4896 | 48” x 96” | 51” x 99” |
| 481201 | 48” x 120” | 51” x 123” |
| 60601 | 60” x 60” | 63” x 63” |
| 60721 | 60” x 72” | 63” x 75” |
| 60961 | 60” x 96” | 63” x 99” |
| 1 Not available with White multiwall polycarbonate (O16) | ||
Materials & Finishes
- Frame Material: Aluminum
- Outer Dome Material: Monolithic or prismatic polycarbonate
- Special glazing options available including White multiwall polycarbonate (O16) options available (see Data Sheet for details and restrictions)
Certifications & Test Results
Standard Configuration:
| Test | Results |
| Combustion Classification | CC1 |
Downloads
Datasheet
Specification Text
Technical Drawings
Frequently Asked Questions
What sizes are available for Series 1200 unit skylights?
They’re available in widths up to 60” and lengths up to 120” for rectangular skylights, and up to 72" x 72" for square configurations. Other configurations may vary - contact us for details.
What's the warranty that comes with Series 1200 systems?
These systems come with a standard 10-year material workmanship warranty. Contact us for more information regarding our terms and conditions and optional warranty programs.
Can Series 1200 skylights be used in retrofit applications?
Yes – their high thermal performance and variety of available sizes makes them a good candidate for replacement work.
Can Series 1200 skylights be on-site quickly?
With manufacturing locations in both Texas and California, we're able to get materials to you quickly. Contact us for a quote and specific information on manufacturing and shipping times.
