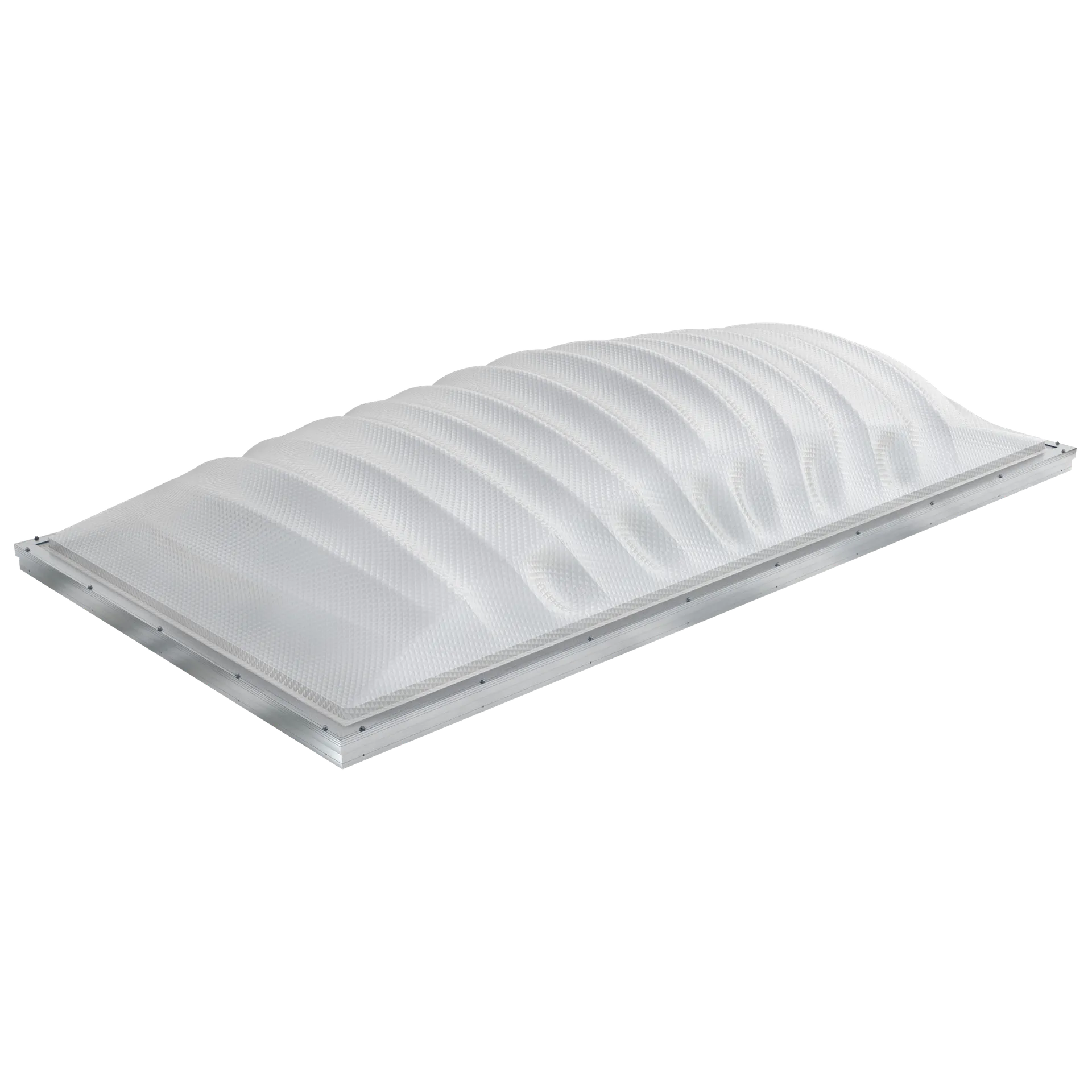

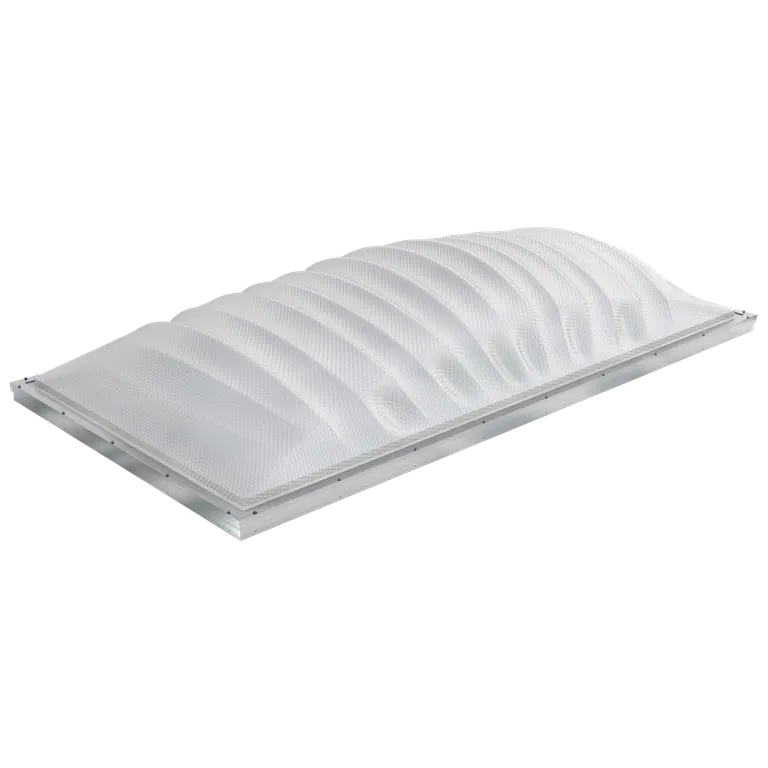

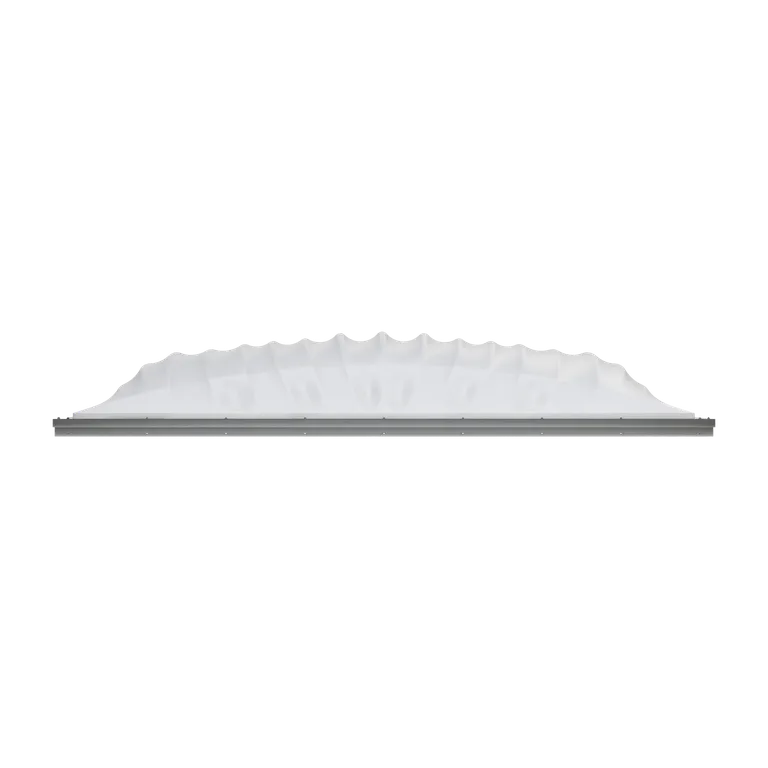

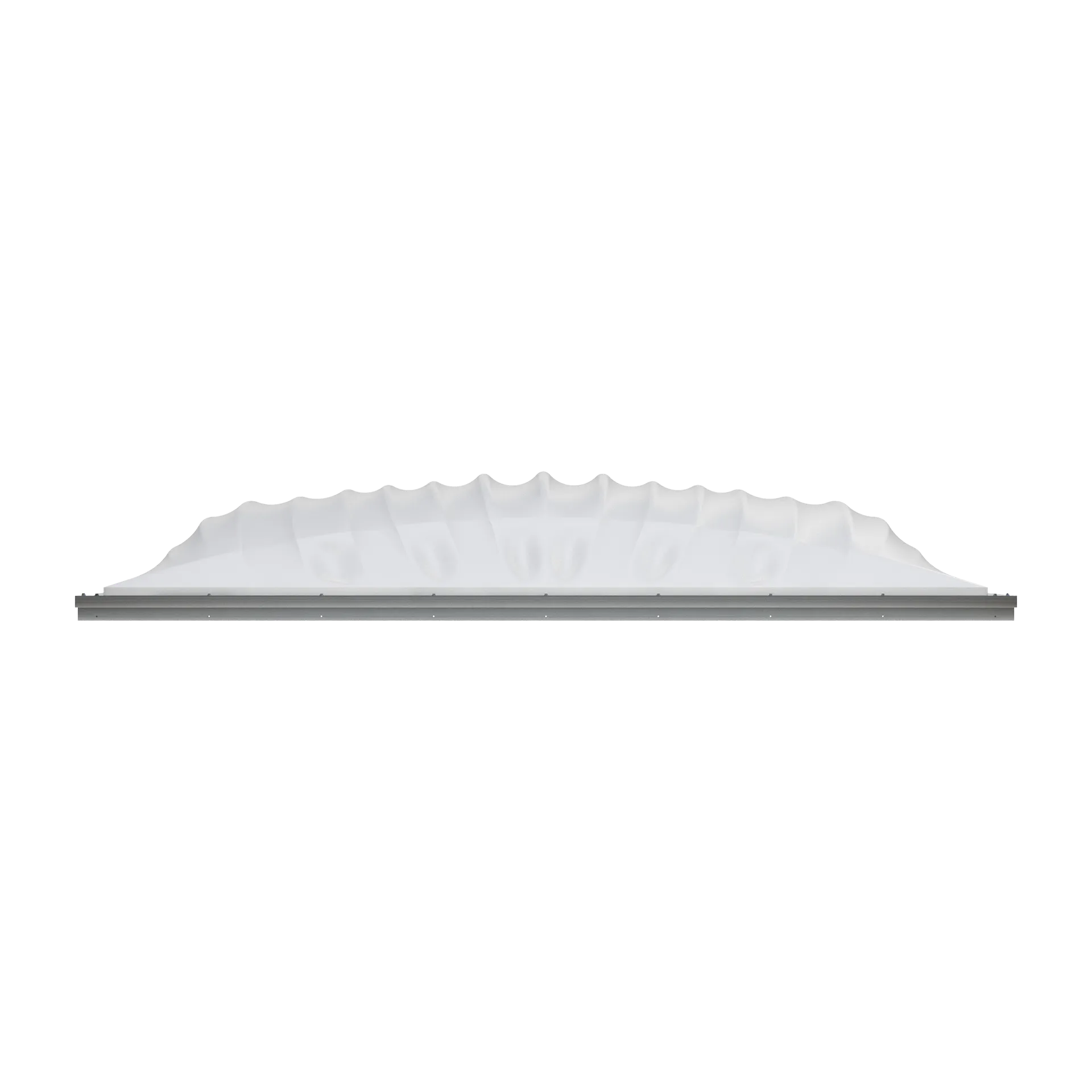

Series 1100 Unit SkylightPolycarbonate unit skylight with unique dome shape to capture low angle light.
)
)
)
)
Product Information

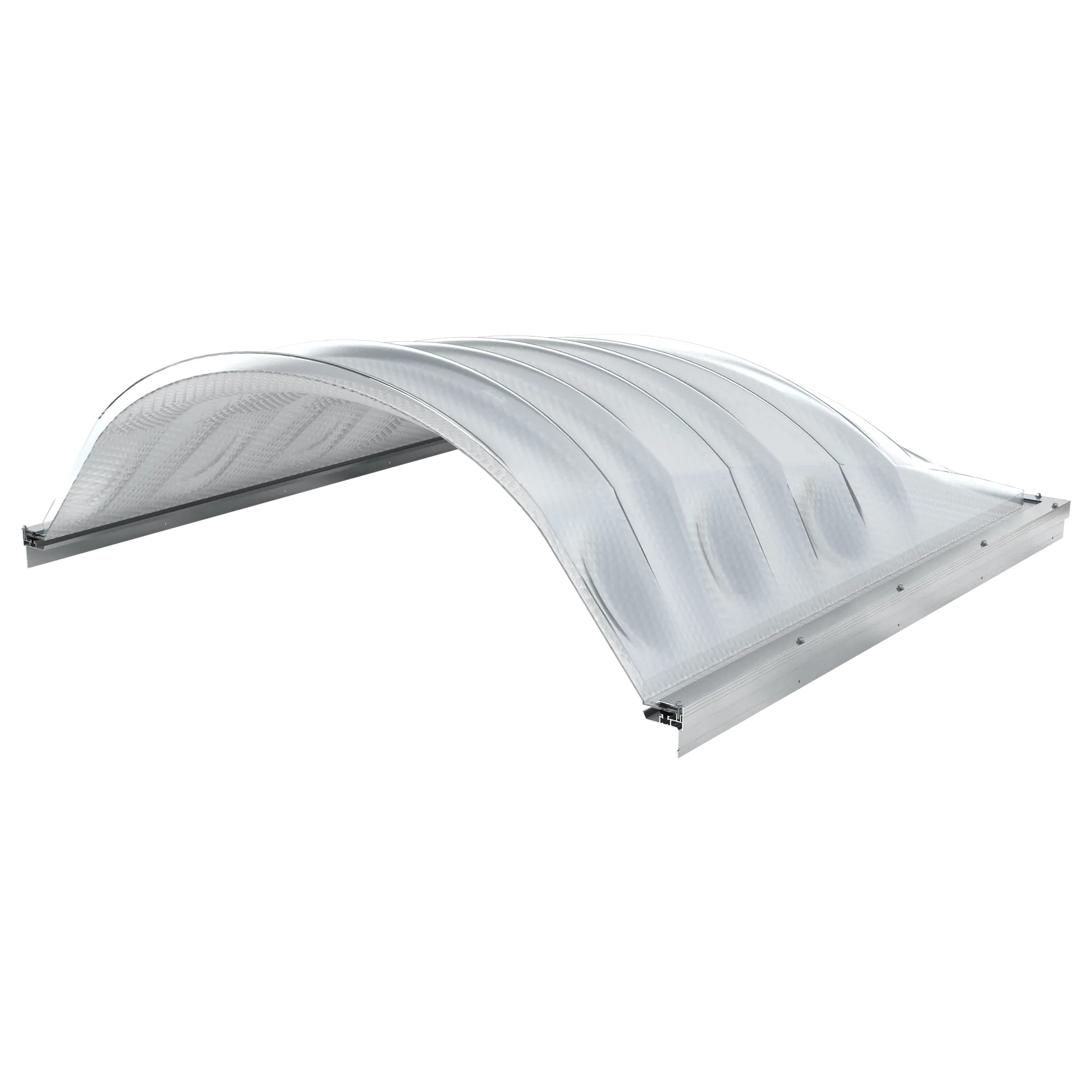

Series 1100 skylights, available in single, double or triple glazed configurations, feature a unique Kingspan Advanced Technology (KAT) shaped dome, designed to capture light at low angles. Available in single, double or triple glazed configurations, as well as thermally broken and non-thermally broken configurations, these Series 1100 skylights are a durable daylighting solution.
Product Highlights
- Available as single, double or triple glazed
- Single and double dome configurations are FM approved
- Clear or white glazing color options
- Frame is ideal for all roof types
- Available in thermally broken and non-thermally broken frame configurations.
- 2024 IBC compliant
- 10-year material and workmanship warranty (see data sheet or contact KLA for details)
- Stocked units available in standard sizes and glazing configurations
- All of our commercial unit skylights are manufactured in the United States.
Technical Information
Dimensions
Square Options: 3636, 4848 and 6060
Rectangular Options: 2448, 2496, 24120, 3696, 4872, 4896, 6072
*See Data Sheet for details
Glazing Options
Glazing Options
- Single (1), double (2) and triple (3) glazed
- Outer dome options: Clear, White or White Prismatic Monolithic Polycarbonate
- Middle and inner dome options: Clear Polycarbonate, White Prismatic Polycarbonate, Laminated Clear or Clear 16mm Multi-wall Polycarbonate
Base Options
- CM - Curb Mount
- CT - Curb Mount with Tape
- SF - Self-flashing
- Si - Self-flashing with Insulation
- LV - Curb Mount Vortex Venting Base
- LS - Self-flashing Vortex Venting Base
Certifications & Test Results
| ICC-ES Evaluated | IBC Section 2606.4 IBC Section 2405.5 | ESR-4776 |
| IBC Section 2606.4 | ASTM D1929 ASTM D2843 | Self-ignition Temperature: ≥ 650° F Smoke-developed Index: ≤ 450 Smoke Density Rating: ≤ 75 Combustion Classification: CC1 for Polycarbonate / CC2 for Acrylic |
| IBC Section 2405.5 AAMA/WDMA/CSA 101/I.S.2/A440 | ASTM E330 ASTM E283 ASTM E547 | Performance Grade PG40 - PG 65* Air Infiltration: < 0.07 cfm/ft² Air Exfiltration: < 0.05 cfm/ft² Water Penetration: None @ 15psf *Size dependent, see individual test reports for details |
| Factory Mutual Approved - Single + Double Dome Configurations Only | FM 4431 | Wind Uplift: 165 psf Severe Hail Rated (SH+) |
Performance data
| Glazing | Outer Dome | Middle Dome | Inner Dome | *U-Value | *SHGC | *VLT |
| WPC | White Monolithic | - | - | 1.25 | 0.67 | 0.63 |
| CPC/CPP | Clear Monolithic | - | Clear Prismatic | 0.76 | 0.71 | 0.62 |
| CPC/WPP | Clear Monolithic | - | White Prismatic | 0.76 | 0.65 | 0.58 |
| CPC/CPP/WPP | Clear Monolithic | Clear Prismatic | White Prismatic | 0.63 | 0.58 | 0.46 |
| WPC/CPP/WPP | White Monolithic | Clear Prismatic | White Prismatic | 0.63 | 0.47 | 0.36 |
| * Please note that these values are based on thermally broken configuration. | ||||||
Downloads
Specification Text
Technical Drawings
Frequently Asked Questions
What sizes are available for Series 1100 skylights?
Series 1100 skylights are available in the following square options - 3636, 4848 and 6060. They are also available in the following rectangular options - 2448, 2496, 24120, 3696, 4872, 4896, 6072. Please view our Data Sheet for more details.
Are Series 1100 skylights impact resistant?
Yes, the polycarbonate material used for the glazing is highly impact resistant, and the standard warranty also includes coverage against 2” or smaller hailstones. Exceptions may apply, so refer to warranty documents for restrictions.
Do Series 1100 skylights come with a warranty?
These systems come with a standard 10 year material workmanship warranty. Contact Kingspan for more information regarding our terms and conditions and optional warranty programs..
What are the standard glazing colors available for Series 1100 skylights?
Clear or white glazing is available, in single, double or triple glazed configurations.
