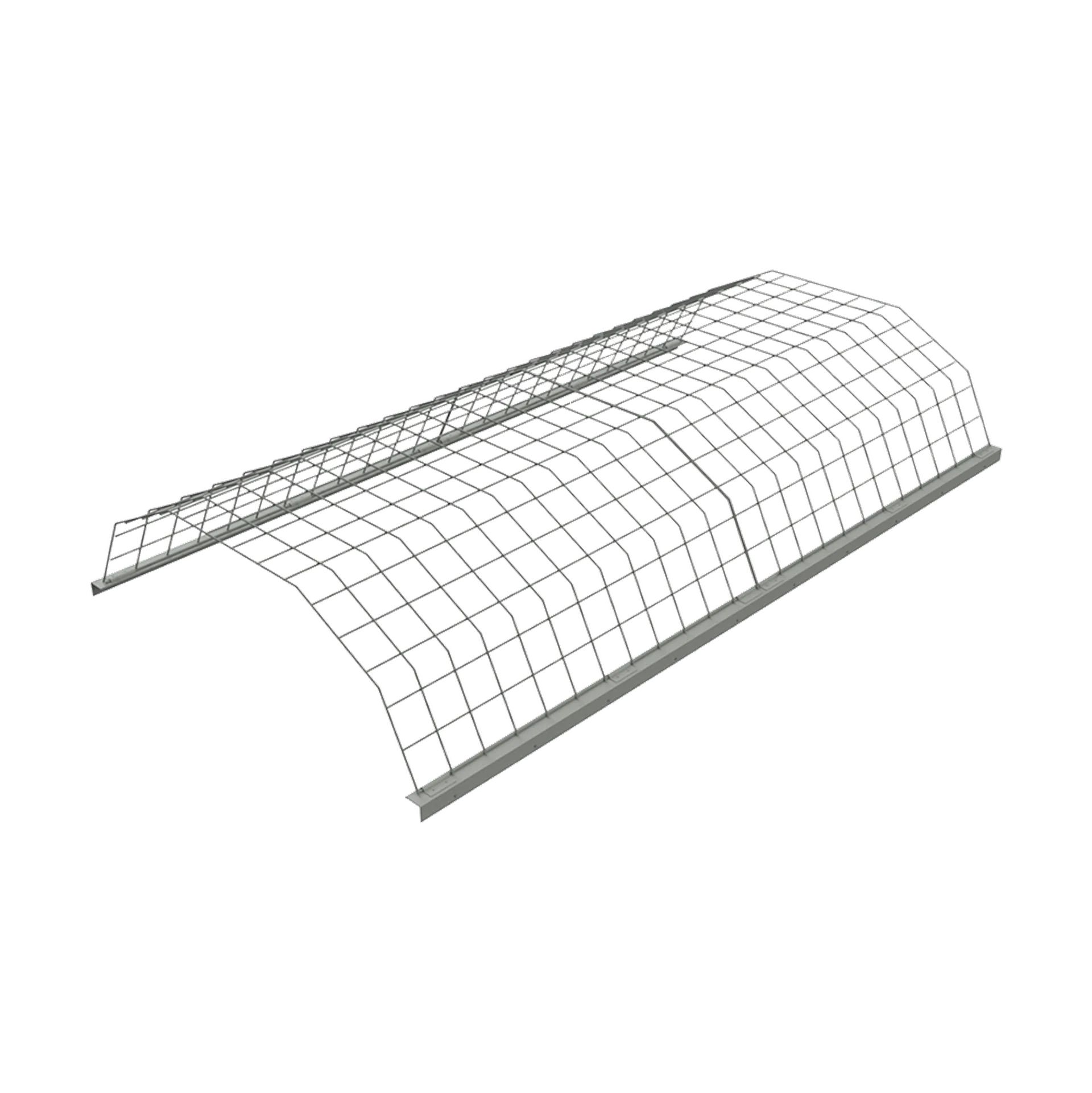

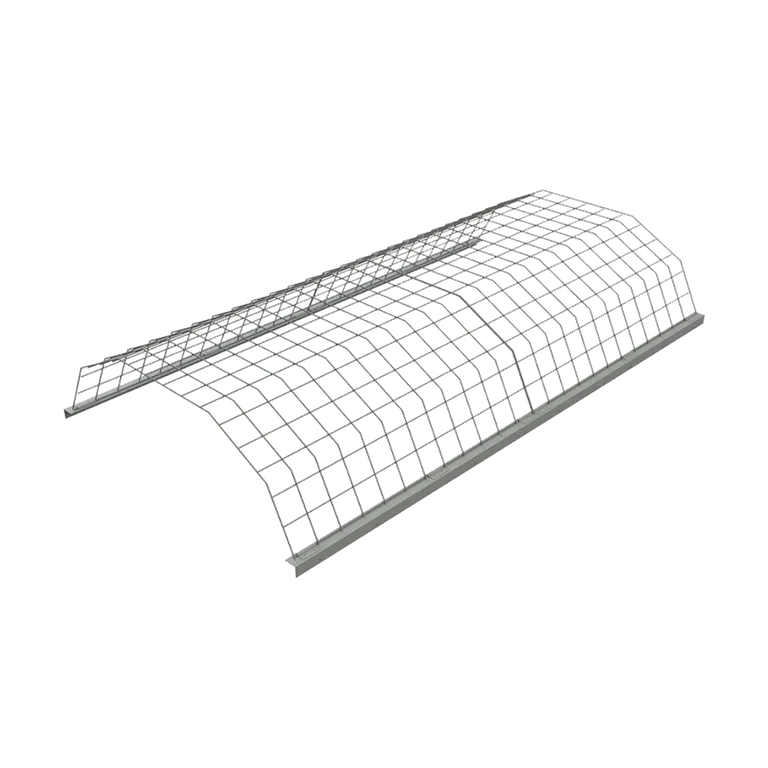

Series 5300External Safety Cage for Unit Skylights
)
Product Information
Series 5300 galvanized steel external safety cages attach to multiple types of skylight frames and provide a level of protection for those with access to roof spaces. Safety cages can be installed at the same time as the skylight or delivered to site factory-fitted to the skylight, are a good choice for both new and retrofit applications, and are available in a wide range of sizes from 22” x 22” to 60” x 96”.
Product Highlights
- Enhanced safety for the outside of your skylight
- Durable and corrosion resistant galvanized steel construction
- 4” square grid pattern made from ¼” nominal galvanized steel wire
- 10-year material-workmanship warranty (see warranty document for additional details)
Technical Information
Dimensions
Technical Information
| Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions |
| 2222 | 22" x 22” | 2246 | 22” x 46” | 4669 | 46" x 69" |
| 3030 | 30" x 30" | 2448 | 24” x 48” | 4783 | 47" x 83" |
| 3636 | 36” x 36” | 2496 | 24” x 96” | 4860 | 48” x 60” |
| 3737 | 37" x 37" | 24120 | 24” x 120” | 4872 | 48” x 72” |
| 4646 | 46" x 46" | 3046 | 30" x 46" | 4884 | 48” x 84” |
| 4848 | 48” x 48” | 3660 | 36” x 60” | 4896 | 48” x 96” |
| 5555 | 55" x 55" | 3672 | 36” x 72” | 48120 | 48” x 120” |
| 6060 | 60" x 60" | 3696 | 36” x 96” | 6072 | 60" x 72" |
| 7070 | 70" x 70" | 36120 | 36” x 120” | 6096 | 60" x 96" |
| 7272 | 72" x 72" |
Certifications & Test Results
Supports 400lb static load for units up to 92" wide and 120" long.
Frequently Asked Questions
Is the shape of the cage the same for every size of skylight?
Series 5300 External Safety Cage shapes may vary based on the size and rise of the skylight.
How do Series 5300 safety cages get attached to a skylight?
The cage uses 2” x 2” corrosion resistant angle brackets and is attached using #8 TEK screws.
Can these cages be factory-fitted to a new skylight?
Yes – contact us for more information and details.
What sizes are available?
Standard sizes for Series 5300 systems range from 22” x 22” to 72" x 72" in rectangular configurations and 22" x46” to 60" x 96" in rectangular configurations. See product data sheet for all available sizes.
