Series 5600 Hatch Guard
Series 5600 roof hatch guards are your first line of defense against a fall through an open or unguarded roof hatch.
Series 5100 Security GrillsProviding safety and security.
)
)
)
)
Product Information
Steel security grills come in a wide range of styles and patterns including a variety of grid patterns and sizes, and attach to both wood and metal roof decks and curbs. Series 5100 security grills can be installed directly on to the roof deck or curb prior to the installation of the skylight or smoke vent.
Product Highlights
- Enhanced safety for anyone with roof access
- Grid patterns include 5" parallel grid, 5" x 5", 5" x 16" and 8" x 8"
- Attaches to wood or metal curbs
- ½” steel rod lattice welded to a curb-mounted frame
- Backed by a 10-year material-workmanship warranty (see warranty document for additional details)
Technical Information
Dimensions
Technical Information
| Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions | Model Size | Rough Opening Dimensions |
| 2222 | 22” x 22” | 2246 | 22" x 46" | 4669 | 46" x 69" |
| 3030 | 30" x 30" | 2448 | 24” x 48” | 4783 | 47" x 83" |
| 3636 | 36” x 36” | 2496 | 24” x 96” | 4860 | 48" x 60" |
| 3737 | 37" x 37" | 24120 | 24” x 120” | 4872 | 48” x 72” |
| 4646 | 46” x 46” | 3046 | 30" x 46" | 4884 | 48” x 84” |
| 4848 | 48” x 48” | 3660 | 36” x 60” | 4896 | 48” x 96” |
| 5555 | 55" x 55" | 3672 | 36” x 72” | 48120 | 48” x 120” |
| 6060 | 60" x 60" | 3696 | 36” x 96” | 6072 | 60" x 72" |
| 7070 | 70" x 70" | 36120 | 36” x 120” | 6096 | 60" x 96" |
| 7272 | 72" x 72" |
Caractéristiques du produit
- 1-1/2” x 1-1/2” x 1/8” Steel angles
- 1/2”ø steel rods
- White primer painted, as standard
Options

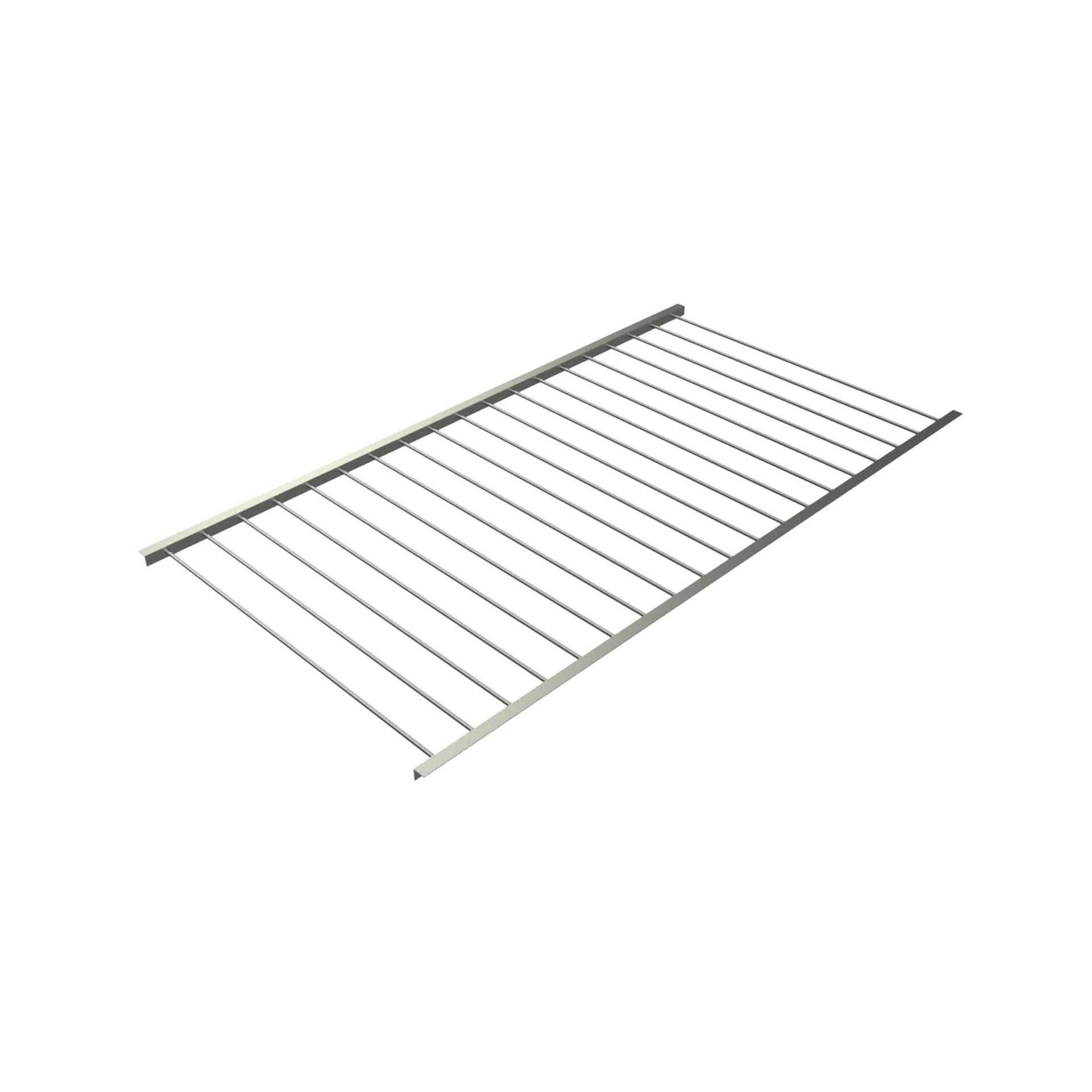

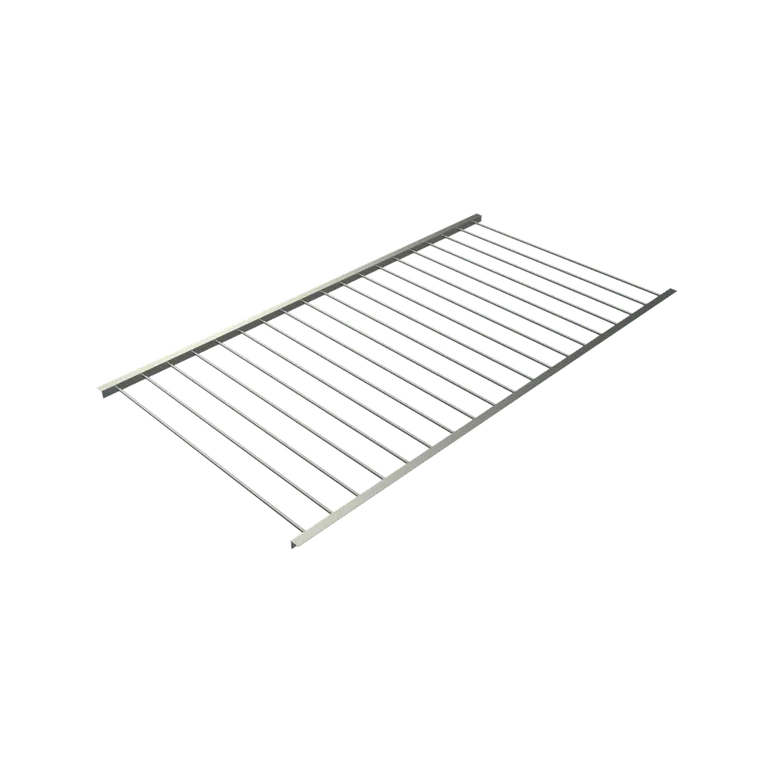

- SG-1: 5” Parallel line spacing*

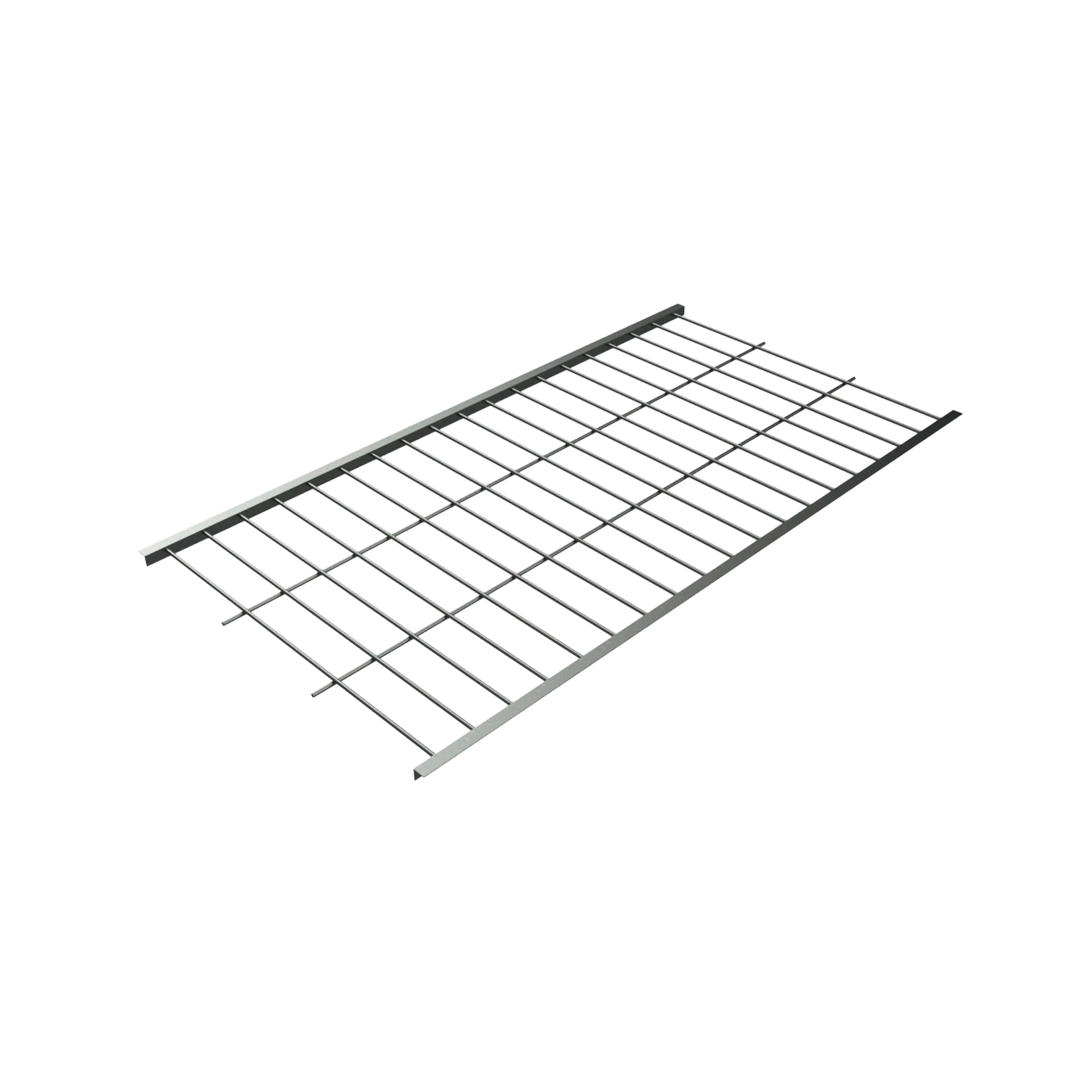

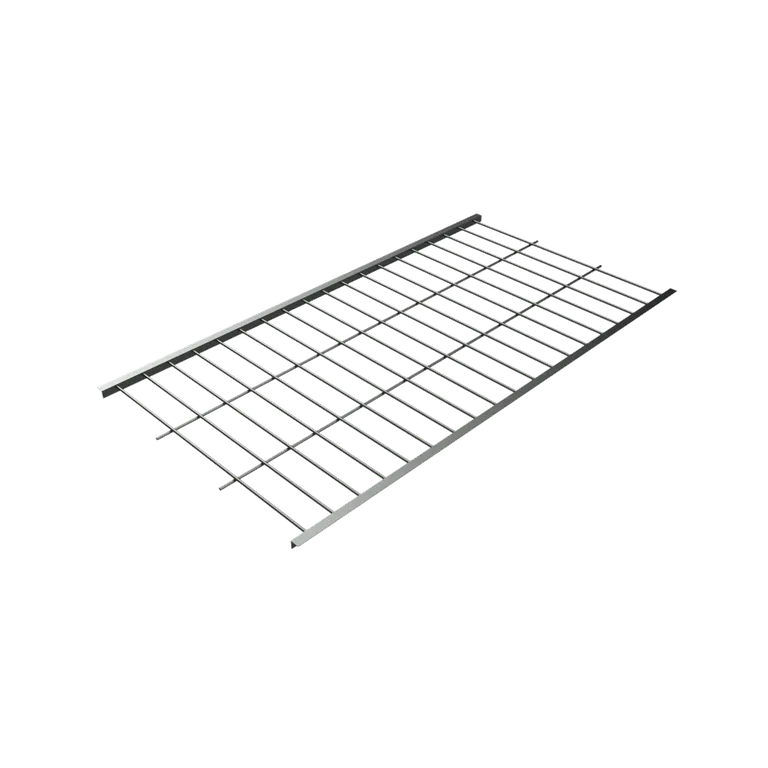

- SG-2: 5” x 16” Grid spacing*

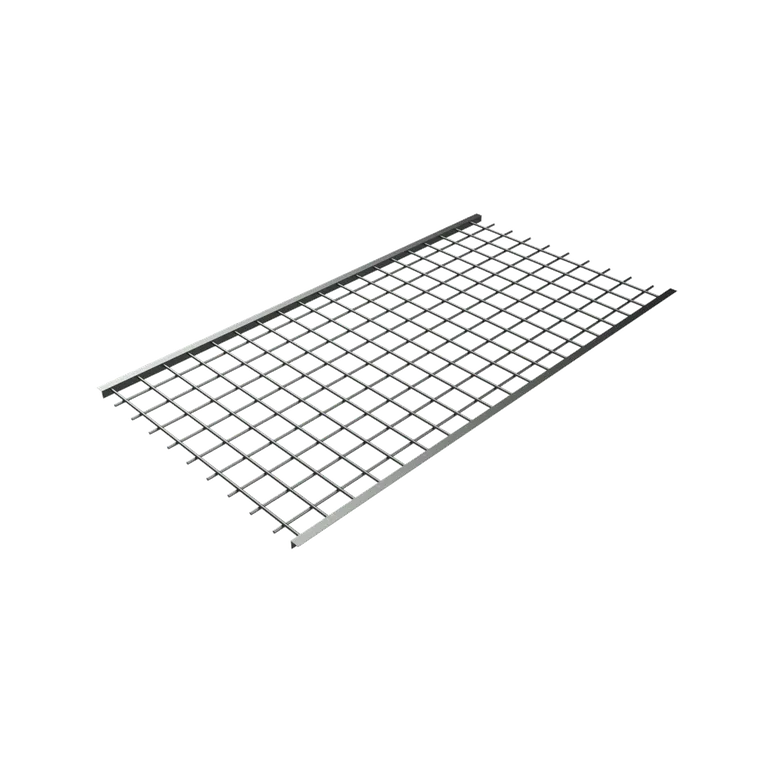

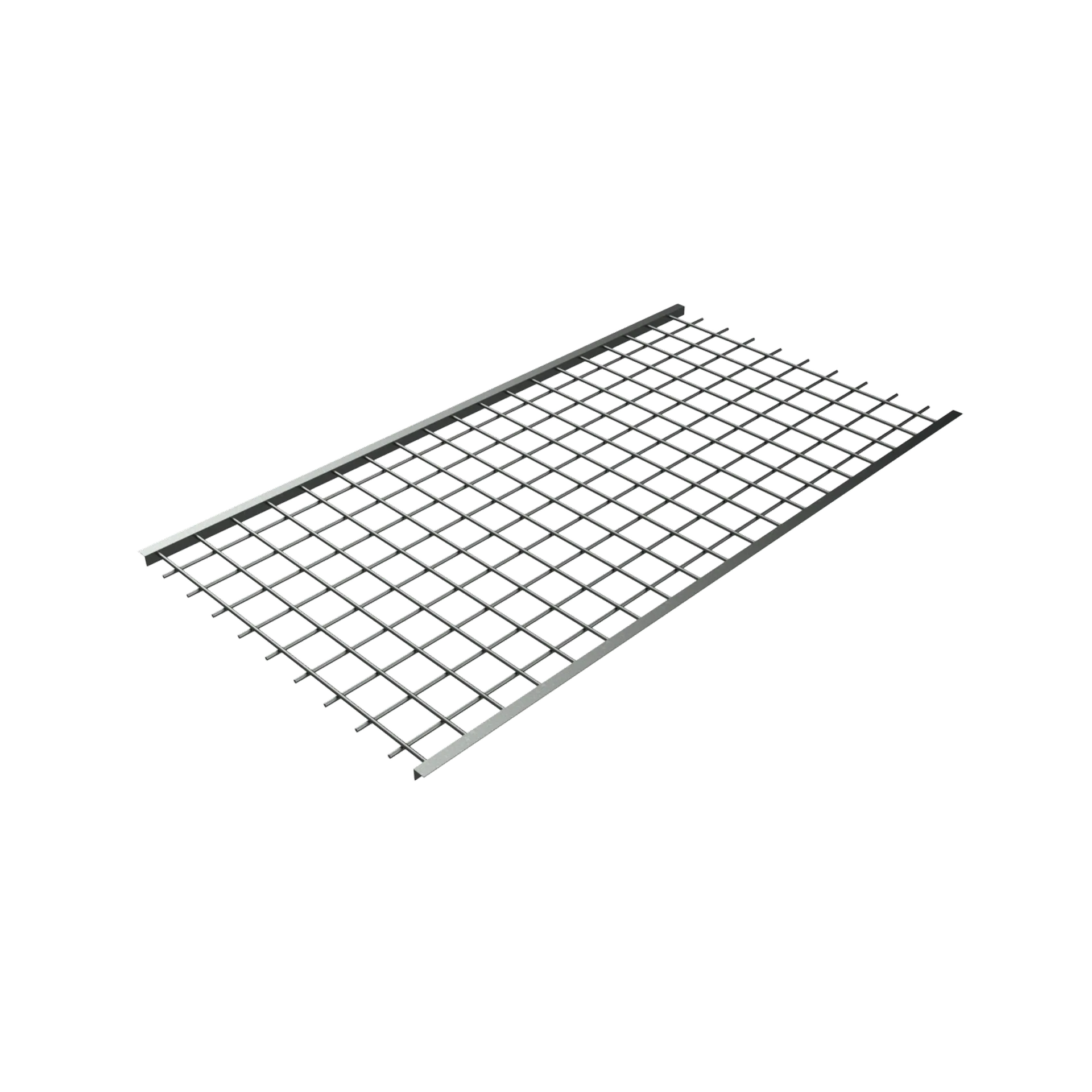

- SG-3: 5” x 5” Grid spacing*

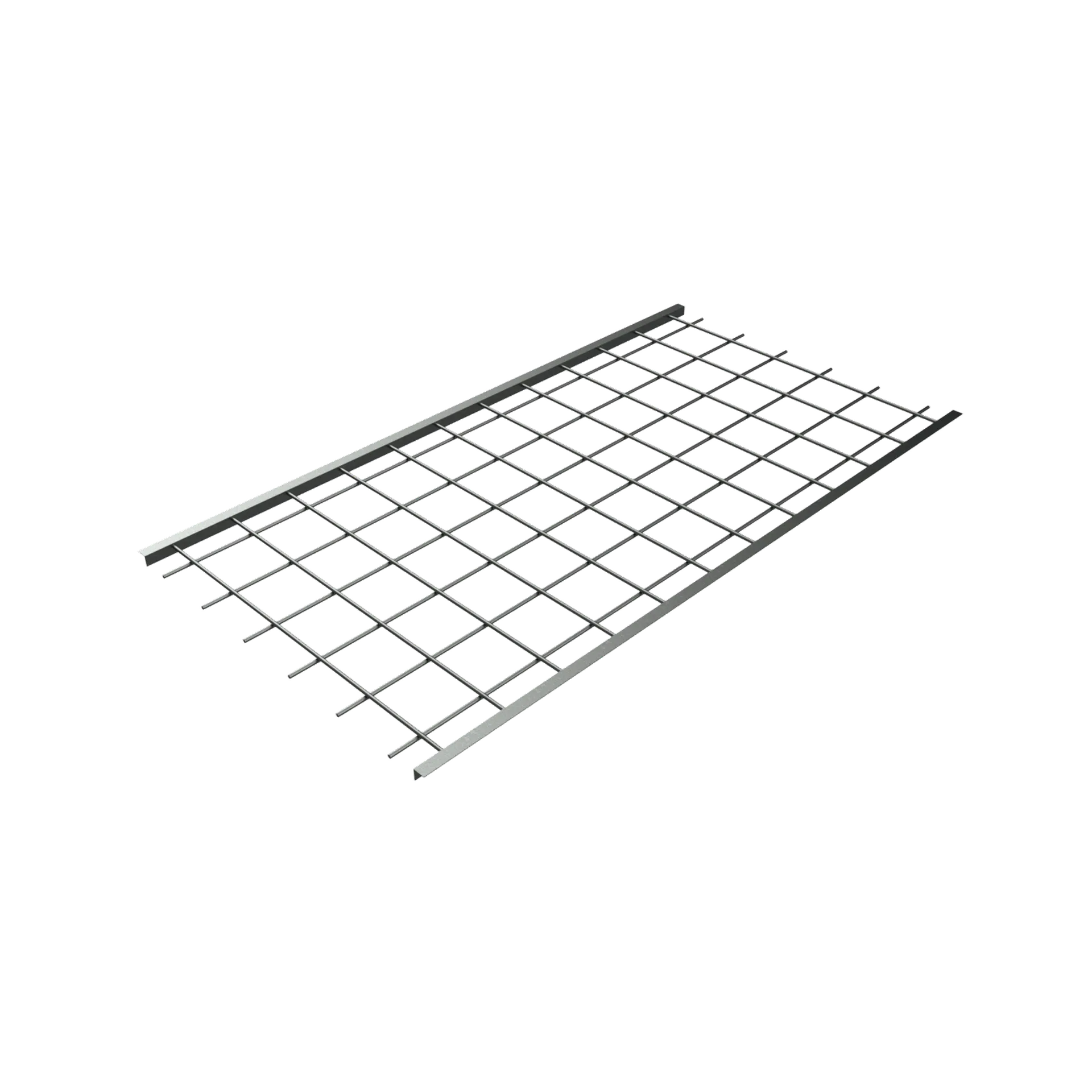

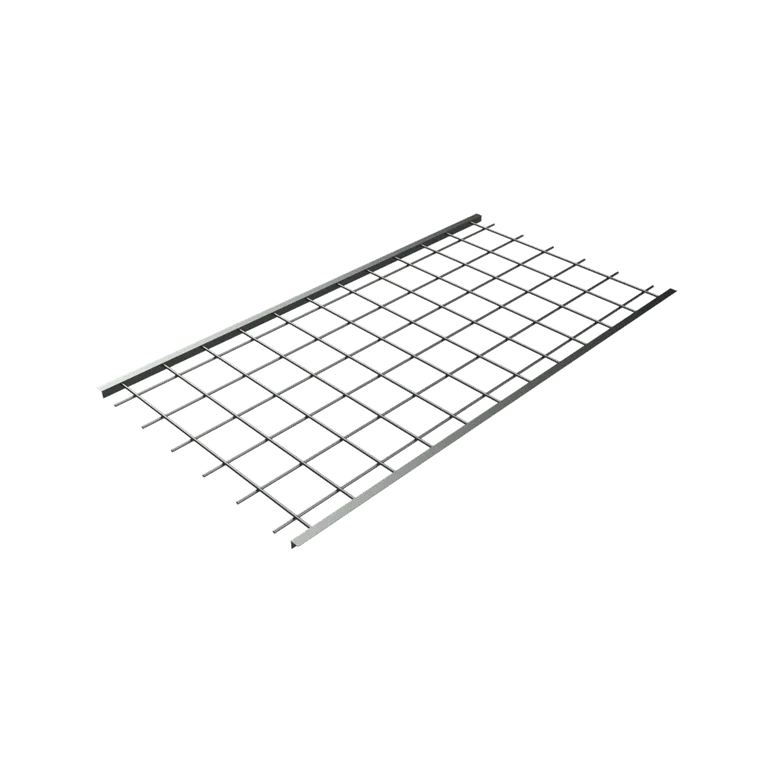

- SG-4: 8” x 8” Grid spacing
* As required by security codes in many jurisdictions
Downloads
Technical Drawings
Frequently Asked Questions
What sizes are available?
Standard sizes for Series 5100 Security Grills are rectangular configurations from 22” x 46” to 60” x 96”, and square configurations from 22" x 22" to 72" x 72" . See product data sheet for more available sizes.
Is there only one grid layout available?
No – four layouts are available – a 5” parallel grid, plus 5” x 5”, 5” x 16” and 8” x 8” options.
Where does a Series 5100 Security Grill get installed?
It can be installed on top of the roof curb or on the roof deck.
Is the steel finished?
Yes – with white primer paint.
Need More Information or Want to Start a Quote Request?
Click on the buttons below to get in touch with our team about general product questions and design concerns, or to access our quote request form.
)
