Briteway®Custom Polycarbonate Canopies and Walkway Covers
)
)
)
)
)
)
Product Information
Briteway® canopies and walkways offer shelter and protection for building occupants plus the benefits of diffuse natural light – in a system that’s also cost-effective and easy to install. Whether it’s a simple design or complex custom configuration, Briteway® canopies and walkways feature prefabricated components for reduced labor time, a strong double-tooth standing seam connection for durability, and a wide range of glazing color options to accommodate just about any design need.
Product Highlights
- Innovative clearspan design that eliminates the need for cross-bracing and opens up the space below the canopy
- Polycarbonate glazing features less weight and more impact resistance and durability than traditional glass solutions
- Standing seam design with triple tooth-connection – able to withstand extreme loading
- Tight-cell extrusion for increased durability and enhanced light diffusion
- Co-extruded UV protection integrated within the panel for superior color stability
- Wide variety of standard color options – custom and color matching also available
- Rust-free aluminum structure that offers excellent durability and system longevity
- A single-source solution supplying everything from the ground up
- Components shipped fabricated and ready to assemble

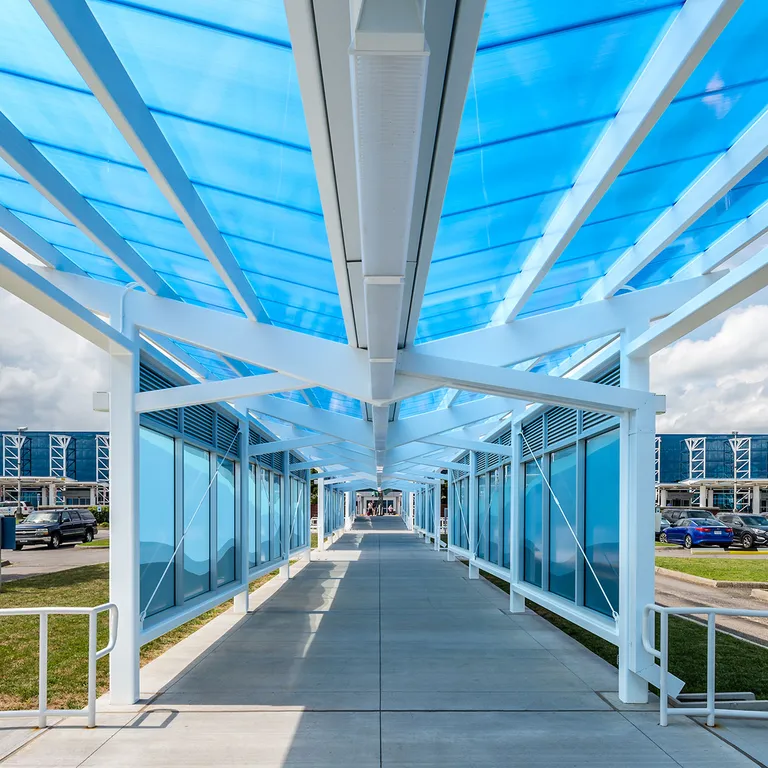

- Overall curved clearspan walkway widths of up to 20 feet
- Wide variety of styles including vaults, ridges and single slope configurations - custom designs also available

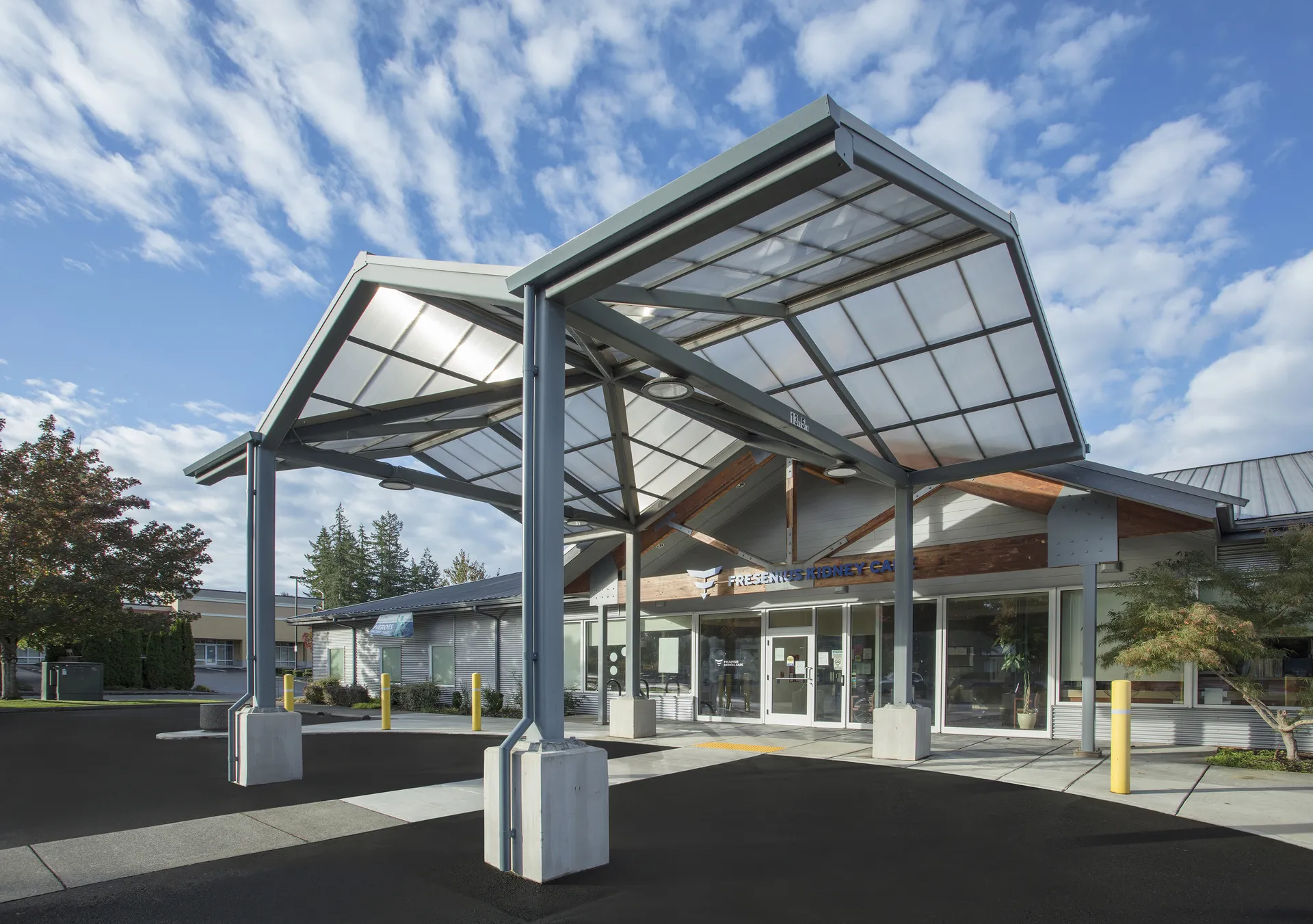

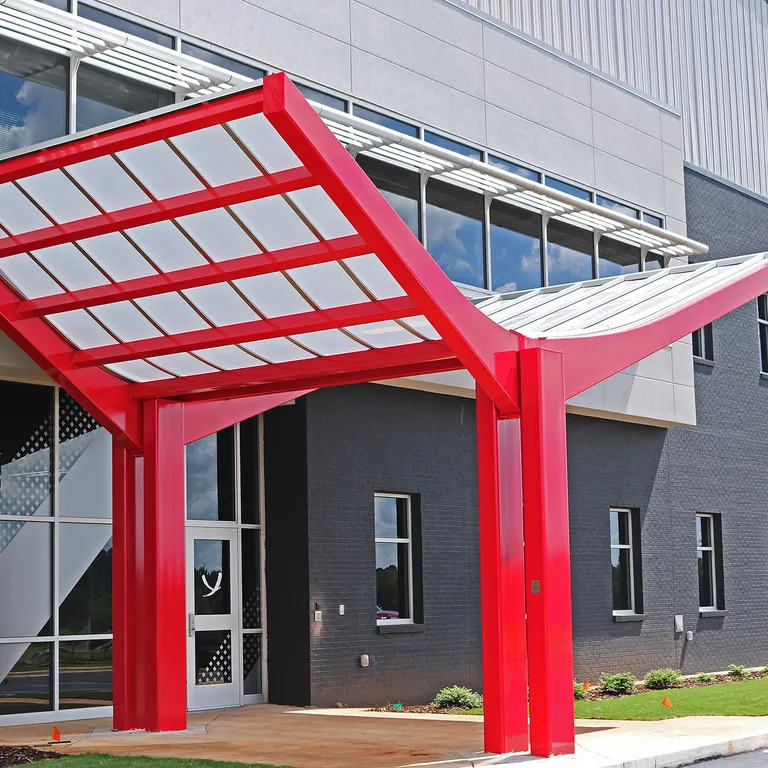

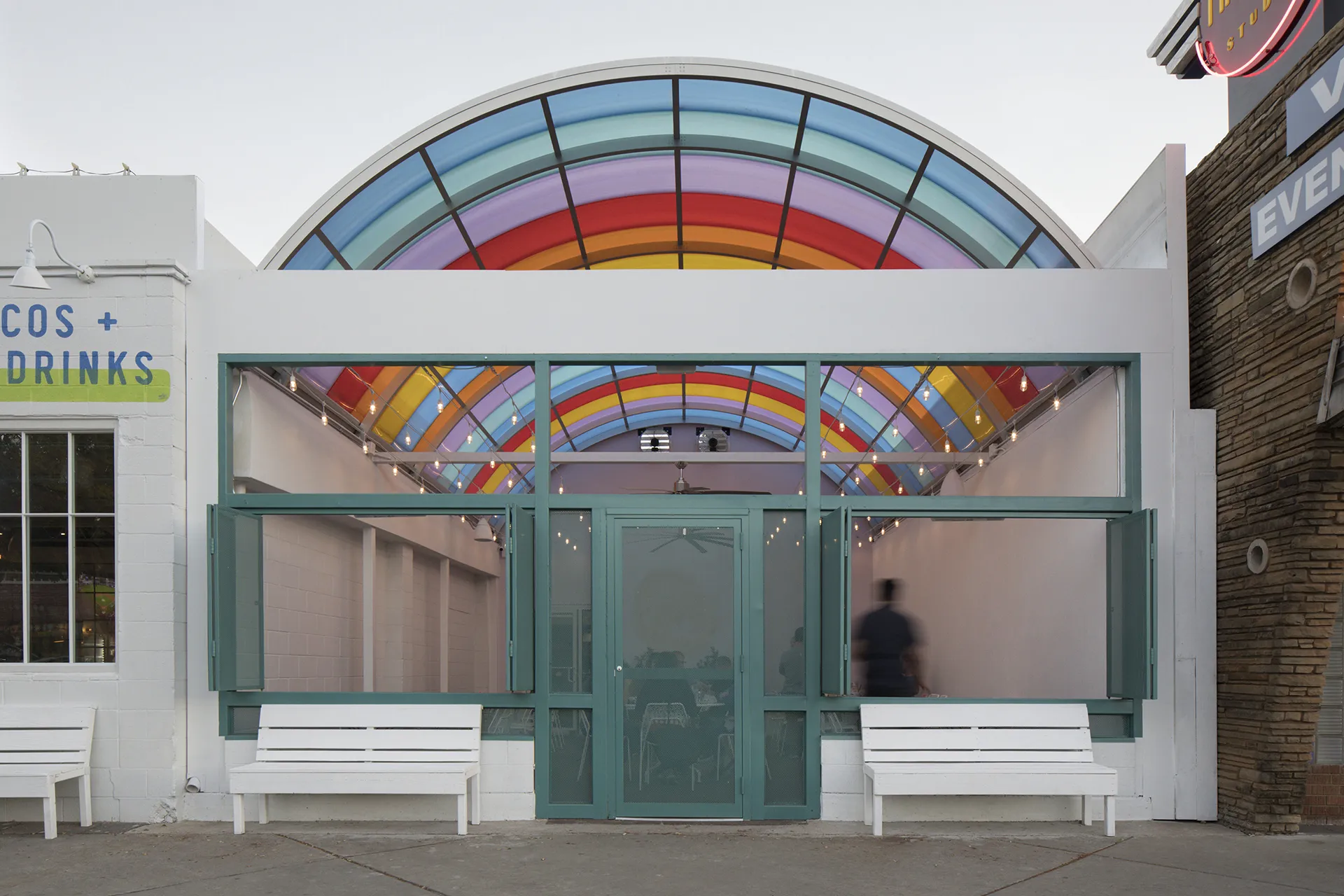

Briteway® Polycarbonate Canopies
Custom Canopies that Inspire + Perform
New or retrofit, small entryway canopy or large walkway covering, let our team help guide you through the process. With numerous configuration options, glazing colors and finishes, as well as ground-up canopy solutions, we'll work with you to create a canopy that stands out.
)
)
Technical Information
General Information
- Panel Thickness: Nano-Cell® 12mm or 16mm
- Panel Width: 23.75 in (600mm)
- Panel Length: Up to 38ft long - Contact us to check feasibility for longer applications.
- Glazing Finish: Standard: Matte Finish / Non-standard: Non-Matte Finish
Glazing Colors: Clear, Ice White, White, Blue, Green, Reflective Gray (Non-Matte Only), Gray, Bronze
(*Additional colors and custom options available - contact KLA for details)
Certifications & Test Results
- Water Permeability - AAMA 501.2 - Pass
- Hail Impact - ASTM E822 - Warrantied to resist breakage up to 1-3/16” @ 55mph Tested to remain intact up to 3” @ 90mph.
- Florida Product Approval - FPA#: FL6475, HVHZ Approved, TAS 202 + 203 - Up to +/-110psf
- TX Dept. of Insurance - TDI - FL-6475
- ICC Evaluation - ICC-ESR 4745
- Fall Protection - ASTM E 661 in reference to OSHA: 1926.502(i)(2), and/or CalOSHA: Sections 1632(b)(3), 3212(b) - 800lb. Concentrated Load
- Fire Testing - Flame Spread & Smoke Developed, ASTM E 84, Class A / Burning Rate, ASTM D 635, CC1 / Ignition Temp, ASTM D 1929, Pass / Smoke Development, ASTM D2843, Pass
Downloads
Specification Text
Sustainability (EPD, FDS..)
Technical Drawings
Case Studies
See Our Solutions at Work
Get inspired and learn more about how our systems can make an impact.
)
)
)
)
Briteway® Project Highlights
)
)
)
)
Frequently Asked Questions
Do I need support structure in place for these canopies?
We can provide a system whether structure will be completed by others, or you need a ground-up solution. Contact us for more details.
What glazing colors are available?
Standard colors include clear, white, ice white, blue, green, bronze, and refl. gray, with custom colors also available. Contact us for more information on color options.
How do these systems compare to glass canopies?
Polycarbonate glazing is significantly lighter than comparable glass glazing, allowing for more design versatility and less required structure, and is also highly impact resistant.
Are there standard configurations for Briteway® canopy systems?
We custom design Briteway® canopies to meet your needs - from single slope designs to curved systems whose clearspan design allows for more uninterrupted space below the glazing for a comfortable pedestrian environment.
How much do your canopy systems cost?
Because our systems are custom built to your specific project needs, costs per square feet can vary depending on structure, design configuration, glazing and finish colors and more. Contact our sales team for additional information and to request a quote.
