VentriaVersatile glazed ventilation window for natural ventilation & SHEV
)
)
)
)
)
)
Product Information

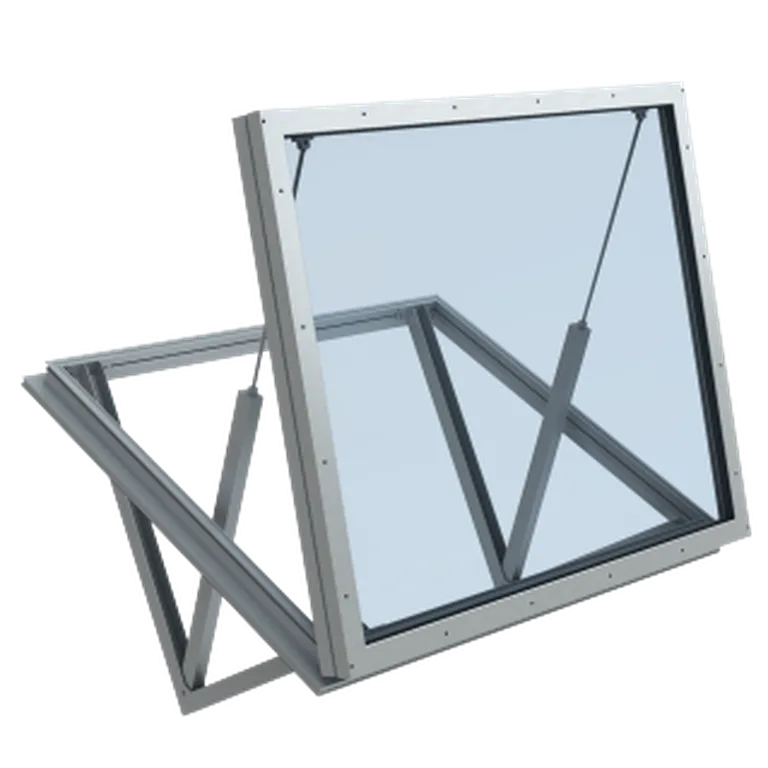

Ventria is a versatile EN 12101-2 certified glazed ventilation window suitable for both roof and façade applications. Available with glass, polycarbonate, sandwich panel or aluminium infill options, it supports natural ventilation, smoke and heat exhaust ventilation and daylight entry within a single solution. With thermally broken construction, multiple operating systems and project-configured dimensions, Ventria offers flexibility for industrial, commercial and architectural glazing applications.
Product Highlights
- EN 12101-2 certified for smoke and heat exhaust ventilation (SHEV)

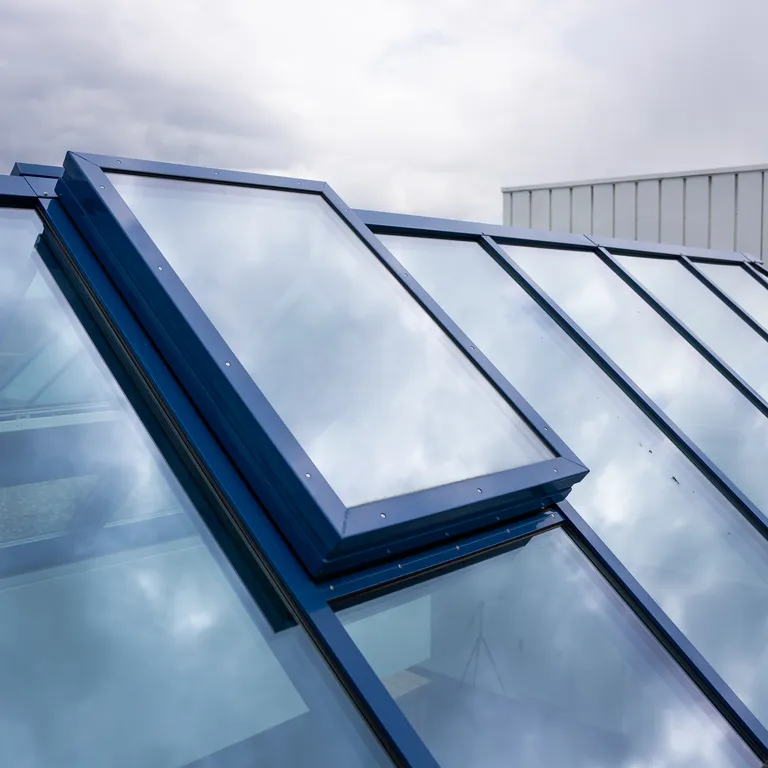

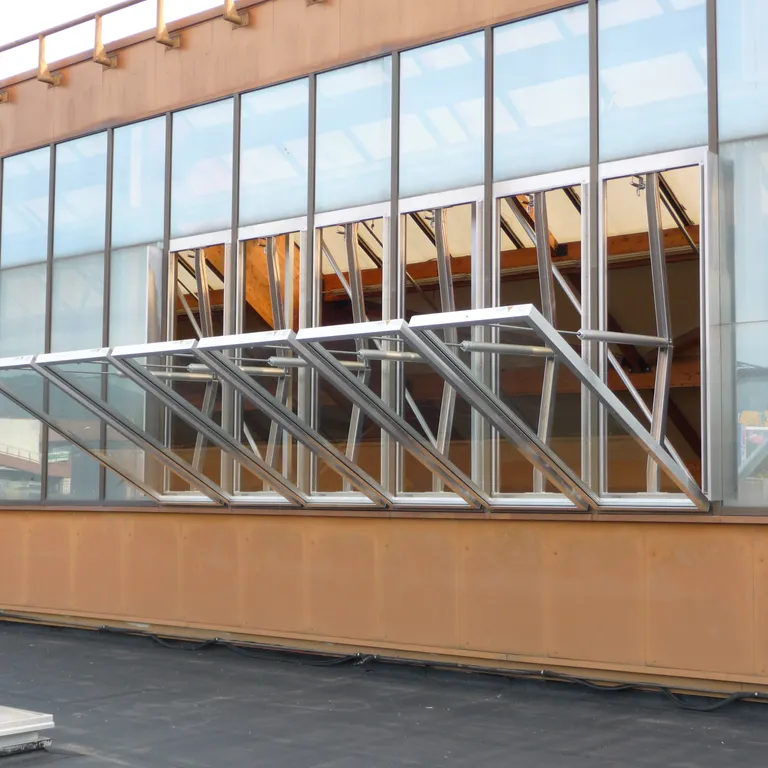

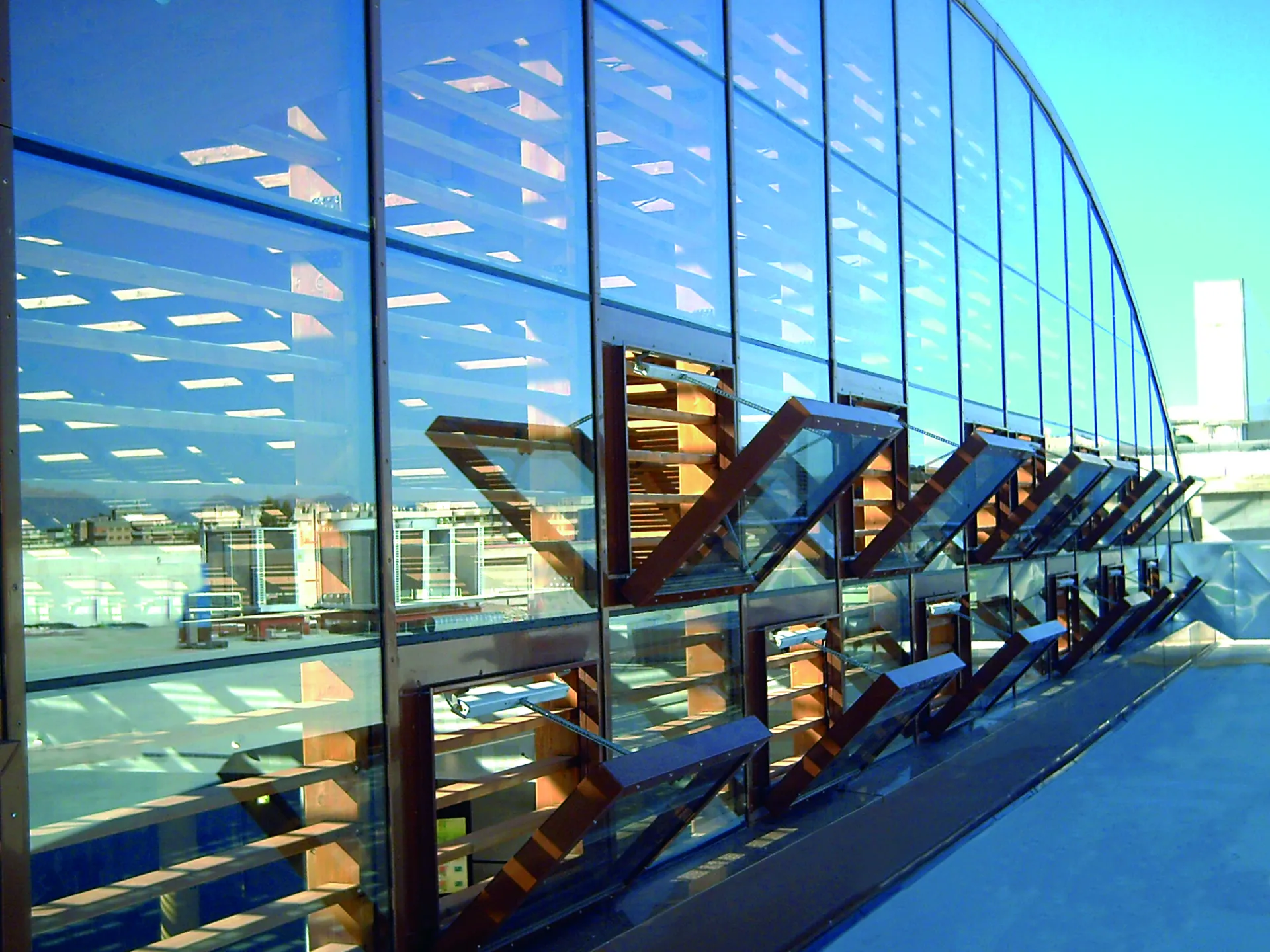

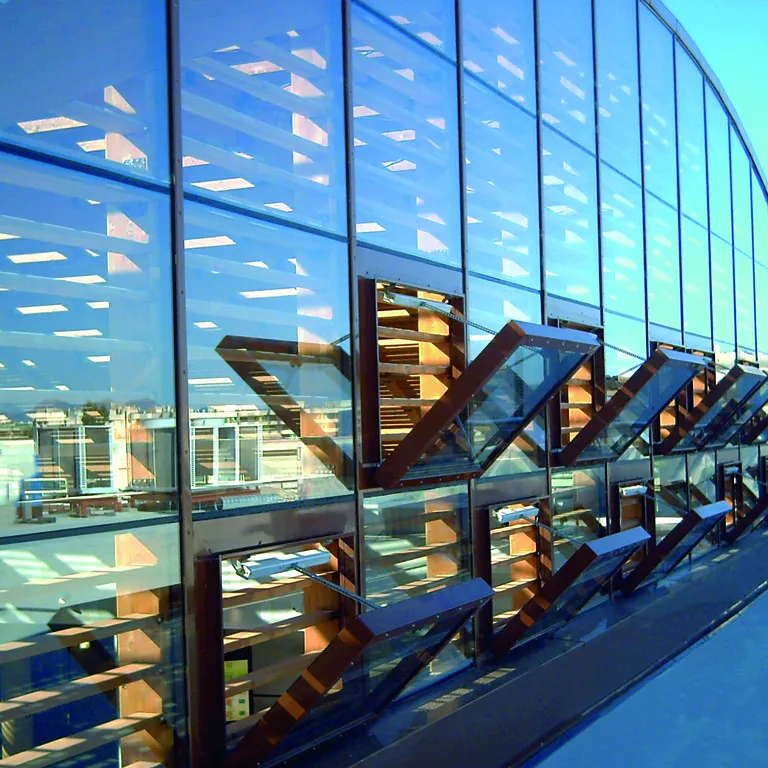

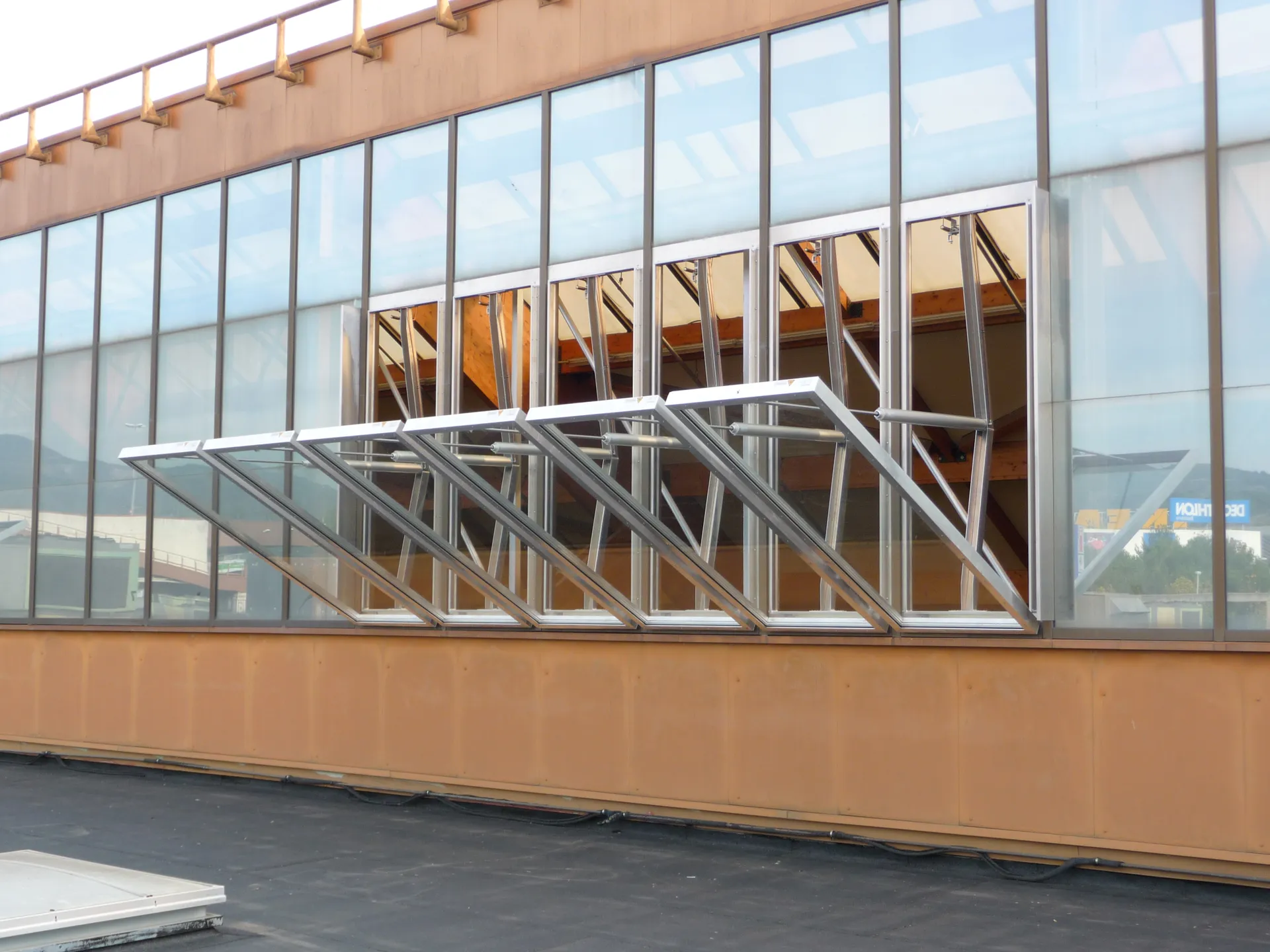

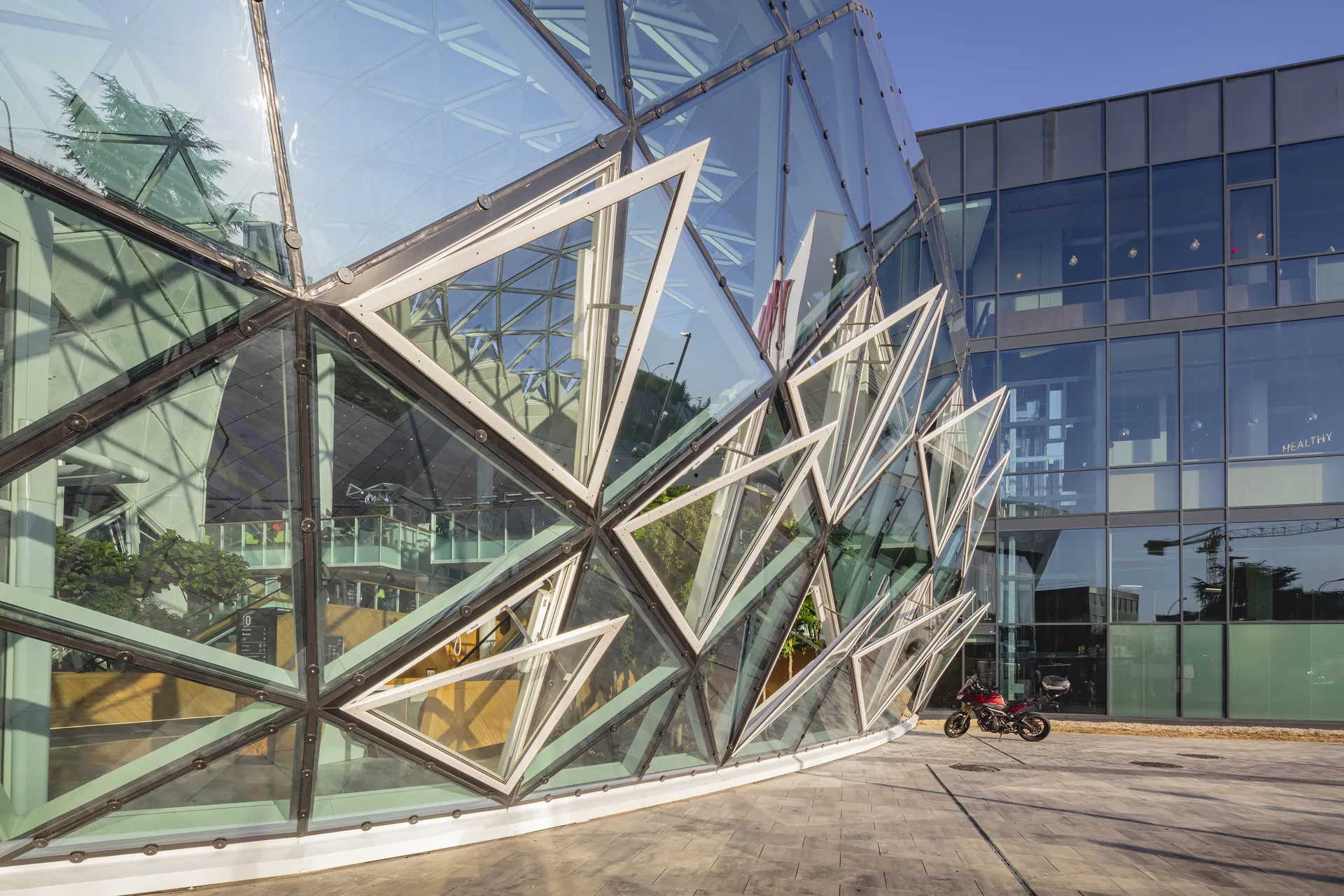

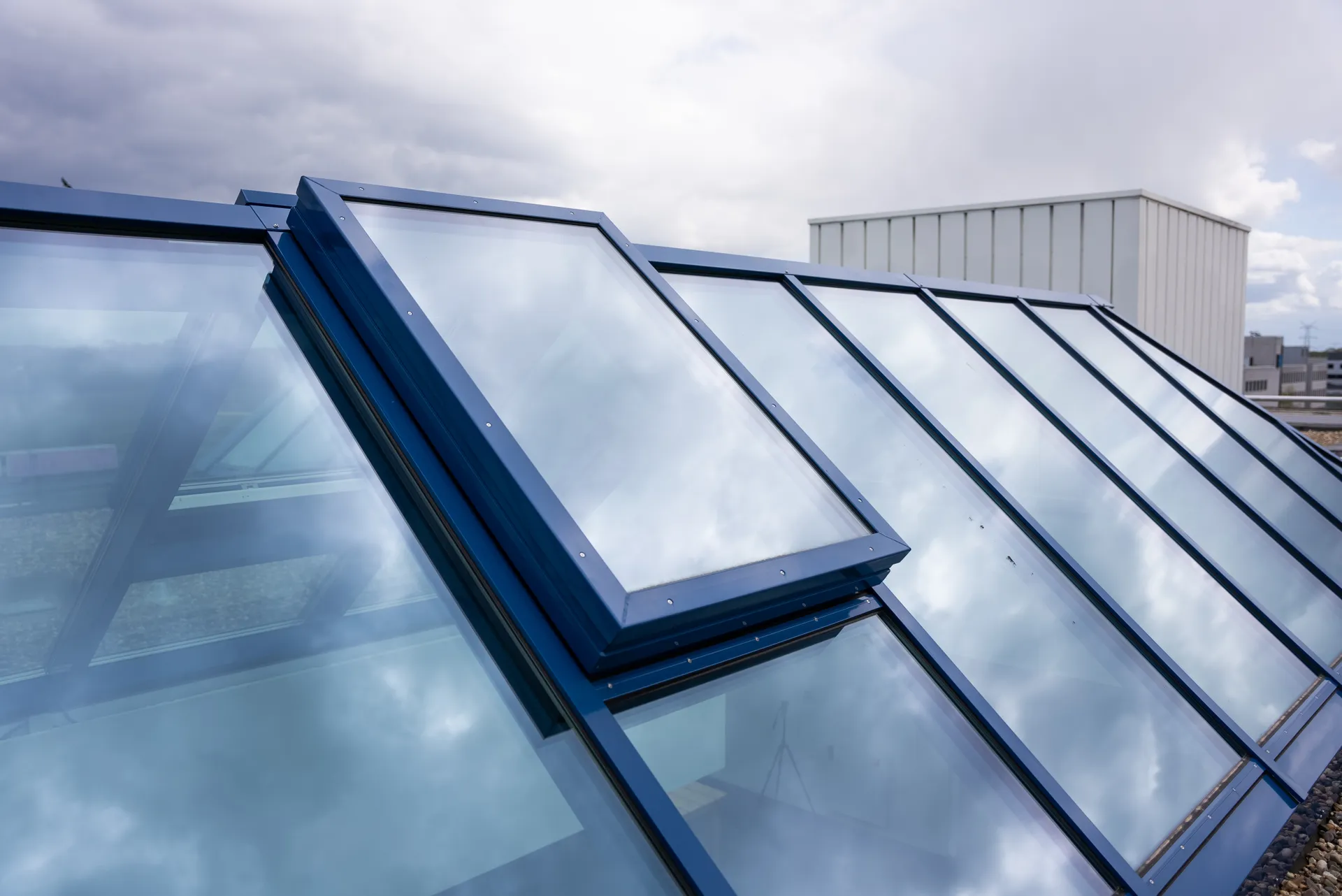

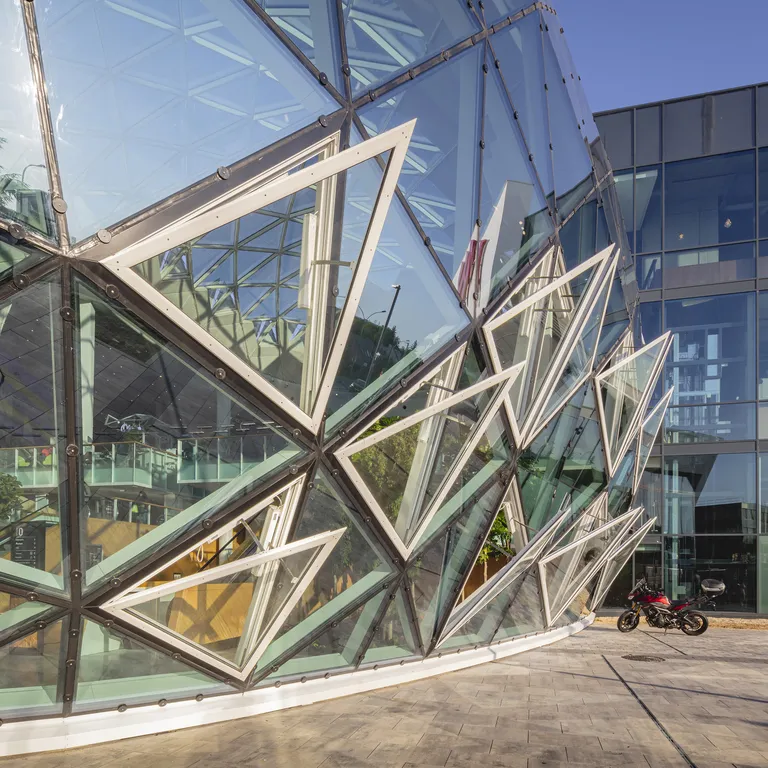

- Suitable for both roof and façade applications
- Provides natural ventilation, smoke control and daylight through a single system
- Available with glass, polycarbonate, aluminium and sandwich panel infill options
- Wide choice of pneumatic and electric operating systems
- Thermally broken design for excellent thermal performance and reduced condensation risk
- Air permeability Class 4 and water tightness Class E1050

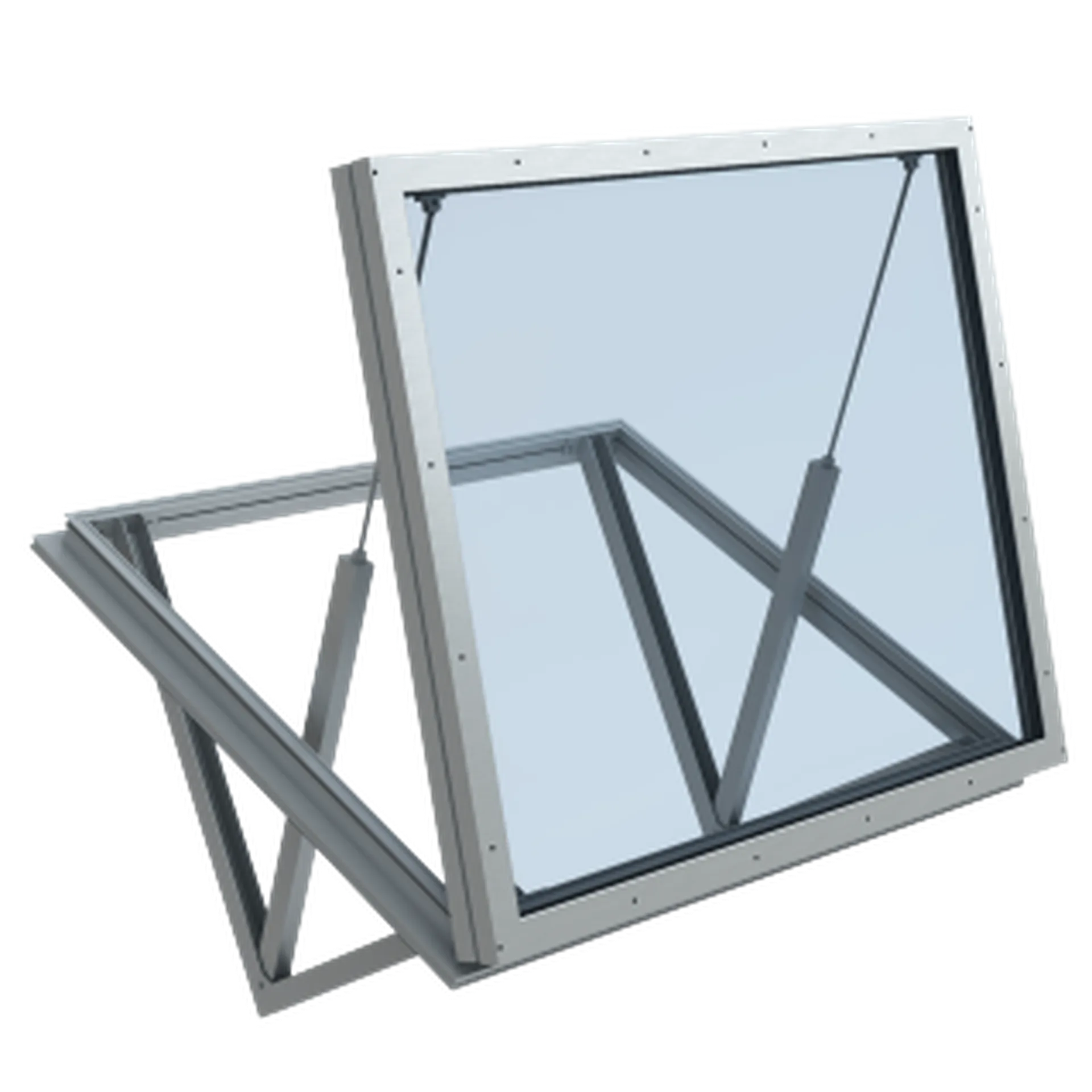

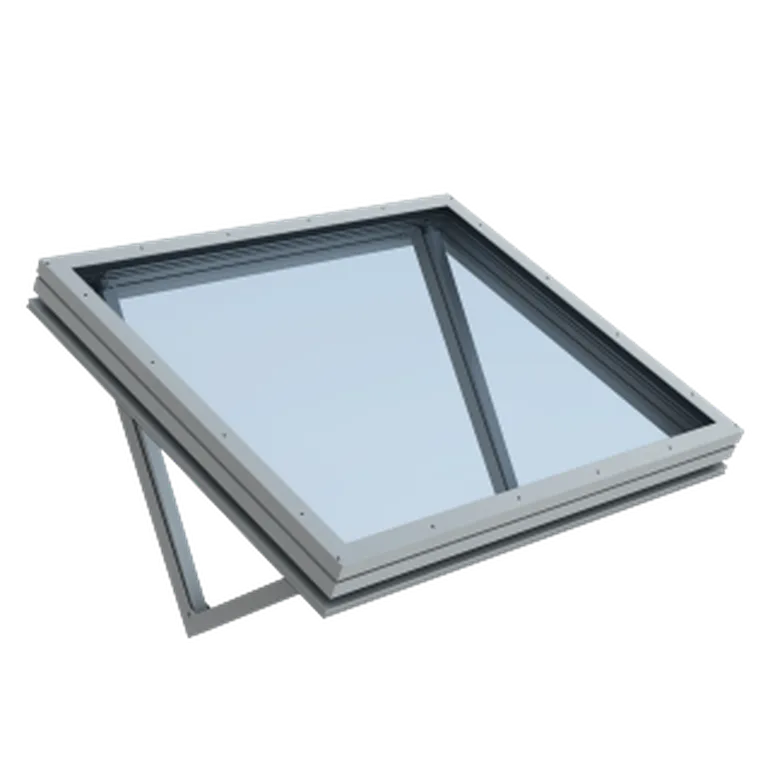

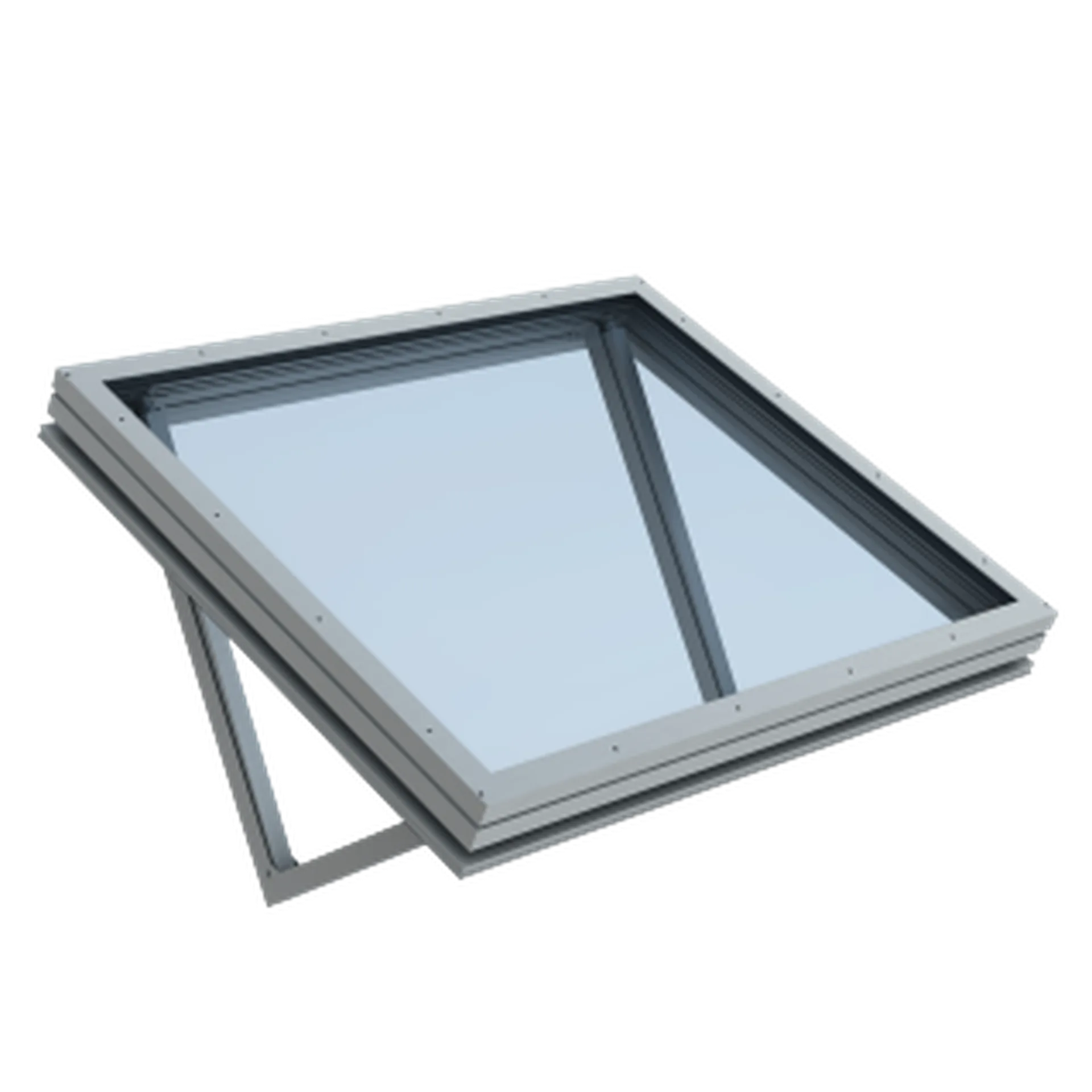

- Available in top-hung, bottom-hung and side-hinged configurations
- Project-configured dimensions to suit bespoke glazing applications
Contact us
For more information on how we can help you with your project, get in touch with us
Technical Information
Dimensions
- Throat widths: 600 mm to 2500 mm
- Throat lengths: 1100 mm to 3900 mm
- Flexible louvre heights from 300 mm to 400 mm
- Bespoke intermediate sizes available
- Multiple flange options for glazing, roof and upstand installations
Infill Options
- Glass (double and triple glazing)
- Polycarbonate
- Aluminium insulated panels
- Sandwich panels
- Panel thicknesses from 12-58 mm
Thermal Performance (U-Value)
Ventria is available in insulated and thermally broken configurations. Thermal performance depends on the selected frame, glazing specification, dimensions and panel construction, with glazing options achieving U-values from 1.0 W/m²K.
Please contact our sales team for project-specific U-value calculations. Thermal performance will vary depending on frame type, glazing specification, panel construction and unit dimensions.
Acoustic Performance
- Glass options up to Rw 37 dB
- Sandwich panel options up to Rw 40 dB
Certifications & Test Results
- CE marked and certified in accordance with EN 12101-2
EN 12101-2 Classification:
- Wind Load: WL 2000
- Snow Load: Up to SL 1000
- Temperature Class: T(-15)
- Reliability Class: Re 300 – Re 1000
- Heat Resistance: B300
- Air Permeability: Class 4 to EN 12207
- Water Tightness: Class E1050 to EN 12208
- Resistance to Wind Load: Class C5 to EN 12210
- Tested in accordance with NF S 61937-1 and NF S 61937-7
