Fumetica
)
)
)
Product Information
Fumetica is a high-capacity EN 12101-2 certified double flap ventilator designed for smoke and heat exhaust ventilation, day-to-day ventilation and daylight entry. Available in a range of insulated and uninsulated configurations, Fumetica provides reliable smoke extraction performance, large geometric surface areas up to 7.5 m² and flexible sizing options. It is particularly suited to distribution centres, warehouses, production facilities and industrial buildings
Product Highlights
- EN 12101-2 certified for smoke and heat exhaust ventilation (SHEV)
- Suitable for smoke ventilation, natural ventilation and daylighting
- Geometric surface area up to 7.5 m² for high smoke extraction capacity

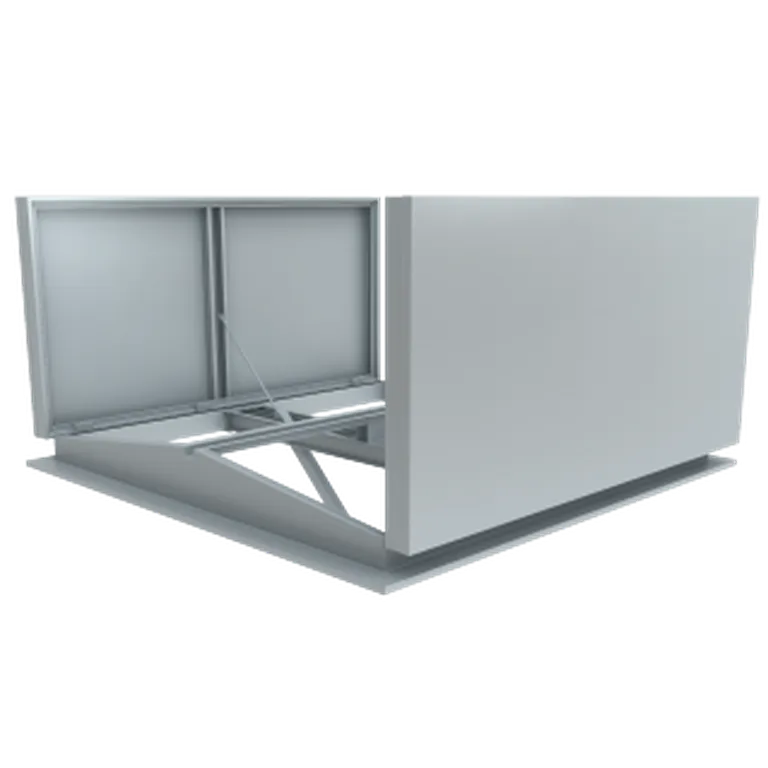

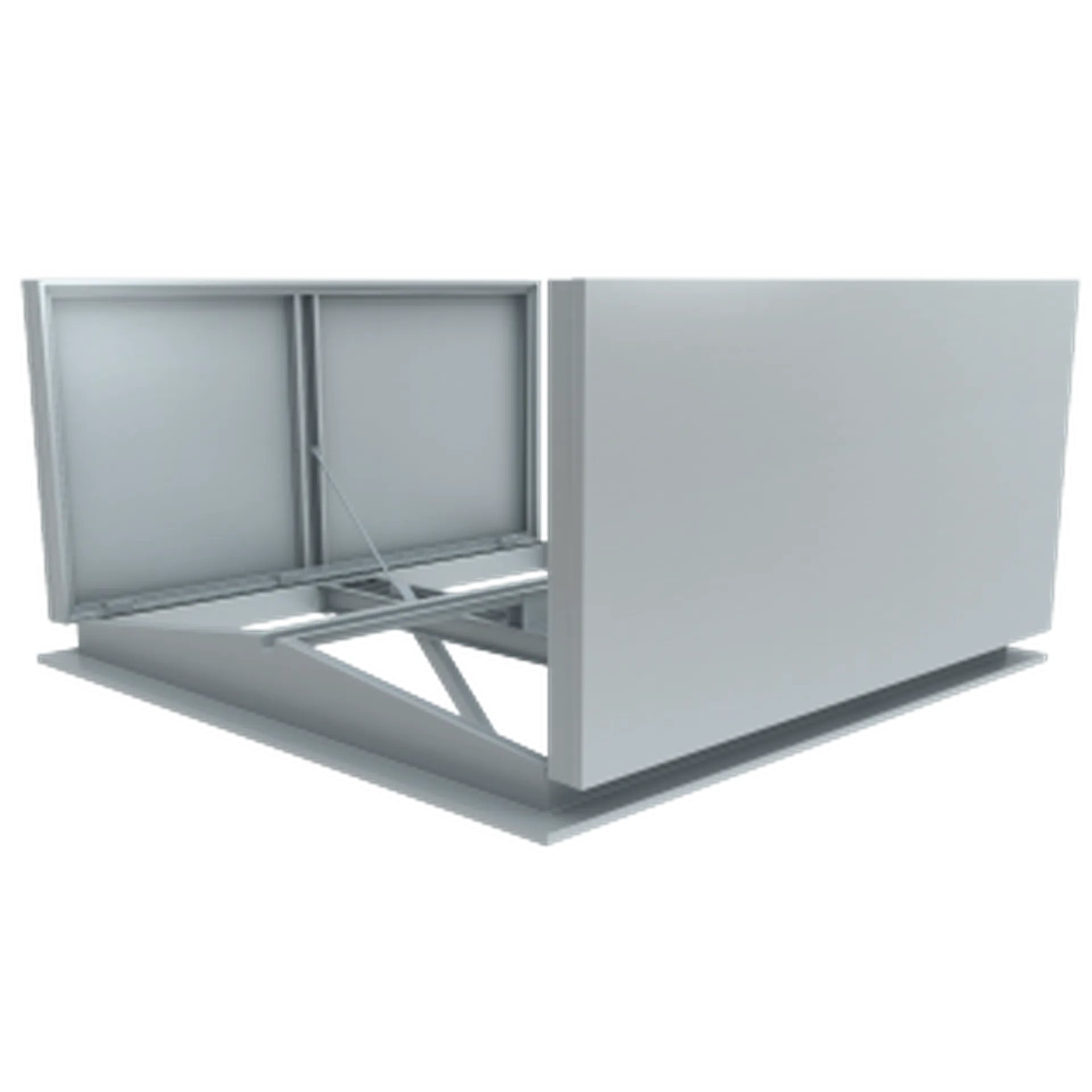

- Available in insulated and uninsulated aluminium configurations

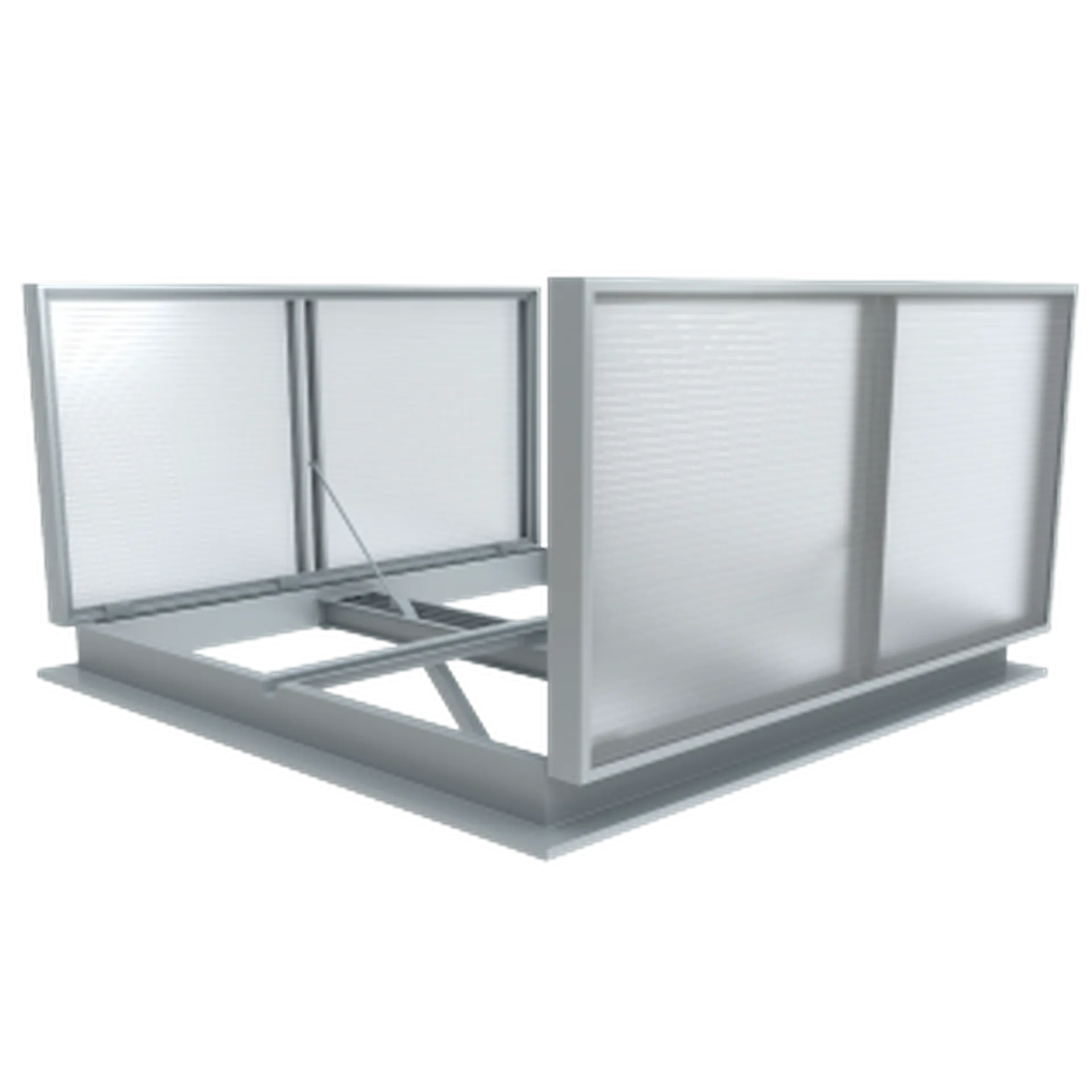

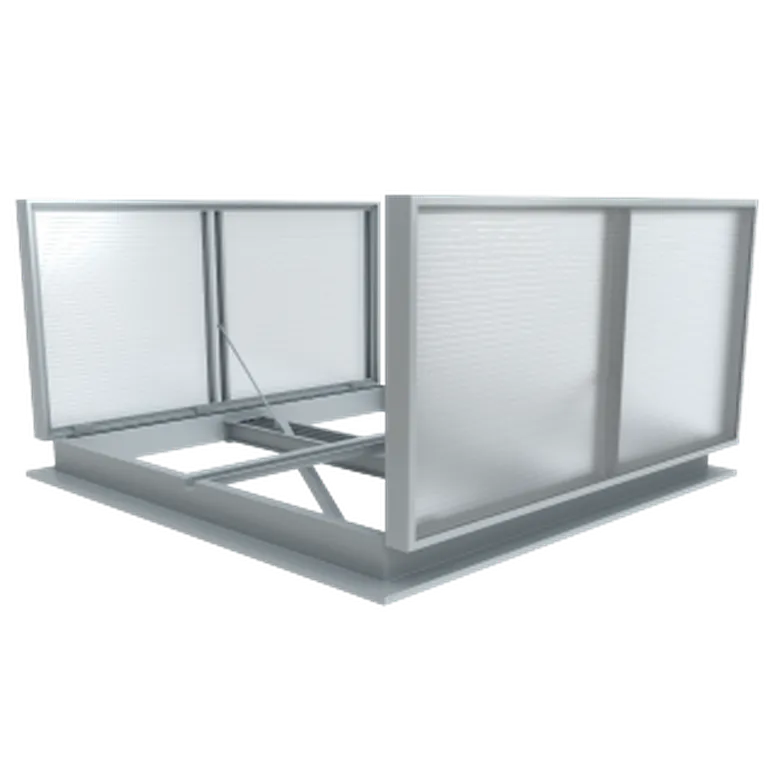

- Available with transparent polycarbonate infill for daylight entry

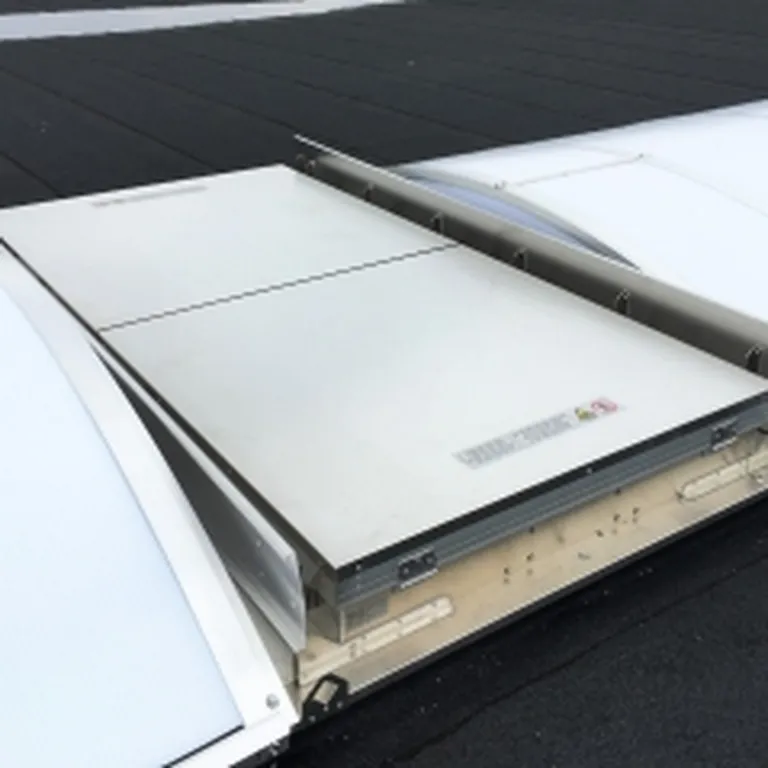

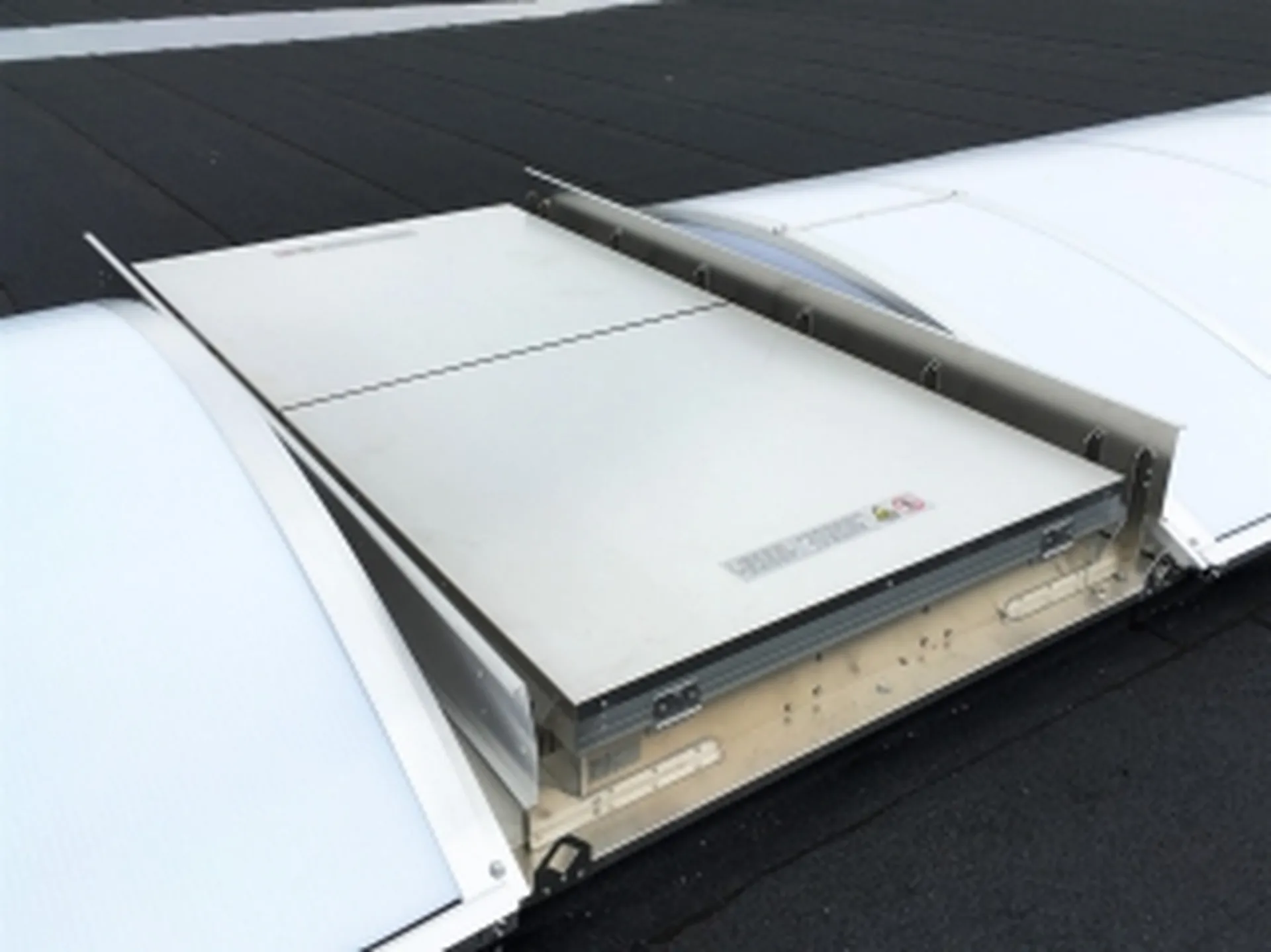

- Designed for flat roof applications and available in bespoke dimensions
- Fall-through safety tested to SB1200 when correctly specified
- Optional bird screens, insect screens and fall-through protection mesh available
Contact us
For more information on how we can help you with your project, get in touch with us
Technical Information
Dimensions
Fumetica is available in a wide range of standard sizes, with intermediate dimensions available on request. Its large opening sizes make it ideal for applications requiring high smoke extraction capacity.
- Width: 1000 mm to 2500 mm
- Length: 1000 mm to 3000 mm
- Geometric surface area: 1.0 m² to 7.5 m²
Intermediate dimensions available on request
Materials & Finishes
Fumetica is manufactured from seawater and corrosion-resistant aluminium and stainless-steel components to ensure long-term durability in industrial environments.
- Base and flanges: EN AW 5754 (AlMg3) aluminium
- Stainless steel hinges
- PE tape sealing system to prevent freezing and improve airtightness
- Aluminium, insulated aluminium or polycarbonate flap options
- Available in mill finish, anodised finish or powder-coated RAL colour
Controls
Fumetica can be configured for both day-to-day and smoke ventilation using pneumatic or electric actuation systems.
Natural Ventilation
- P2 double-acting pneumatic operation
- Electric motor operation
Smoke Ventilation
- P2B double-acting pneumatic operation with fire function
- PB-FS pneumatic fail-safe operation
- M24V electric motor operation
Thermal Performance (U-Value)
Fumetica is available in insulated and uninsulated configurations, with system U-values ranging from 1.4 W/m²K to 5.6 W/m²K depending on the selected variant, dimensions and infill type.
Certifications & Test Results
CE marked and certified in accordance with EN 12101-2
EN 12101-2 Classification:
- Wind Load: WL 1500
- Snow Load: Up to SL 800
- Temperature Class: T(00) / T(-15)
- Reliability Class: Re 300
- Heat Resistance: B300
- Air Permeability: EN 12207 Class 2
- Watertightness:EN 12208 Class 9A
- Resistance to Variable Wind Loads: EN 12210 Class C1
- Fall-through Safety: SB1200 certified when correctly specified
