EuraMultifunctional louvred ventilator for ventilation and smoke control
)
)
)
)
)
)
Product Information

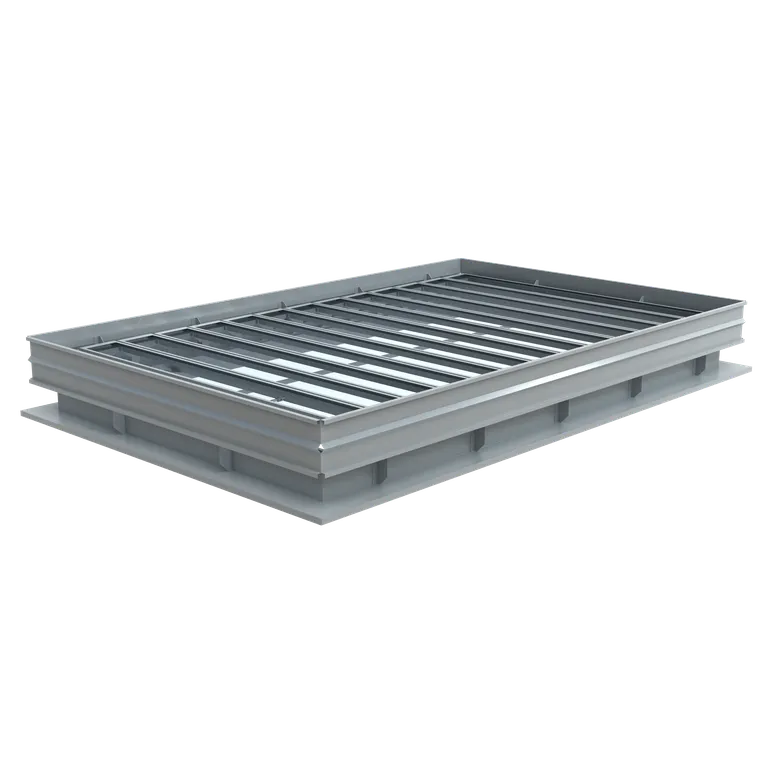

Eura is a multifunctional natural louvred ventilator that combines everyday ventilation, smoke exhaust and daylight provision in a single solution. Suitable for both roof and façade applications, it is available in a wide variety of sizes, louvre types and control options to suit commercial, industrial and public buildings. EN 12101-2 certified for smoke and heat exhaust ventilation, Eura delivers reliable performance, flexibility and long-term durability across a broad range of applications.
Product Highlights
- EN 12101-2 certified smoke and heat exhaust ventilator (SHEV)

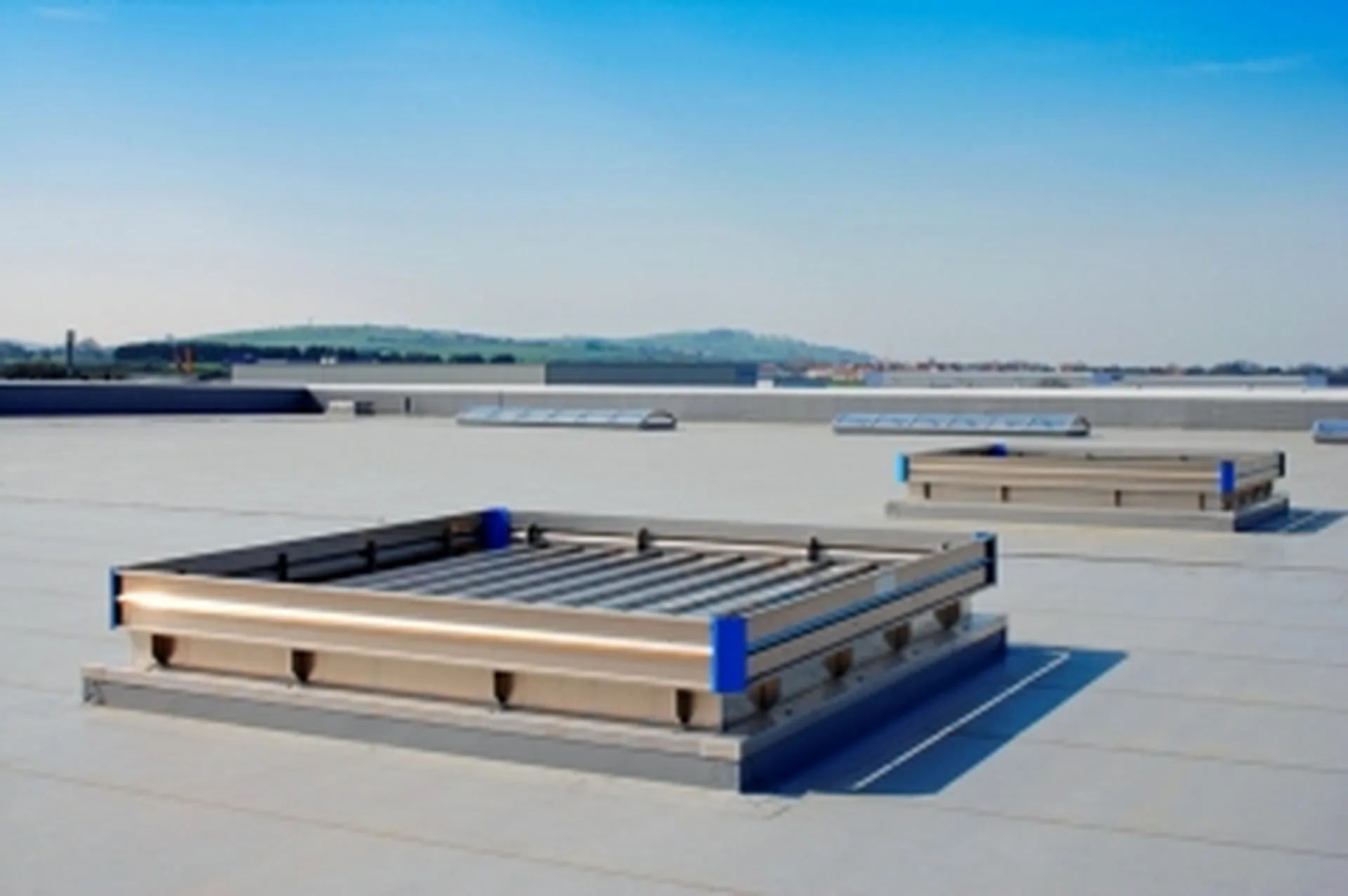

- Suitable for both roof and façade applications
- Provides natural day-to-day ventilation and emergency smoke exhaust
- Available in a wide range of sizes, louvre types and control options

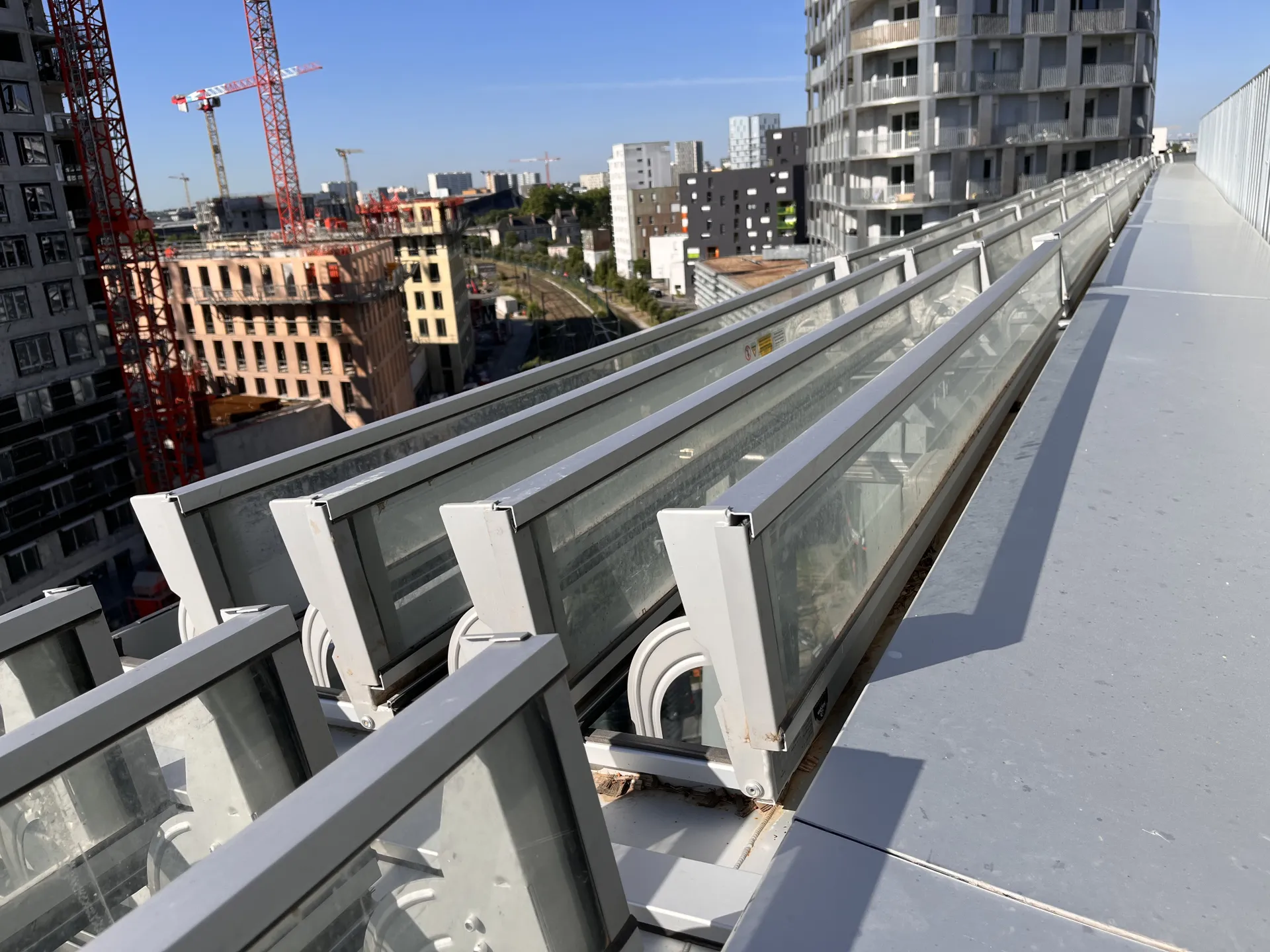

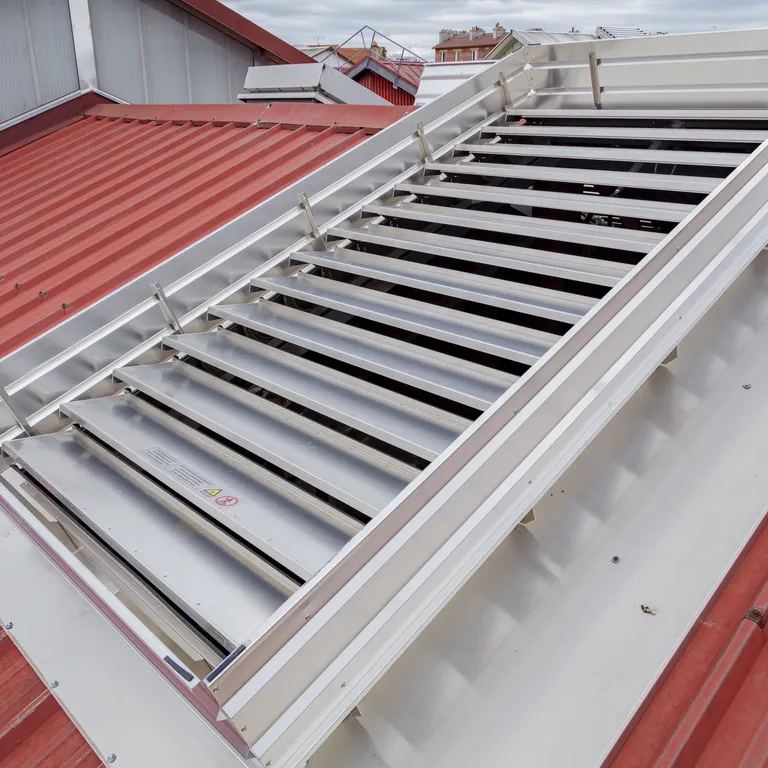

- Optional aluminium, polycarbonate and glass louvres
- Available with insulated base options to enhance thermal performance

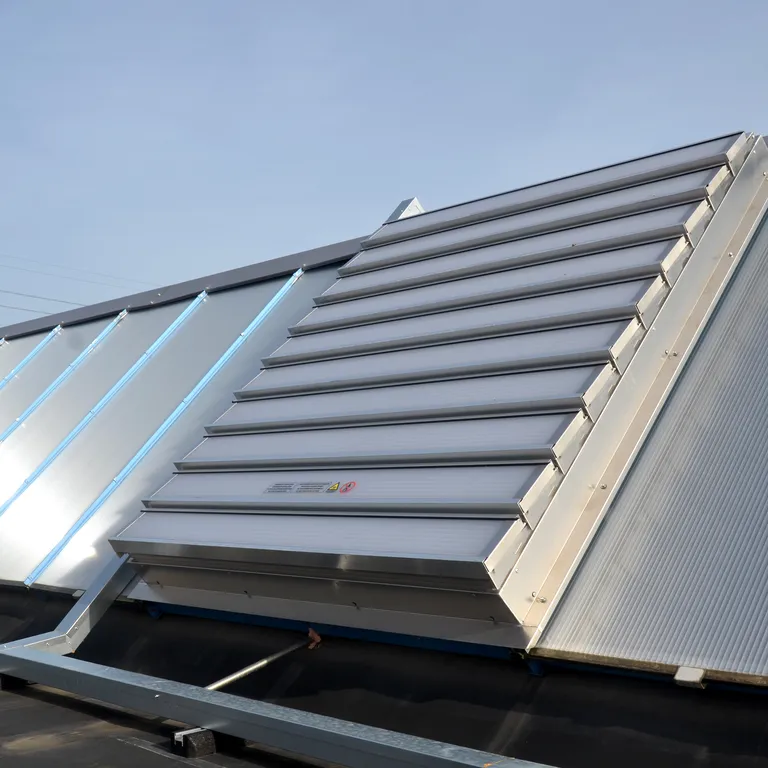

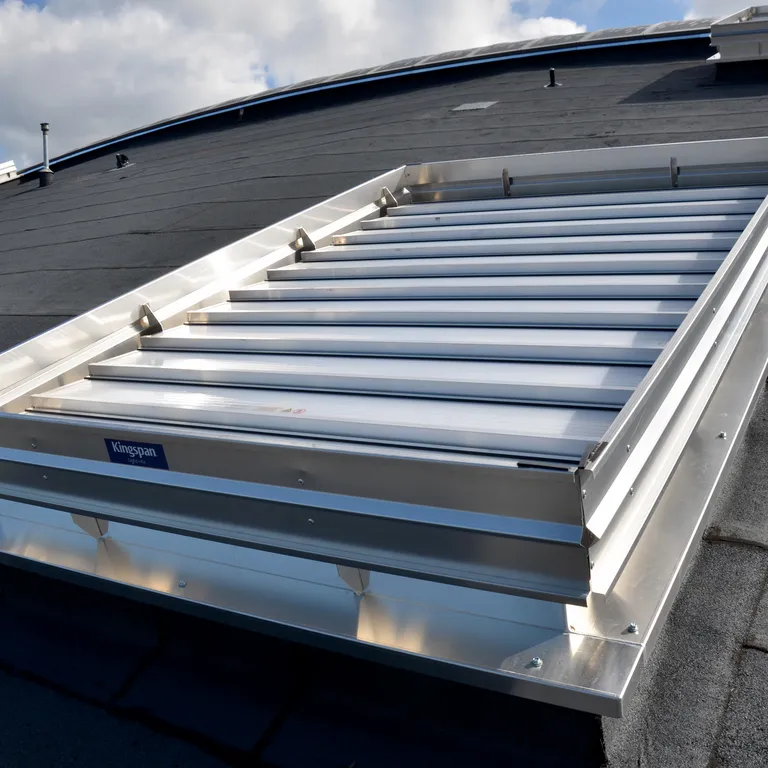

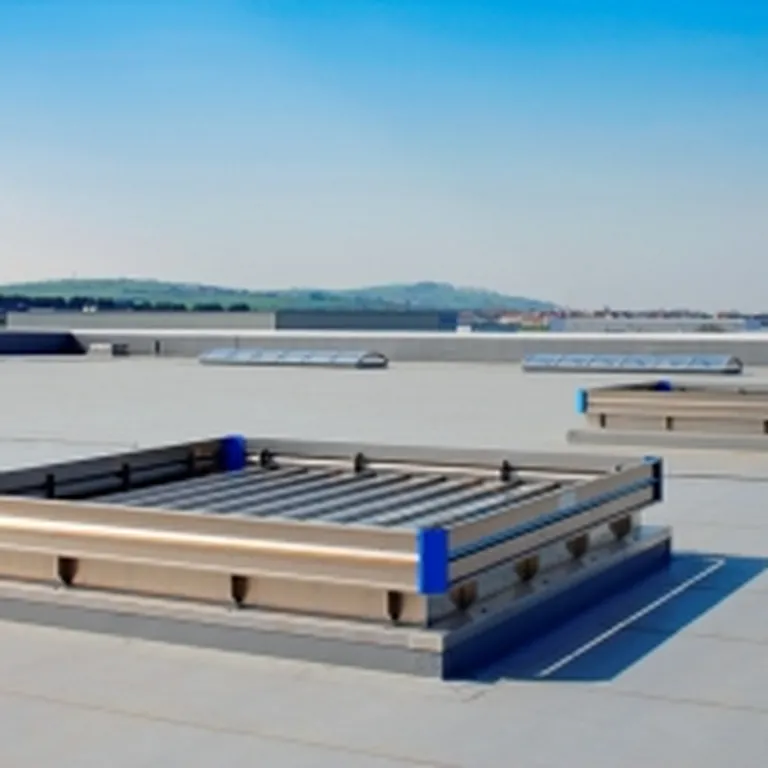

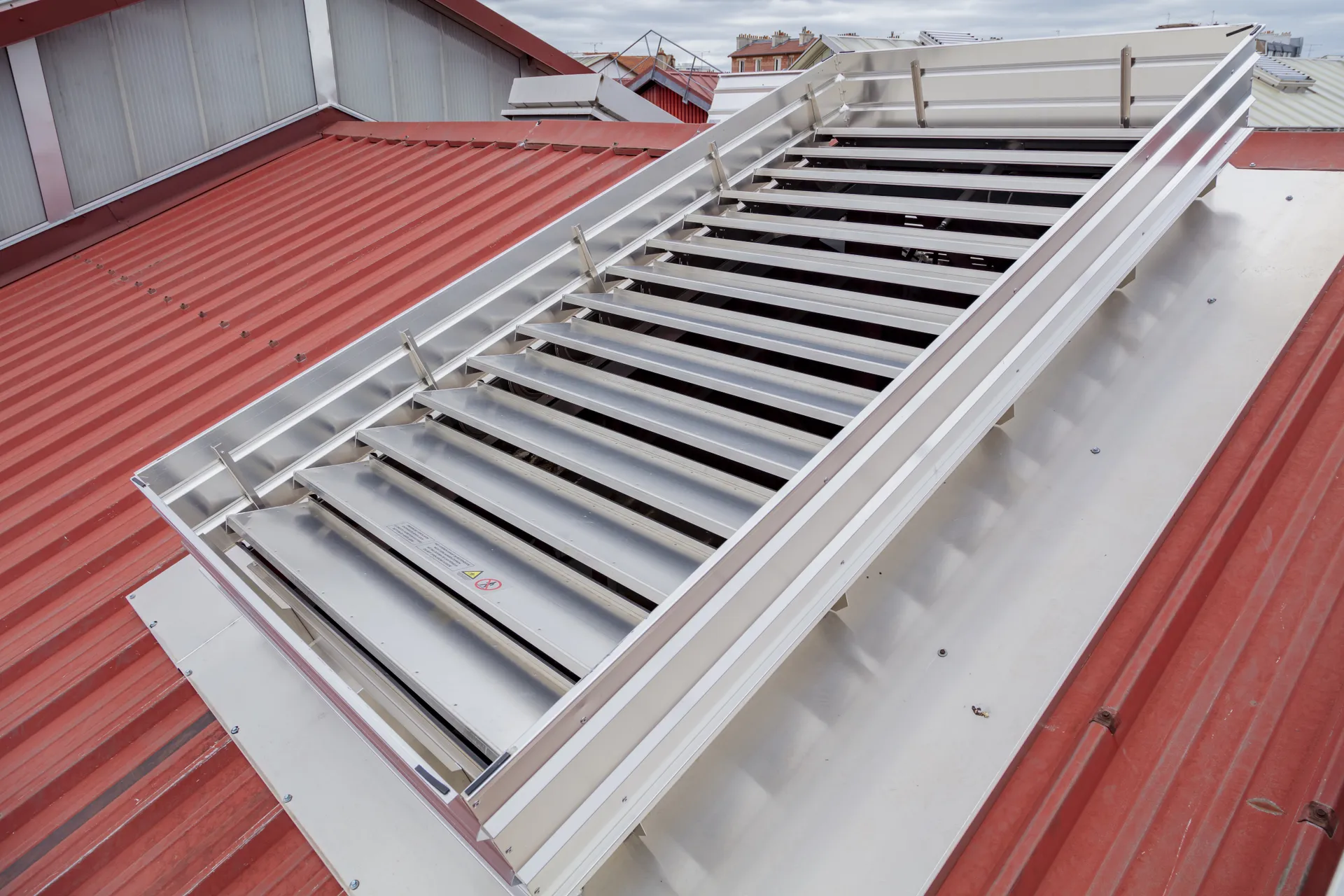

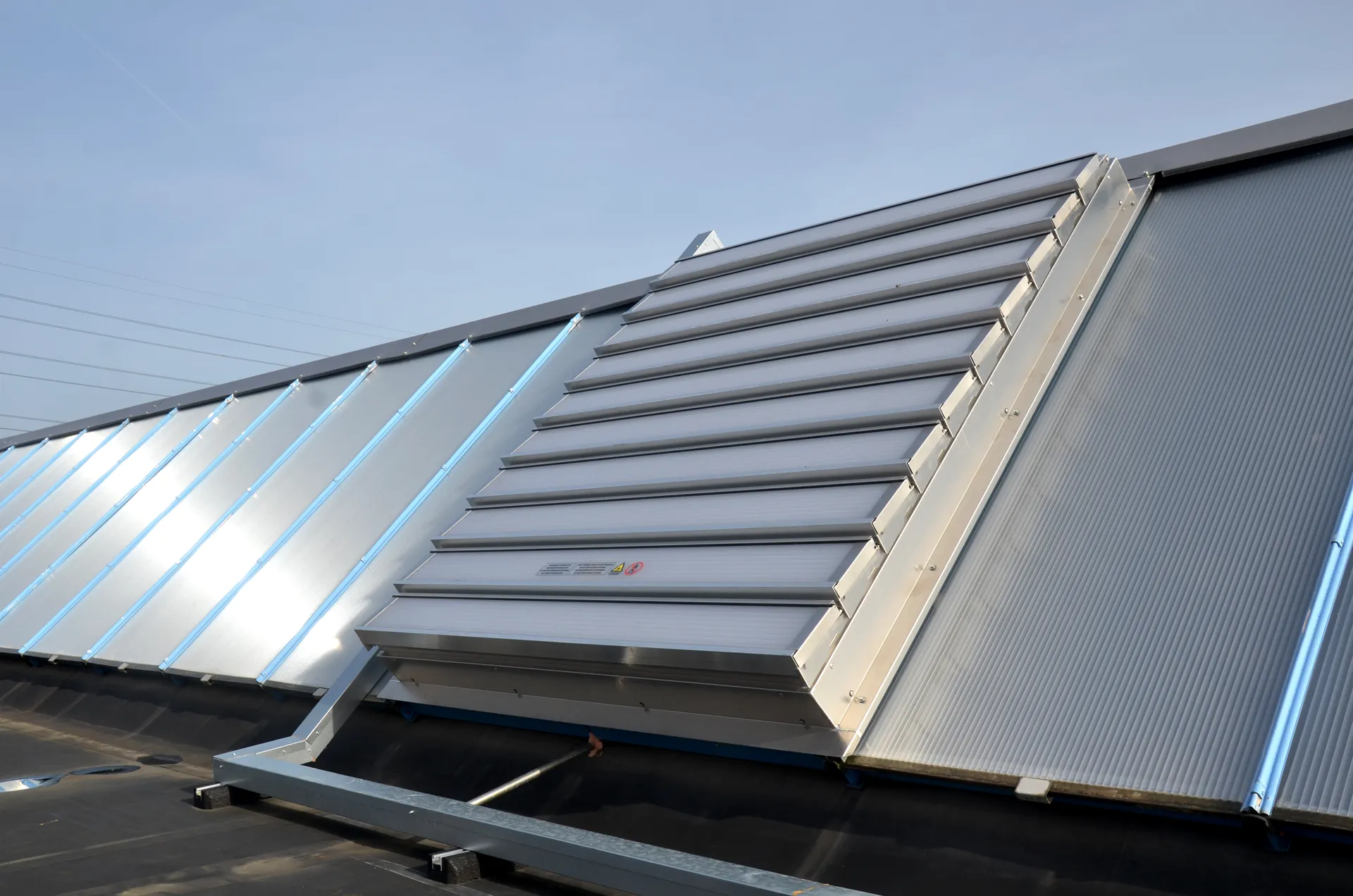

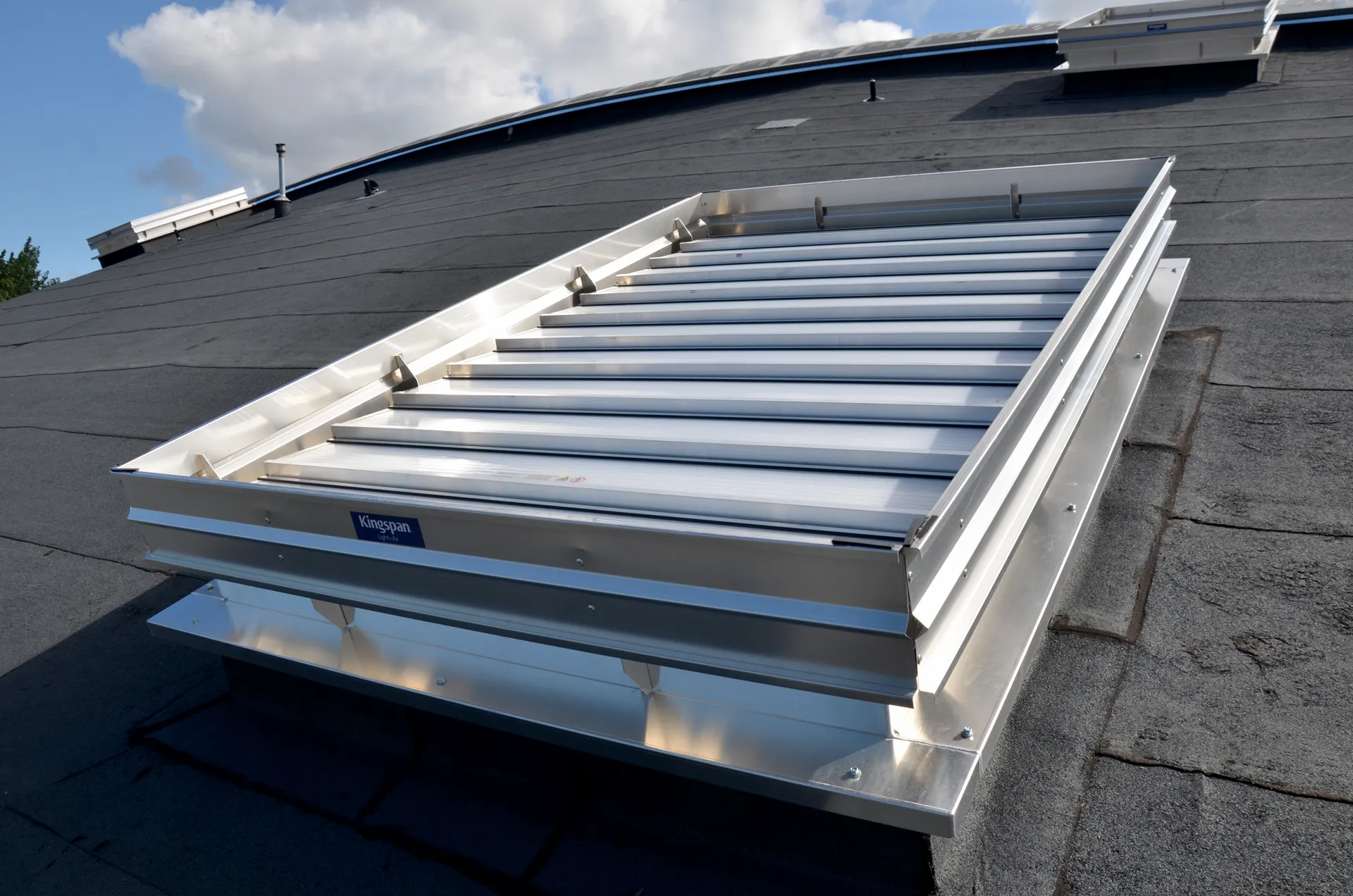

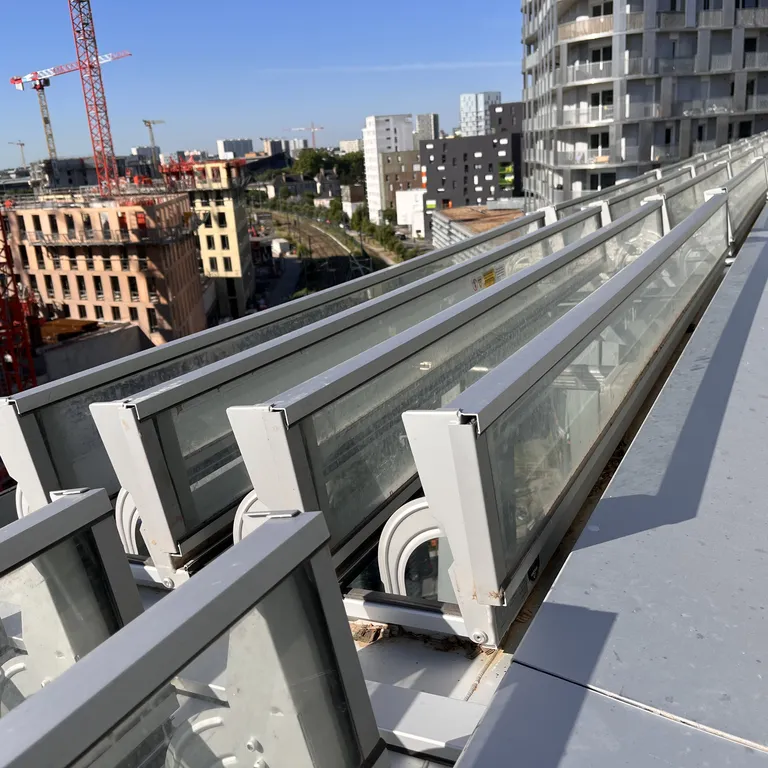

- Can be installed from horizontal roof applications through to vertical façade installations
Contact us
For more information on how we can help you with your project, get in touch with us
Technical Information
Dimensions
The Eura is available in a wide variety of sizes with standard widths ranging from 300mm to 2440mm, and lengths (dependent on total number of louvres) ranging from 720mm to 3840mm. Please contact our technical team for more information
Base Options

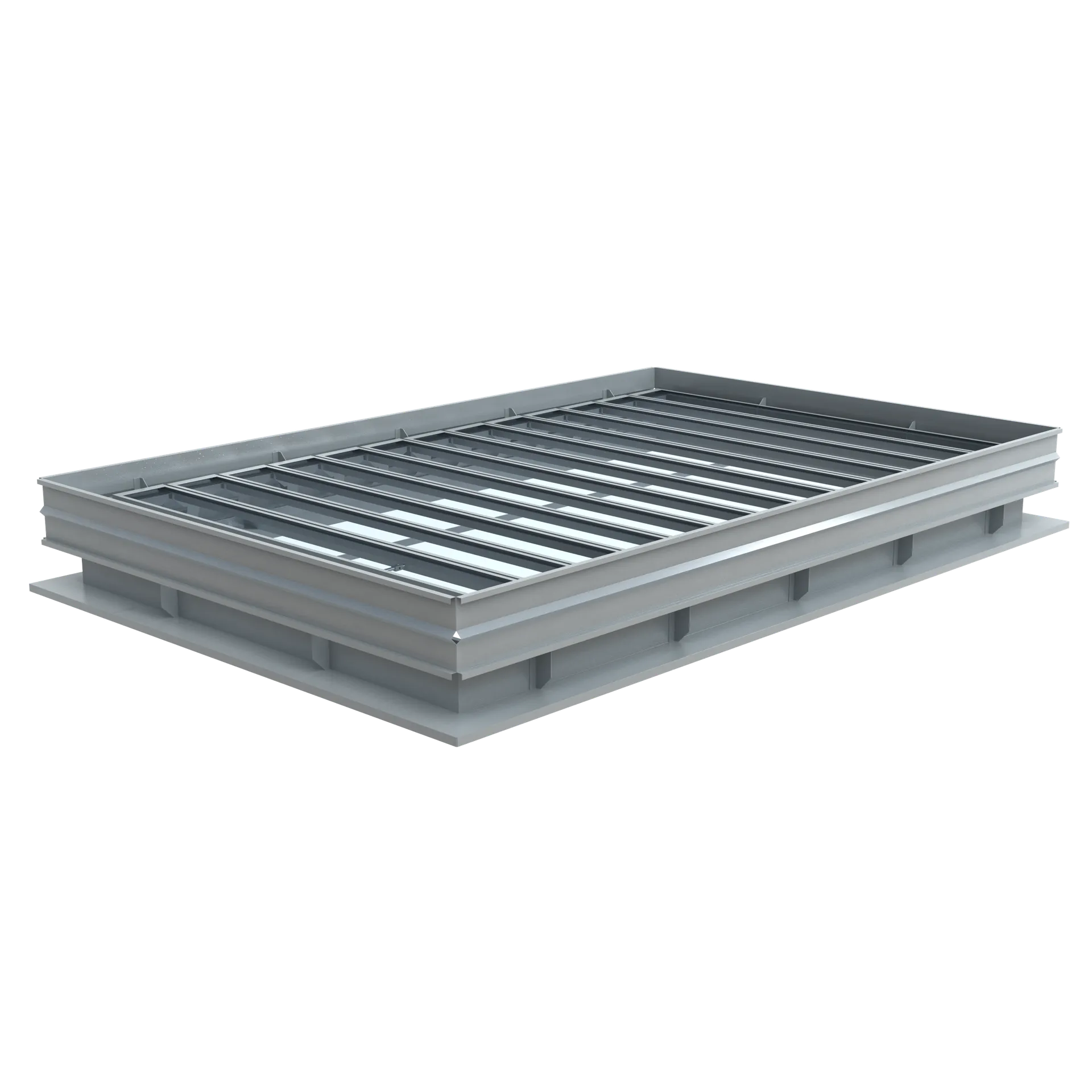

The Eura is available with a range of base types including single skin and insulated base types with a variety of flange types to ensure a smooth integration with the roof and/or façade.
Thermal Performance (U-Value)
Please contact our sales team for project-specific U-value calculations. Thermal performance will vary depending on the ventilator dimensions, louvre type and selected base configuration.
Certifications & Test Results
- CE marked and certified in accordance with EN 12101-2
EN 12101-2 Classification:
- Wind Load: WL 1500
- Snow Load: Up to SL 3000
- Temperature Class: T(00) / T(-15)
- Reliability Class: Re 300 – Re 1000
- Heat Resistance: B300
- Approved in accordance with French Standards NF S 61937-1, NF S 61937-7 and NF S 61937-8
