Firelight Duo
)
)
)
)
Product Information

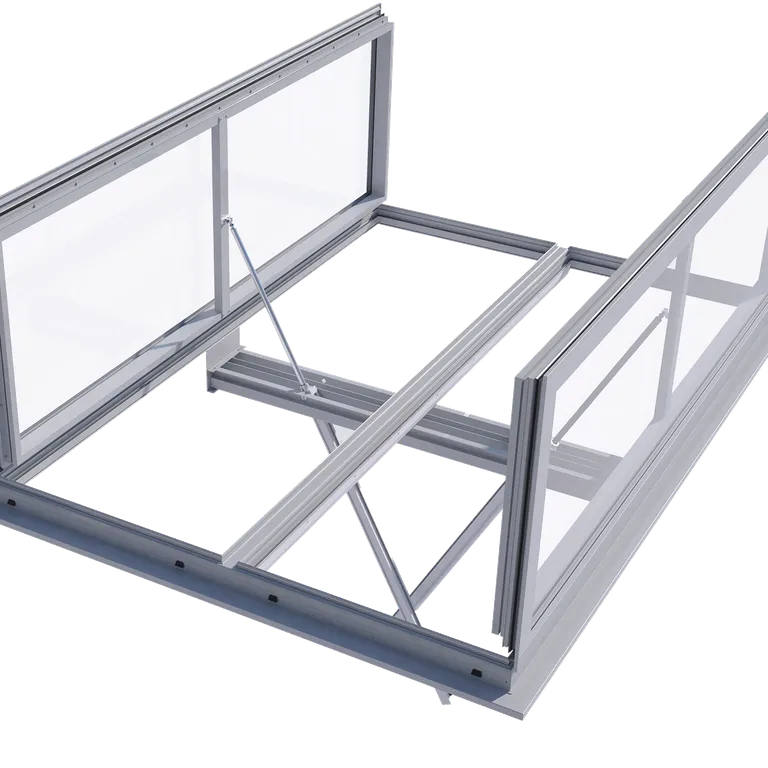

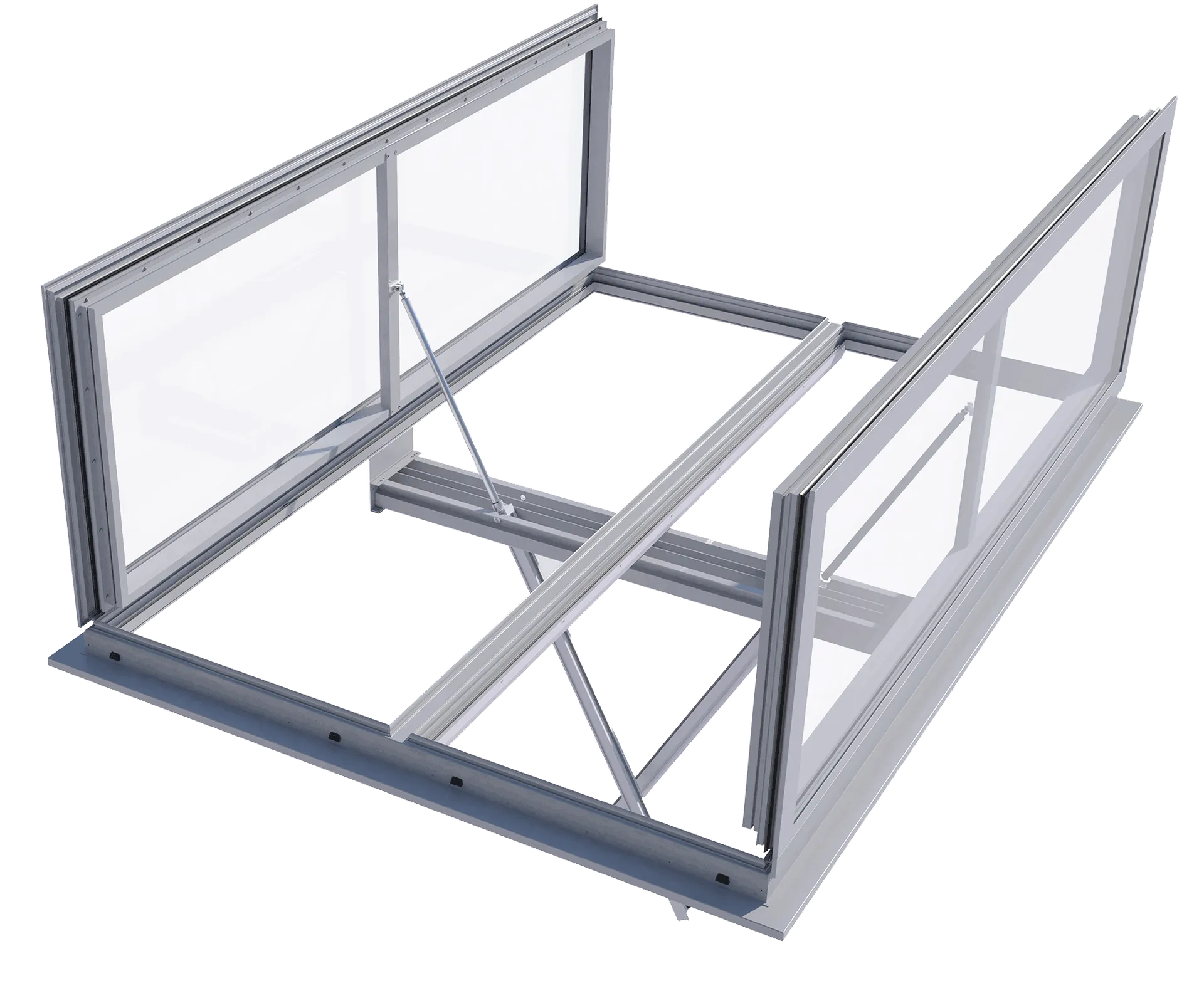

The Firelight Duo is a dual-purpose natural ventilator providing both smoke control and day-to-day ventilation, while letting in natural light. Tested to EN 12101-2, it combines fully thermally broken construction with excellent acoustic insulation (up to 49 dB), high weather resistance (Class A9), and superior air tightness (Class 4). Available in sizes up to 2500 × 3000 mm with glass, polycarbonate, or aluminium infills, it offers flexible control options and a discreet low-profile design.
Contact us
For more information on how we can help you with your project, get in touch with us
Technical Information
Dimensions
- Unit width: from 1000 mm to 2500 mm (in mm increments)
- Unit length: from 1000 mm to 3000 mm (in mm increments)
Panel options
- Polycarbonate: Transparent or opaque polycarbonate, 16mm or 25mm thick, or up to 50mm available on request
- Glass: As standard double 32 mm thick insulating glass or customized insulating glass up to 50 mm thick. Triple insulating glass can be used without any problems.
- Aluminium insulated panels: Outer skin 2 mm thick aluminium, polyurethane infill panel with a density of 30 kg/m³, thermal conductivity 0.030W/(mK), inner skin 2 mm thick aluminium. As standard 25 mm thick, available with other panel types available on request.
Thermal Performance (U-Value)
The Firelight Duo can achieve a U-Value of up to 1.01 W/m2 K depending on the variant selected. Please contact our technical team.
Controls
The Firelight Duo can be opened and closed either by double-acting pneumatic cylinders that lock in their ends positions, or by 24 V DC or 230 V AC electric actuators. A 230 V AC electric actuator offers the advantage over a 24 V DC electric actuator of a faster opening speed, as well as noticeably reduced wiring costs.
Certifications & Test Results
Tested and is certified to EN 12101-2
EN 12101-2 Classification
- RE 1000 – Reliability classification for dual-purpose ventilators (smoke ventilation and daily ventilation)
- B300 – Heat resistance classification
- T(-15) – Suitable for operation at temperatures down to -15°C
- CE marked in accordance with EN 12101-2
- EN 12207 – Air permeability: Class 4
- EN 12208 – Resistance to weather: Class A9
- EN 12211 – Wind loads: Class C5
Acoustics
Up to 49 dB
