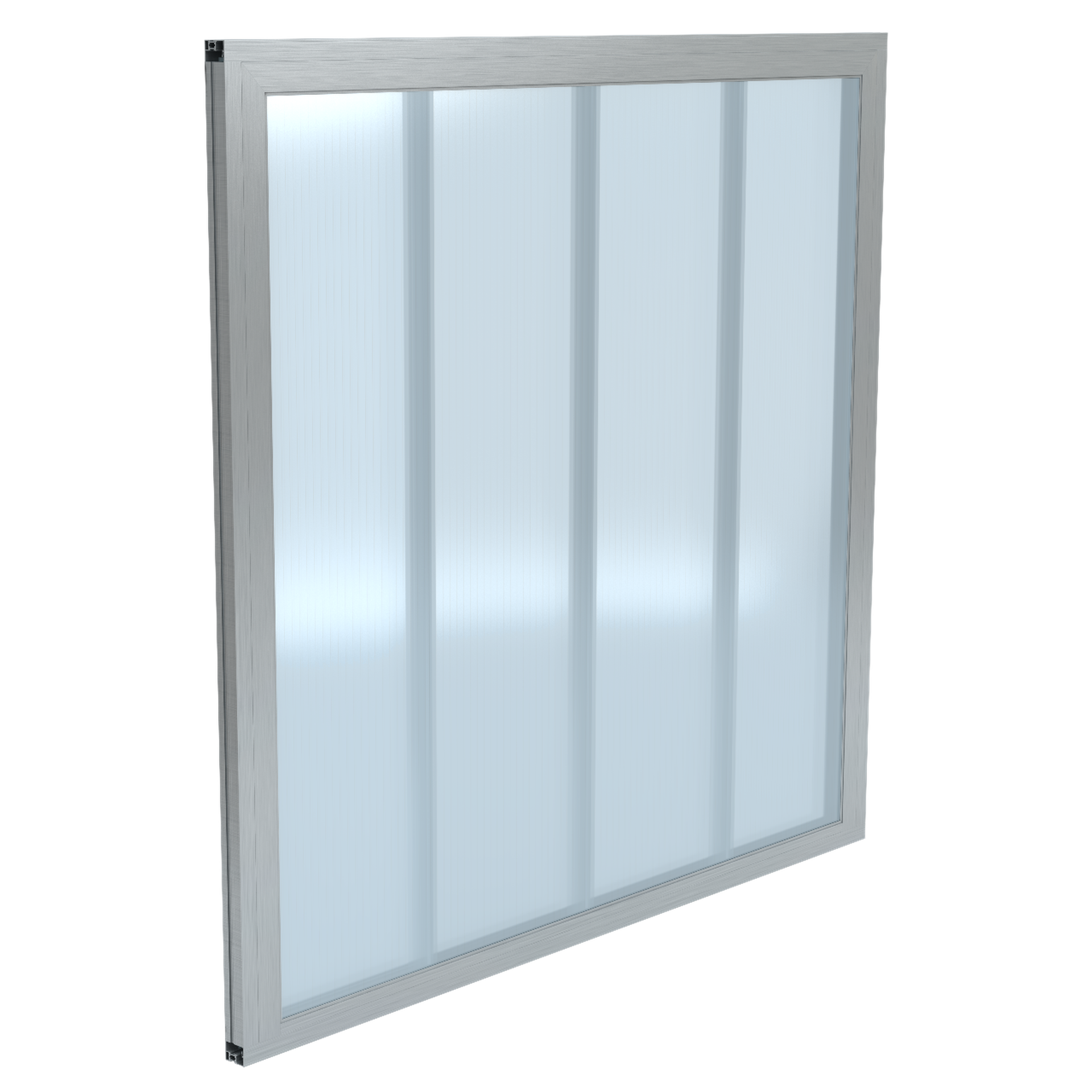

Day-Lite Klickincorporating Akyver(R) Polycarbonate panel
Product Information
Day-Lite Klick is a stylish wall light system designed to be easy to install. Its innovative ‘clicked’ jointing detail allows the panels to be installed either as a full height system or integrated with other building materials as part of an overall façade solution. With an array of colours to choose from, including those that block infrared (IR) rays, it is a flexible option for a wide range of building applications.
Product Highlights
- Quick installation with innovative click joints
- Up to 60% light transmission (when new)
- U-Value of 0.98 W/m2k
- Available with panel lengths up to 12 m as standard (longer lengths available on request)
- Solar Heat Gain Coefficient: As low as 0.40
- Available in an selection of colour options
Technical Information
Dimensions
The Day-Lite Klick Panel is 500mm wide and available in standard panel lengths of up to 12m
Light Transmittance
| Standard Colours | Opal | Clear |
| Visible Light Transmittance (VLT) | 49% | 60% |
Solar Heat Gain Coefficient (g Value)
| Standard Colours | Opal | Clear |
| Solar Heat Gain Coefficient (g value) | 0.40 | 0.50 |
Acoustics
| Sound Reduction Index SRi (dB) | 21 dB |
Frequently Asked Questions
Are Day-Lite Klick wall panels available in different colours?
Yes, Day-Lite Klick panels are available in a range of colours which can have different impacts on the architectural effect, as well as rates of light transmission and solar heat gain.
How are Day-Lite Klick wall panels installed?

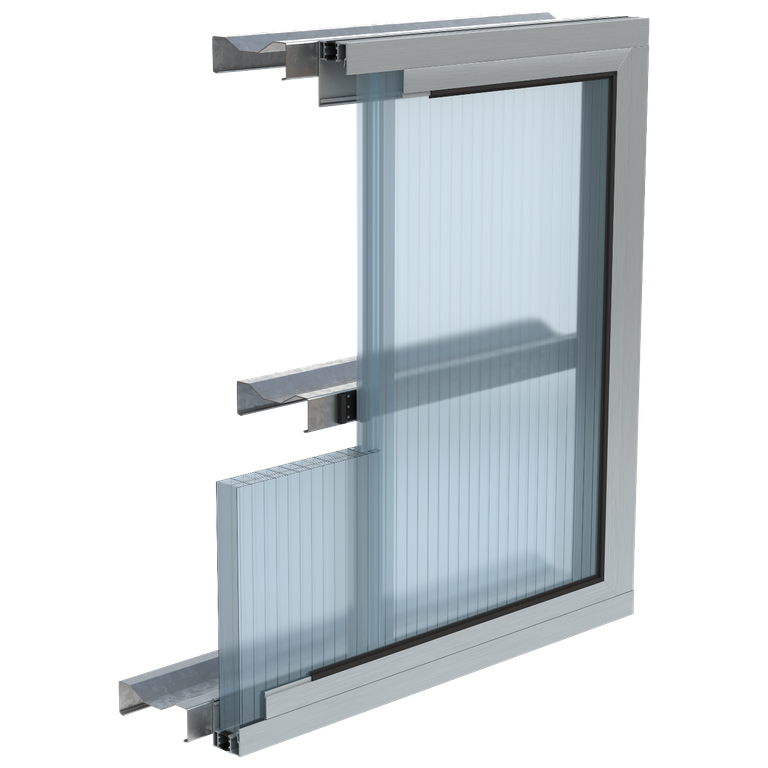

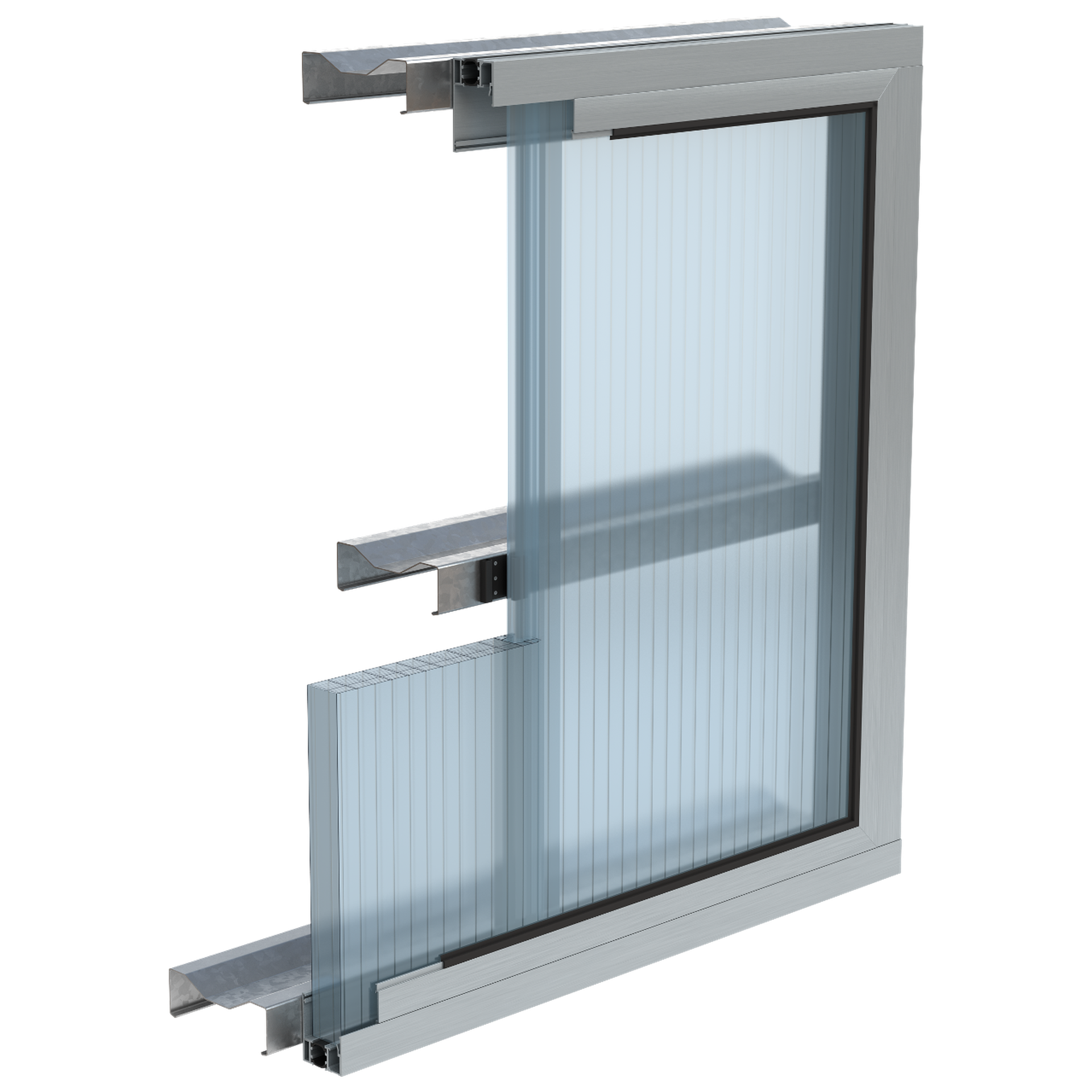

Day-Lite Klick panels can be either installed as part of the building envelope or used as a decorative facade over a backing wall construction. The panels are installed within a bespoke aluminium profile with a simple ‘clicked’ jointing detail, facilitating fast and efficient installation.
What facade materials are compatible with the Day-Lite Klick?
Because the Day-Lite Klick system is a standalone, framed system, it can be used with a range of building materials including Kingspan insulated panel systems, in addition to brickwork and render systems.
What fire rating do Day-Lite Klick wall panels achieve?
Per EN 13501, Klick’s glazing achieves a Bs1d0 result, implying limited combustibility or contribution to the spread of fire.
Do Day-Lite Klick panels provide any insulation?
Yes, Klick panels can achieve a U-Value of 0.98 W/m2K (40 mm panel) or 0.83 W/m2K (50 mm panel).
What lengths are Day-Lite Klick wall panels available in?
They are available in a range of lengths up to 12m, with longer lengths available on request.
