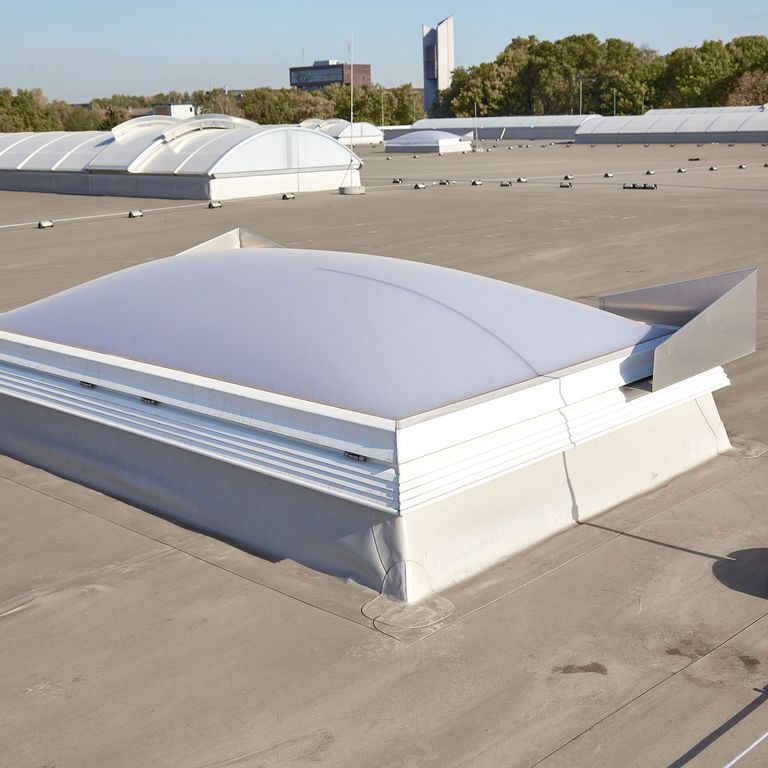

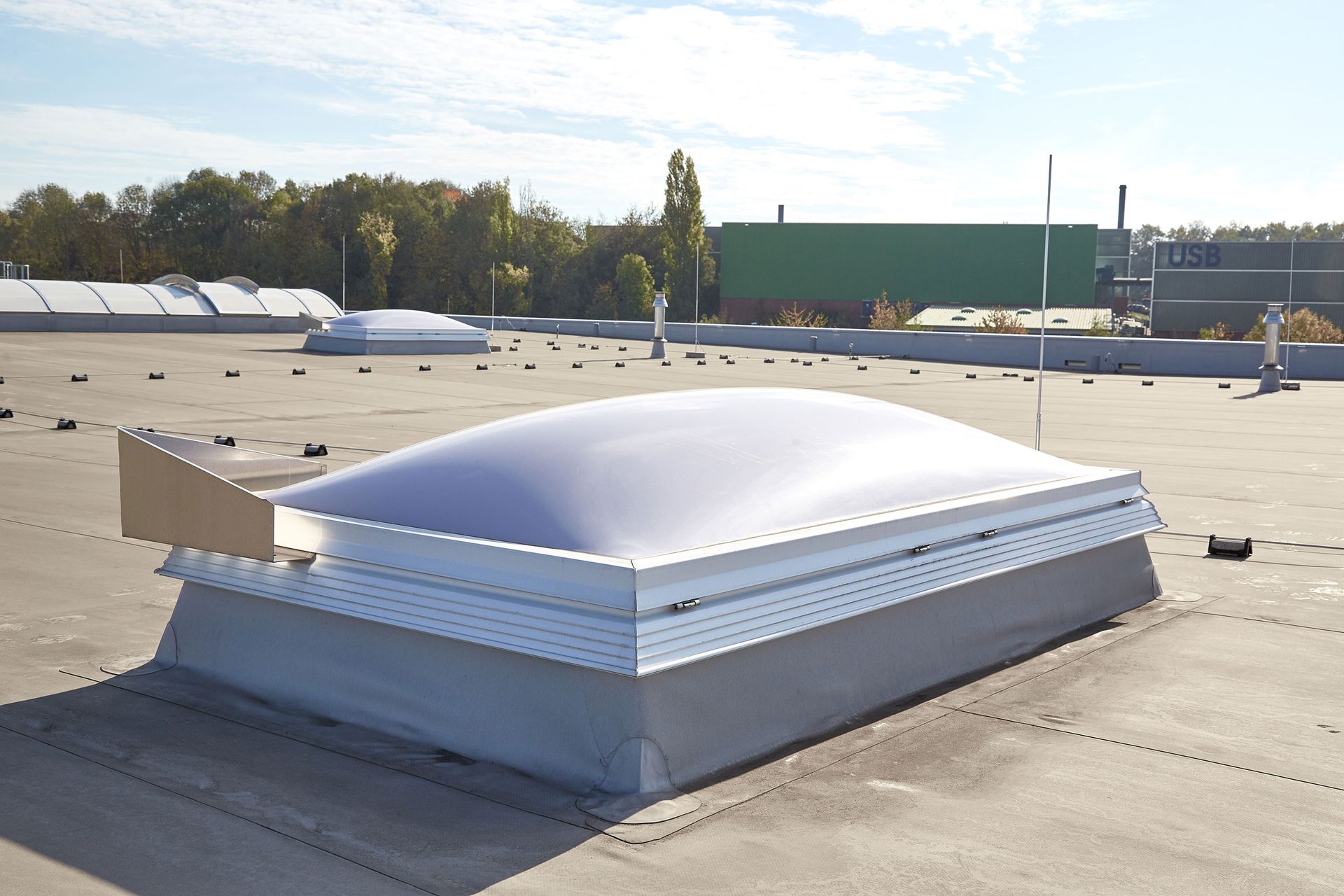

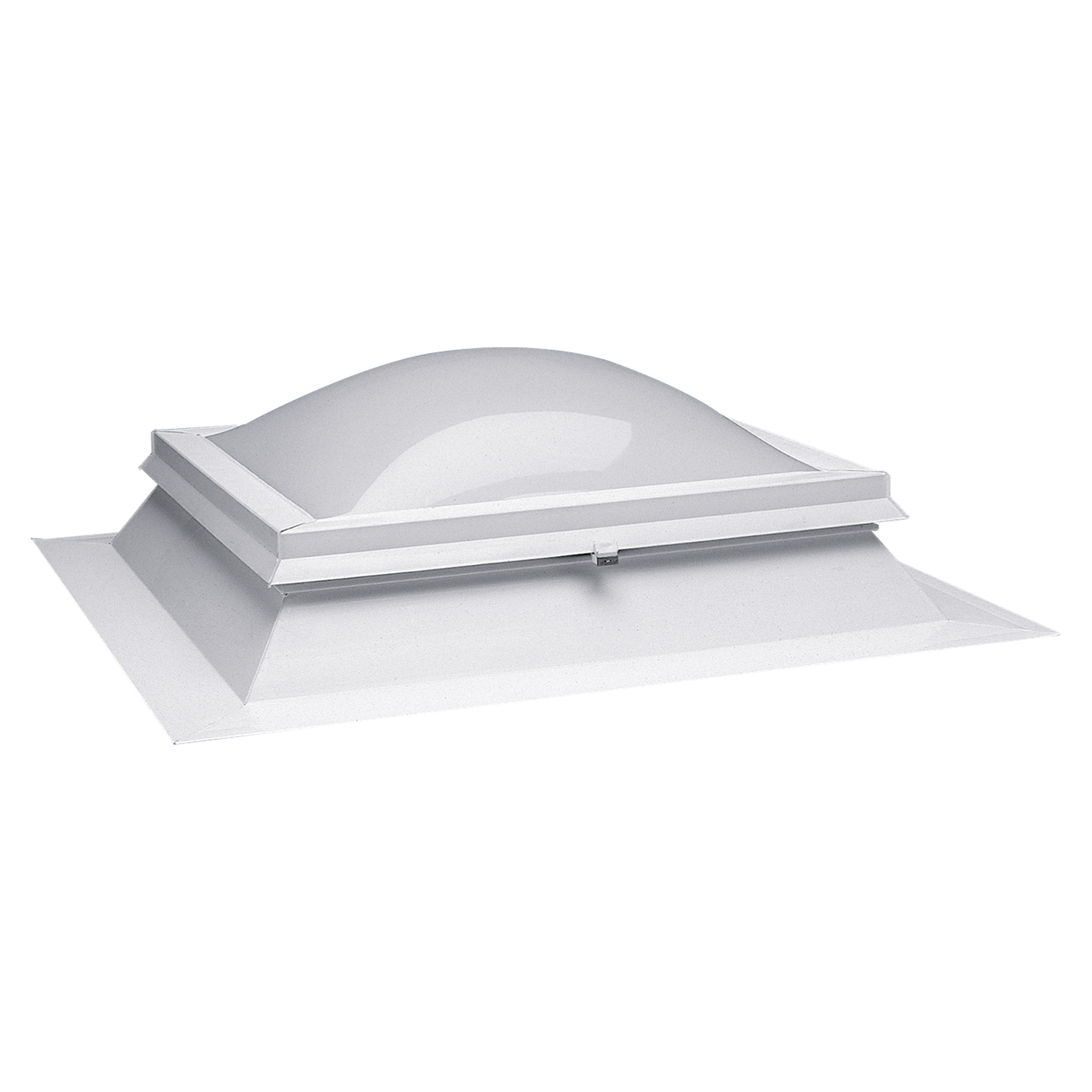

LK classic Skylight Dome
)
Product Information

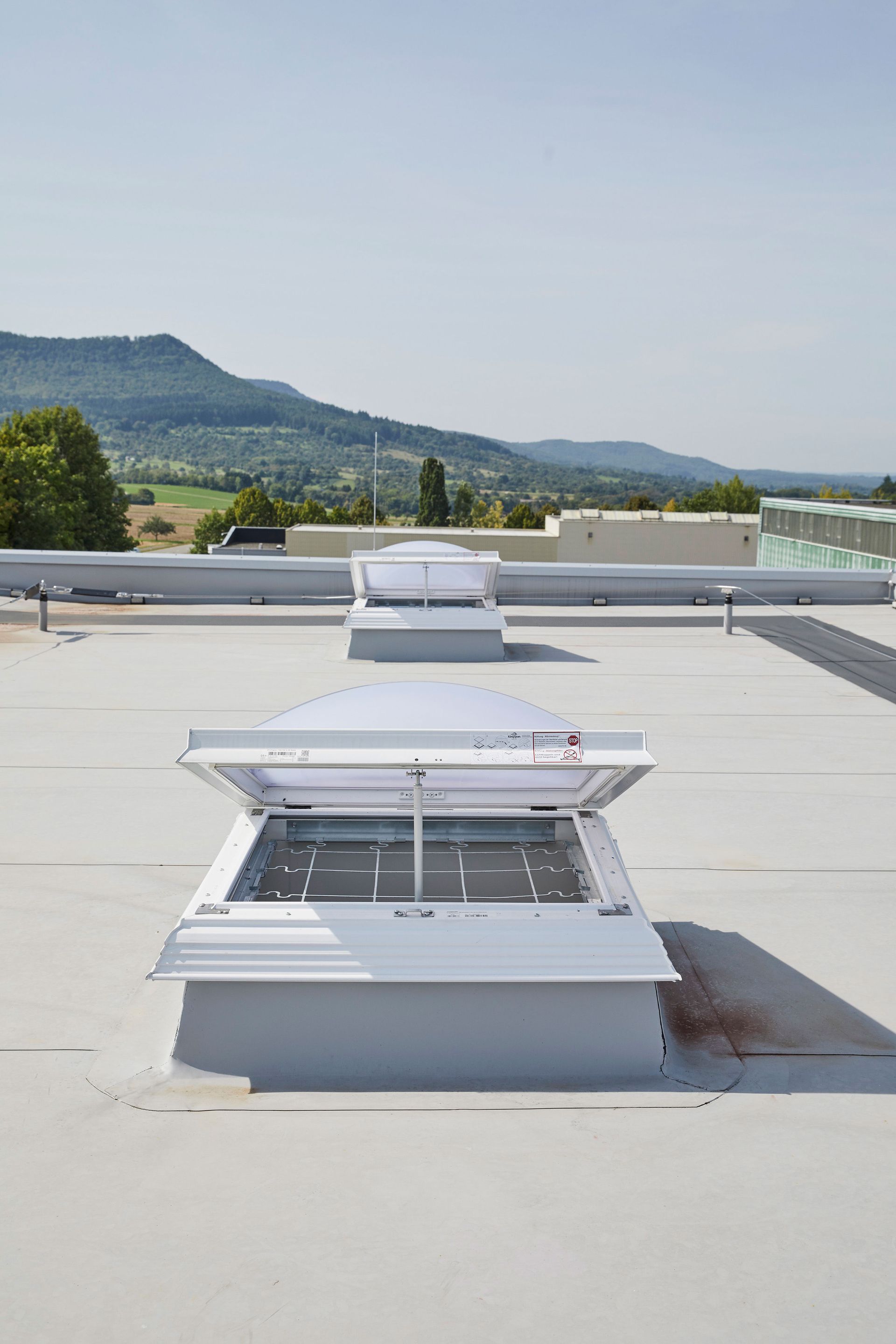

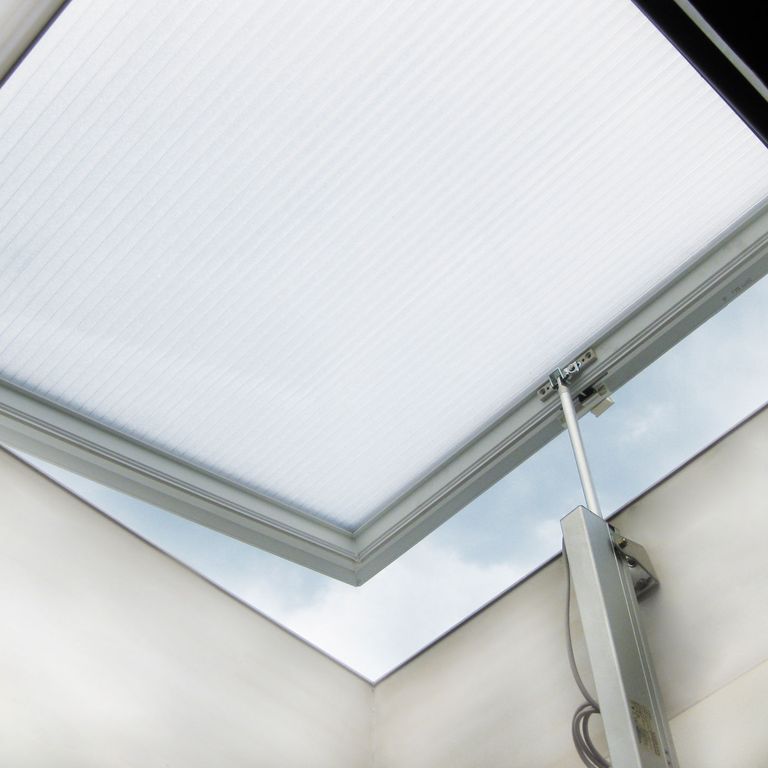

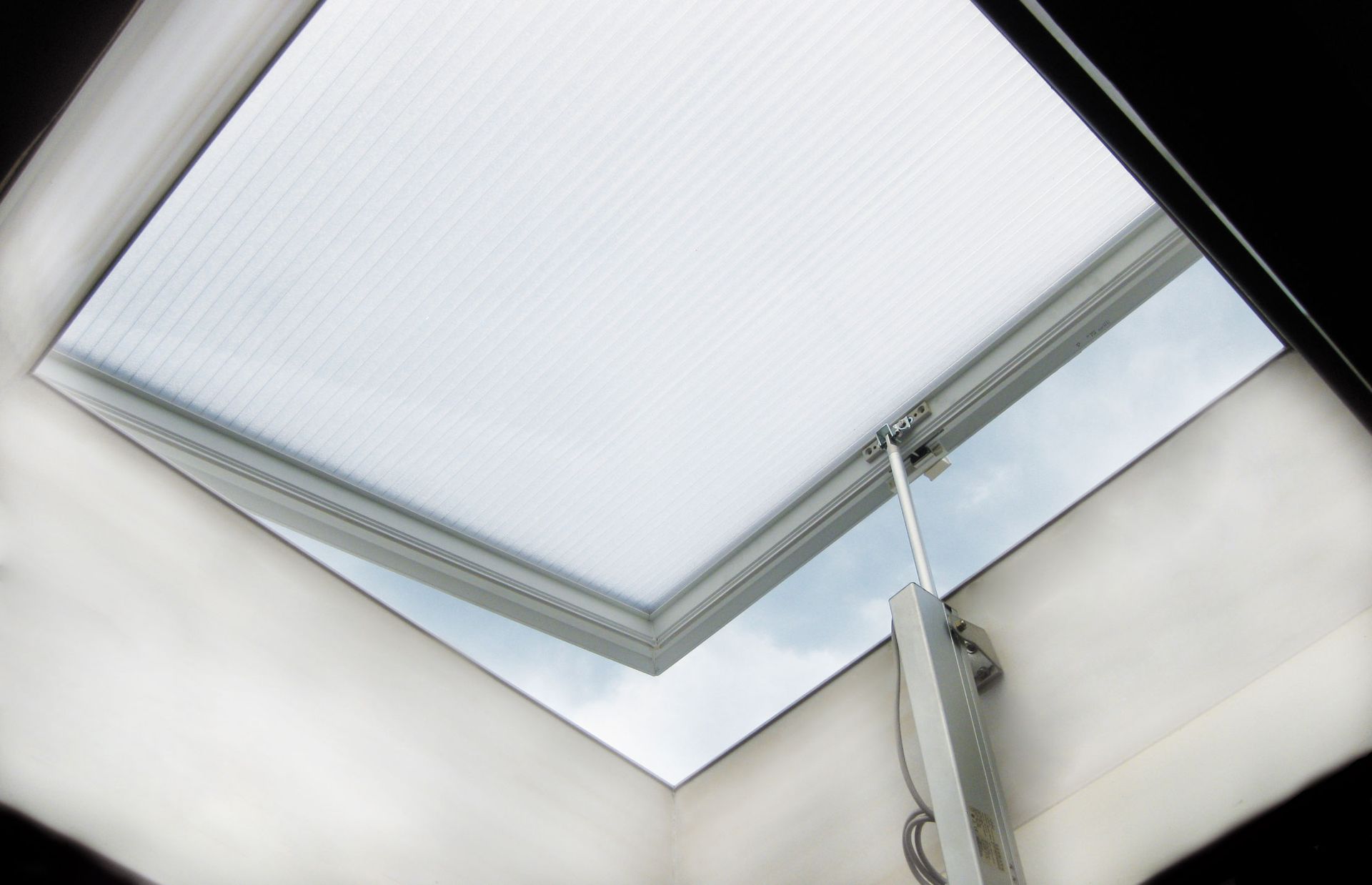

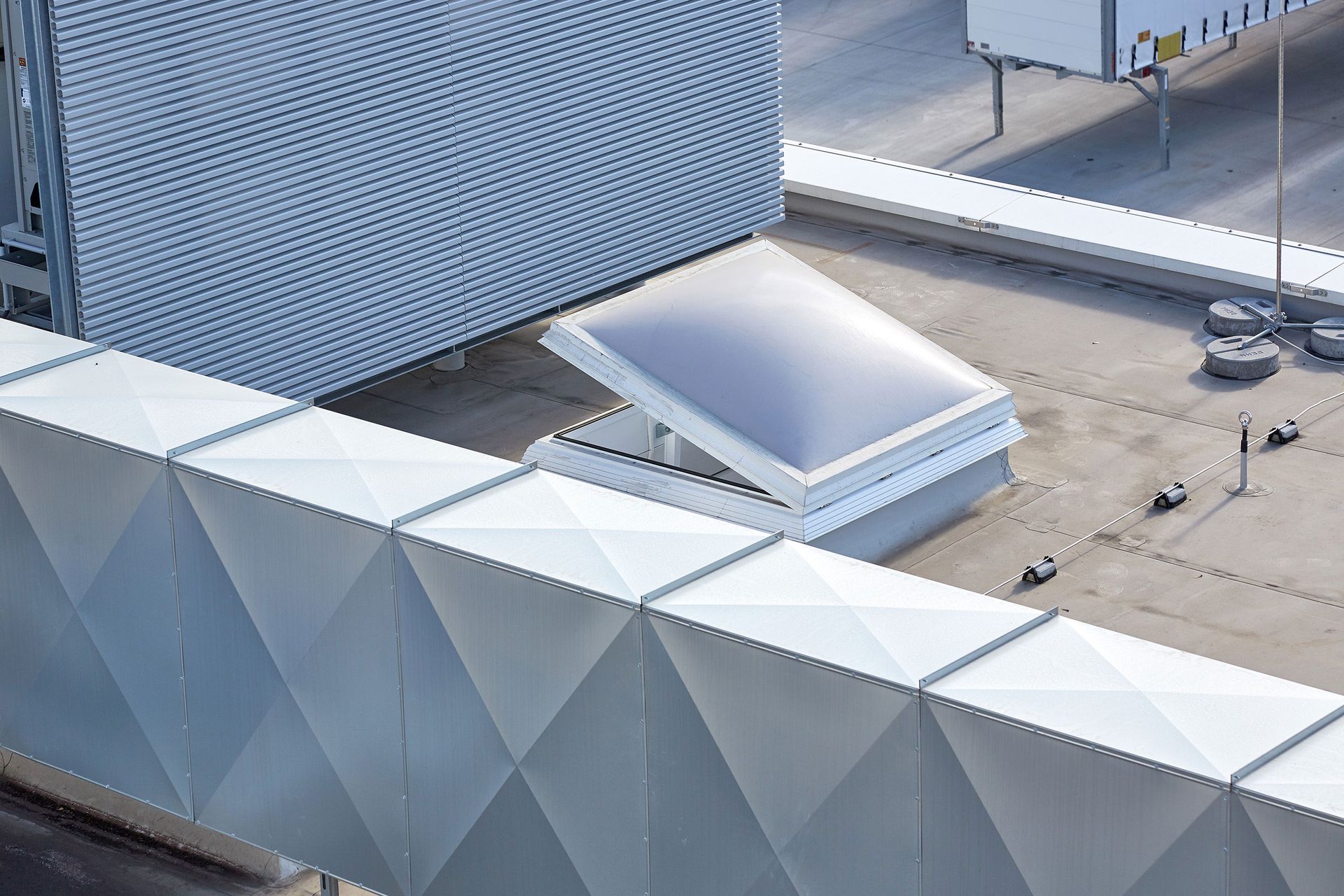

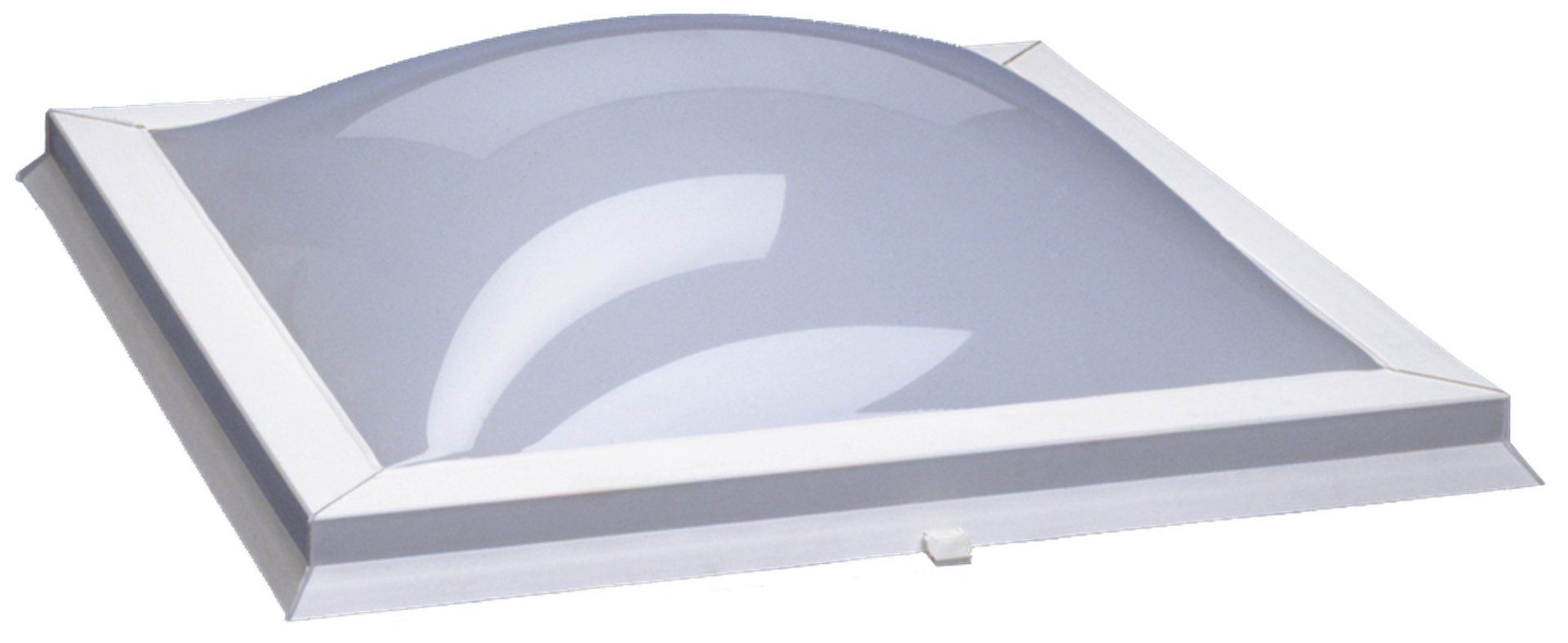

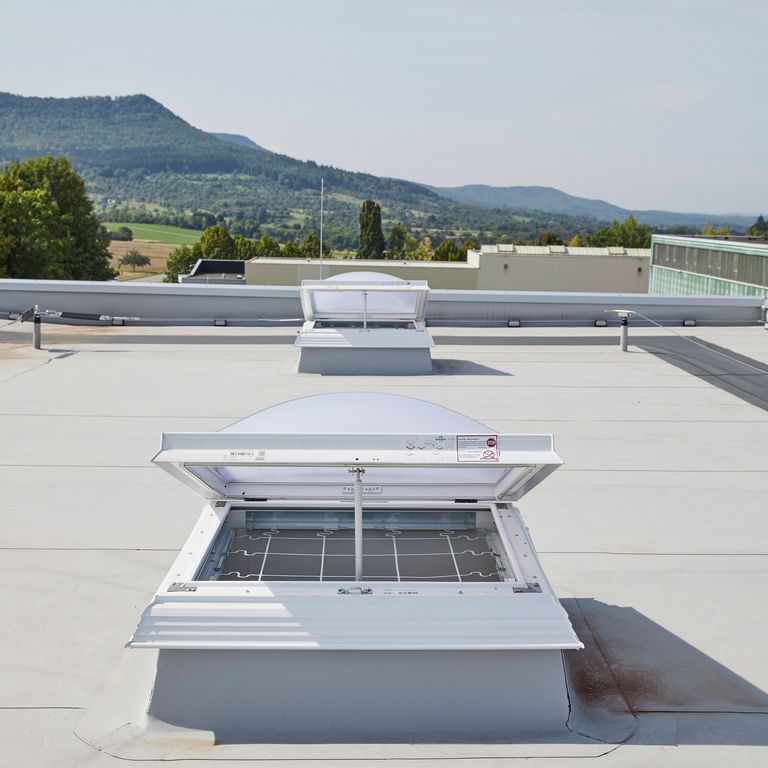

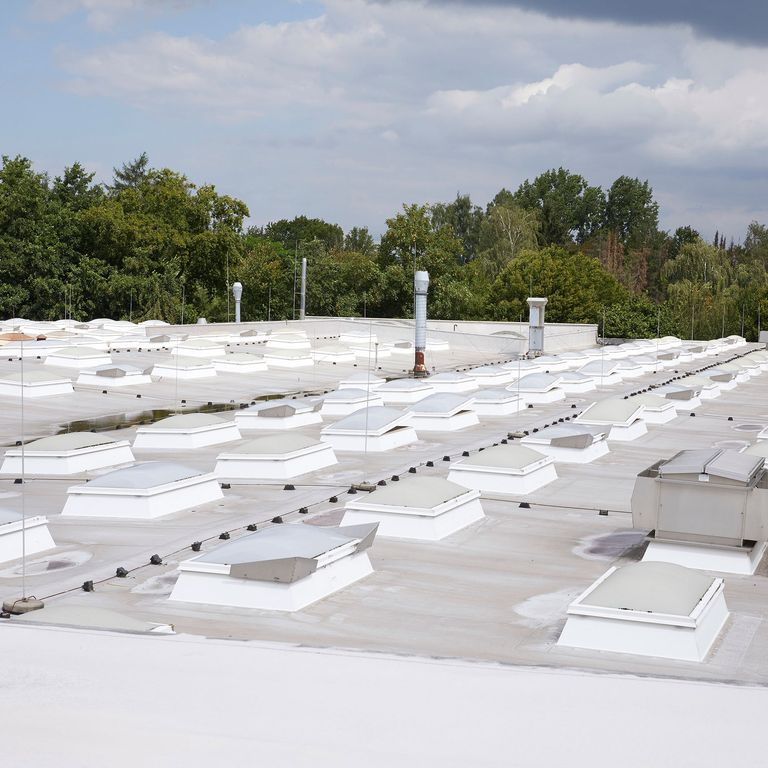

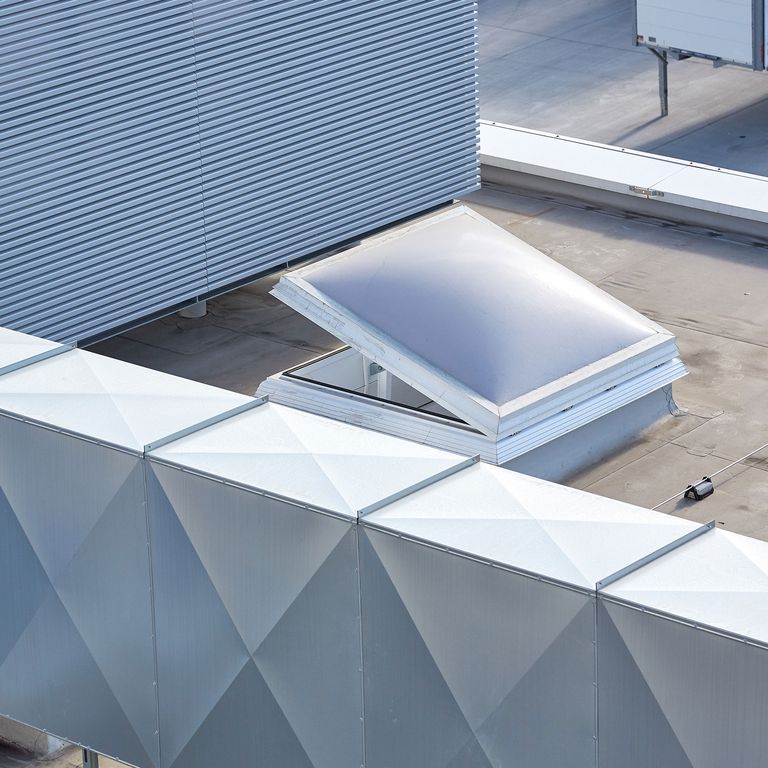

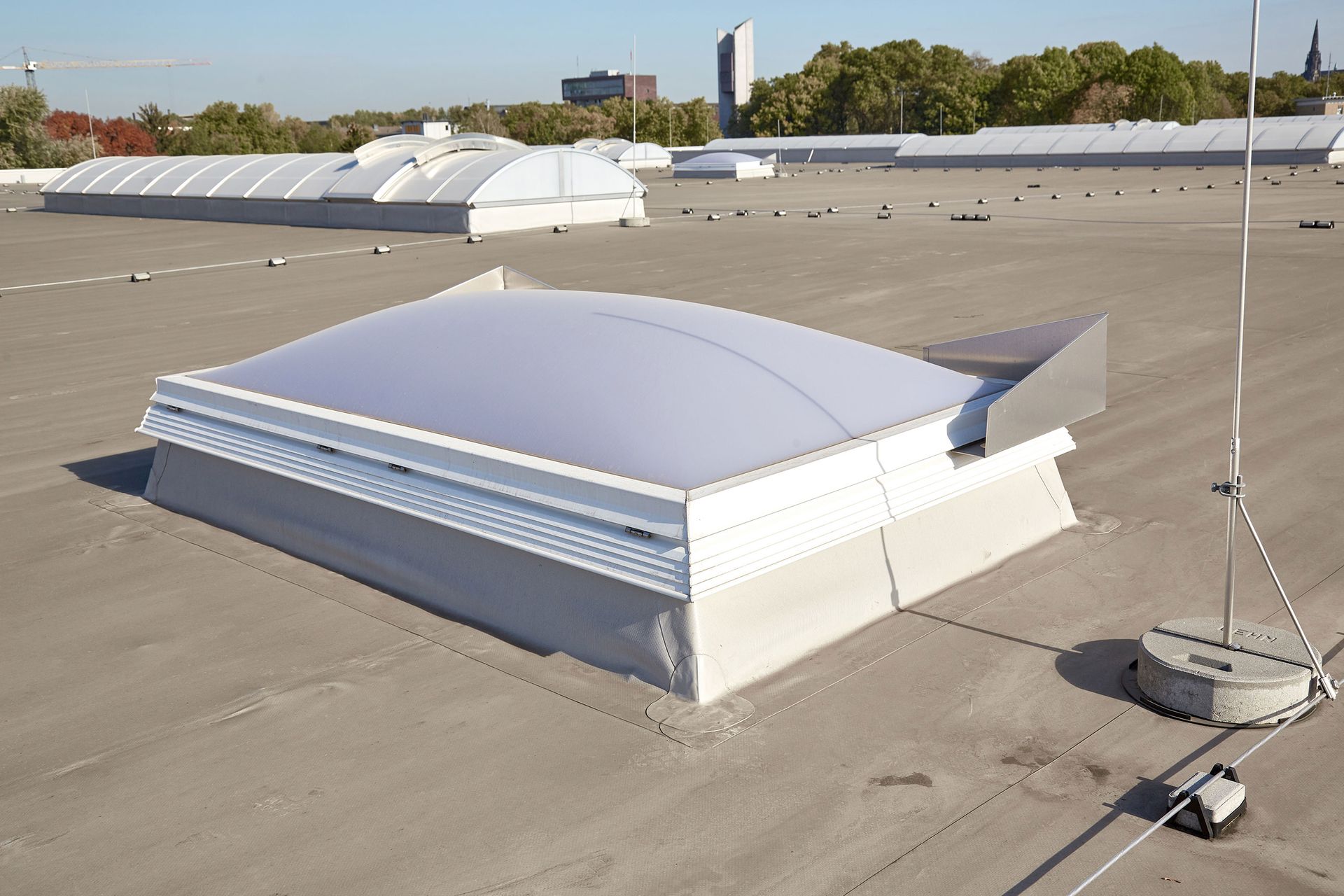

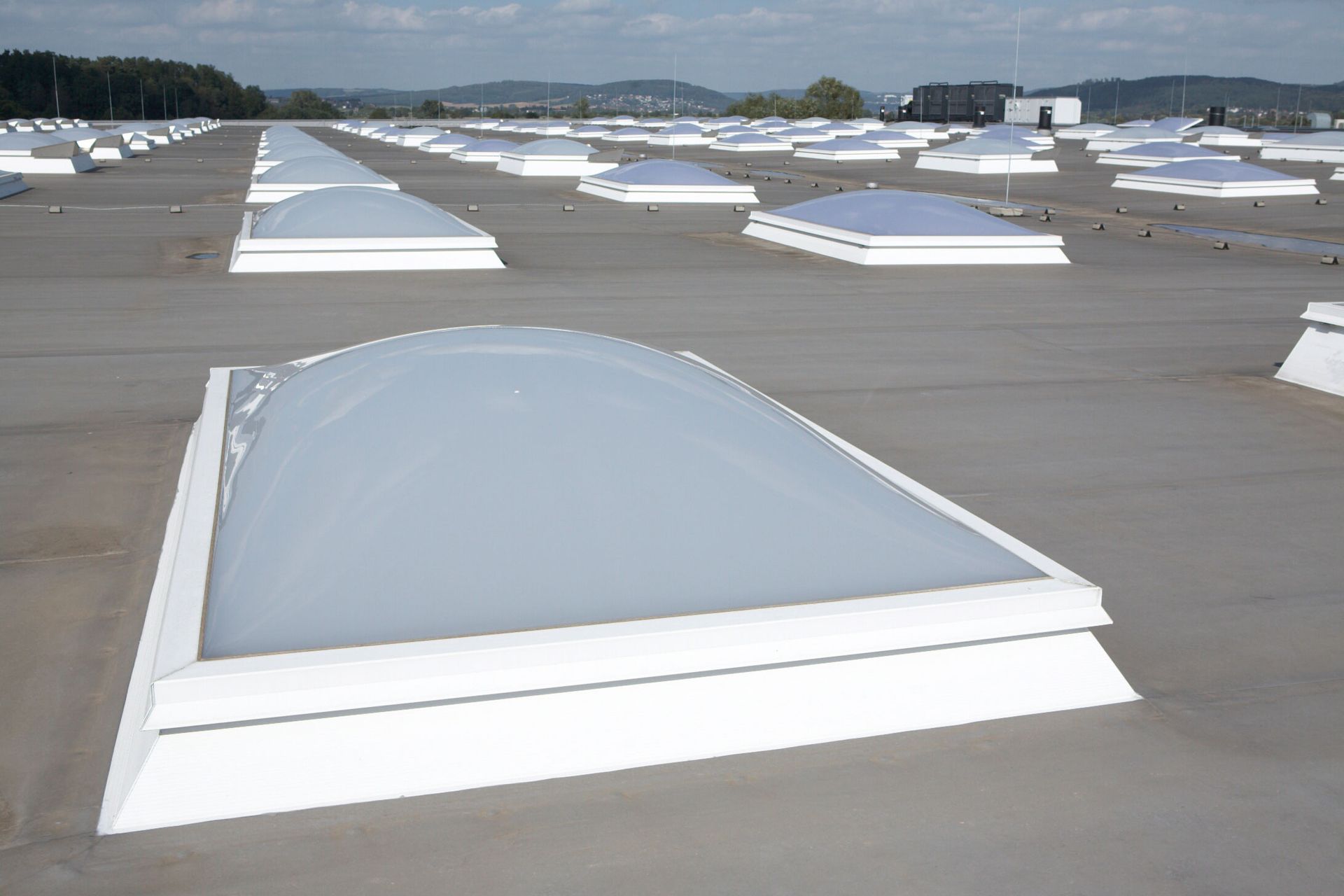

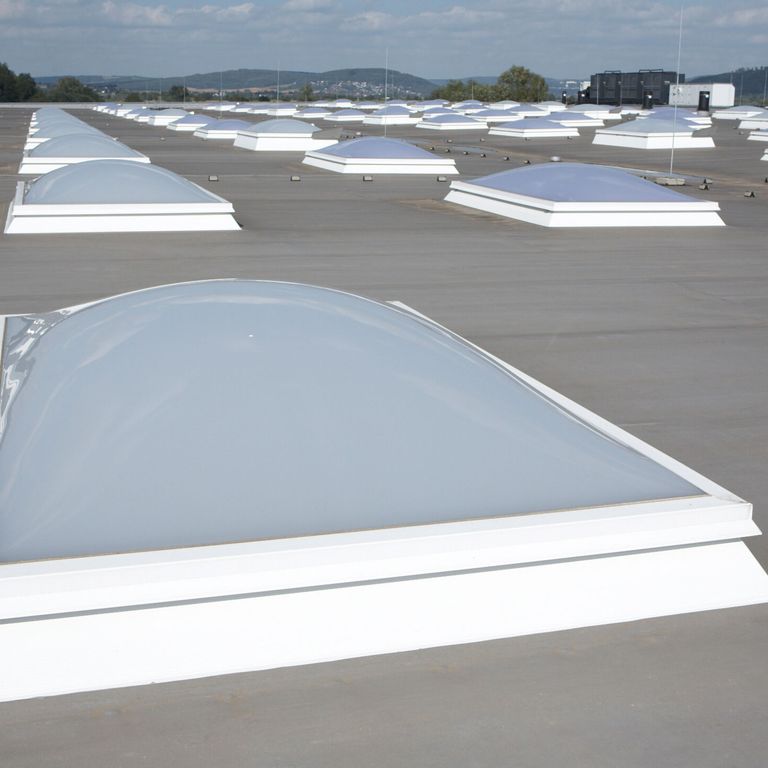

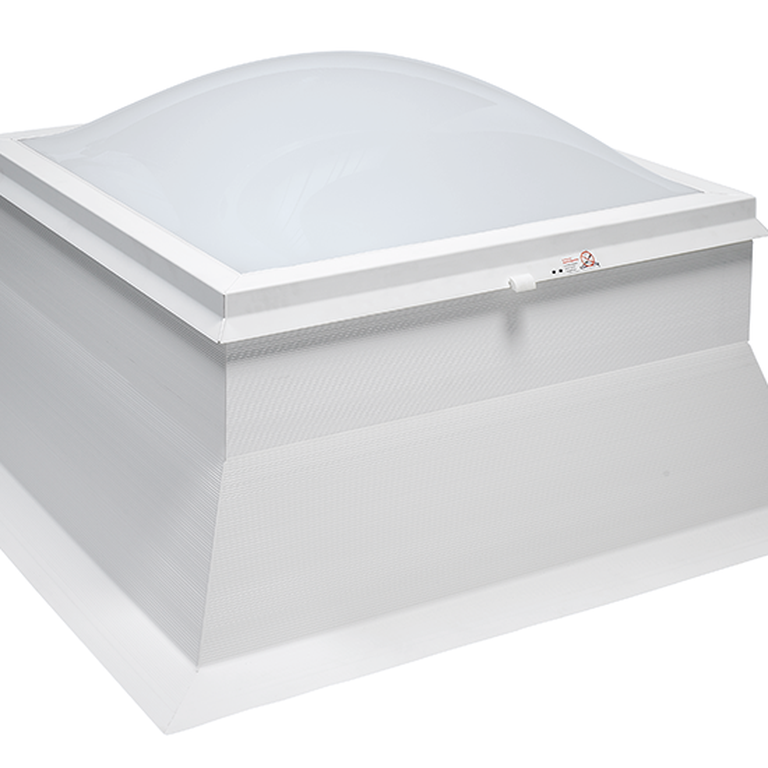

The LK classic skylight dome is a flexible option for enhancing daylight in a building, with double or triple-skin polycarbonate glazing. Suitable for new build and renovation projects, it is available in a wide range of sizes with several options & accessories to increase its functionality. The domes can also be installed with an opening base and drives allowing them to be used for daily ventilation and/or smoke and heat exhaust where required, maximising functionality from a single rooftop unit.
Product Highlights

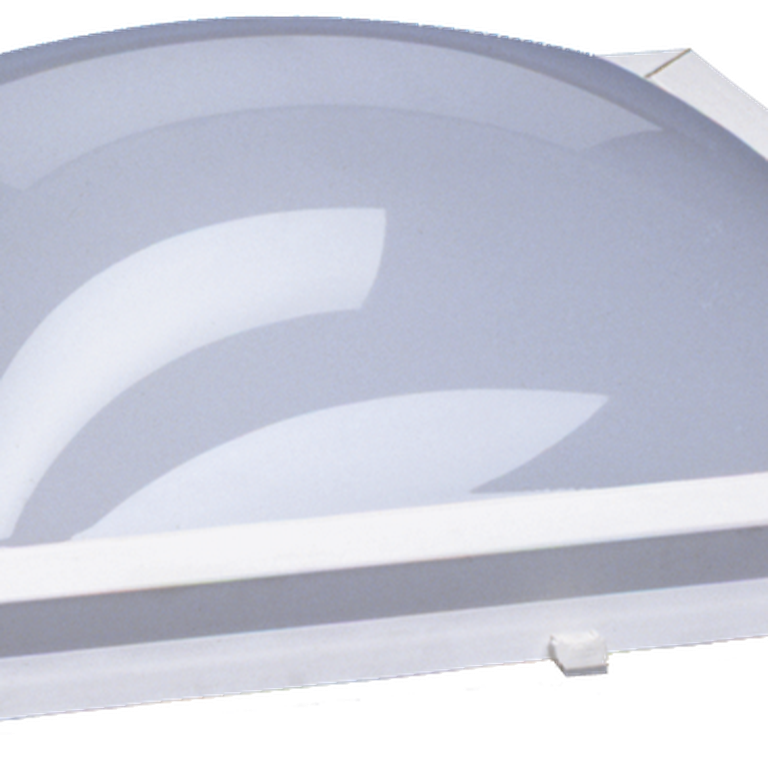

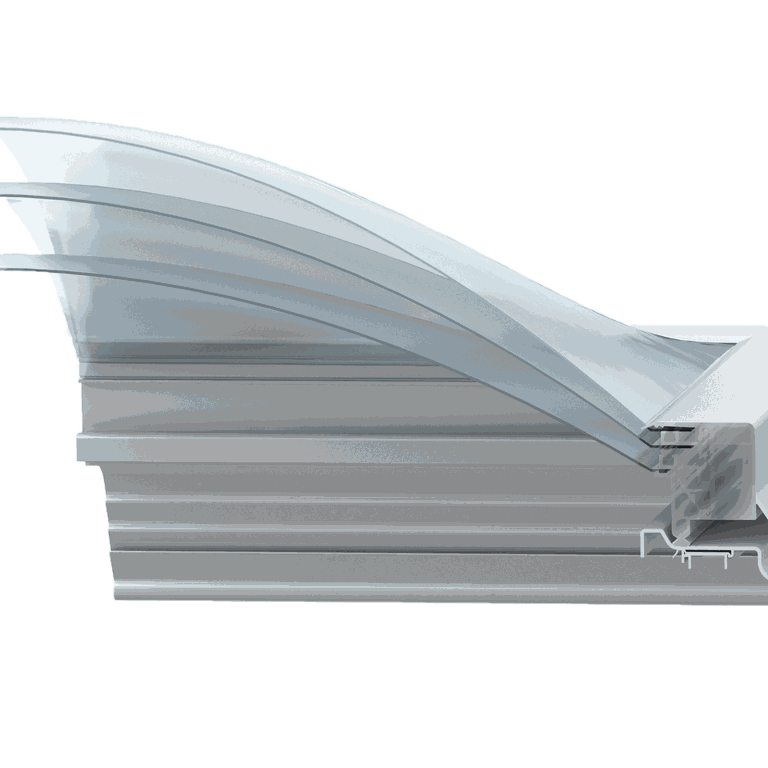

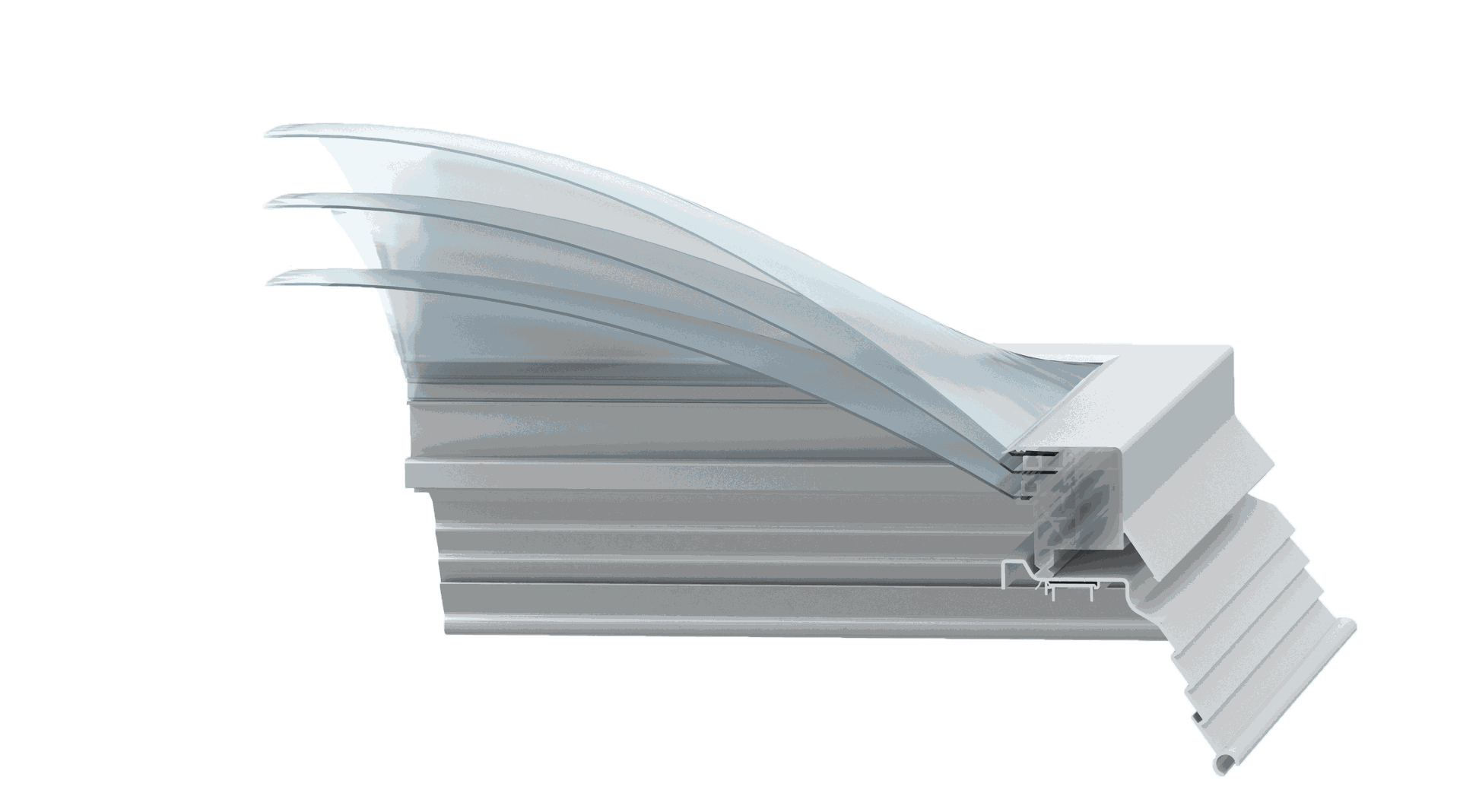

- High quality, double or triple-glazed polycarbonate dome

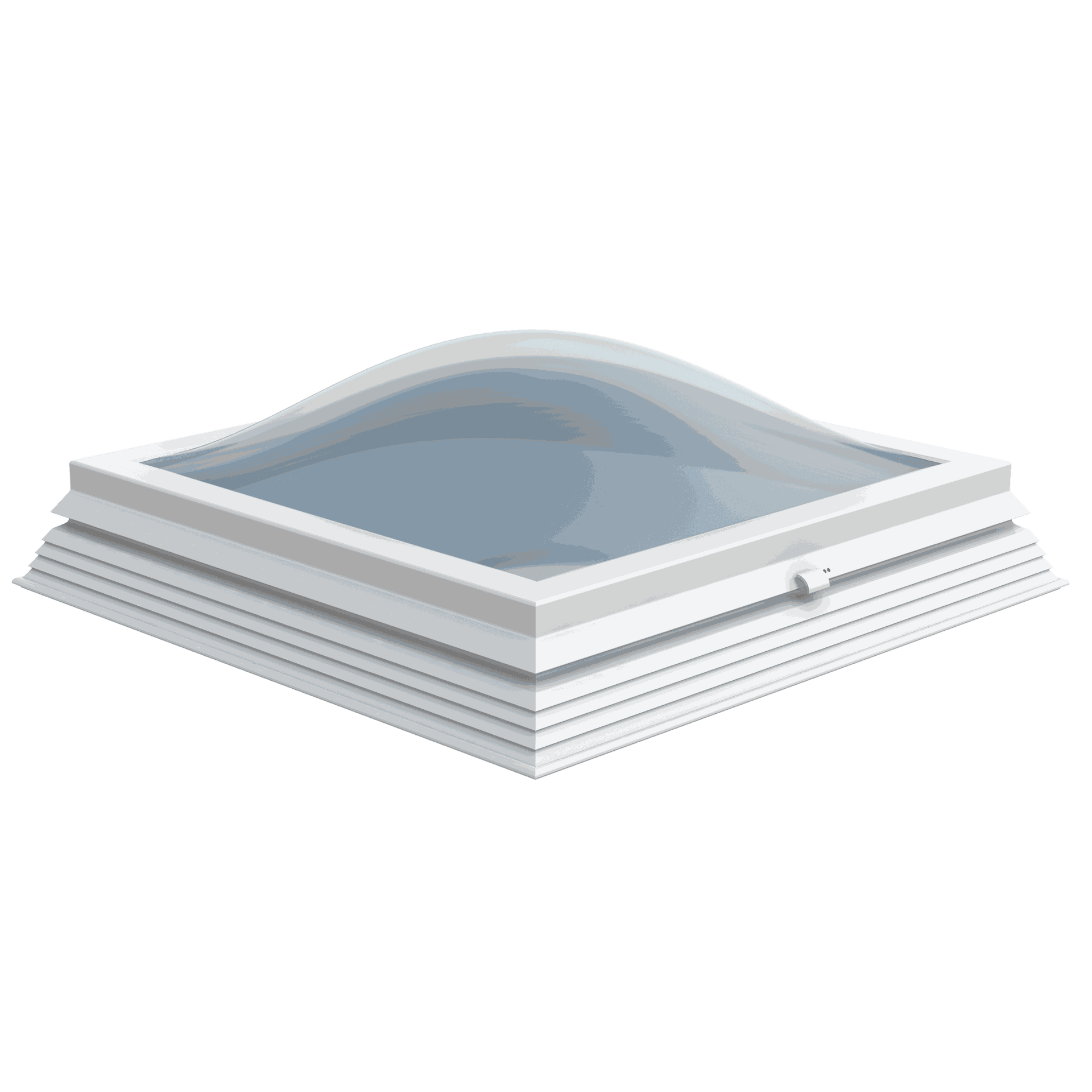

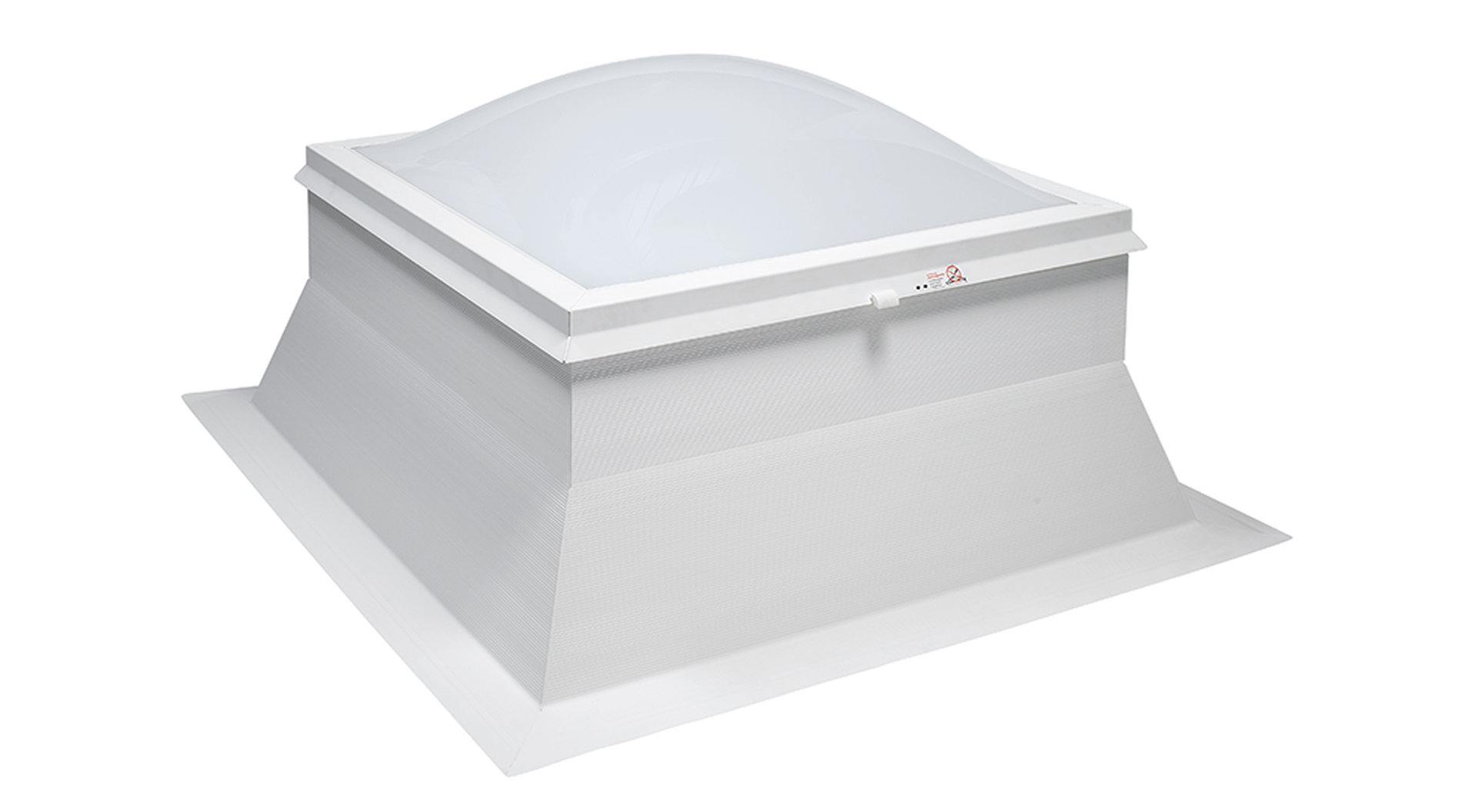

- Sturdy PVC upstand
- Wide range of sizes to suit all project requirements

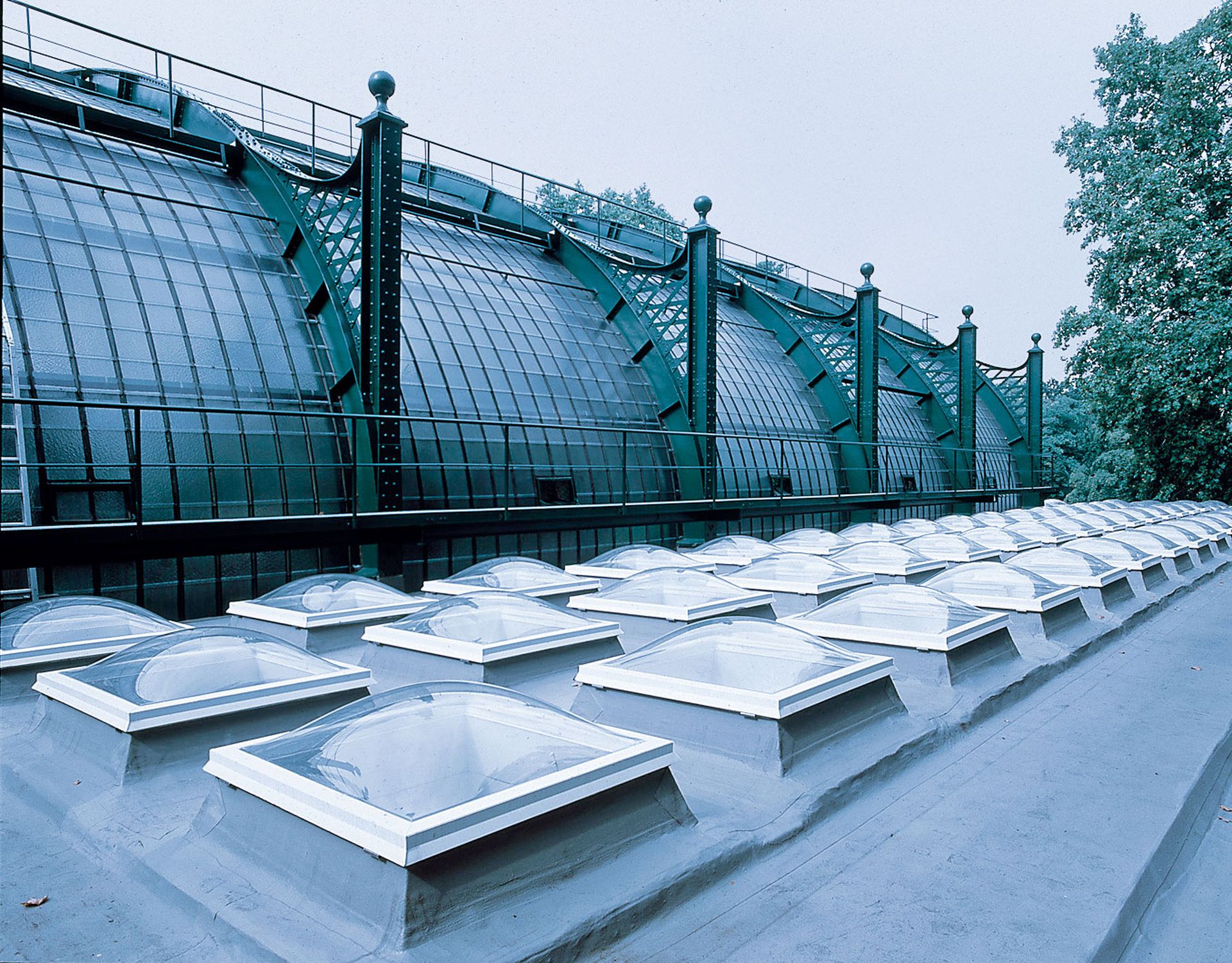

- Suitable for retrofit applications and projects

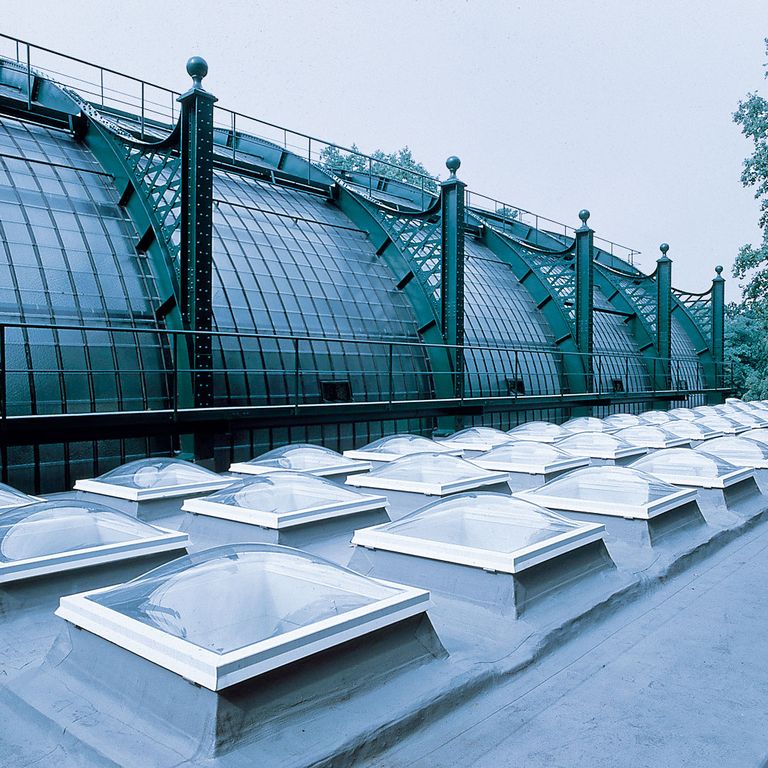

- Available in opal as standard or clear
- Ut-values of glazing: 1.1 to 1.9 W/m²K (depending on glazing type)
- Wide range of optional accessories, including fall protection
Technical Information
Light Transmittance
The LK classic skylight dome can achieve a light transmission value of up to 61% with opal glazing and up to 87% with clear glazing (depending on the chosen number of glazing shells).
Please contact our technical team for further information or refer to our product data sheet.
Ut-value
The LK classic skylight dome can achieve a Ut-value of up to 1.1 W/m²K with a PC-st glazing.
Please contact our technical team for further information or refer to our product data sheet.
Solar Heat Gain Coefficient (g Value)
The LK classic skylight domecan achieve a g-value of up to 78% with clear glazing.
Please contact our technical team for further information or refer to our product data sheet.
Acoustics
The LK classic skylight domeachieves sound insulation values (Rwp) of up to 22 dB.
Please contact our technical team for further information or refer to our product data sheet.
Frequently Asked Questions
For which roof types is the LK classic skylight suitable?

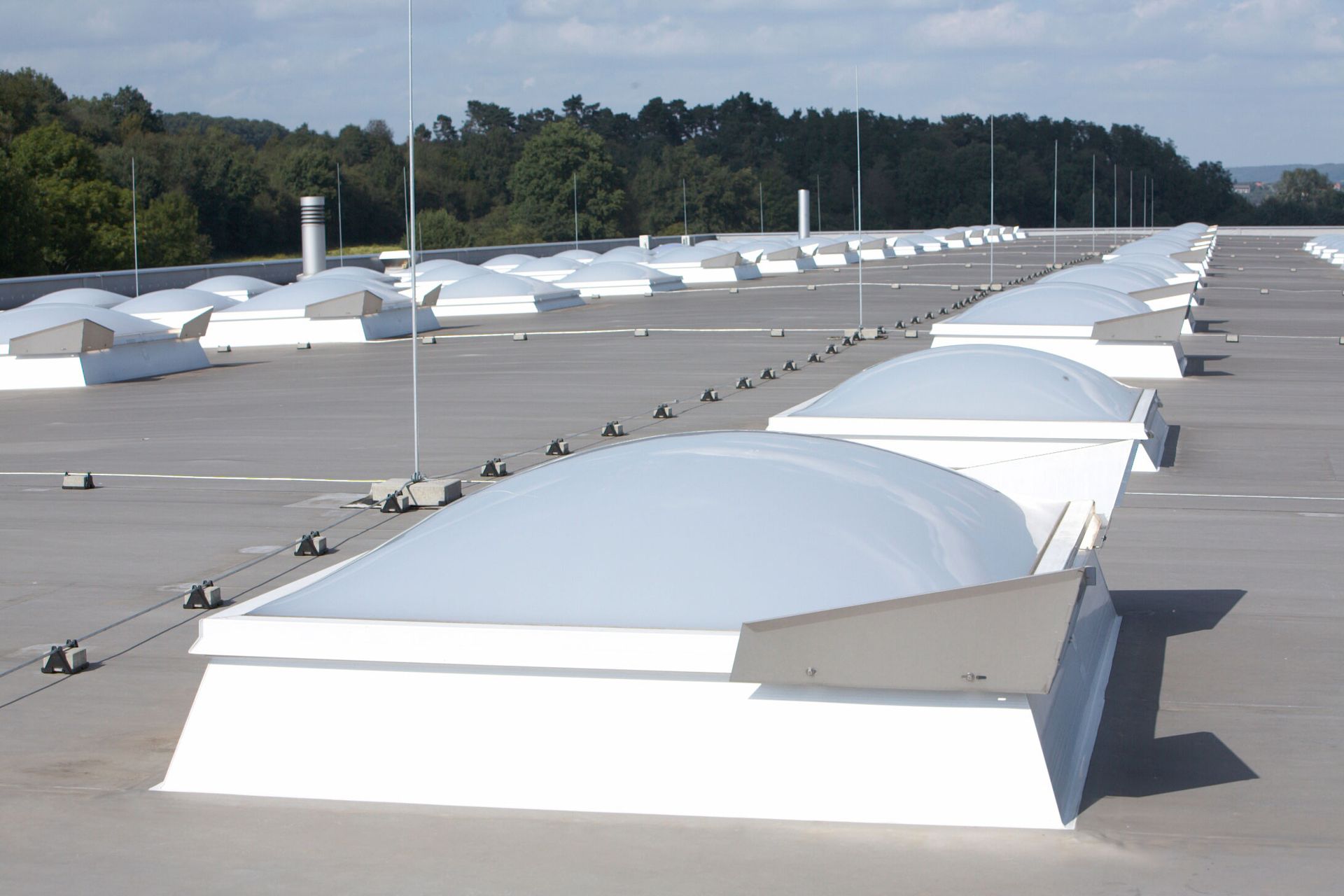

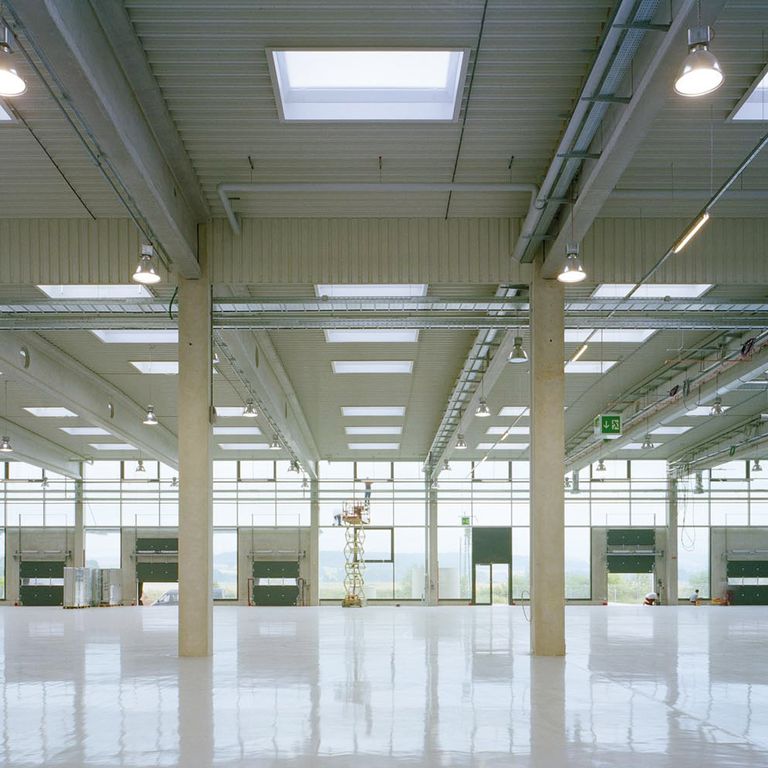

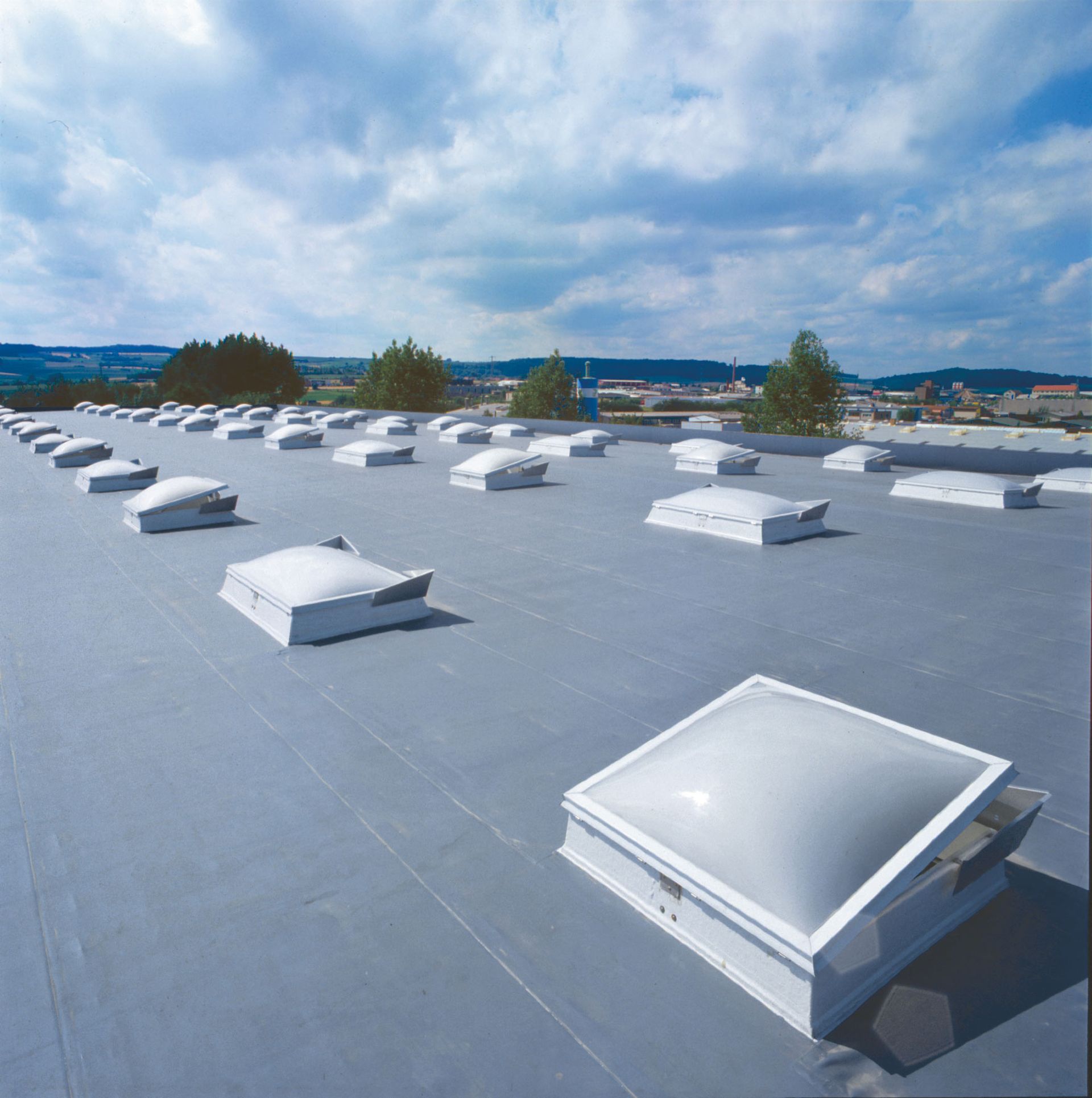

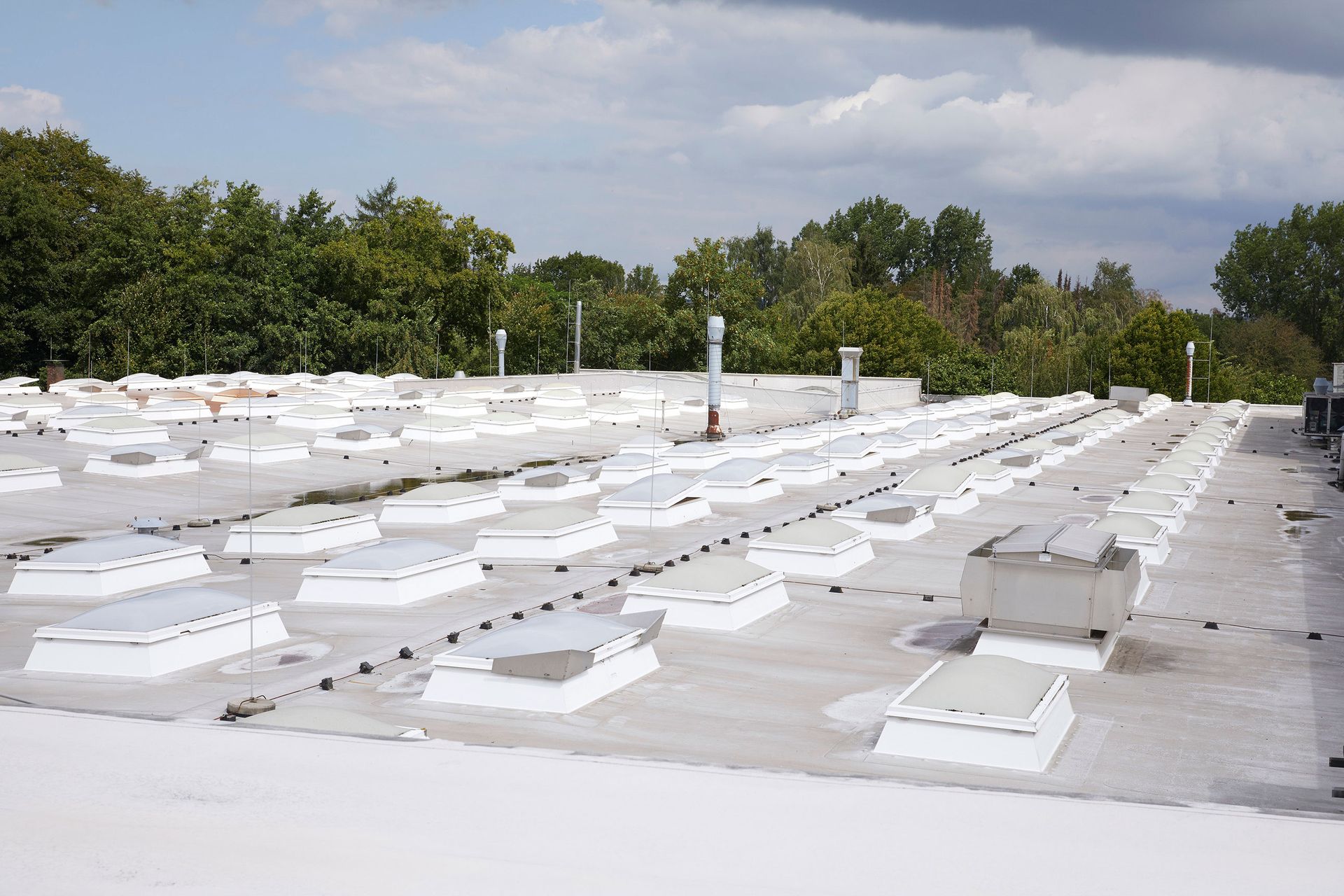

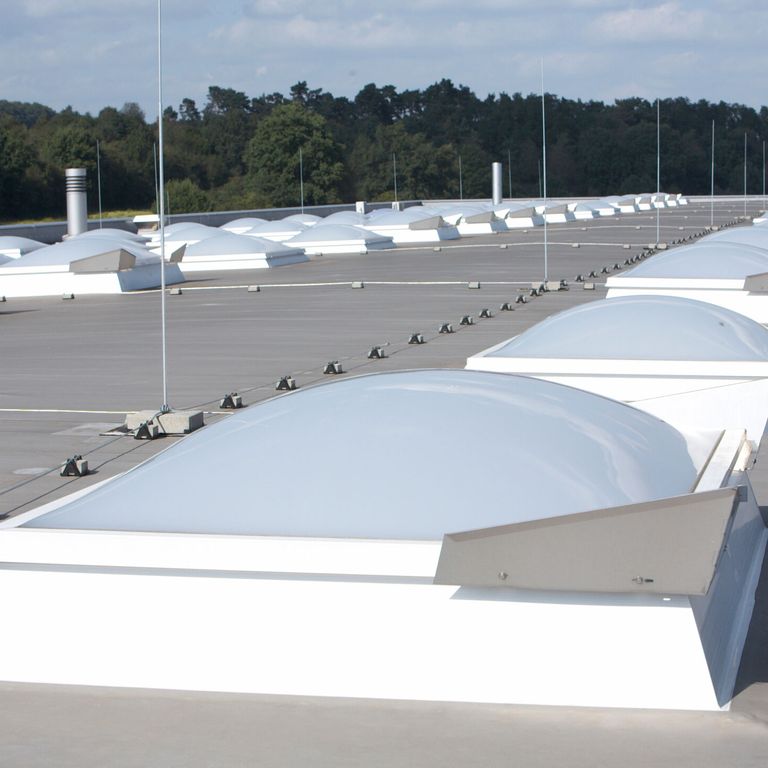

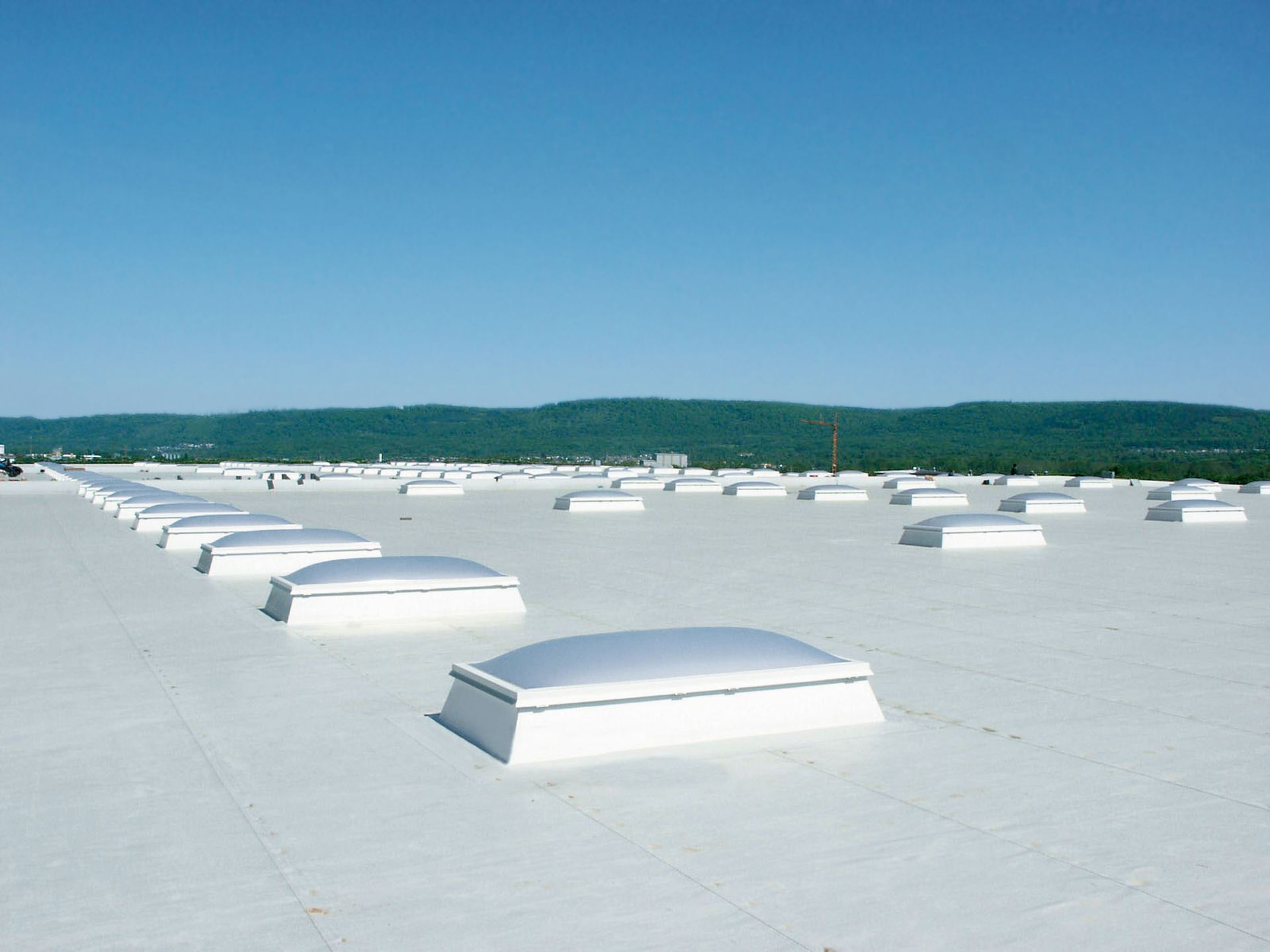

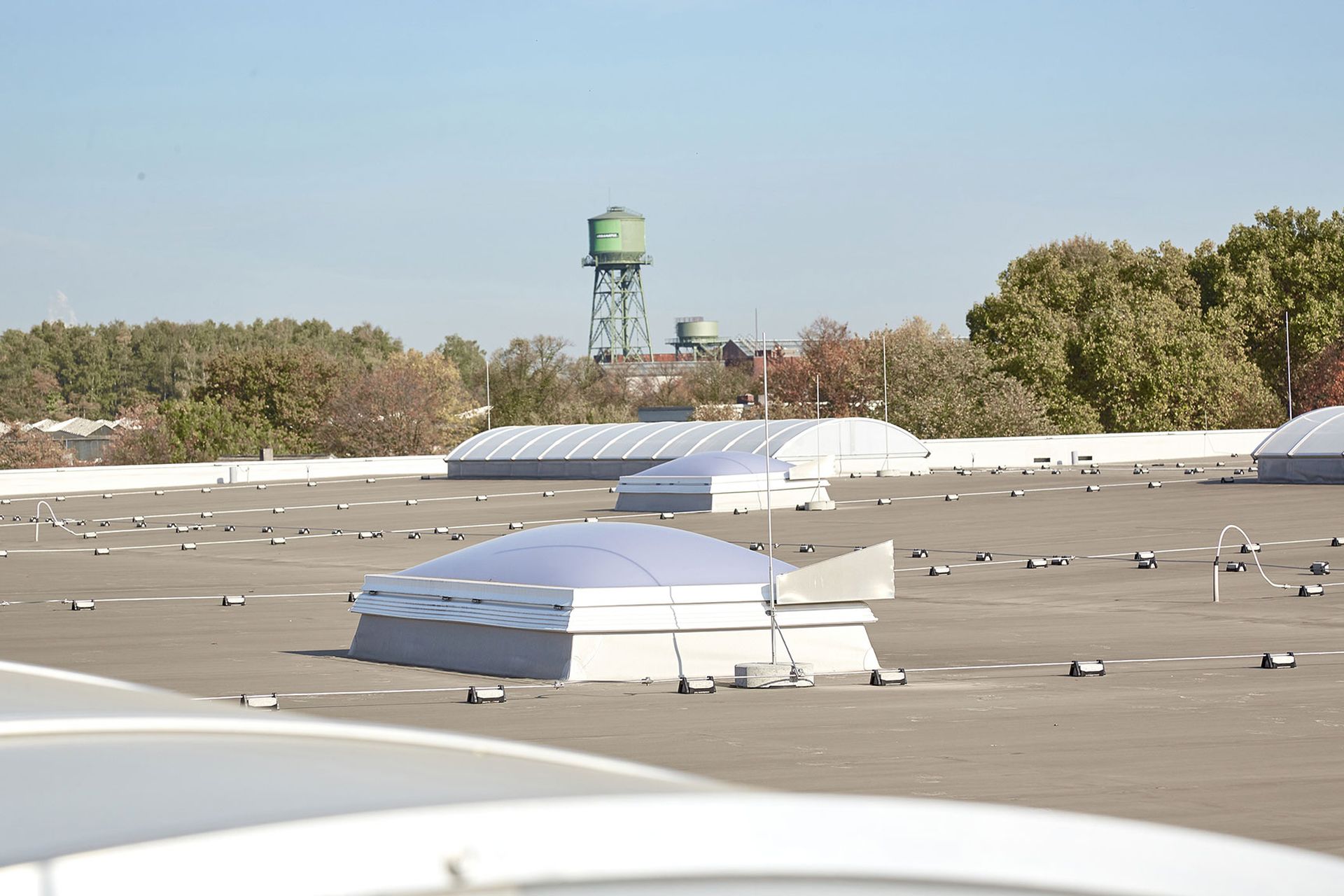

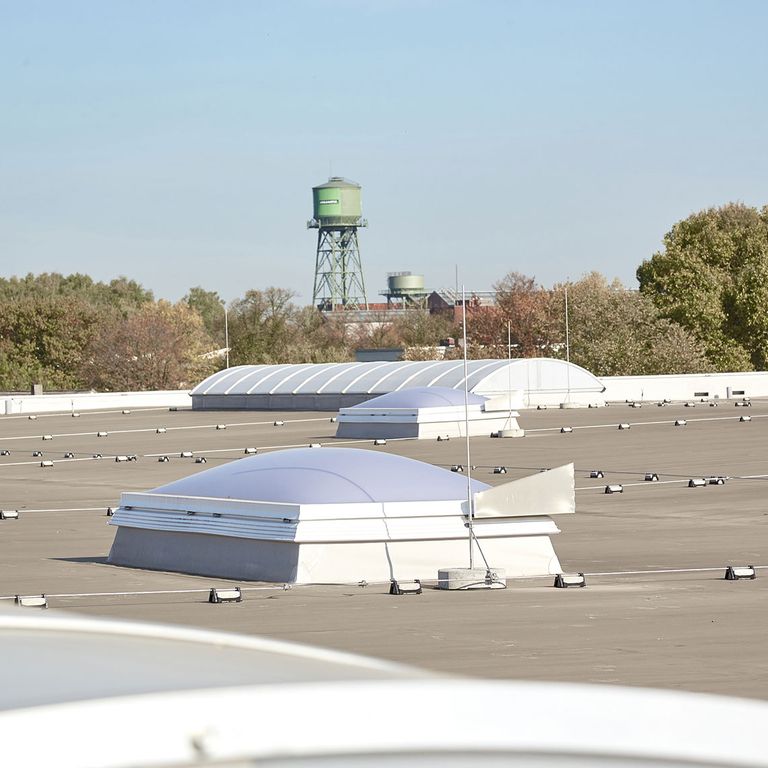

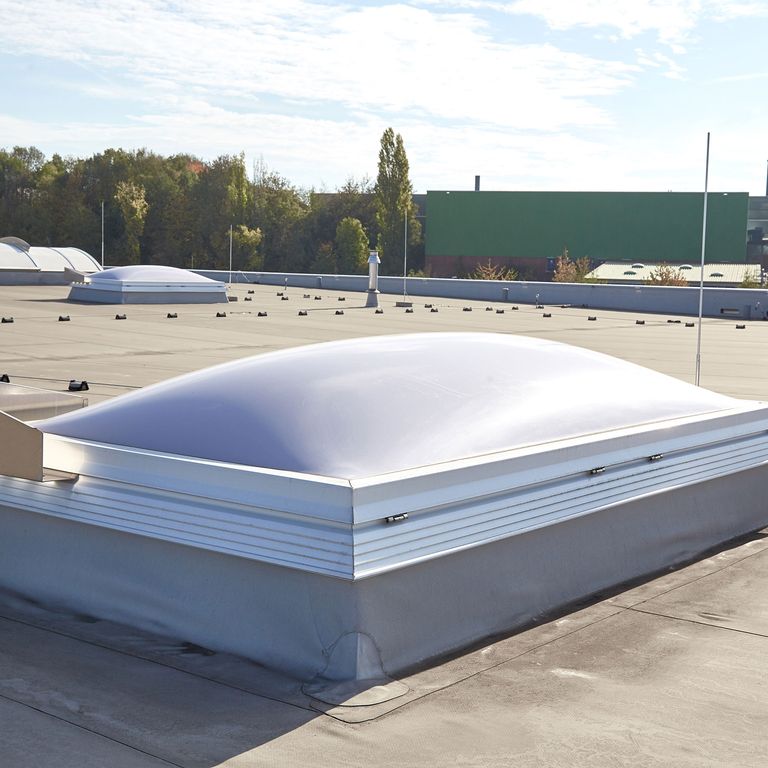

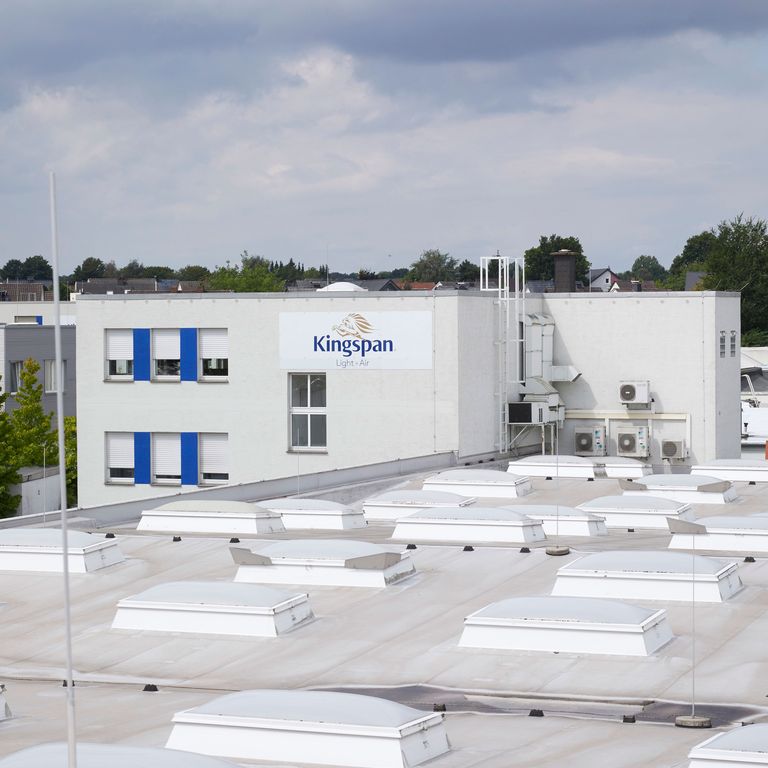

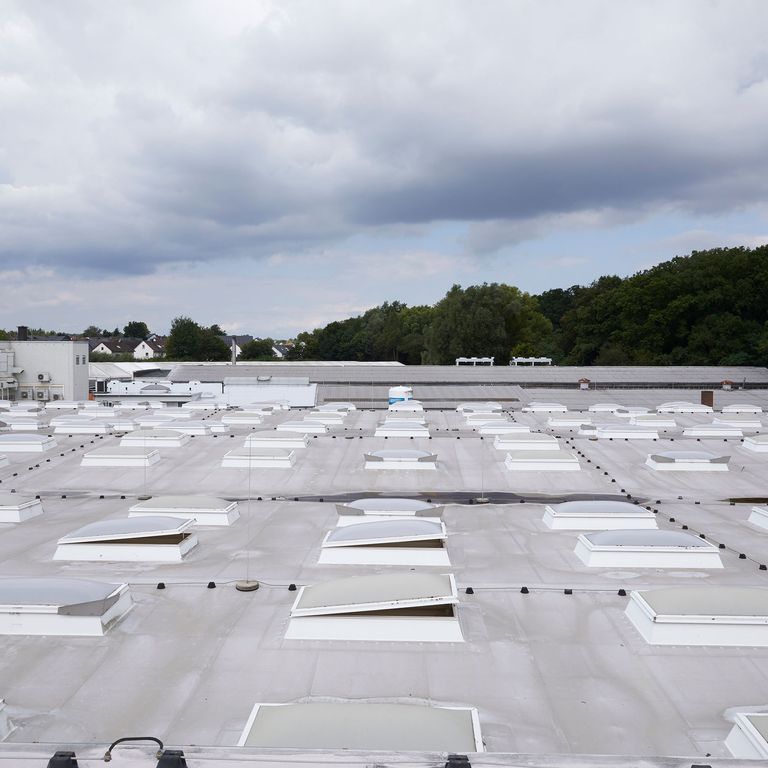

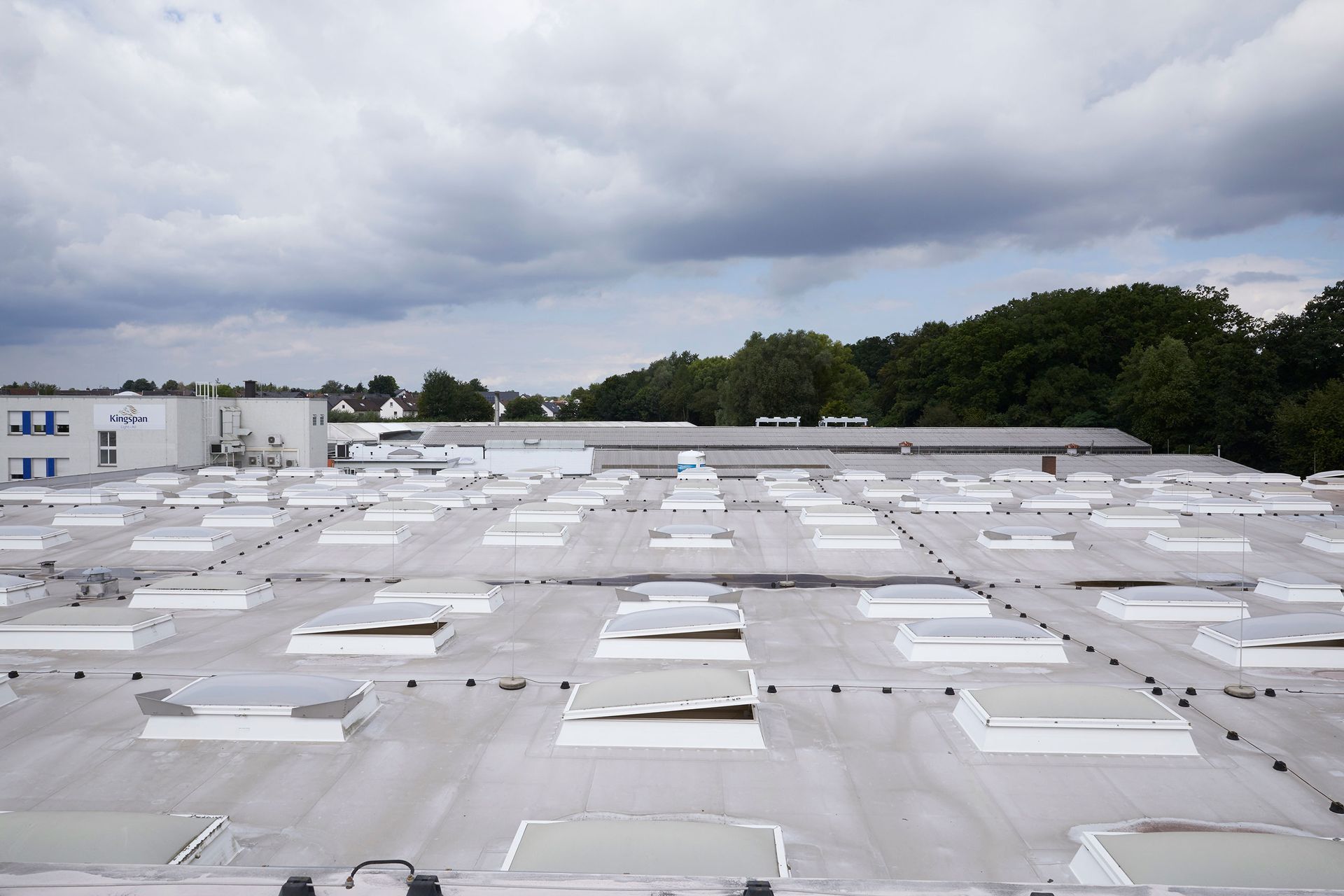

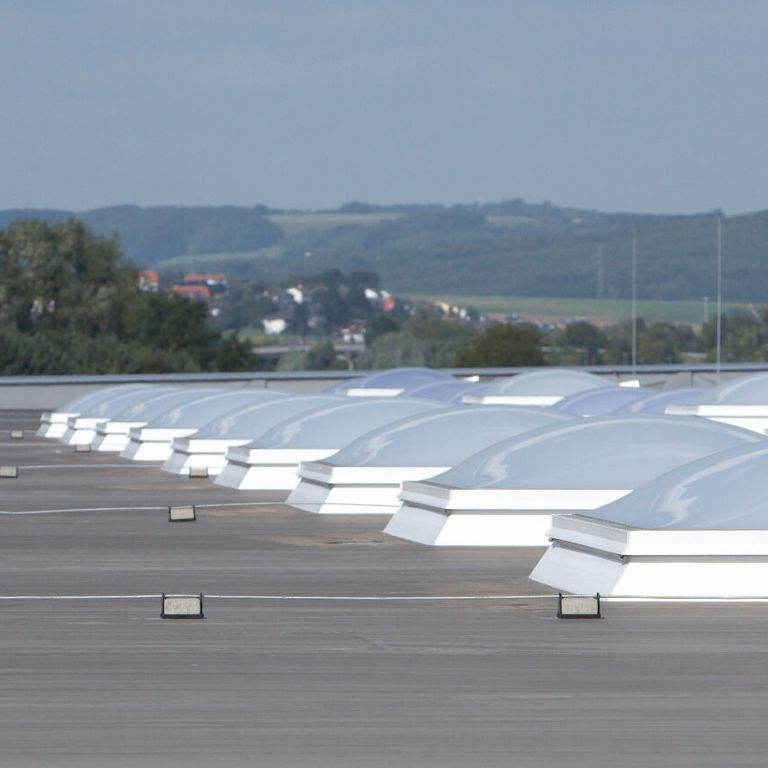

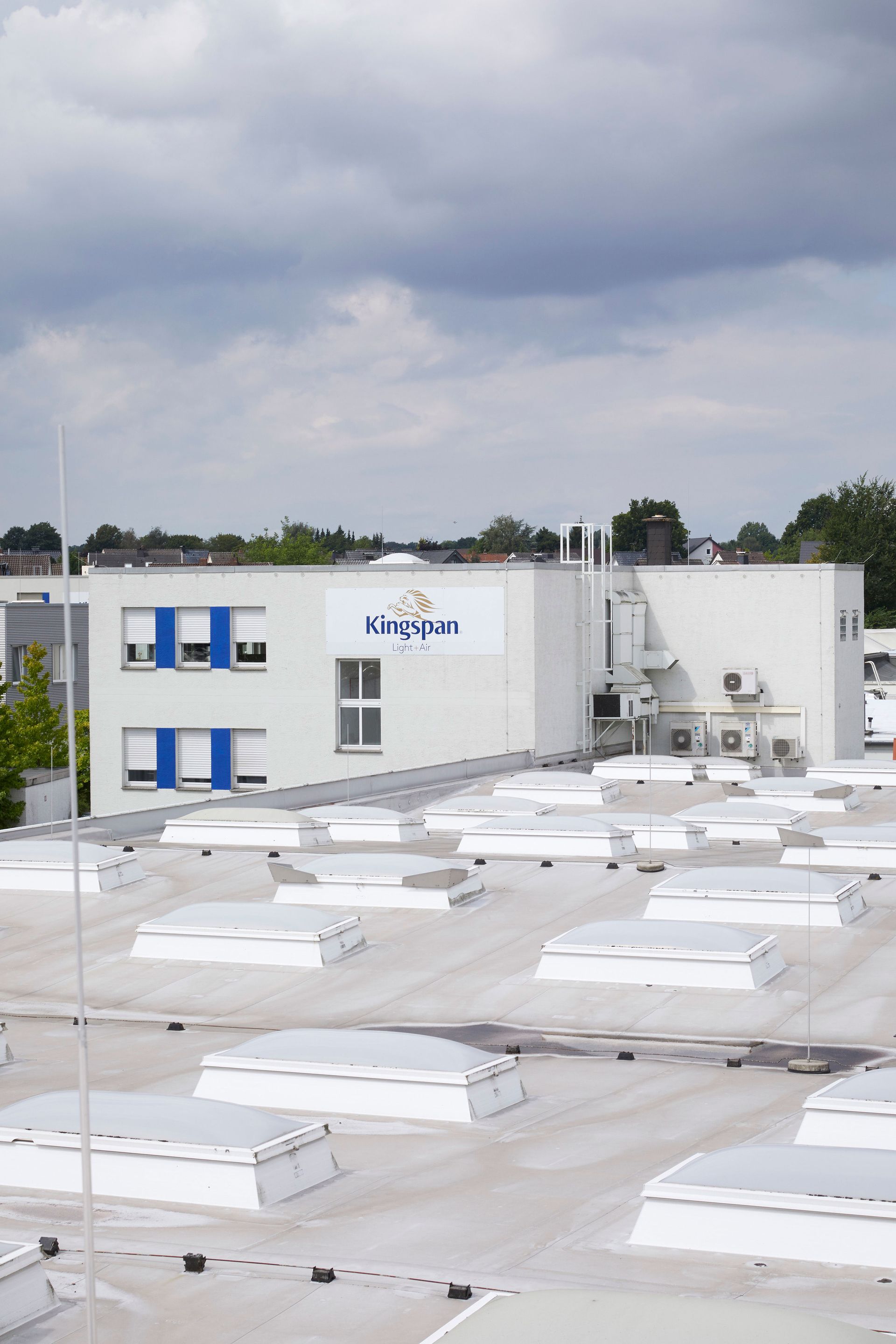

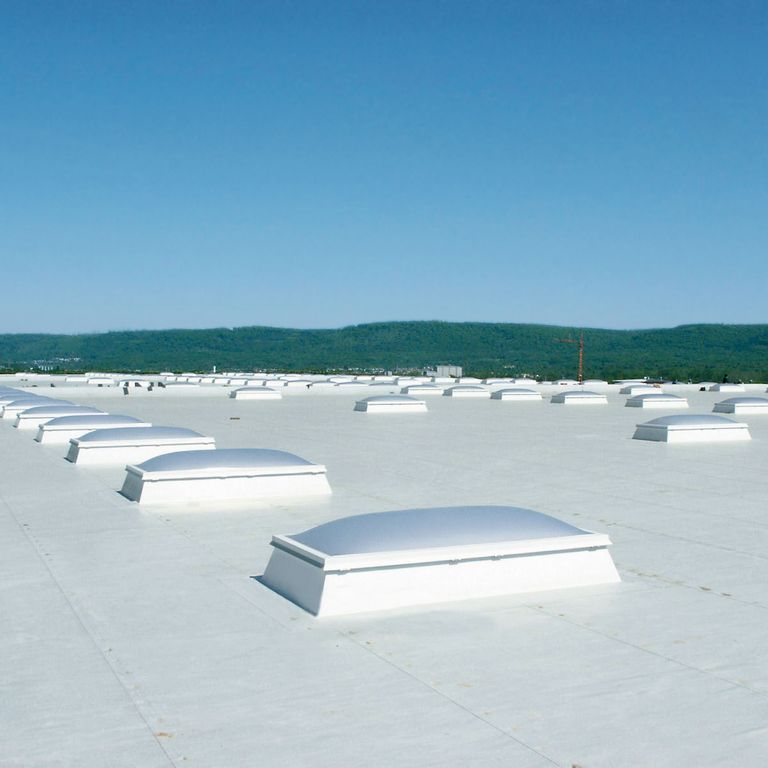

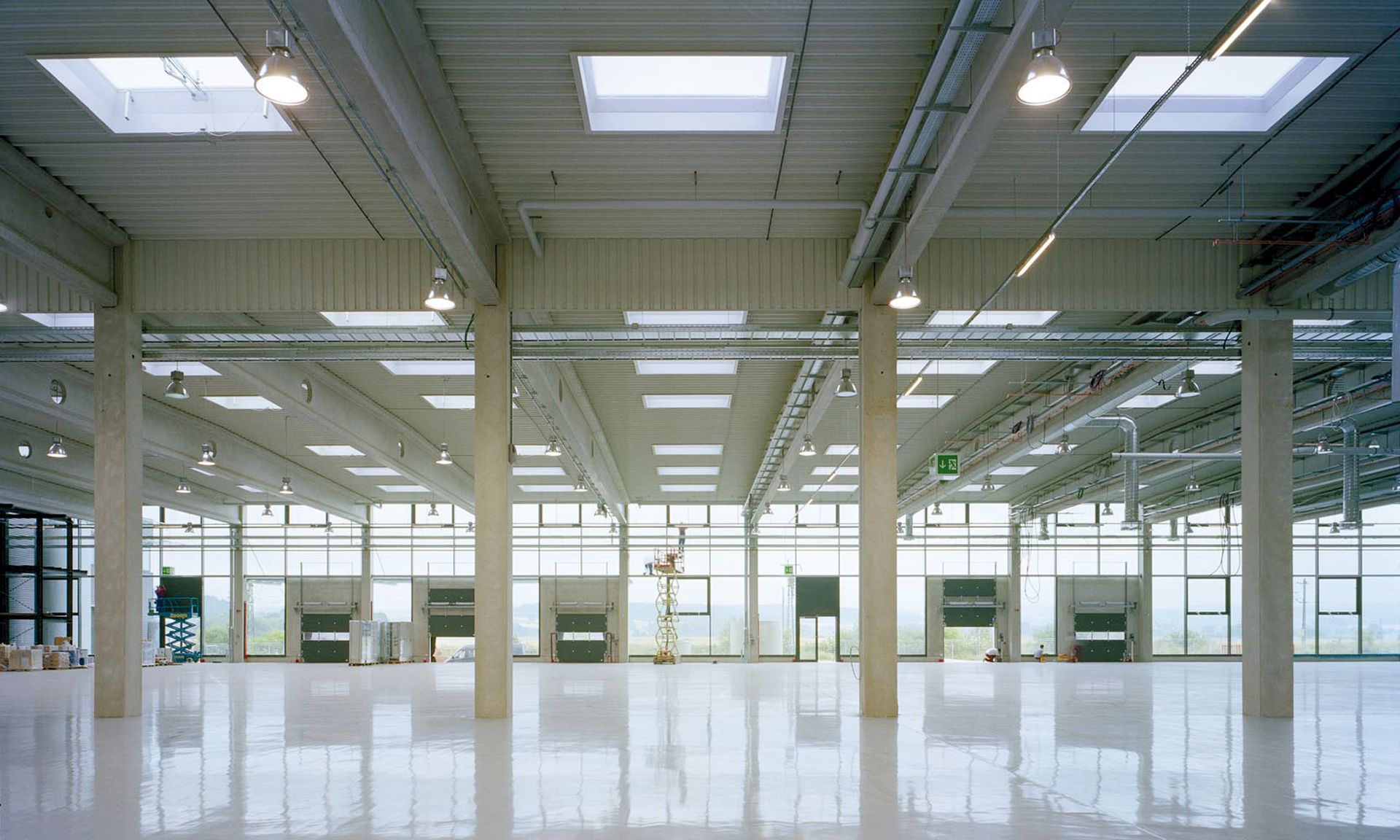

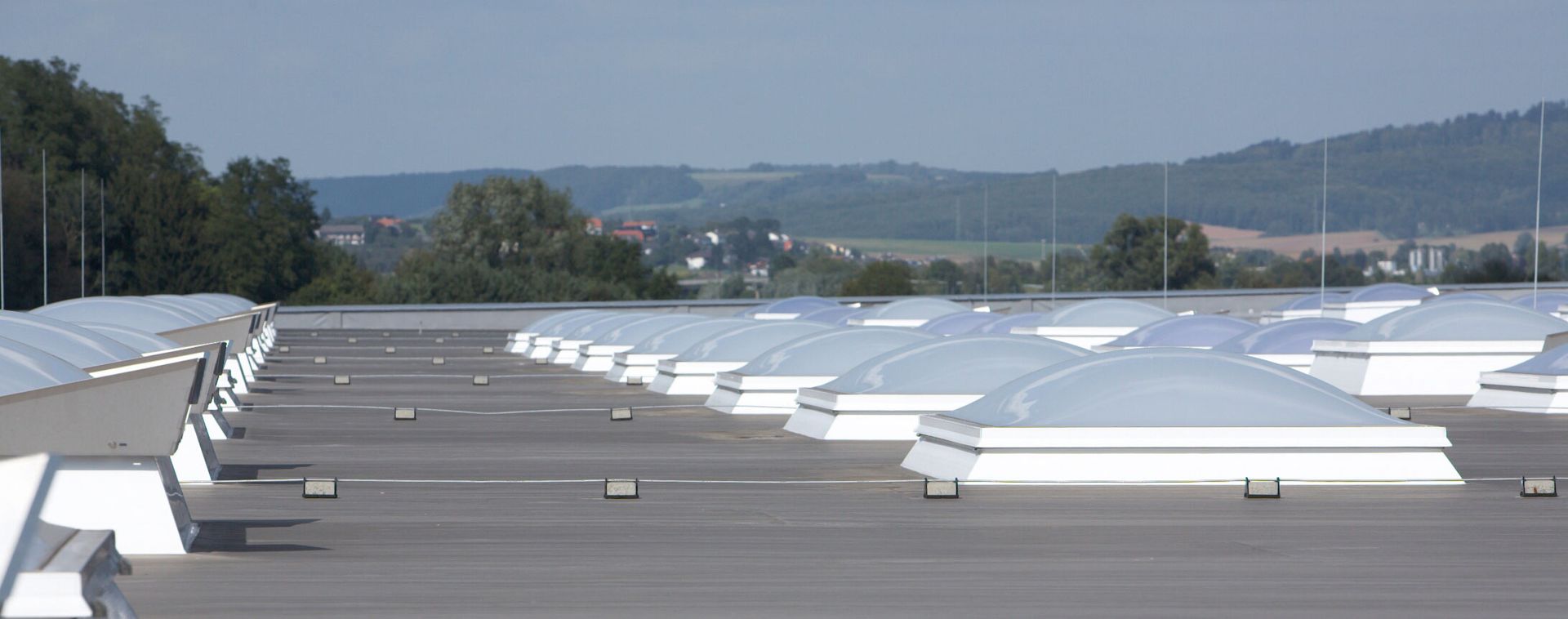

Classic Skylight Domes can be used on all kinds of roofs with pitches up to 25°, with a range of upstands to choose from to ensure the most effective and attractive finish. They are commonly specified for industrial buildings such as warehousing and manufacturing facilities, but their flexibility makes them suitable for a wide range of projects.
Is the LK classic skylight easy to install?

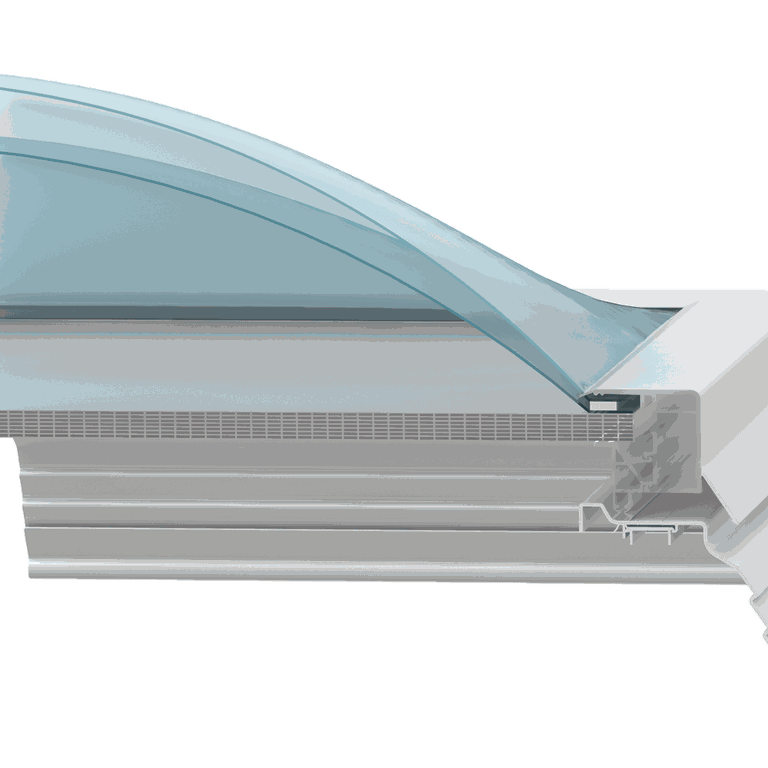

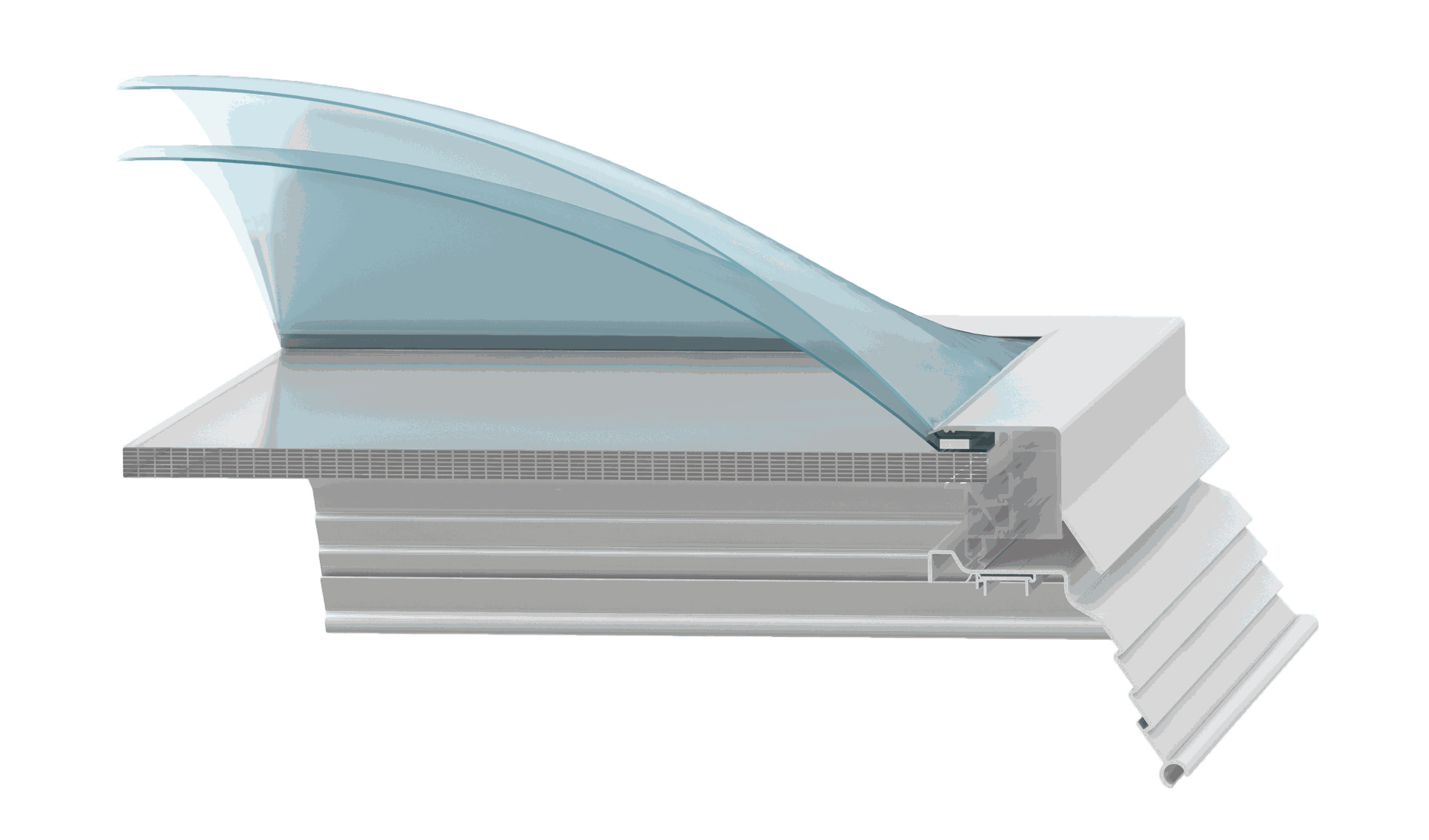

They have been designed to be simple to fit, reducing construction times and aiding accurate install. The polycarbonate dome is simply slotted over the upstand and secured tightly with pins.
What sizes is the LK classic skylight available in?
The Classic Skylight Dome is available in a wide range of sizes, ranging from 50 cm (L) x 100 cm (W) (daylight area 0.24 m2) to 200 cm (L) x 300 cm (W) (daylight area 5.04 m2).
Are LK classic skylights available with fall-through protection?
Yes, they are available with a range of fall protection and fall arrest safety systems ideal for opening units. These are made from a robust and rigorously tested steel mesh, helping to prevent falls from height and offering enhanced security. For more details, please contact your local sales team.
