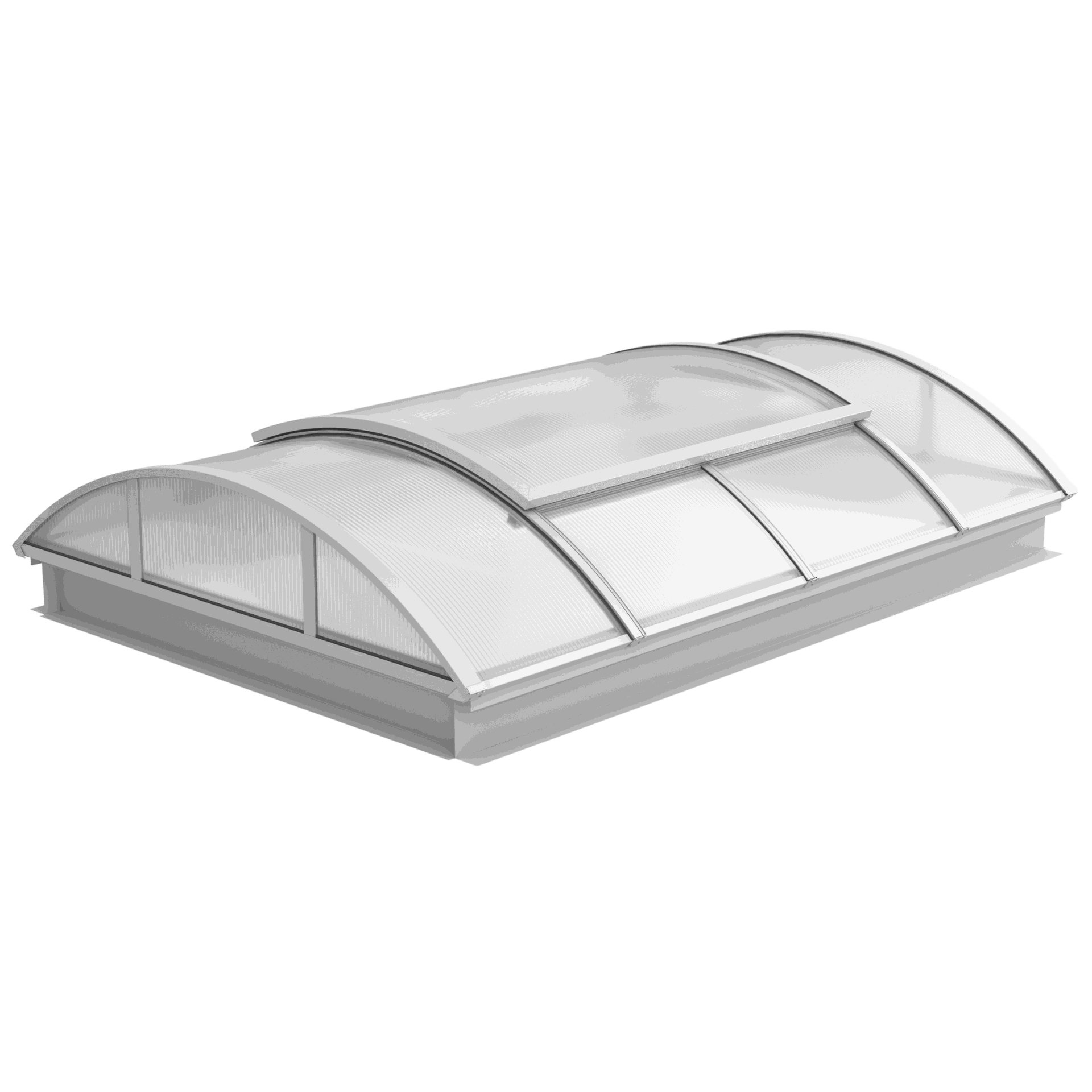

LB basic RooflightContinuous, modular rooflight designed for industrial roofs & long spans.
Product Information
The continuous, modular design of the LB basic Rooflight makes it an ideal daylighting solution for industrial roofs and longer spans. It is available in a range of spans with a variety of polycarbonate infill options. The modular design means the LB basic Rooflight can be infinitely long. As well as being a daylighting solution, it can also be adapted for daily building ventilation or complex smoke & heat extraction systems.
Product Highlights
- Modular solution allows design flexibility and infinite runs
- Available in any length, in spans from 1 – 6 metres
- Various polycarbonate infill options to meet project requirements

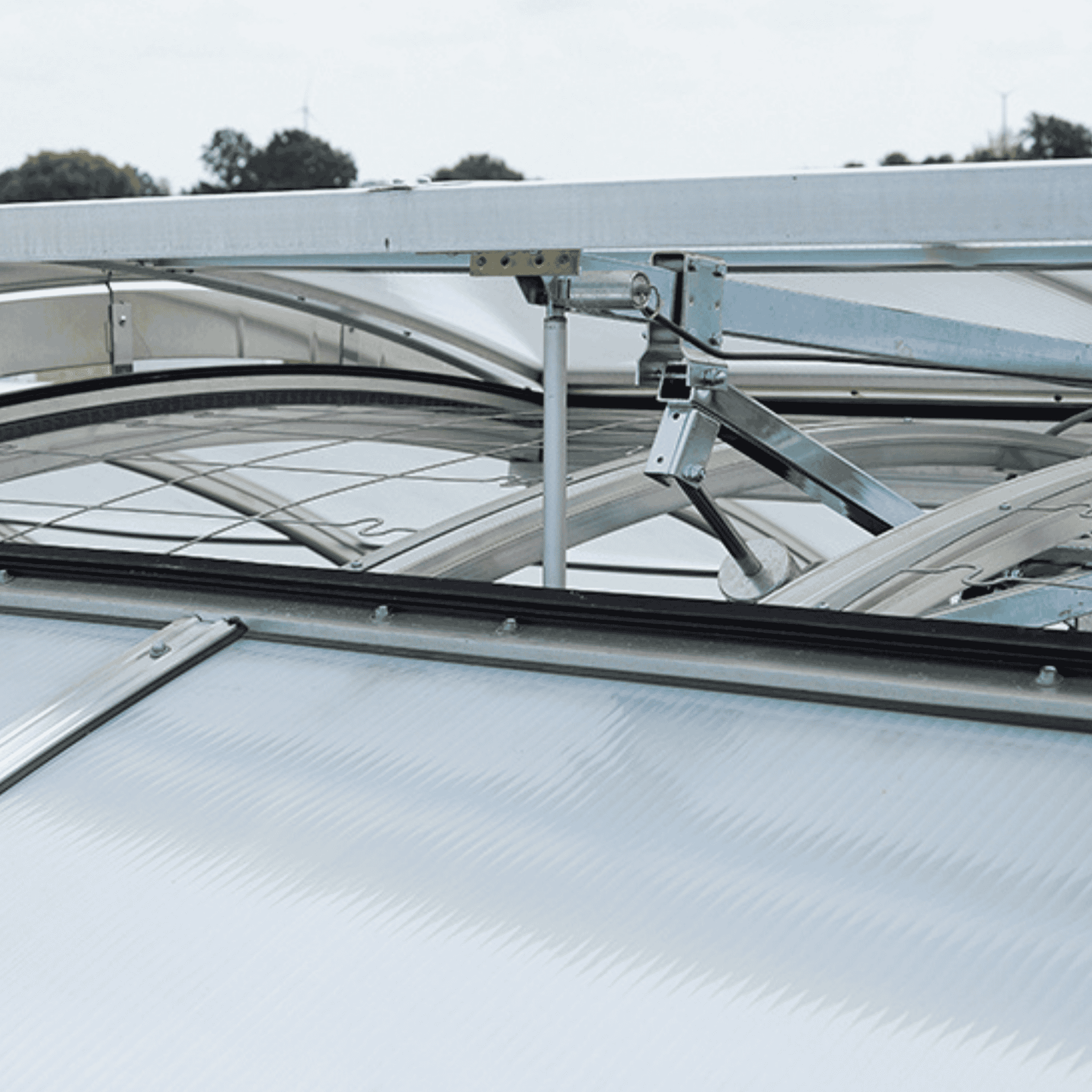

- Smoke and heat extraction flap systems tested in accordance with EN 12101-2
Technical Information
Dimensions
The LB basic Rooflight is available in span widths ranging from 1 – 6 m depending on the glazing option selected and due to its modular design, its run length is infinite.
Light Transmittance
The LB basic Rooflight can achieve light transmittance levels of up to 61% depending on the glazing option selected. Please contact our technical team for more information
Thermal Performance (U-Value)
The LB basic Rooflight can achieve a Ut value of between 1.3 to 2.9 W/m²K, depending on the glazing option selected. Please contact our technical team for more information
Solar Heat Gain Coefficient (g Value)
The LB basic Rooflight can achieve a Solar Heat Gain Coefficient (g Value) of between 0.31 to 0.61 depending on the glazing option selected. Please contact our technical team for more information
Acoustic Performance
The LB basic Rooflight can achieve an acoustic soundproofing quality (Rwp) of between 19-30 dB. Please contact our technical team for more information
Certification + Accreditations
- Approved according to European Technical Approval (ETA) - 17/0482 and type approval
- Reaction to Fire EN 13501 classification of either B-s1, d0 or E, depending on the glazing option selected. Please contact our technical team for more information or view our product datasheet
- Smoke and heat extraction flap systems tested in accordance with EN 12101-2
